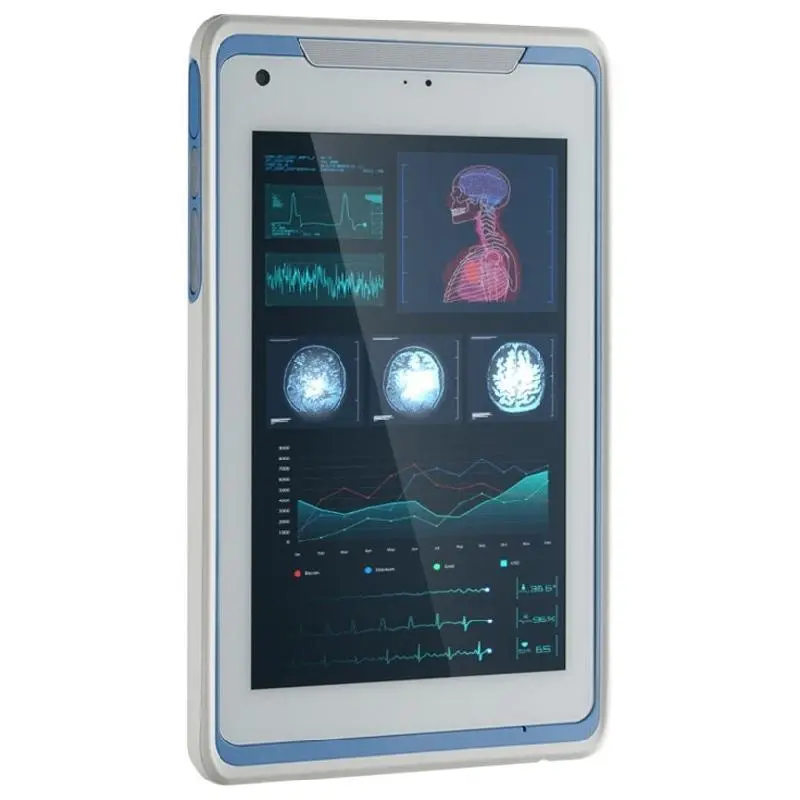

Advantech AIM-75H 8" Medical-Grade Tablet with Qualcomm® Snapdragon™ 660 Processor and PCAP Touchscreen, Android 12 with Android Enterprise Recommended

    Qualcomm® Snapdragon™ 660 processor with Android 12 and Android Enterprise Recommended certification

    8" industrial-grade LCD with 1920x1200 resolution, 400-nit brightness, and up to 12,000 hours MTBF

    Projected capacitive touchscreen with scratch-resistant Corning® Gorilla® Glass

    Supports active stylus pen and gloved operation for increased usability

    IP65-rated protection from water and dust ingress and 4-ft drop tolerance

    Fast roaming and dual-band WLAN, BT 5.0, NFC for seamless communications

    Optional peripherals include a 1D/2D barcode scanner, LAN+COM module

    Lightweight design and multi-tablet docking station supports deployment in diverse environments

    Equipped with DeviceOn/iService software for remote device management (Optional)

AIM-75H-231S10 AIM-75H-230S10 AIM-75H-211S10 AIM-75H-200S10
Computing System Operating System Android 12 with AER certification Global Android 12 Global Android 10 with GMS certification Global (exclude Europe) Android 10 with non-GMS certification Global
System Processor Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz
System Memory 4GB LPDDR4 (supports up to 8GB) 4GB LPDDR4 (supports up to 8GB) 4GB LPDDR4 (supports up to 8GB) 4GB LPDDR4 (supports up to 8GB)
Storage EMMC 64GB 64GB 64GB 64GB
Storage SD card Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB)
Display Type 8" IPS LCD 8" IPS LCD 8" IPS LCD 8" IPS LCD
Display Resolution WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200
Display Brightness (cd/m2) 400cd/m2 400cd/m2 400cd/m2 400cd/m2
Display Touch Type 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control
Wireless Communication WLAN/Bluetooth IEEE 802.11 a/b/g/n/ac/k/v/r Bluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/r Bluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/r Bluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/r Bluetooth® v5.0
Wireless Communication NFC 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
I/O STANDARD I/O PORT 1 x USB Type-C 3.0 , 1 x combo audio jack, 1 x SIM card reader, 1 x micro SD card reader 1 x USB Type-C 3.0 , 1 x combo audio jack, 1 x SIM card reader, 1 x micro SD card reader 1 x USB Type-C 3.0 , 1 x combo audio jack, 1 x SIM card reader, 1 x micro SD card reader 1 x USB Type-C 3.0 , 1 x combo audio jack, 1 x SIM card reader, 1 x micro SD card reader
I/O EXTENDED I/O PORT 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
I/O Buttons 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
Camera FRONT 5 megapixel fixed-focus camera 5 megapixel fixed-focus camera 5 megapixel fixed-focus camera 5 megapixel fixed-focus camera
Camera Rear 8 megapixel auto-focus camera with LED flash 8 megapixel auto-focus camera with LED flash 8 megapixel auto-focus camera with LED flash 8 megapixel auto-focus camera with LED flash
Sensors Sensors Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
Environment Operating Temperature 0 ~ 35 °C/32 ~ 95 °F * 0 ~ 35 °C/32 ~ 95 °F * 0 ~ 35 °C/32 ~ 95 °F * 0 ~ 35 °C/32 ~ 95 °F *
Environment Storage Temperature -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F
Environment IP Rating IP65 IP65 IP65 IP65
Environment Certifications FCC, CE, CB, IEC, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, IEC, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, IEC, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC,PTCRB, CE, CB, UL, TELEC, BSMI, NCC, CCC, SRRC, RCM, IC
Mechanical Dimensions (W x H x D) 240 x 142 x 14.5 mm/9.44 x 5.59 x 0.57 in 240 x 142 x 14.5 mm/9.44 x 5.59 x 0.57 in 240 x 142 x 14.5 mm/9.44 x 5.59 x 0.57 in 240 x 142 x 14.5 mm/9.44 x 5.59 x 0.57 in
Mechanical Weight 600 g/1.32 lb 600 g/1.32 lb 600 g/1.32 lb 600 g/1.32 lb
Multimedia Speaker 1 x Internal speakers (1.5W) 1 x Internal speakers (1.5W) 1 x Internal speakers (1.5W) 1 x Internal speakers (1.5W)
Power System Battery Swappable battery: 4900 mAh (minimum) 18.62 WHr Operating time: up to 12 hrs** Charging time: < 3 hrs** Swappable battery: 4900 mAh (minimum) 18.62 WHr Operating time: up to 12 hrs** Charging time: < 3 hrs** Swappable battery: 4900 mAh (minimum) 18.62 WHr Operating time: up to 12 hrs** Charging time: < 3 hrs** Swappable battery: 4900 mAh (minimum) 18.62 WHr Operating time: up to 12 hrs** Charging time: < 3 hrs**
Power System Voltage Input USB Type-C: 5V/3A, 9V/2A Dock pogo: 9V/2A USB Type-C: 5V/3A, 9V/2A Dock pogo: 9V/2A USB Type-C: 5V/3A, 9V/2A Dock pogo: 9V/2A USB Type-C: 5V/3A, 9V/2A Dock pogo: 9V/2A
