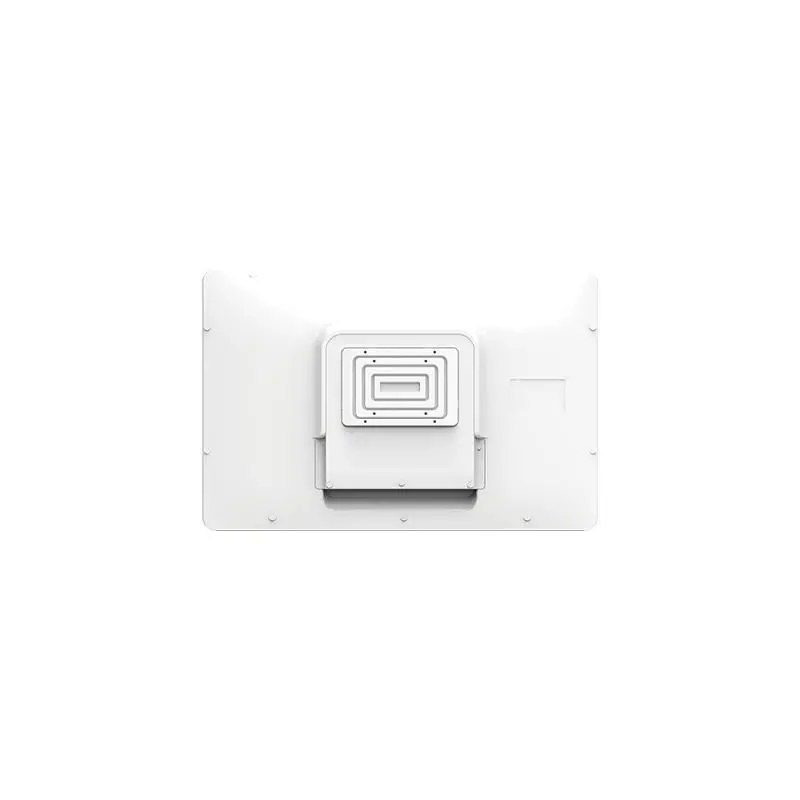

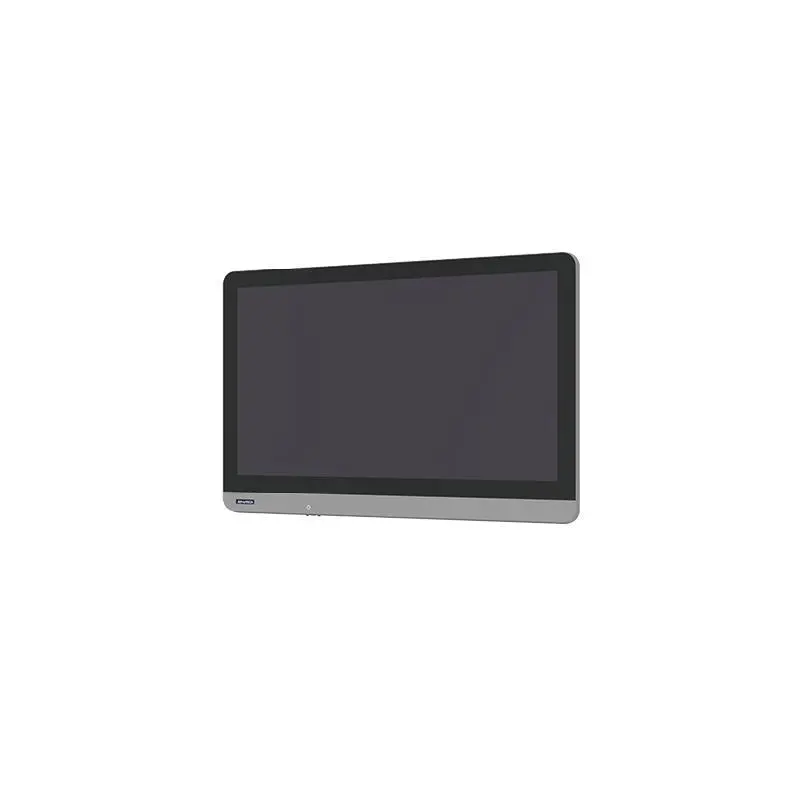

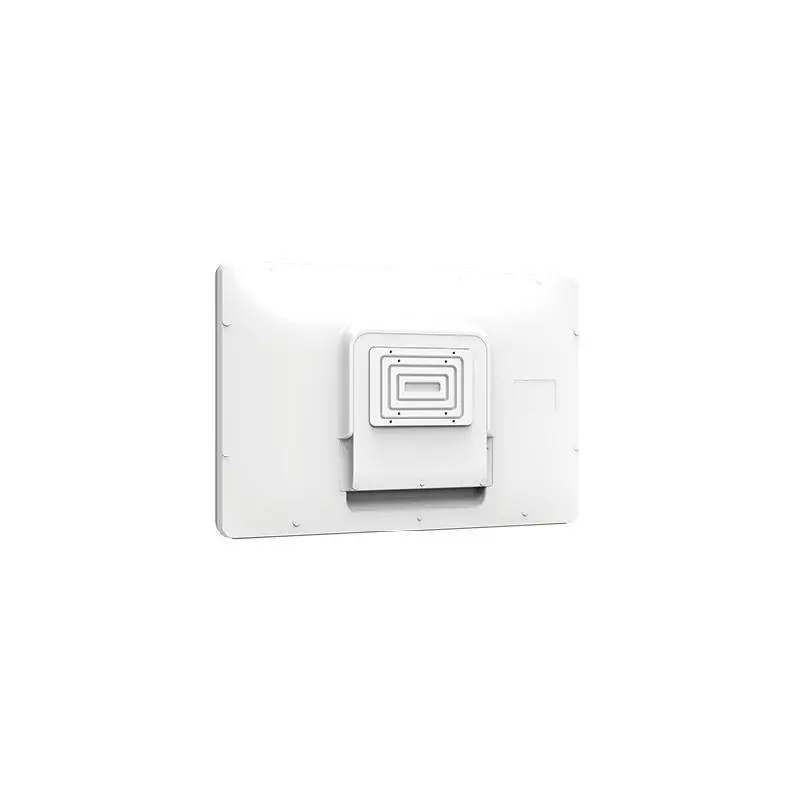

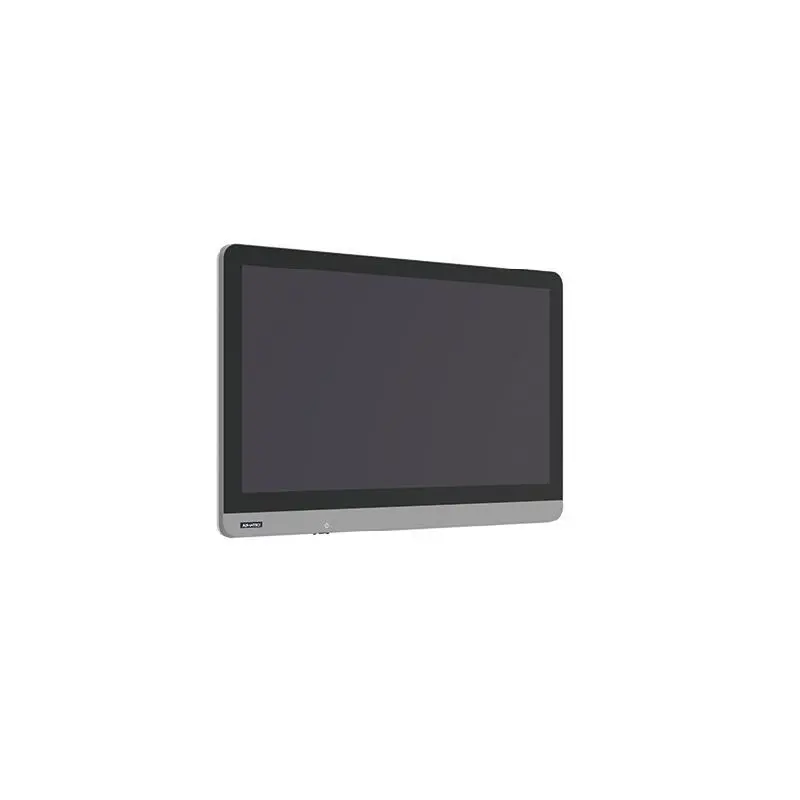

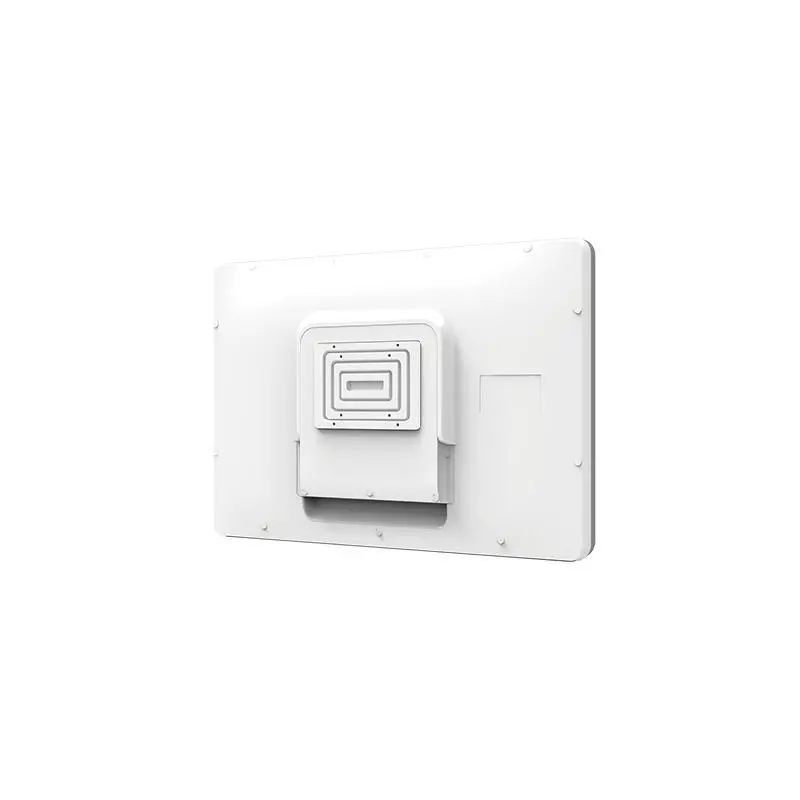

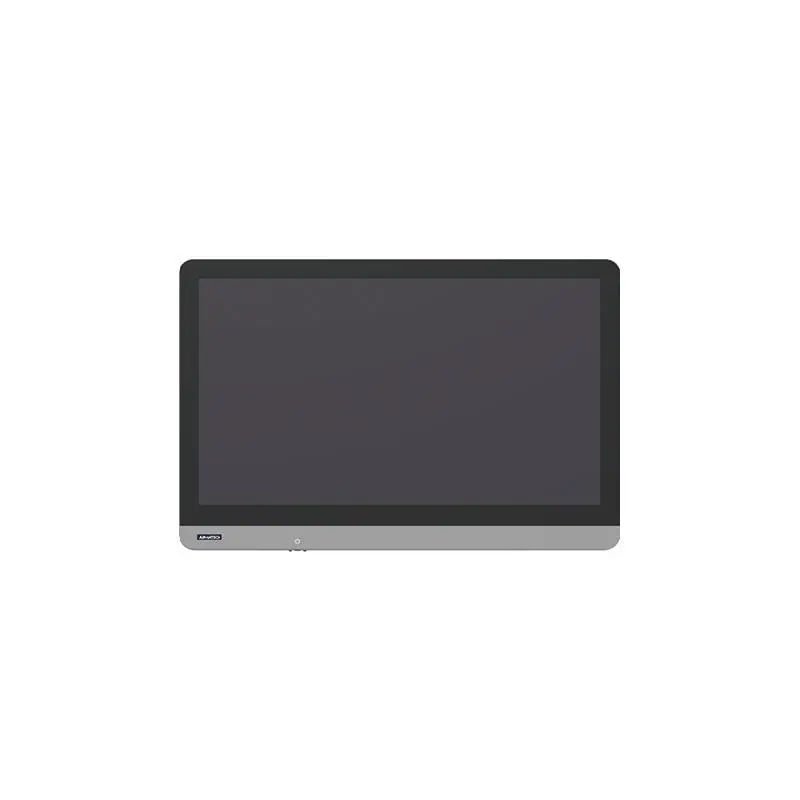

Advantech POC-424 Point-of-Care Terminals / All-in-One computers with multimodal solution for clinical healthcare applications

    14th generation Intel® Core™ Ultra 5 or Ultra 7 processor

    23.8" full HD display with multi-touch P-CAP control

    M.2 expansion slots for integrating add-on modules

    Fanless design with upgrade IP54-rated protection for superior hygiene and infection control

    Optional Wi-Fi 6, Bluetooth, Dual RFID, smart card reader and auto-focus 5 megapixel camera

    Equipping battery packs enhances its suitability for medical cart mobility

    Large-capacity batteries (140Wh x2) to support 10-12 hours of runtime

    Available for adding an additional backup battery for non-stop power during battery swapping

    Isolated I/O ports are supported

POC-424-12B00D-CE POC-424-12B000-CE POC-424-11B000-CA POC-424-11B00D-CE POC-424-11C000-CE
System Processor Intel® Core™ I5-1245UE 10cores,12M Cache, up to 4.40 GHz Intel® Core™ I5-1245UE 10cores,12M Cache, up to 4.40 GHz Intel® Core™ i5-8365UE (6M cache, up to 4.10 GHz) Intel® Core™ i5-8365UE (6M cache, up to 4.10 GHz) Intel® Celeron 4305UE Processor (2M Cache, 2.0 GHz)
System Memory 8GB DDR5 (supports up to 32GB DDR5 SODIMM) N/A N/A 8GB DDR4 (supports up to 16GB DDR4 SODIMM) N/A
System Operating System (optional) Windows 10 IoT Ent (64 bits only); Windows 11 IoT Ent (64 bits only) Windows 10 IoT Ent (64 bits only); Windows 11 IoT Ent (64 bits only) Windows 10 IoT Ent (64 bits only), Linux (supported upon request) Windows 10 IoT Ent (64 bits only), Linux (supported upon request) Windows 10 IoT Ent (64 bits only), Linux (supported upon request)
Storage Primary Storage (default) NVME SSD 256GB (M.2 2280) N/A N/A NVME SSD 256GB (M.2 2280) N/A
Display Size 23.8" 23.8" 23.8" 23.8" 23.8"
Display Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Display Brightness (cd/m2) 350 350 250 250 250
Touchscreen Type 10-point multi touch P-CAP (clear glass) 10-point multi touch P-CAP (clear glass) 10-point multi touch P-CAP (clear glass) 10-point multi touch P-CAP (clear glass) 10-point multi touch P-CAP (clear glass)
I/O USB 3.1 Gen 1 (Type A) 4 4 4 4 4
I/O USB 3 Type C 1 1 N/A N/A N/A
I/O HDMI 1 1 1 1 1
I/O LAN non-isolation 2 2 2 2 2
I/O COM (RS232) 1.5KV 1 1 1 1 1
Authentication Solution RFID Reader Optional (choose either RFID or smart card reader) Optional (choose either RFID or smart card reader) Optional Optional Optional
Authentication Solution Smart Card Reader Optional (choose either RFID or Smart card reader) Optional (choose either RFID or Smart card reader) Optional Optional Optional
Certifications Safety Medical CE: EMC (IEC 60601-1-2, 4th Edition) & Safety IEC/EN 60601-1, FCC Part 15 Medical CE: EMC (IEC 60601-1-2, 4th Edition) & Safety IEC/EN 60601-1, FCC Part 15 Medical CE IEC/EN60601-1-2;IEC/EN60601-1; UL/IEC62368-1, FCC(Part 15B), CCC Medical CE IEC/EN60601-1-2;IEC/EN60601-1; UL/IEC62368-1, FCC(Part 15B), CCC Medical CE IEC/EN60601-1-2;IEC/EN60601-1; UL/IEC62368-1, FCC(Part 15B), CCC
Expansion Slot M.2 2230 E. Key (Optional) Wi-Fi 6E & BlueTooth5.3 N/A N/A Wi-Fi & Bluetooth N/A
Warranty - 3 years 3 years 2 years 2 years 2 years
