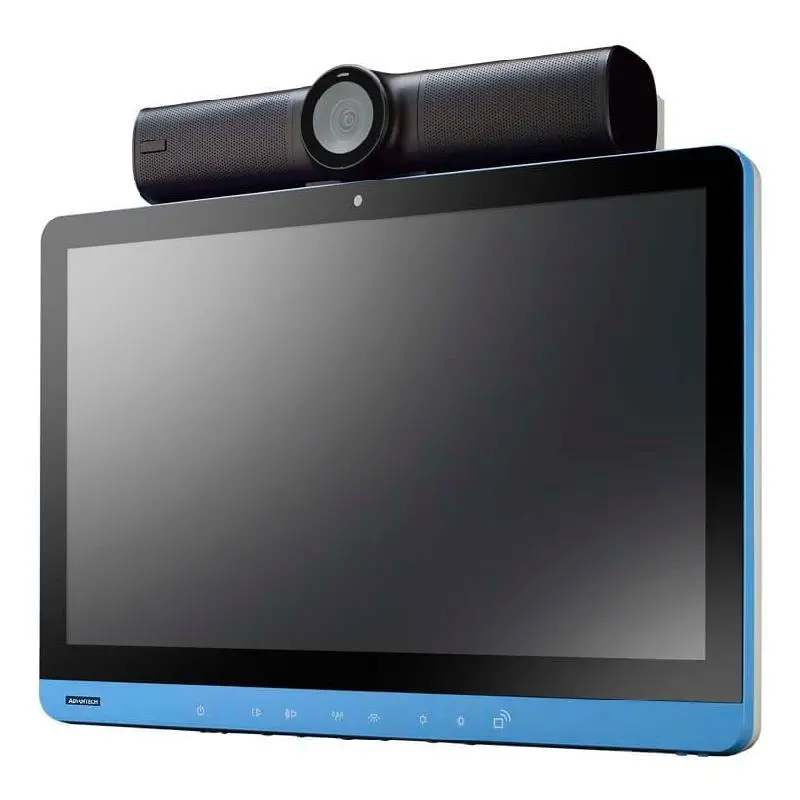

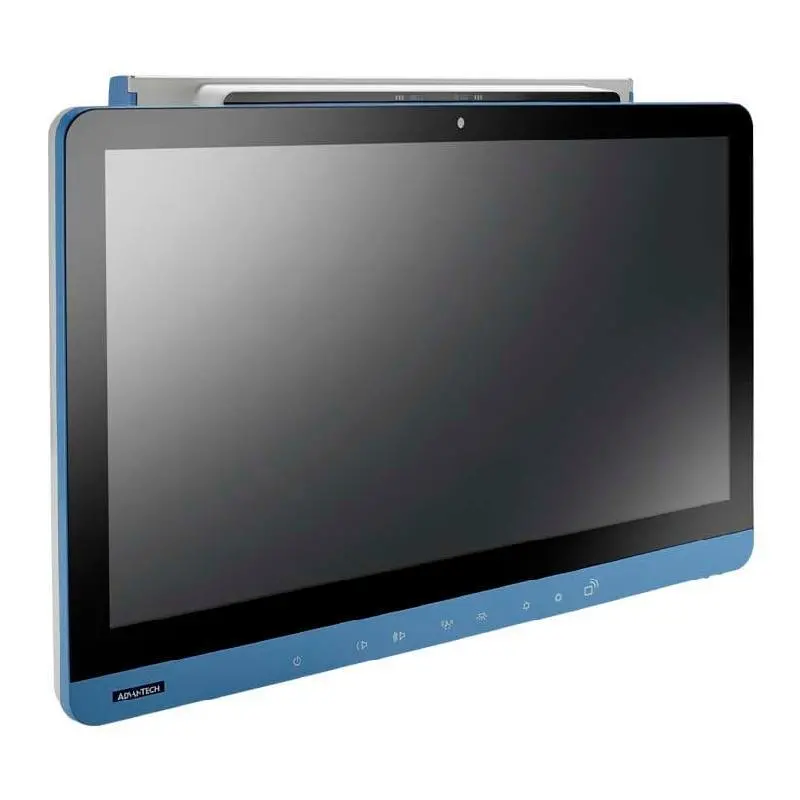

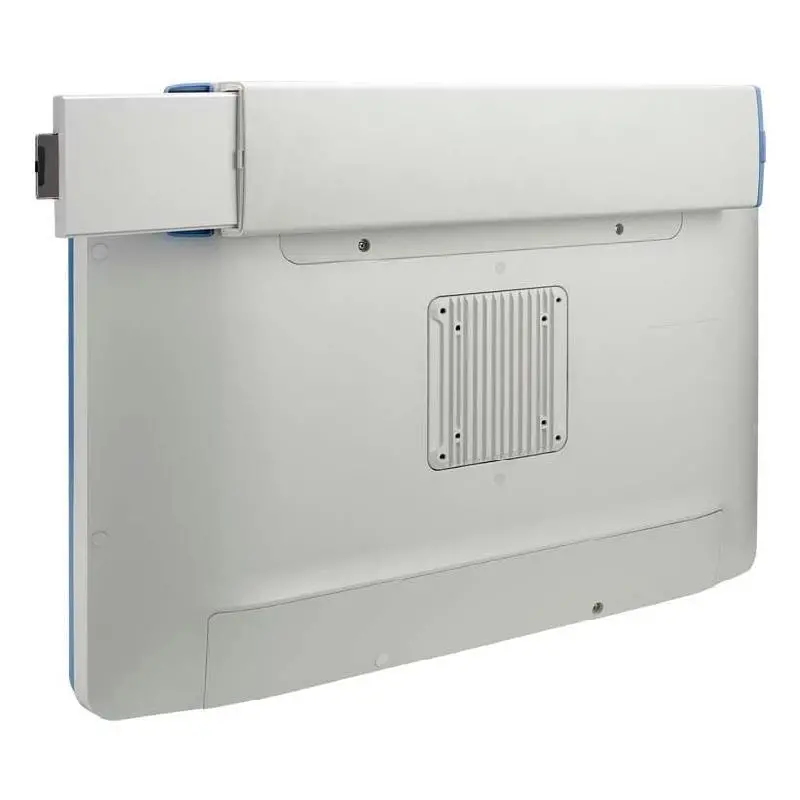

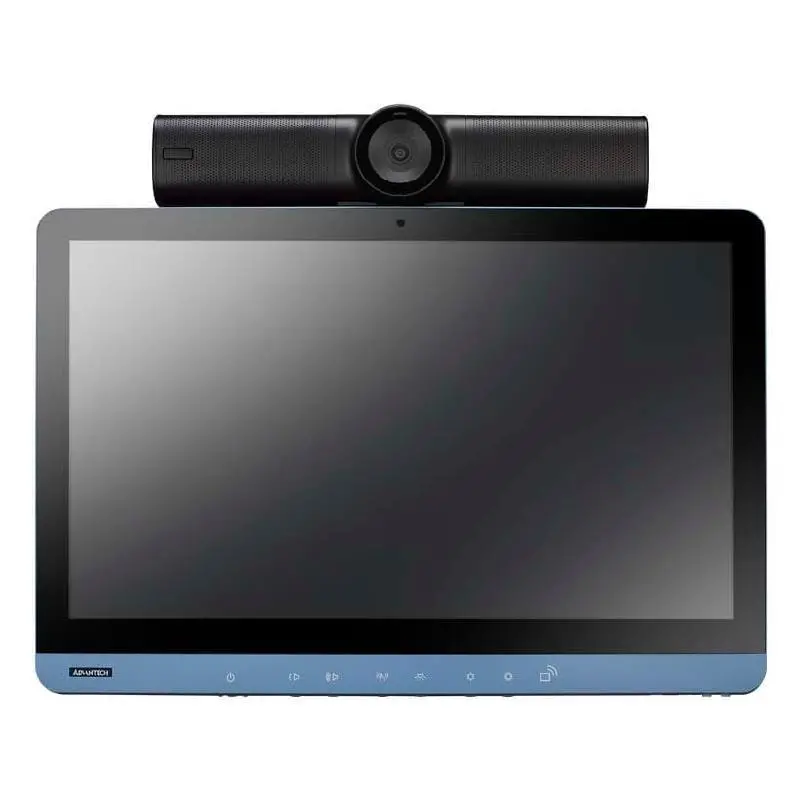

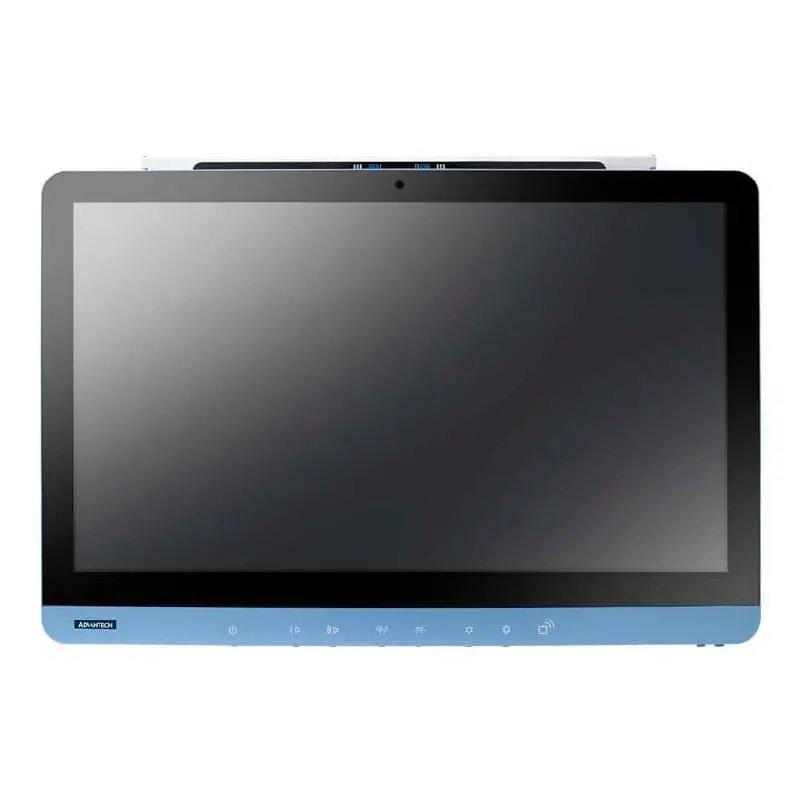

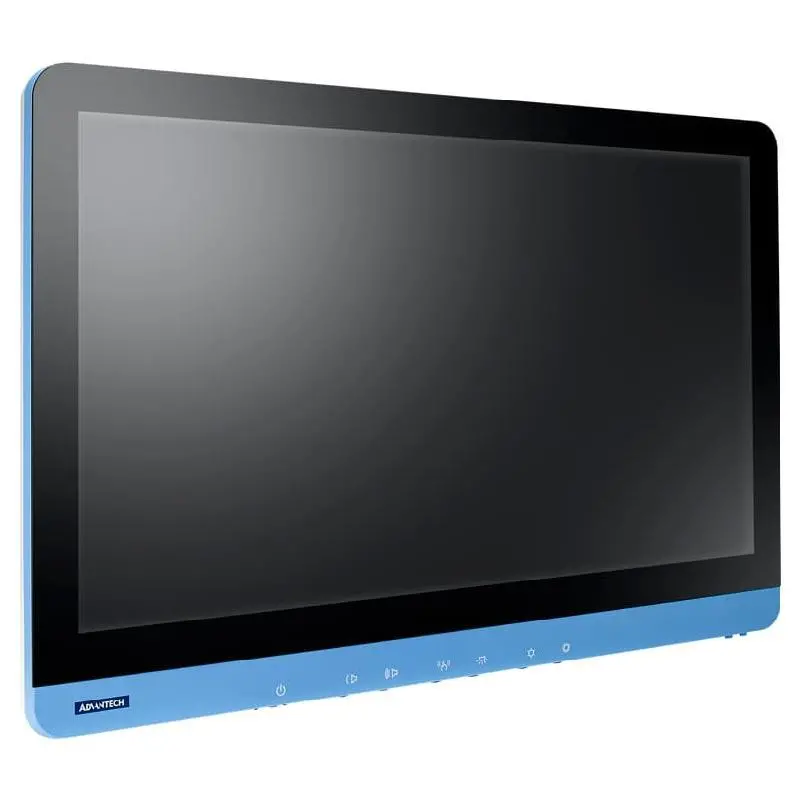

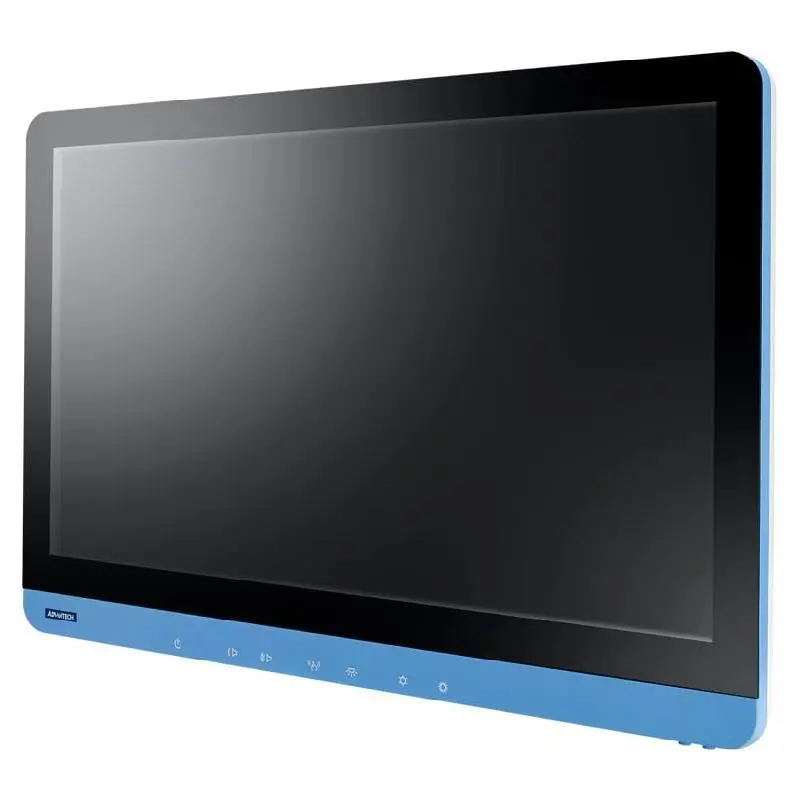

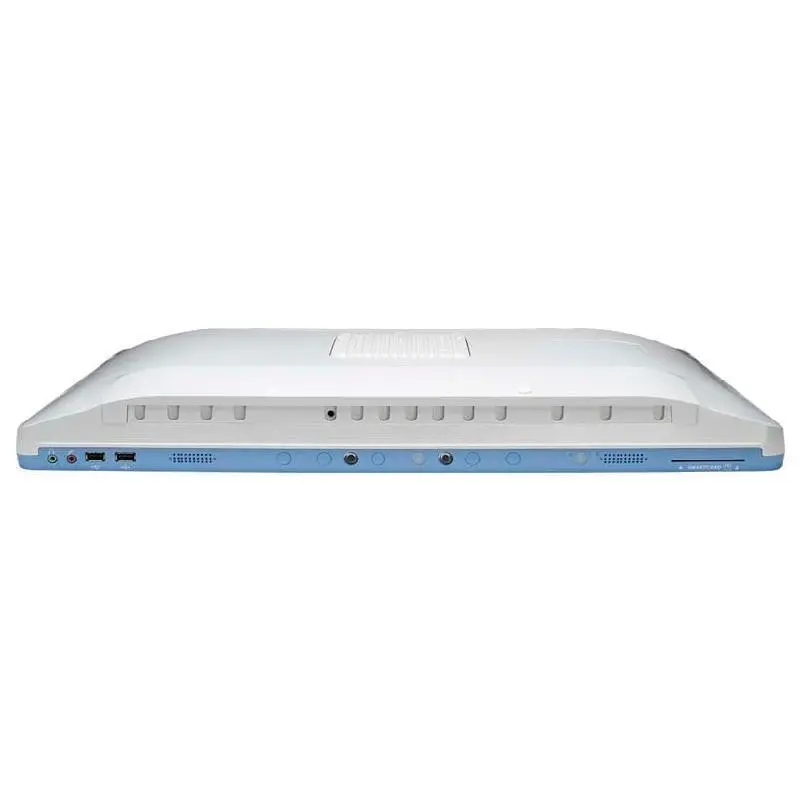

Advantech POC-624 Point-of-Care Terminals / All-in-One computers with battery and camera modules for diverse healthcare applications

    11th generation Intel® Core™ i5/i7 processor

    23.8" full HD display with multi-touch P-CAP control

    Multiple I/O, including USB 3.2 Gen 2 (Type A), USB 3.2 Gen 2 (Type C) with display function, and HDMI

    PCIe x4, mini PCIe, M.2 expansion slots for integrating add-on modules

    Fanless design with IP54-rated protection for superior hygiene and infection control

    Equipped with DeviceOn/iService software for remote device management

    Optional Wi-Fi, Bluetooth, RFID, smart card reader, Li-ion battery pack, and auto-focus 5 megapixel camera

    Optional hot-swapping battery module with up to 180Wh capacity for mobile applications

POC-624-12A110-CA POC-624-12B110-CA POC-624-12A110R-CA POC-624-12B110R-CA
System Processor Intel® Core™ i7-1185G7E (12M cache, up to 4.40 GHz) Intel® Core™ i5-1145G7E (8M cache, up to 4.10 GHz) Intel® Core™ i7-1185G7E (12M cache, up to 4.40 GHz) Intel® Core™ i5-1145G7E (8M cache, up to 4.10 GHz)
System Memory N/A N/A N/A N/A
System Operating System (optional) Windows 10 IoT Ent (64 bits only), Linux (supported upon request) Windows 10 IoT Ent (64 bits only), Linux (supported upon request) Windows 10 IoT Ent (64 bits only), Linux (supported upon request) Windows 10 IoT Ent (64 bits only), Linux (supported upon request)
Storage Primary Storage (default) N/A N/A N/A N/A
Storage Secondary Storage (optional) 2.5" SATA SSD available 2.5" SATA SSD available 2.5" SATA SSD available 2.5" SATA SSD available
Display Size 23.8" 23.8" 23.8" 23.8"
Display Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Touchscreen Type 10-point multi touch P-CAP (clear glass); optional AG/AR support upon request 10-point multi touch P-CAP (clear glass); optional AG/AR support upon request 10-point multi touch P-CAP (clear glass); optional AG/AR support upon request 10-point multi touch P-CAP (clear glass); optional AG/AR support upon request
I/O USB 3.2 Gen 2 (Type A) 4 4 4 4
I/O USB 3.2 Gen 2 (Type C) 1 (with display function) 1 (with display function) 1 (with display function) 1 (with display function)
I/O USB 2.0 Type A 2 2 2 2
I/O HDMI 1 1 1 1
I/O LAN isolation 2 2 2 2
I/O Mic-In/ Headphone-Out 1/1 1/1 1/1 1/1
I/O COM (RS232) 1.5KV 2 2 2 2
Authentication Solution RFID Reader N/A N/A Optional (choose either RFID or smart card reader) Optional (choose either RFID or smart card reader)
