| ARES-2423S-A770L00 | ARES-2423S-A770L01 | ||
| Color | Color | White | Black |
| Weight (kg) | Net Weight | 4Kg (8.82lbs) | 4Kg (8.82lbs) |
| Dimensions | Dimensions | 300 x 478 x 250 mm(11.81" x 18.82" x 9.84") | 300 x 478 x 250 mm(11.81" x 18.82" x 9.84") |
| Screw Type | Screw Type | M4 | M4 |
| Material | Material | Steel/Aluminum/Plastic | Steel/Aluminum/Plastic |
| Parameters | Swivel | 360° | 360° |
| Parameters | Title Angle | -5° ~ +20° | -5° ~ +20° |
| Parameters | Pivot | 360° | 360° |
| VESA Mounting Patterns | VESA Mounting Patterns | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm |
| Display | Display Type | Single Monitor | Single Monitor |
| Display | Panel Size Support | 24" ~ 34" | 24" ~ 34" |
| Display | Support Weight | 4~12Kg (8.82~26.46 lbs) | 4~12Kg (8.82~26.46 lbs) |
| Parameters | Height Adjustment | 130mm (5.12") | 130mm (5.12") |
| Cable Management | Cable Management | Yes | Yes |

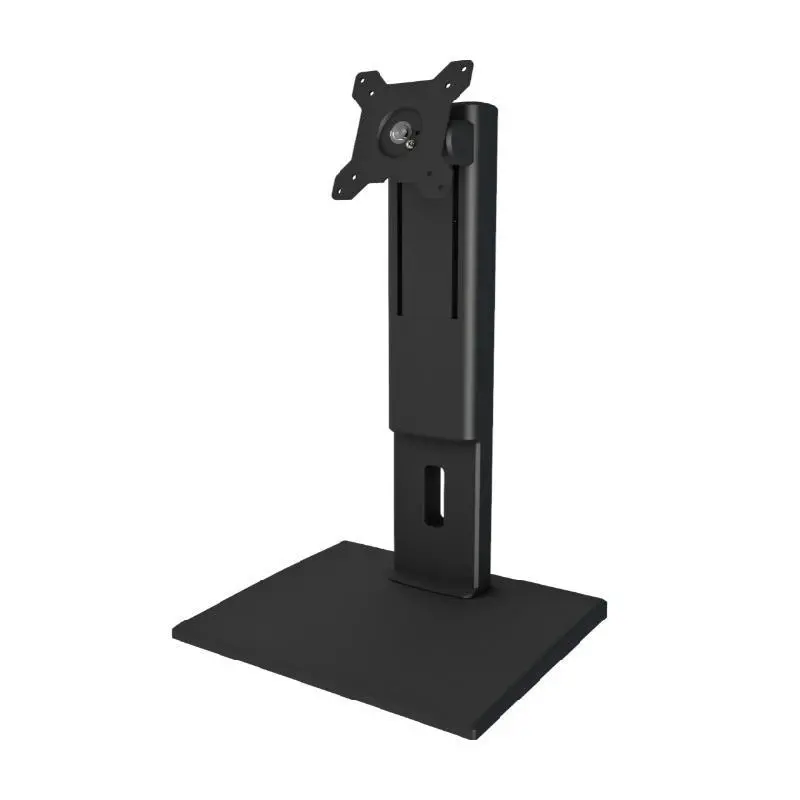

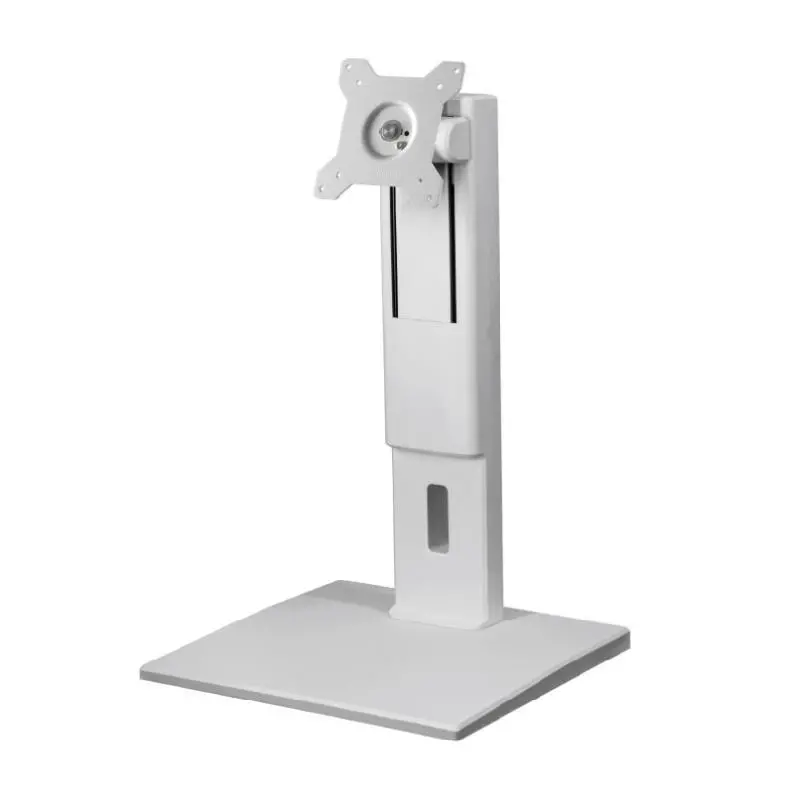

Advantech ARES-2423S ARES-2423S is a height-adjusting desk stand compatible with 75x75/100x100 mm VESA patterns. It can tilt -5° (down) ~ +20° (up) and screens up to 34".
