| ARES-5112D-W881200 | ||
| Weight (kg) | Net Weight | 10.10 kg (22.27lbs) |
| Dimensions | Dimensions | 581 x 880 x 201 mm (22.87" x 34.65" x 7.91") |
| Screw Type | Screw Type | M4 |
| Material | Material | Steel/Aluminum Alloy/Plastic |
| Parameters | Swivel | ±90° |
| Parameters | Title Angle | -20° ~ + 90° |
| Parameters | Tilt (Keyboard Tray) | 0 ~ 90° |
| Parameters | Pivot | 360° |
| VESA Mounting Patterns | VESA Mounting Patterns | 75 x 75 mm, 100 x 100 mm |
| Display | Display Type | Single Monitor |
| Display | Panel Size Support | ≤32" |
| Display | Support Weight | 2~10Kg (4.4~22.04lbs) |
| Display | Support Weight (Keyboard Tray) | 2.5Kg (5.5lbs) |
| Parameters | Height Adjustment | 315 mm (12.4") |
| Cable Management | Cable Management | Yes |

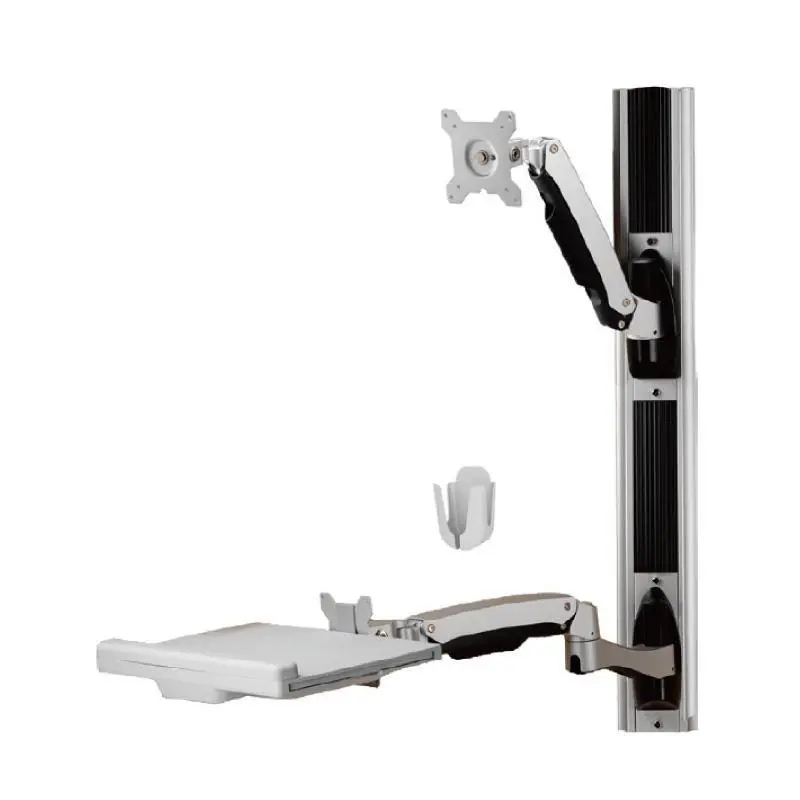

Advantech ARES-5112D ARES-5112D is a rail wall-mounted workstation with keyboard tray that is compatible with 75 x 75mm or 100 x 100mm VESA patterns.
