| ARES-7623C-LB20L00 | ARES-7623C-LB20L01 | ||
| Weight (kg) | Net Weight | 8.2 Kg (18.08lbs) | 8.2 Kg (18.08lbs) |
| Dimensions | Dimensions | 164 x 1295 x 1389 mm (6.46" x 50.98" x 54.68") | 164 x 1295 x 1389 mm (6.46" x 50.98" x 54.68") |
| Screw Type | Screw Type | M4 | M4 |
| Material | Material | Steel/Aluminum Alloy/Plastic | Steel/Aluminum Alloy/Plastic |
| Parameters | Swivel | ±185° | ±185° |
| Parameters | Title Angle | -60° ~ +20° | -60° ~ +20° |
| Parameters | Pivot | 360° | 360° |
| VESA Mounting Patterns | VESA Mounting Patterns | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm |
| Display | Display Type | Single Monitor | Single Monitor |
| Display | Panel Size Support | 15"~24" | 15"~24" |
| Display | Support Weight | 6~12Kg (13.23~26.46 lbs) | 6~12Kg (13.23~26.46 lbs) |
| Cable Management | Cable Management | Yes | Yes |
| Pre-installed Cables | Pre-installed Cables | No | Yes |

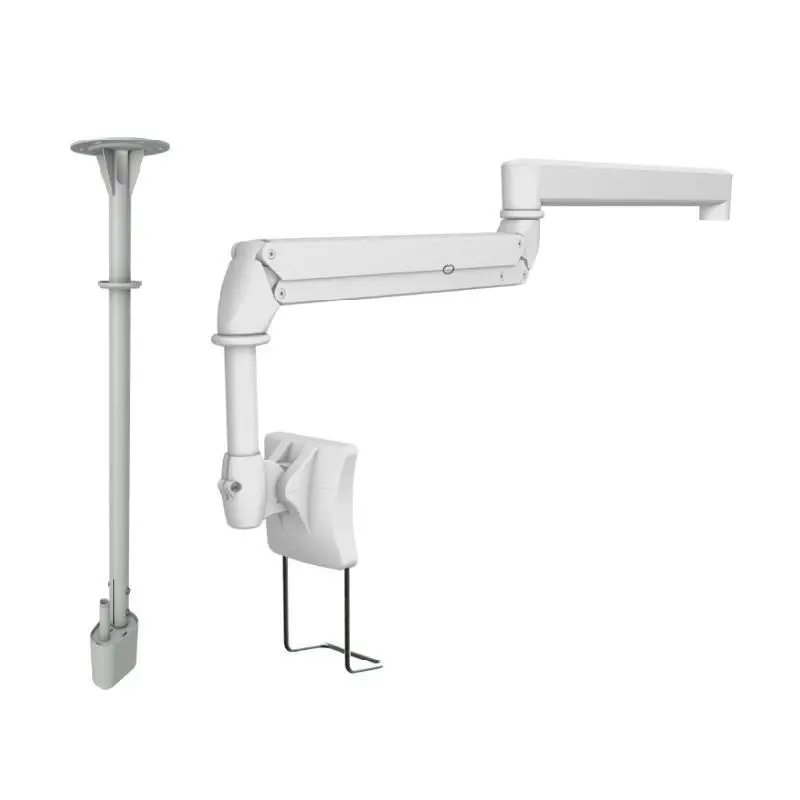

Advantech ARES-7623C Bundled with ARES-7600C, ARES-7623C provides a medical-grade ceiling long-reach arm that can be used with bedside PIT (with a load of 6~12 kg).
