| ARES-7321I-LW20000 | ARES-7321I-LW20001 | ||
| Weight (kg) | Net Weight | 11.4 kg (25.08 lbs) | 11.4 kg (25.08 lbs) |
| Dimensions | Dimensions | 200 x 1295 x 1407 mm (7.87" x 50.98" x 55.39") | 200 x 1295 x 1407 mm (7.87" x 50.98" x 55.39") |
| Screw Type | Screw Type | M4 | M4 |
| Material | Material | Steel/Aluminum Alloy/Plastic | Steel/Aluminum Alloy/Plastic |
| Parameters | Swivel | ±185° | ±185° |
| Parameters | Swivel (VESA) | ±5° | ±5° |
| Parameters | Title Angle | -60° ~ +20° | -60° ~ +20° |
| VESA Mounting Patterns | VESA Mounting Patterns | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm |
| Display | Display Type | Single Monitor | Single Monitor |
| Display | Panel Size Support | 15"~24" | 15"~24" |
| Display | Support Weight | 1~6.5kg (2.21~14.33 lbs) | 1~6.5kg (2.21~14.33 lbs) |
| Pre-installed Cables | Pre-installed Cables | No | Yes |
| Cable Management | Cable Management | Yes | Yes |

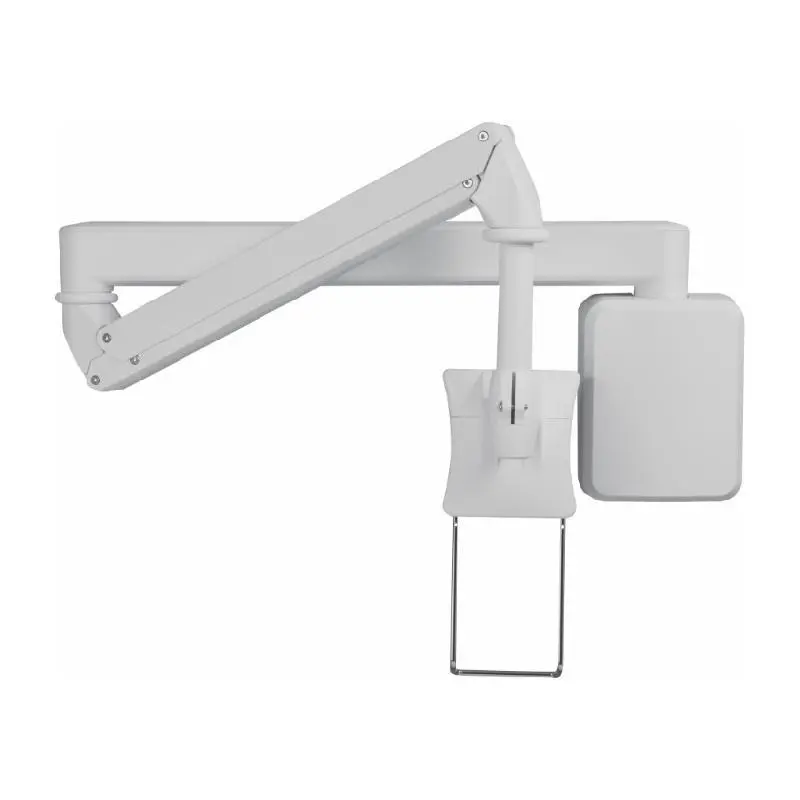

Advantech ARES-7321I ARES-7321I is a medical grade wall-mounted arm with VESA standard holes that can be moved horizontally.
