| PDC-W240-A10-ATE | ||
| Display | Display Type | 23.8" wide TFT color LCD (16:9) |
| Display | Max. Resolution | 1920 x 1080 |
| Display | Type | IPS |
| Display | Max. Colors | 16.7 M colors (6-bits+A-FRC) |
| Display | Pixel Pitch (mm) | 0.2745x0.2745 |
| Display | Contrast Ratio | 1000:1 (Typ.) |
| Display | Luminance (cd/m2) | 250 cd/m2 (Typ.) |
| Display | Viewing Angle (H/V°) | 178/178° |
| Display | Response Time | 25ms (Typ., on/off) |
| Display | Backlight | LED |
| Display | LCD MTBF | 30,000 Hours |

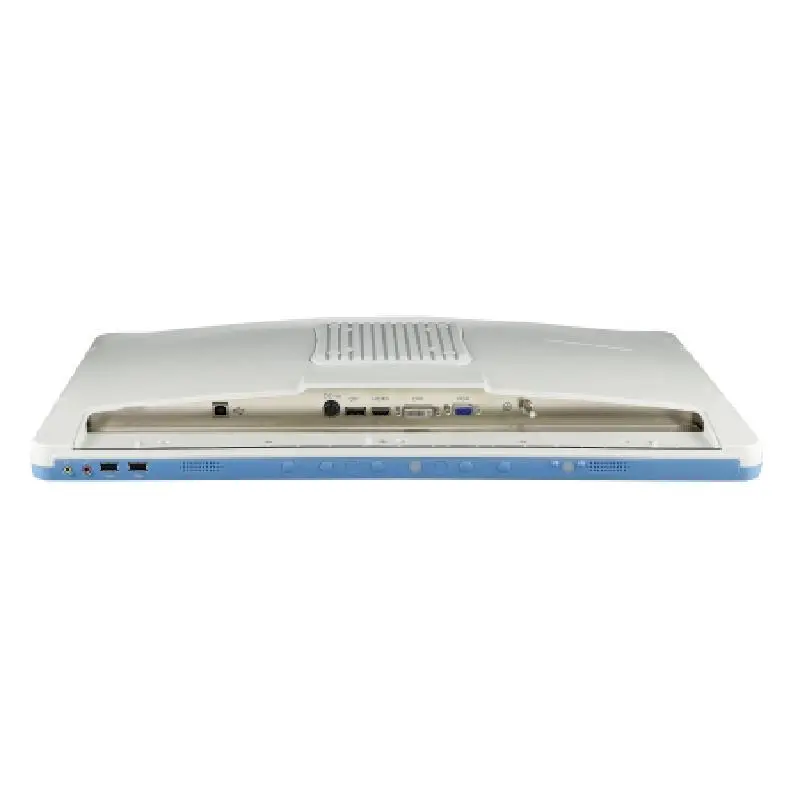

| I/O Ports | HDMI | 1 |
| I/O Ports | DVI | 1 |
| I/O Ports | DP | 1 |
| I/O Ports | VGA | 1 |
| I/O Ports | P-cap USB (Type B) | 1 (Upstream port) |
| I/O Ports | USB | USB 2.0 x 2 (Downstream Port) |
| I/O Ports | Audio out | 1 |
| I/O Ports | Speaker | Left/ Right |
| Optional Functions | DICOM | Compatible to DICOM Part 14 |
| Optional Touchscreen | Type | Projected Capactive 10-points (AR) |
| Optional Touchscreen | Resolution | Continuous |
| Optional Touchscreen | Light Transmission | 90% |
| Optional Touchscreen | Controller | USB interface |
| Optional Touchscreen | Durability | >100 million touches |
| Power Supply | Input Voltage | 100 ~ 250 VAC, 0.6 A, 60/50 Hz universal |
| Power Supply | Output Voltage | 12VDC, 5A max, (60W) |
| Power Consumption | - | 30 W |
| Environment | Temperature | 0 ~ 40° C (Operating) |
| Environment | Humidity | 10 ~ 95% @ 40° C (non-condensing) |
| Environment | Vibration /Shock Resistance | 5 ~ 500 Hz, 1G acceleration / 30G half sine, 11 ms duration |
| Environment | Water/dust Resistance | IP54 for whole system |
| Physical Characteristics | Dimensions (W x D x H) | 583 x 386 x 69 mm (22.95" x 15.19" x 2.71") |
| Physical Characteristics | Weight | 7.5 kg |
| Physical Characteristics | Mounting | VESA 100 x 100 mm/ 75 x 75 mm |
| Certifications | - | FCC, CE, EN/IEC60601-1 |

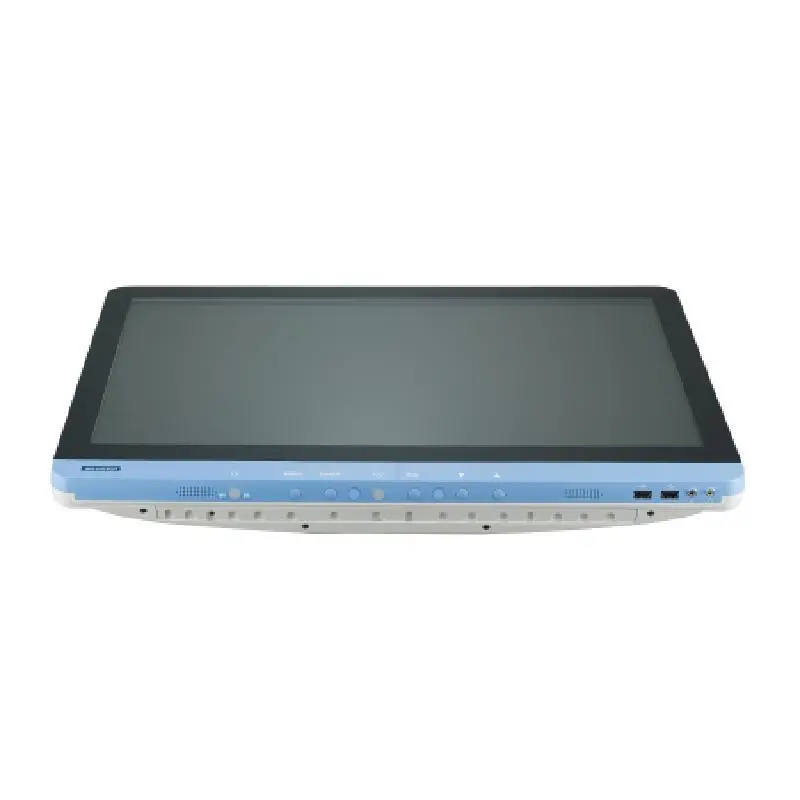

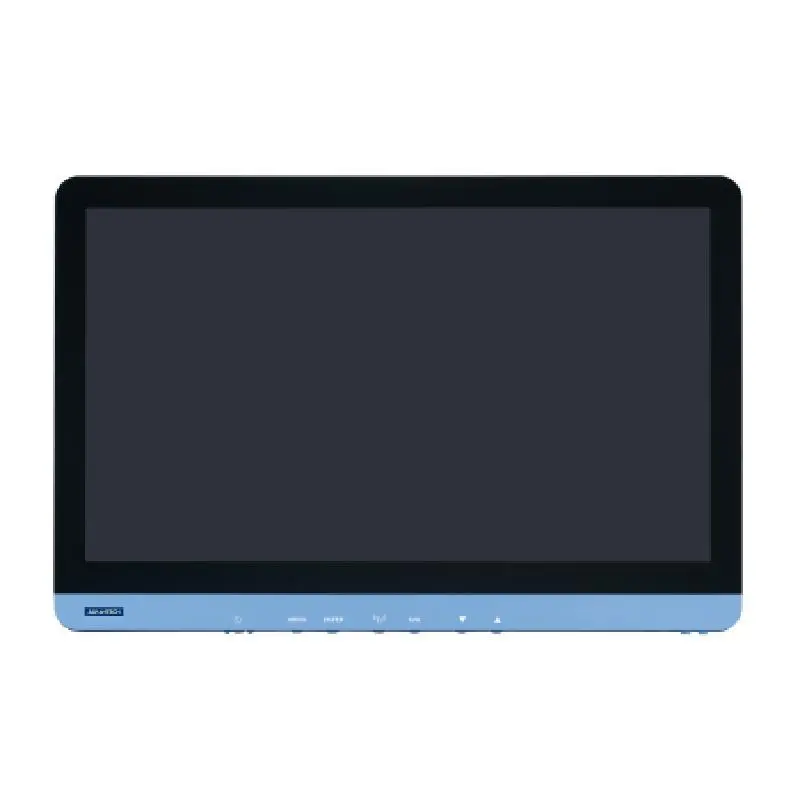

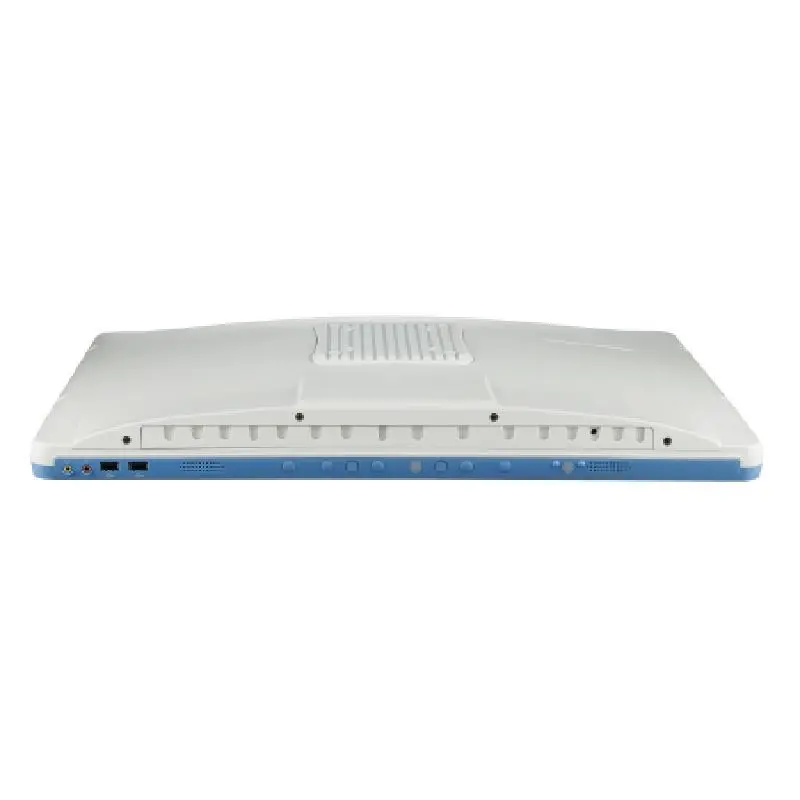

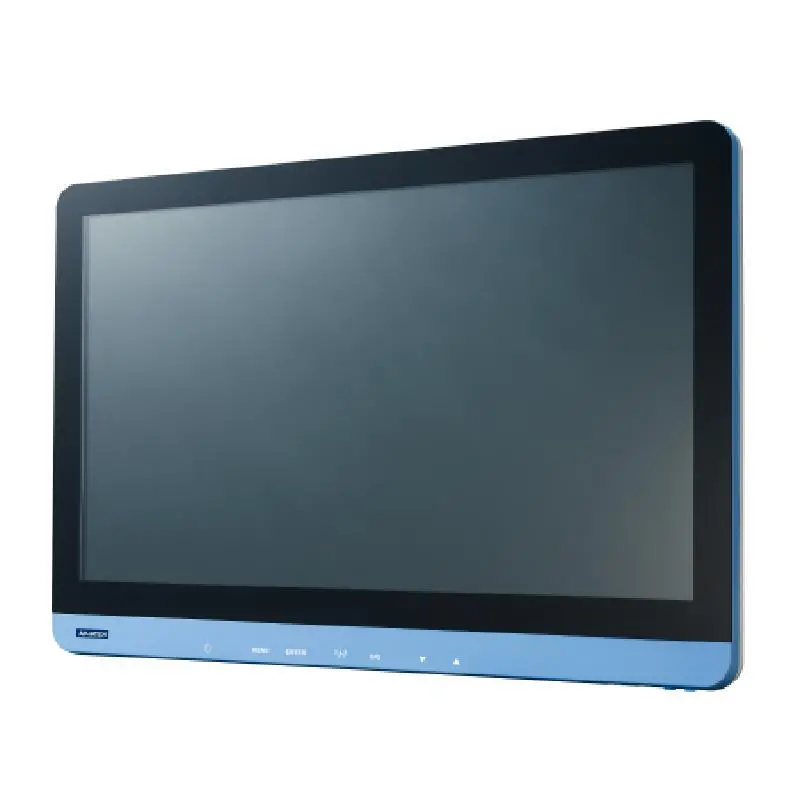

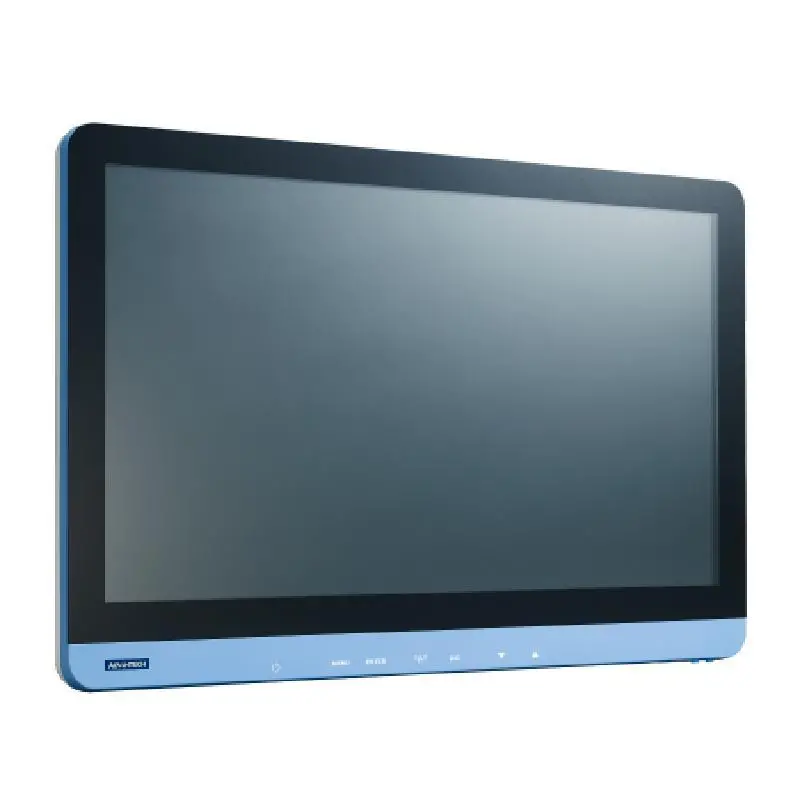

Advantech PDC-W240 24" Medical Display
