| PAX-124B-C2A-LFD | PAX-124B-C2A-LFC | PAX-124W-C2A-LFD | PAX-124W-C2A-LFC | ||
| LCD | Screen Size | 23.8" | 23.8" | 23.8" | 23.8" |
| LCD | Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| LCD | Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| LCD | Pixel Pitch | 0.270 x 0.270 mm | 0.270 x 0.270 mm | 0.270 x 0.270 mm | 0.270 x 0.270 mm |
| LCD | Viewing Angle | 178°/ 178° | 178°/ 178° | 178°/ 178° | 178°/ 178° |
| LCD | Contrast Ratio (Typ.) | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
| LCD | Native Luminance (Typ.) | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| LCD | Color Depth | 8-bit 16.7M Colors | 8-bit 16.7M Colors | 8-bit 16.7M Colors | 8-bit 16.7M Colors |
| LCD | Display Mode | VA Mode, Normally Black | VA Mode, Normally Black | VA Mode, Normally Black | VA Mode, Normally Black |
| LCD | Response Time | 16ms (G to G) / 16ms (Tr + Tf) | 16ms (G to G) / 16ms (Tr + Tf) | 16ms (G to G) / 16ms (Tr + Tf) | 16ms (G to G) / 16ms (Tr + Tf) |
| LCD | Touchscreen | Clear Glass | 10-point multi touch P-CAP | Clear Glass | 10-point multi touch P-CAP |
| Input | DP 1.2 Input DP Jack x 1 | DisplayPort 1.2, 1920 x 1080 @ 60Hz max. | DisplayPort 1.2, 1920 x 1080 @ 60Hz max. | DisplayPort 1.2, 1920 x 1080 @ 60Hz max. | DisplayPort 1.2, 1920 x 1080 @ 60Hz max. |
| Input | HDMI 2.0 Input HDMI Jack x 1 (Type A) | Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. |
| Input | DVI Input DVI Jack x 1 (Type D) | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. |
| Input | USB Up | USB-B Jack x 1 | USB-B Jack x 1 | USB-B Jack x 1 | USB-B Jack x 1 |
| Input | Audio Input | Audio Jack x 1 | Audio Jack x 1 | Audio Jack x 1 | Audio Jack x 1 |
| Output | HDMI 2.0 Output/HDMI Jack x 1 (Type A) | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. | Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. |
| Output | Audio | Audio Jack x 1 | Audio Jack x 1 | Audio Jack x 1 | Audio Jack x 1 |
| Environment | Temperature | Operational: 0~40° C / Storage: -20~60° C | Operational: 0~40° C / Storage: -20~60° C | Operational: 0~40° C / Storage: -20~60° C | Operational: 0~40° C / Storage: -20~60° C |
| Power | Rating | DC 12V, 5.42A max. | DC 12V, 5.42A max. | DC 12V, 5.42A max. | DC 12V, 5.42A max. |
| Power | Consumption | 65 W max. | 65 W max. | 65 W max. | 65 W max. |
| Enclosure Color | - | Blue | White | Blue | White |
| Physical Characteristics | IP Ratings | Front IP65 / System IP54 | Front IP65 / System IP54 | Front IP65 / System IP54 | Front IP65 / System IP54 |
| Physical Characteristics | VESA Mount | 100 x 100; 75 x 75 mm | 100 x 100; 75 x 75 mm | 100 x 100; 75 x 75 mm | 100 x 100; 75 x 75 mm |
| Physical Characteristics | Dimensions (W x D x H) | 583 x 387 x 63 mm | 583 x 387 x 63 mm | 583 x 387 x 63 mm | 583 x 387 x 63 mm |
| Physical Characteristics | Weight | 6.98 kg | 6.98 kg | 6.98 kg | 6.98 kg |
| Certifications | - | CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC) | CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC) | CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC) | CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC) |
| Warranty | - | 2 years | 2 years | 3 years | 3 years |

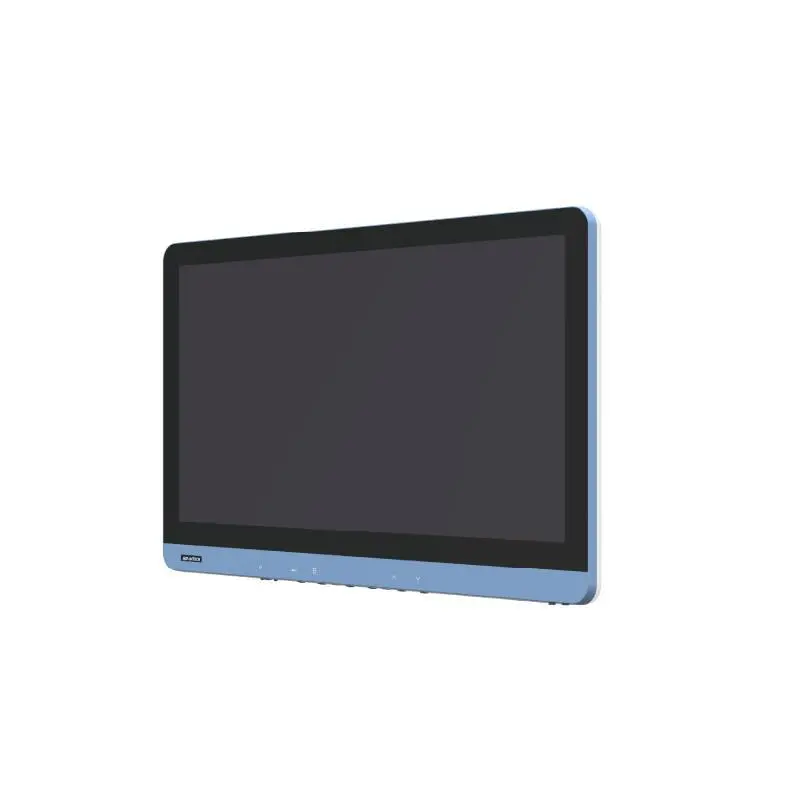

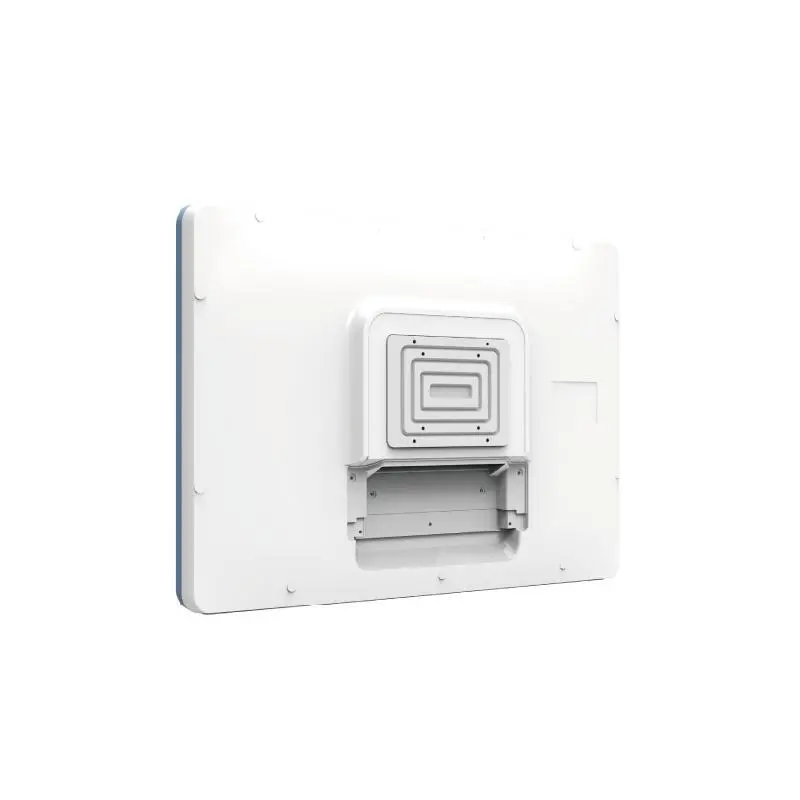

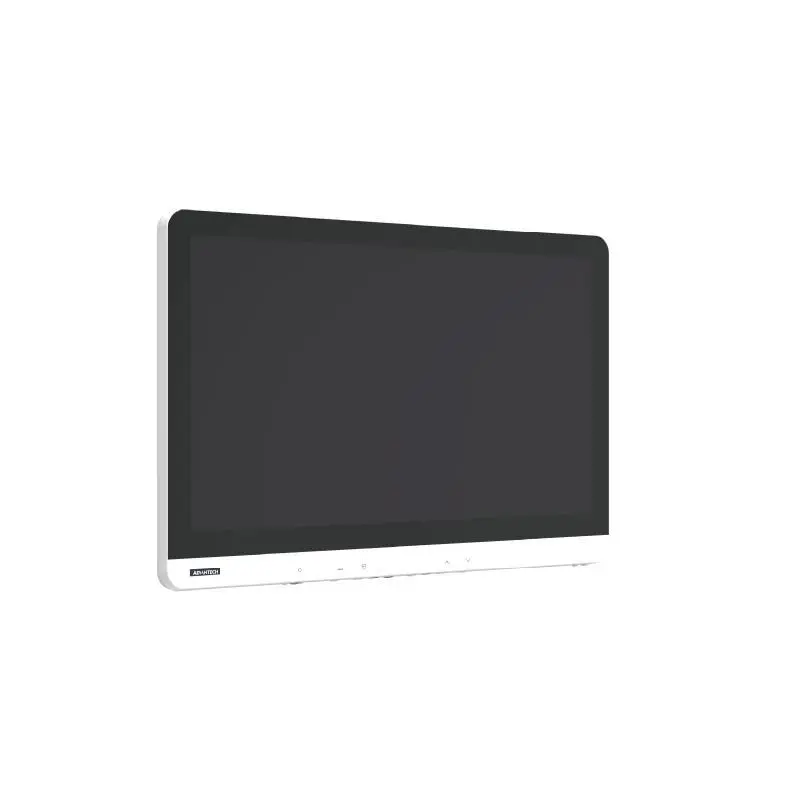

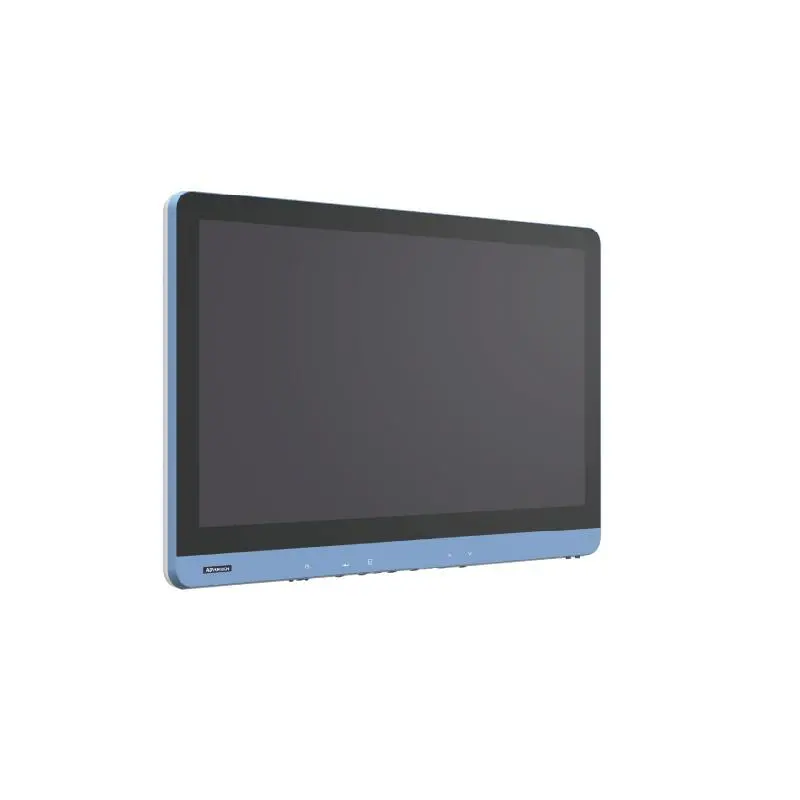

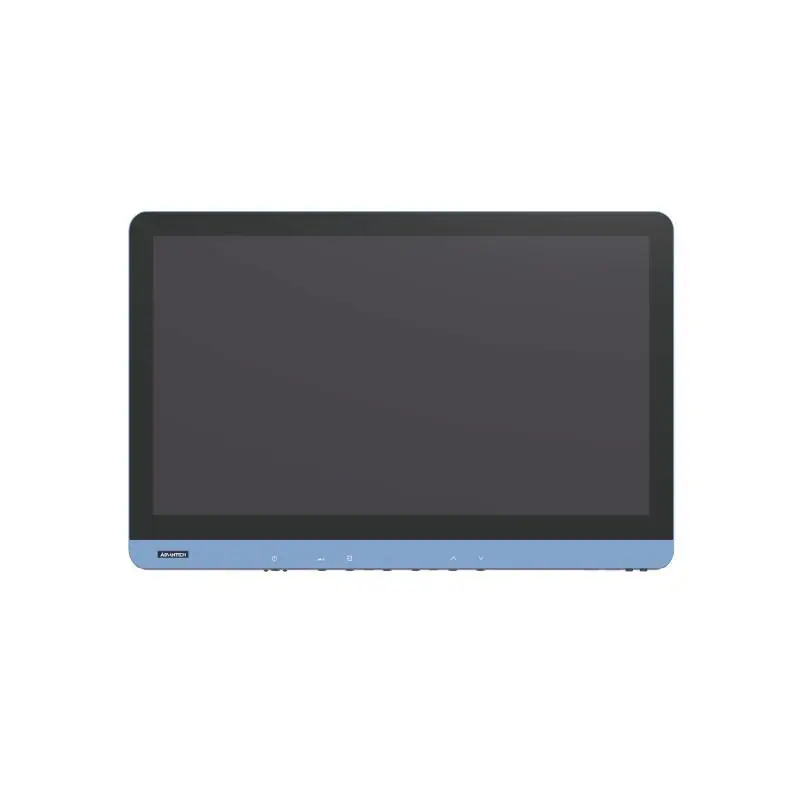

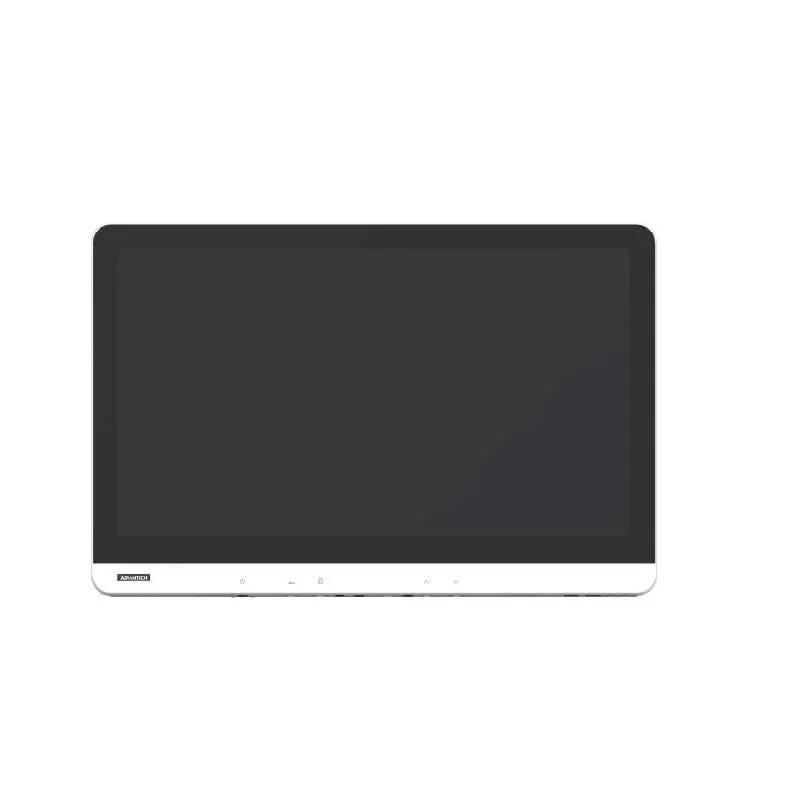

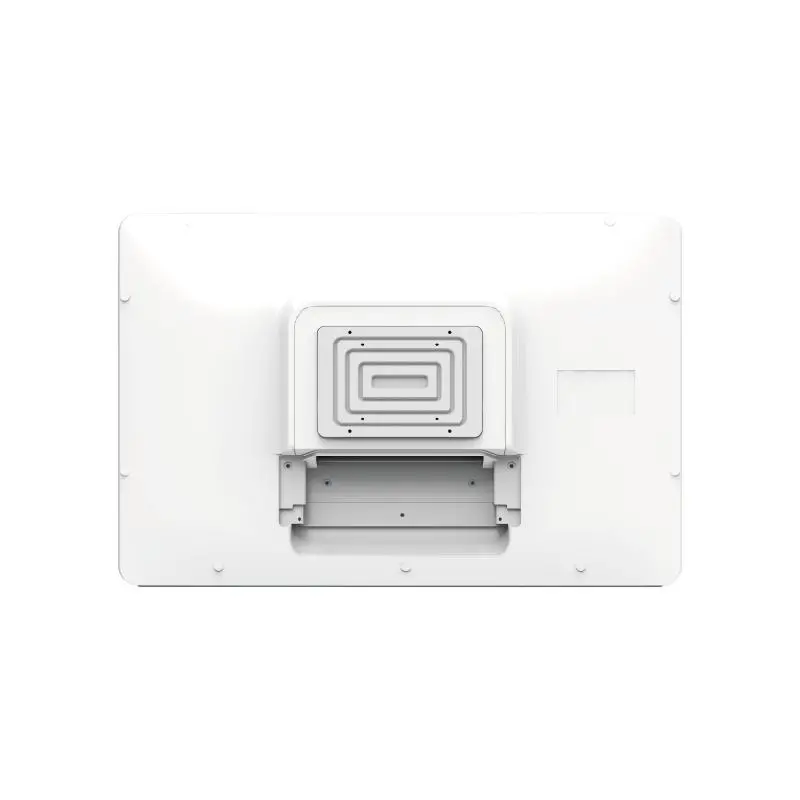

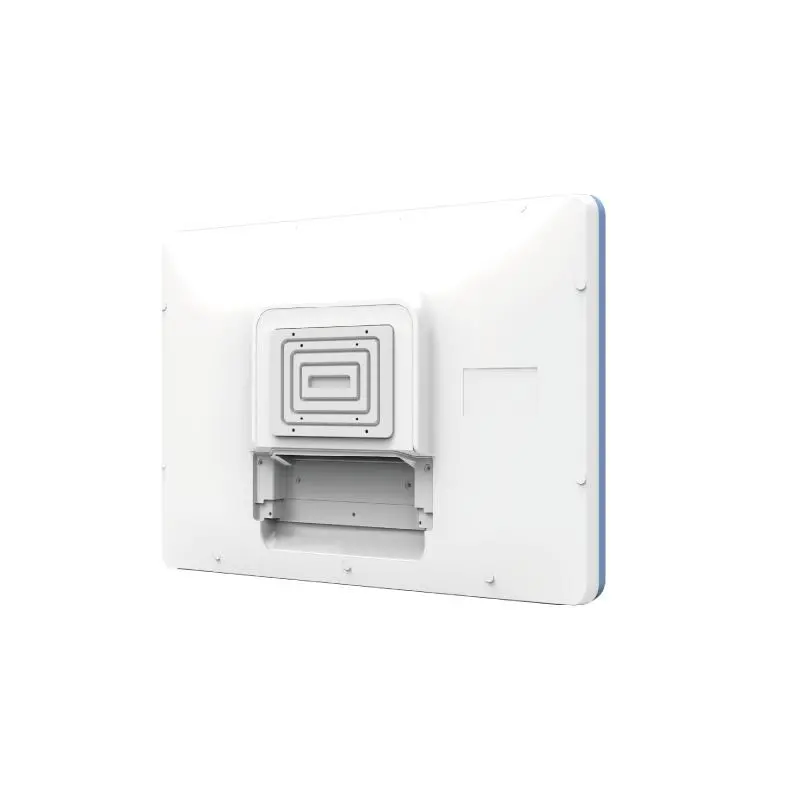

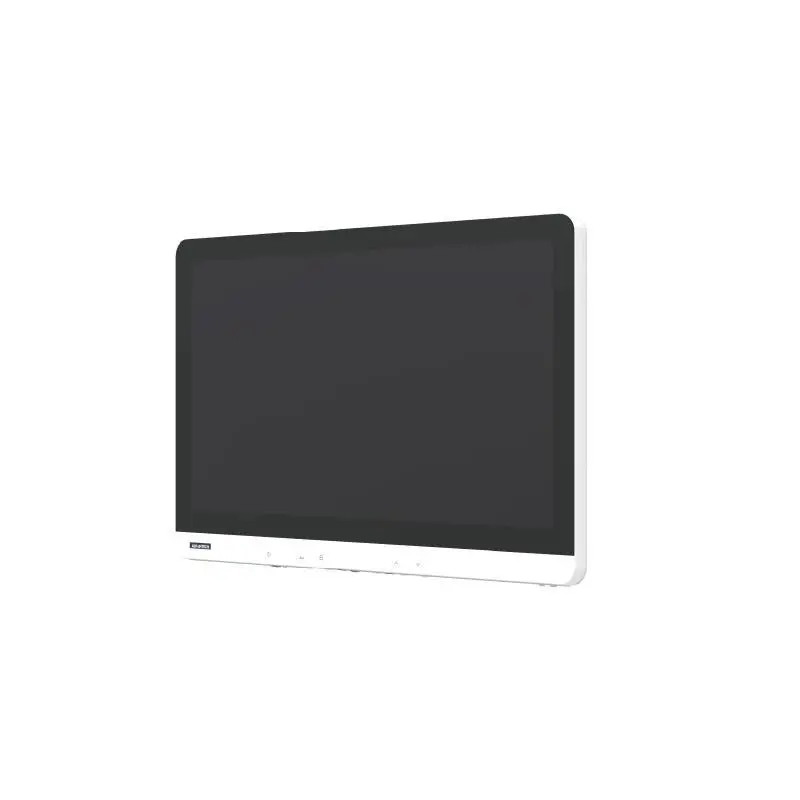

Advantech PAX-124 (F Model) PAX-124 fixed model is a versatile medical touch display with IP54 environmental protection. With touchscreen and cover glass options.
