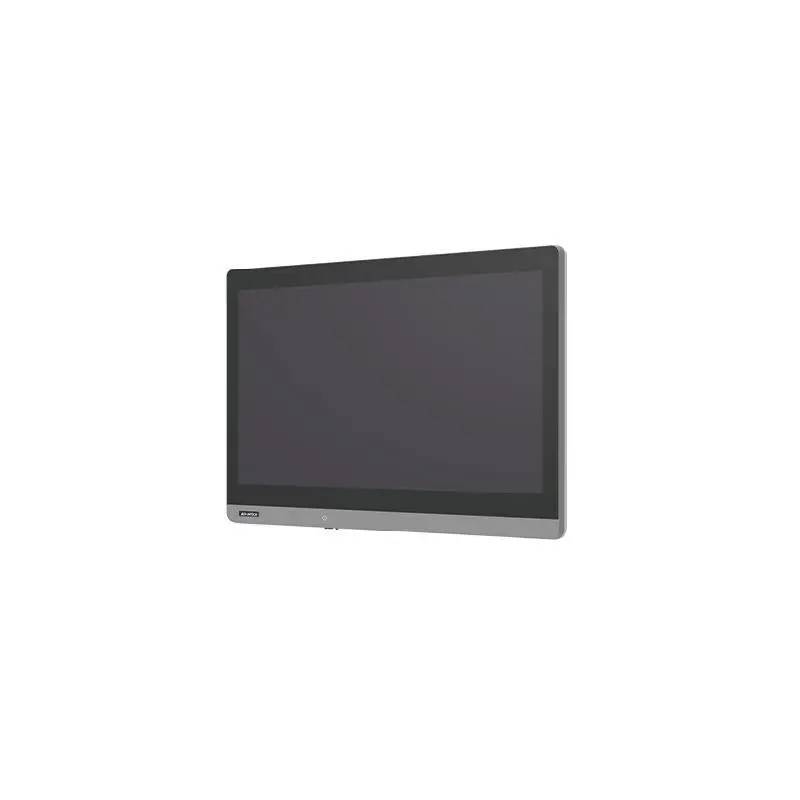

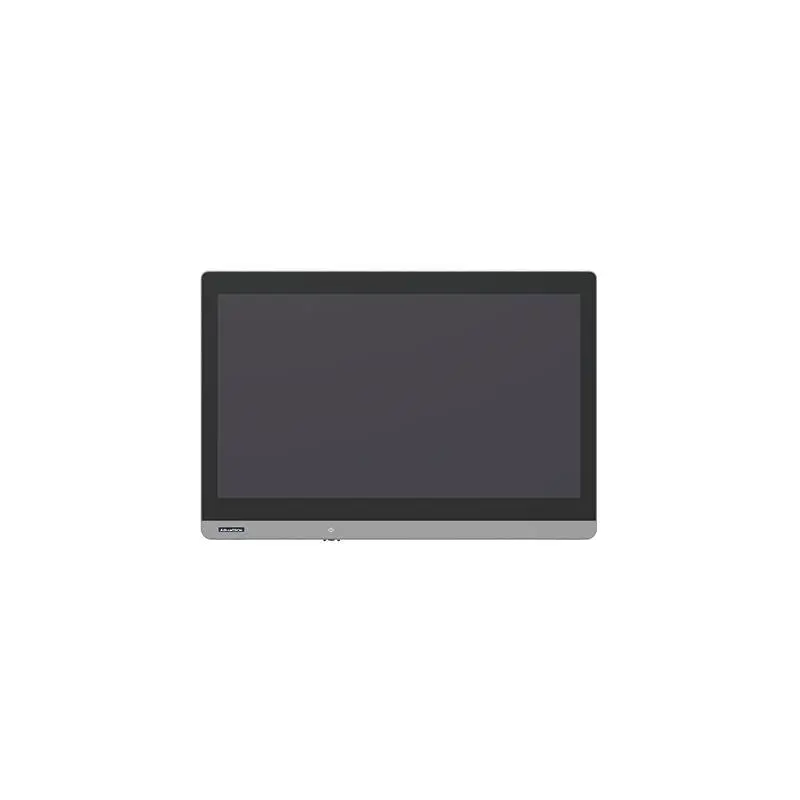

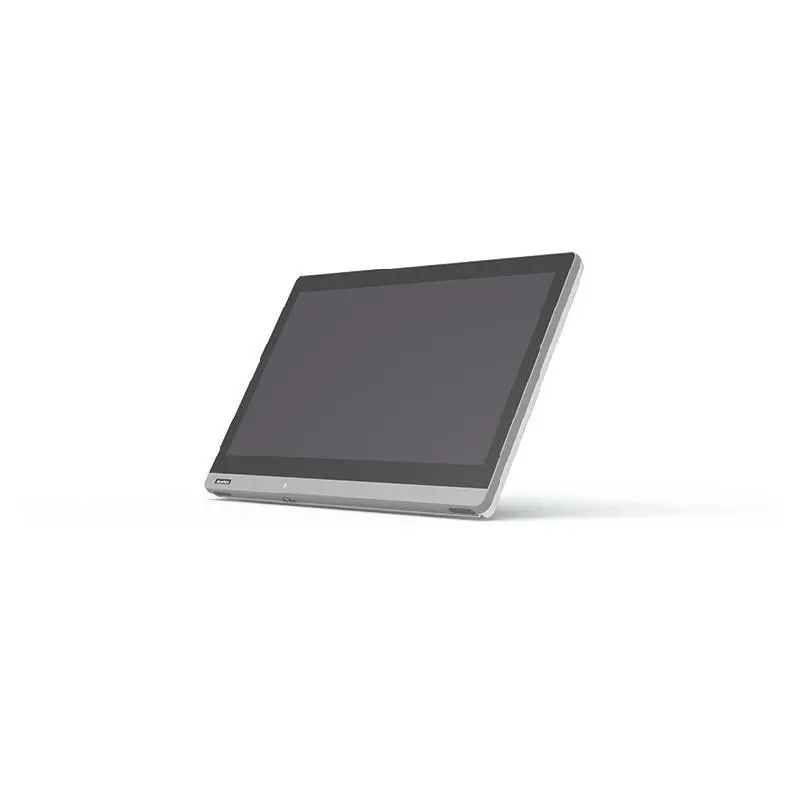

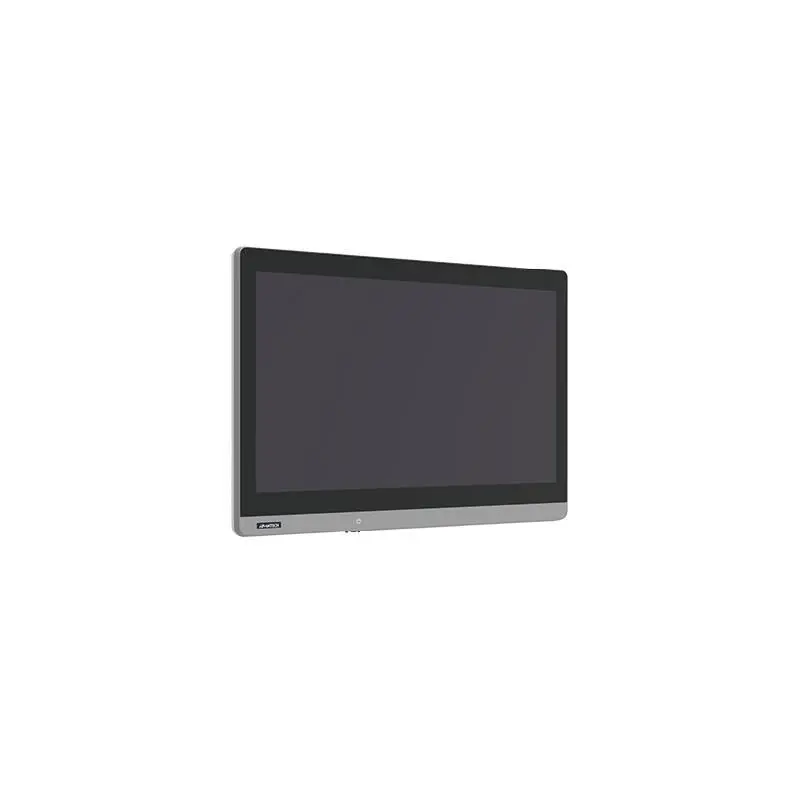

Advantech PAX-121 (M Model) PAX-121 multimodal model is a versatile medical touch display with optional IP54 environmental protection. With touchscreen and cover glass options.

    Wide 21.5 screen with Full HD 1920x1080 resolution

    Fanless design with optional upgrade IP54-rated protection for superior hygiene and infection control

    Multimodal design for easy upgrades and maintenance

    With 10 point multi-touch control function

PAX-121G-C2A-LMC PAX-121G-C2A-LMD
LCD Screen Size 21.53'' 21.53''
LCD Resolution 1920 x 1080 1920 x 1080
LCD Aspect Ratio 0.672916667 0.672916667
LCD Pixel Pitch 0.08265 x 0.24795mm 0.08265 x 0.24795mm
LCD Viewing Angle 178°/ 178° 178°/ 178°
LCD Contrast Ratio (Typ.) 1000 : 1 1000 : 1
LCD Native Luminance (Typ.) 250 cd/m2 250 cd/m2
LCD Color Depth 16.7 Million (6-bit + A-FRC) 16.7 Million (6-bit + A-FRC)
LCD Display Mode Transmissive mode, normally black Transmissive mode, normally black
LCD Response Time 14 msec (Typ, on/off) 14 msec (Typ, on/off)
LCD Touchscreen Optional 10-point PCAP Clear Glass
LCD Backlight LED LED
Input DP 1.2 Input DP Jack x 1 DisplayPort 1.2, 1920 x 1080 @ 60Hz max. DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
Input HDMI 1.4 Input HDMI Jack x 1 (Type A) Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
Input DVI Input DVI Jack x 1 Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Input USB Up USB-B Jack x 1 USB-B Jack x 1
Input Audio Input Audio Jack x 1 Audio Jack x 1
Output Audio Audio Jack x 1 Audio Jack x 1
Power Rating DC 12V, 5A max. DC 12V, 5A max.
Output HDMI 1.4 Output/HDMI Jack x 1 (Type A) Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Environment Temperature Operational: 0~40° C / Storage: -20~60° C Operational: 0~40° C / Storage: -20~60° C
Physical Characteristics IP Ratings Front IP65 / System IPX1, Optional for IP54 Front IP65 / System IPX1, Optional for IP54
Enclosure Color - Gray Gray

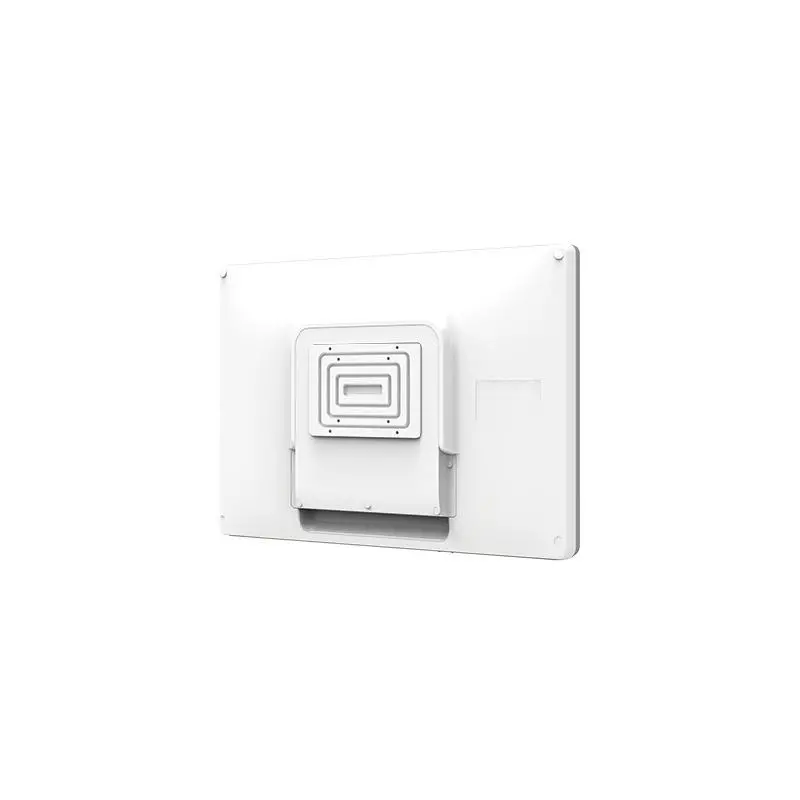

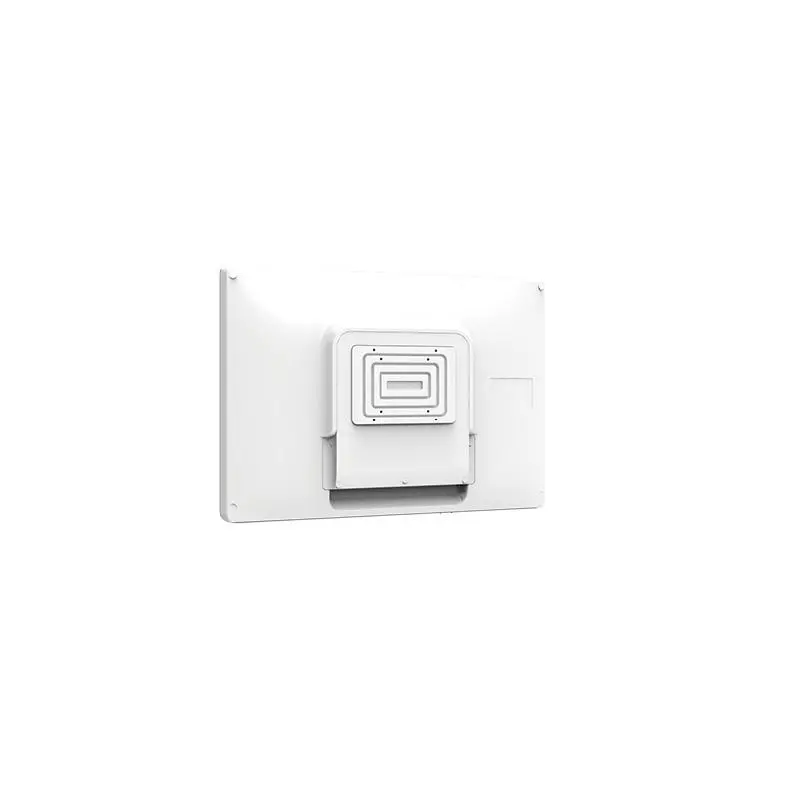

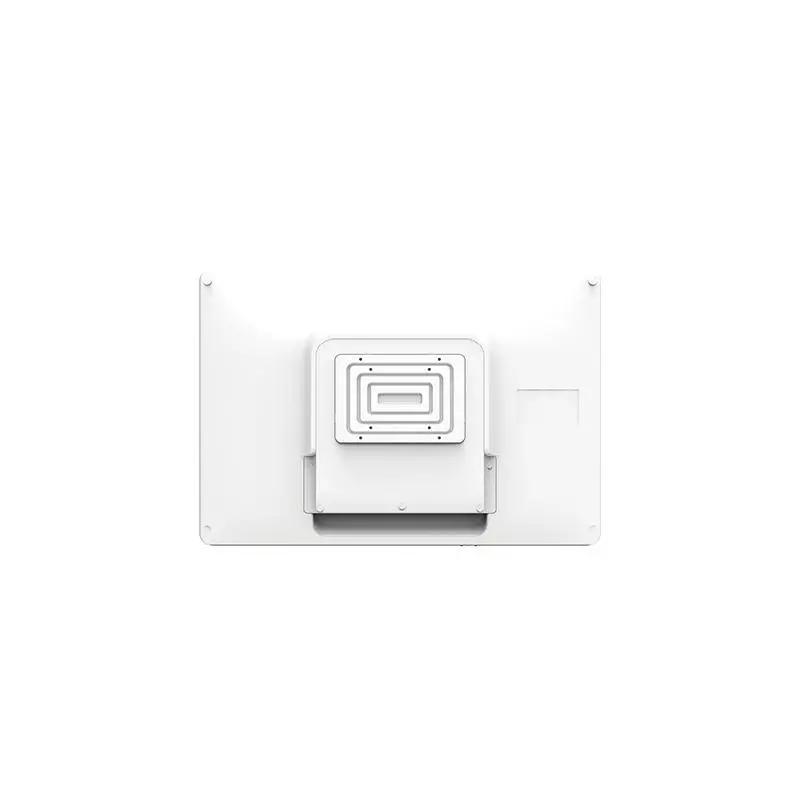

Physical Characteristics VESA Mount 100 x 100; 75 x 75 mm 100 x 100; 75 x 75 mm
Certifications - CCC,CE, FCC Class B CCC,CE, FCC Class B
Physical Characteristics Dimensions (W x D x H) 524 x 357 x 58 mm 524 x 357 x 58 mm
Physical Characteristics Weight 5.5 Kg 5.5 Kg
Warranty - 2 years 2 years
