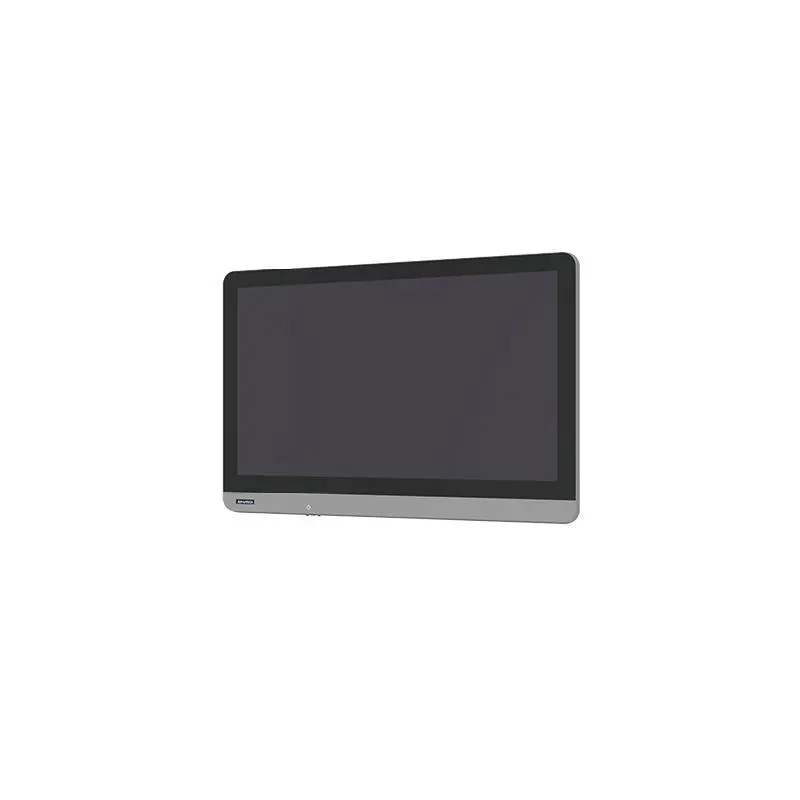

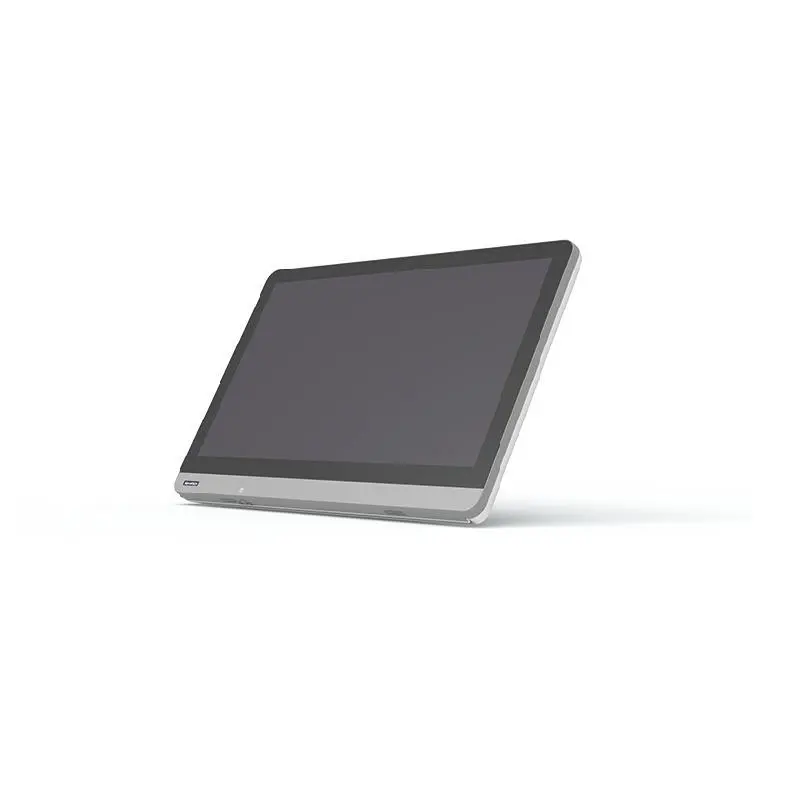

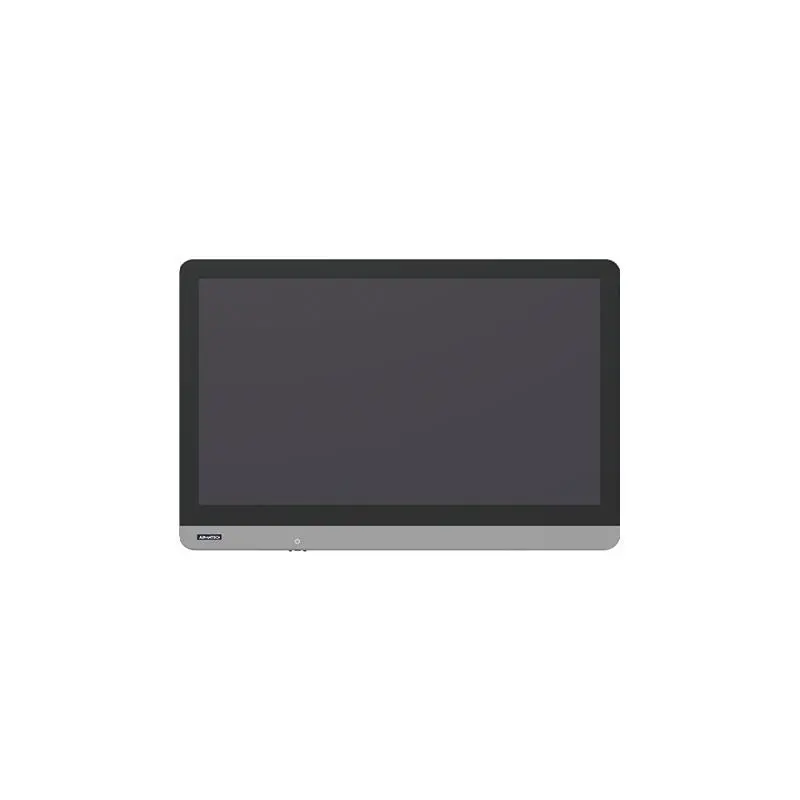

Advantech PAX-124 (M Model) PAX-124 multimodal model is a versatile medical touch display with optional IP54 environmental protection. With touchscreen and cover glass options.

    Wide 23.8 screen with Full HD 1920x1080 resolution

    Fanless design with optional upgrade IP54-rated protection for superior hygiene and infection control

    Multimodal design for easy upgrades and maintenance

    With 10 point multi-touch control function

PAX-124G-C2A-LMC PAX-124G-C2A-LMD
LCD Screen Size 23.8" 23.8"
LCD Resolution 1920 x 1080 1920 x 1080
LCD Aspect Ratio 16:9 16:9
LCD Pixel Pitch 0.270 x 0.270 mm 0.270 x 0.270 mm
LCD Viewing Angle 178°/ 178° 178°/ 178°
LCD Contrast Ratio (Typ.) 3000:1 3000:1
LCD Native Luminance (Typ.) 250 cd/m2 250 cd/m2
LCD Color Depth 8-bit 16.7M Colors 8-bit 16.7M Colors
LCD Display Mode VA Mode, Normally Black VA Mode, Normally Black
LCD Response Time 16ms (G to G) / 16ms (Tr + Tf) 16ms (G to G) / 16ms (Tr + Tf)
LCD Touchscreen 10-point multi touch P-CAP Clear Glass
Input DP 1.2 Input DP Jack x 1 DisplayPort 1.2, 1920 x 1080 @ 60Hz max. DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
Input HDMI 2.0 Input HDMI Jack x 1 (Type A) Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
Input DVI Input DVI Jack x 1 (Type D) Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Input USB Up USB-B Jack x 1 USB-B Jack x 1
Input Audio Input Audio Jack x 1 Audio Jack x 1
Output HDMI 2.0 Output/HDMI Jack x 1 (Type A) Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Output Audio Audio Jack x 1 Audio Jack x 1
Environment Temperature Operational: 0~40° C / Storage: -20~60° C Operational: 0~40° C / Storage: -20~60° C
Power Rating DC 12V, 5A max. DC 12V, 5A max.
Power Consumption 60W max. 60W max.
Enclosure Color - Gray Gray
Physical Characteristics IP Ratings Front IP65 / System IPX1, Optional for IP54 Front IP65 / System IPX1, Optional for IP54

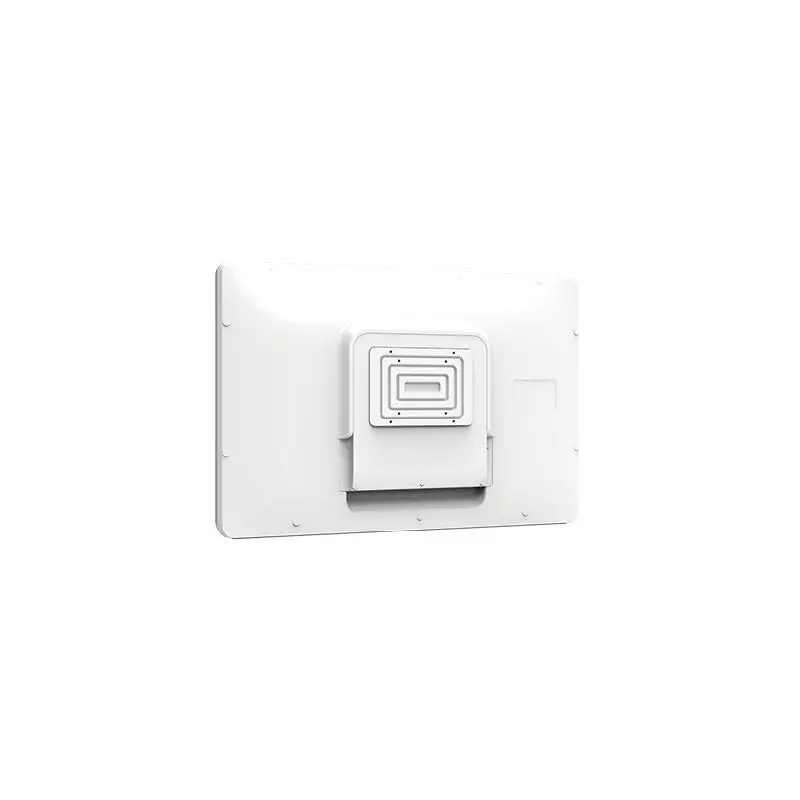

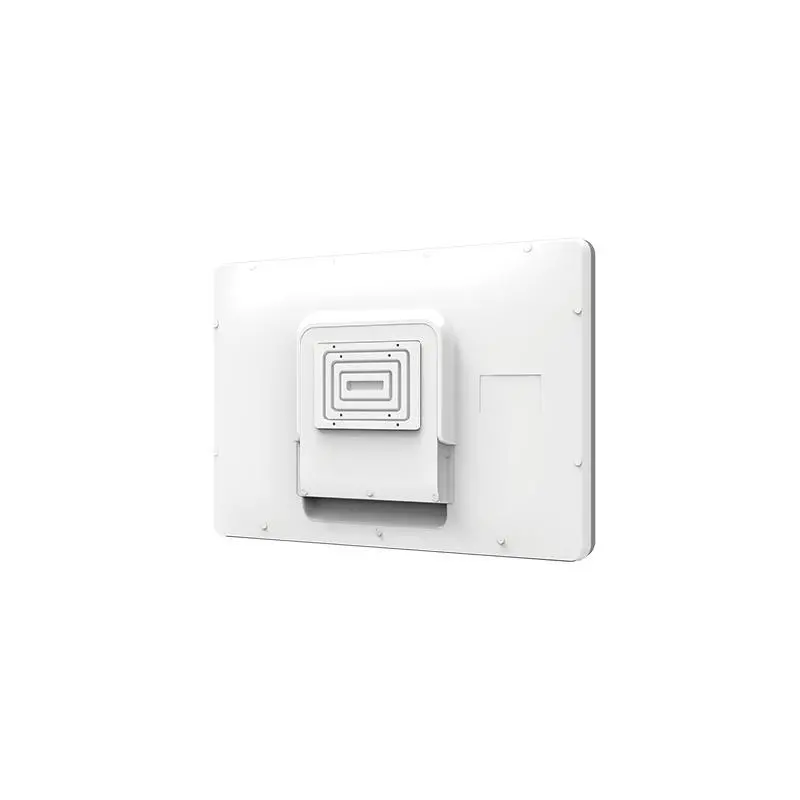

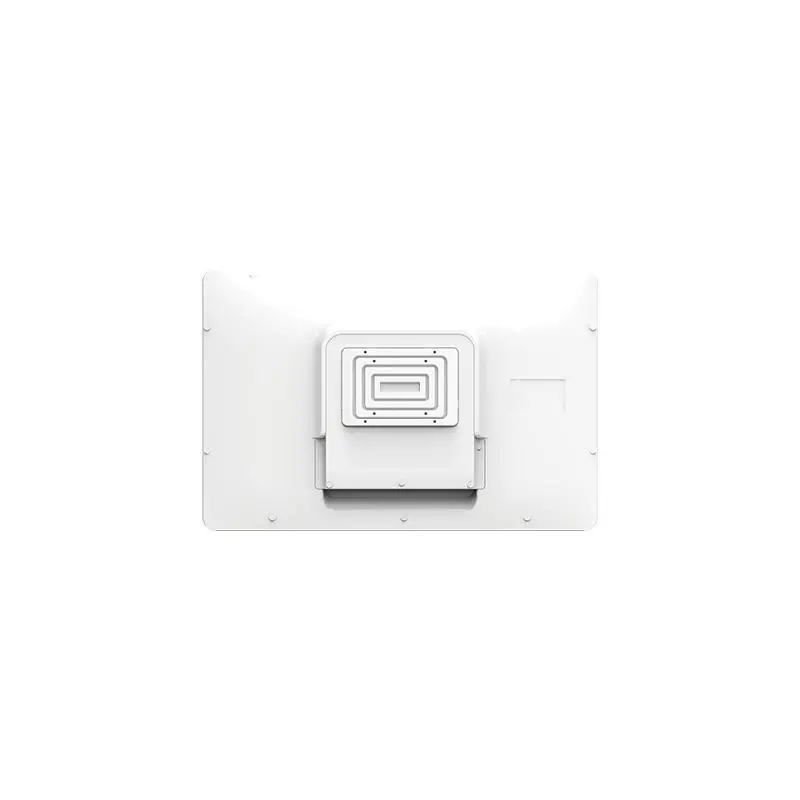

Physical Characteristics VESA Mount 100 x 100; 75 x 75 mm 100 x 100; 75 x 75 mm
Physical Characteristics Dimensions (W x D x H) 583 x 387 x 63 mm 583 x 387 x 63 mm
Physical Characteristics Weight 6.98 kg 6.98 kg
Certifications - CCC,CE, FCC Class B CCC,CE, FCC Class B
Warranty - 2 years 2 years
