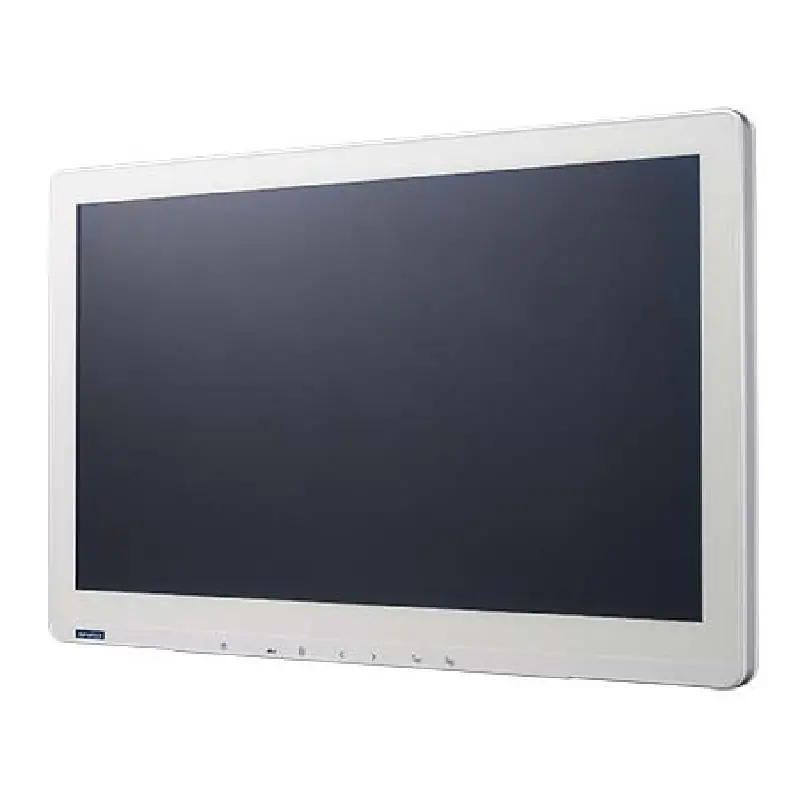

Advantech PAX-327 27" true flat Medical-grade full HD and UHD Display, enabling both Radiology and Optical imaging simultaneously into Multi-Views.

    27” true-flat monitor with AR filter

    High-brightness display with a high contrast ratio

    FHD resolution (1920 x 1200)/UHD resolution (3840 x 2160)

    DVI and RGB support resolutions of up to 1920 x 1200 @ 60 Hz

    HDMI 2.0, DP 1.2, and SDI support resolutions of up to 3840 x 2160 @ 60Hz

    Multi-standard (NTSC, PAL, SECAM) video input receiver

    Operating temperature 0 ~ 40 °C/32 ~ 104 °F; storage temperature -20 ~ 60 °C/-4 ~ 140 °F

    Video enhancement features●14-bit LUT processing●DICOM Part 14 GSDF compliant●DICOM, clear, blue modes supported

    Optional touch panel

    Optional upgrade to an IP-based display with AVAS

PAX-327-C2B-HAR PAX-327-C2B-LAS PAX-327-C8A-HAR
LCD Screen Size 27" (597.89 x 336.31 mm) 27" (597.89 x 336.31 mm) 27" (596.74 x 335.66 mm)
LCD Resolution 1920 x 1080 1920 x 1080 3840 x 2160
LCD Aspect Ratio 16:9 16:9 16:9
LCD Pixel Pitch 0.3114 x 0.3114 mm 0.3114 x 0.3114 mm 0.15525 x 0.15525 mm
LCD Viewing Angle 178°/ 178° 178°/ 178° 178°/ 178°
LCD Contrast Ratio (Typ.) 1000 : 1 1000 : 1 1000 : 1
LCD Native Luminance (Typ.) 900 cd/m2, 300 cd/m2 900 cd/m2, 300 cd/m2 800 cd/m2, 350cd/m2
LCD Color Depth 8-bit 16.7M Colors / 10-bit 1.07B Colors 8-bit 16.7M Colors / 10-bit 1.07B Colors 10-bit 1.07B Colors
LCD Display Mode AHVA AHVA AHVA, IPS
LCD Response Time 14ms (Tr + Tf) 14ms (Tr + Tf) 16ms (Tr + Tf), 14ms (Tr+Tf)
LCD Touchscreen Optional 10-point PCAP - Optional 10-point PCAP
LCD Specification Glass Anti-Reflection Anti-Reflection Anti-Reflection
Input DP 1.2 Input DP Jack x 1 DisplayPort 1.2, 1920 x 1080 @ 60Hz max. DisplayPort 1.2, 1920 x 1080 @ 60Hz max. DisplayPort 1.2, 3840 x 2160 @ 60 Hz max.
Input HDMI 2.0 Input HDMI Jack x 1 (Type A) Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60Hz max. Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
Input DVI Input DVI Jack x 1 (Type D) - - Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Input DVI Input DVI Jack x 2 (Type D) Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Input SDI1 Input BNC Jack x 1 Serial Input Common Mode: 2.2 Vp-p (75 Ω)/4K 3G SDI x 4 or 4K 12G SDI x 1 Serial Input Common Mode: 2.2 Vp-p (75 Ω)/4K 3G SDI x 4 or 4K 12G SDI x 1 Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max.
Input S-Video Input Mini DIN Jack x 1 (4-pin) Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] -
Input Video Input BNC Jack x 1 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] -
Input USB Up USB-B Jack x 1 For Optional Touchscreen For Optional Touchscreen For Optional Touchscreen
Input RS-232C D-Sub Jack x 1 Service Port Service Port Service Port
Input DC Power Input DC Jack x 1 DC 24V, 6.25 A DC 24V, 6.25 A DC 24V, 6.25 A
Optional Input RGB Input/Audio Input D-sub x 1/Audio Jack x 1 D-sub x 1/Audio Jack x 1 -
Optional Input AVAS NDcoder - - SPF+ Module x 1 / LAN RJ-45 Jack x 1
Optional Input SDI2 Input / BNC Jack x 1 By request only By request only -
Output DP 1.2 Output/DP Jack x 1 - - DisplayPort 1.2 MST or Daisy chain
Output HDMI 2.0 Output/HDMI Jack x 1 (Type A) - - Digital RGB: TMDS, 3840 x 2160 @ 60 Hz max.
Output DVI Output/DVI Jack x 1 (Type D) - - Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
Output DVI Output/DVI Jack x 2 (Type D) Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max -
Output SDI1 Output BNC Jack x 1 Serial Input Common Mode: 2.2 Vp-p(75Ω); 1920 x 1080 @ 60 Hz max. Serial Input Common Mode: 2.2 Vp-p(75Ω); 1920 x 1080 @ 60 Hz max. -
Output SDI Output/BNC Jack x 4 or/BNC Jack x 1 - - Serial Input Common Mode: 2.2 Vp-p (75 Ω)/4K 3G SDI x 4 or 4K 12G SDI x 1
Output S-Video Output Mini DIN Jack x 1 (4-pin) Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] -
Output Video Output BNC Jack x 1 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] -
Output DC Power Output DC Jack x 1 DC 5 V or DC 12 V DC 5 V or DC 12 V DC 5 V or DC 12 V
Optional Output Audio Output Audio Jack x 1 Audio Jack x 1 -
Optional Output SDI2 Output / BNC Jack x 1 by request only by request only -
Optional Output SDI Output - - -
Environment Temperature Operational: 0~40° C / Storage: -20~60° C Operational: 0~40° C / Storage: -20~60° C Operational: 0~40° C / Storage: -20~60° C
Environment Humidity Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90% Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90% Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90%
Environment Pressure Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa
Power Rating DC 24 V, 6.25 A max. DC 24 V, 6.25 A max. DC 24 V, 6.25 A max.
Power Consumption 80W max. 66.8 W 86.8 W
Physical Characteristics IP Ratings Front IP65 / Top IPX1 Front IP65 / Top IPX1 Front IP65 / Top IPX1
Physical Characteristics VESA Mount 100 x 100; 75 x 75 mm 100 x 100; 75 x 75 mm 100 x 100; 75 x 75 mm
Physical Characteristics Dimensions (W x D x H) 663.83 x 73.55 x 418.11 mm 663.83 x 73.55 x 418.11 mm 663.83 x 73.55 x 418.11 mm
Physical Characteristics Weight ~10 kg ~10 kg 9.52 kg
Certifications - CE, MDD CE, MDD CE, MDD
Warranty - 3 years 3 years 3 years
Accessories - Power Adapter Power Adapter Power Adapter
