Advantech PAX-324 24" Medical-grade Surgical Display

    Operational 0~40oC / Storage -20~60oC

    Optional upgrade to an IP-based monitor with AVAS

    Video enhancement features include: •14-bit LUT processing •DICOM Part 14 GSDF compliant •DICOM, clear, blue modes supported

    Multi-standard video support (NTSC, PAL, SECAM)

    SDI support up to 1920 x 1080 @ 60Hz

    HDMI 2.0, DP 1.2, DVI, RGB support up to 1920 x 1200 @ 60 Hz

    FHD resolution (1920 x 1200)

    High brightness display with a high contrast ratio

    24” true-flat monitor with AR filter

PAX-324-C2B-NAS PAX-324-C2B-HAR PAX-324-C2B-HAS PAX-324-C2B-NAR
LCD Screen Size 24.07” (518.4 x 324.0 mm) 24.07” (518.4 x 324.0 mm) 24.07” (518.4 x 324.0 mm) 24.07” (518.4 x 324.0 mm)
LCD Resolution 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1200
LCD Aspect Ratio 16:10 16:10 16:10 16:10
LCD Pixel Pitch 0.270 x 0.270 mm 0.270 x 0.270 mm 0.270 x 0.270 mm 0.270 x 0.270 mm
LCD Viewing Angle 178°/ 178° 178°/ 178° 178°/ 178° 178°/ 178°
LCD Contrast Ratio (Typ.) 1000 : 1 1000 : 1 1000 : 1 1000 : 1
LCD Native Luminance (Typ.) 350 cd/m2 900 cd/m2 900 cd/m2 350 cd/m2
LCD Color Depth 8-bit 16.7M Colors 10-bit 1.07B Colors 10-bit 1.07B Colors 8-bit 16.7M Colors
LCD Display Mode AH-IPS AHVA AHVA AH-IPS
LCD Response Time 14ms (G to G) 14ms (Tr + Tf) 14ms (Tr + Tf) 14ms (G to G)
LCD Touchscreen Anti-Reflection, non touchscreen PCAP, Anti-Reflection Anti-Reflection, non touchscreen PCAP, Anti-Reflection
LCD Backlight LED LED LED LED

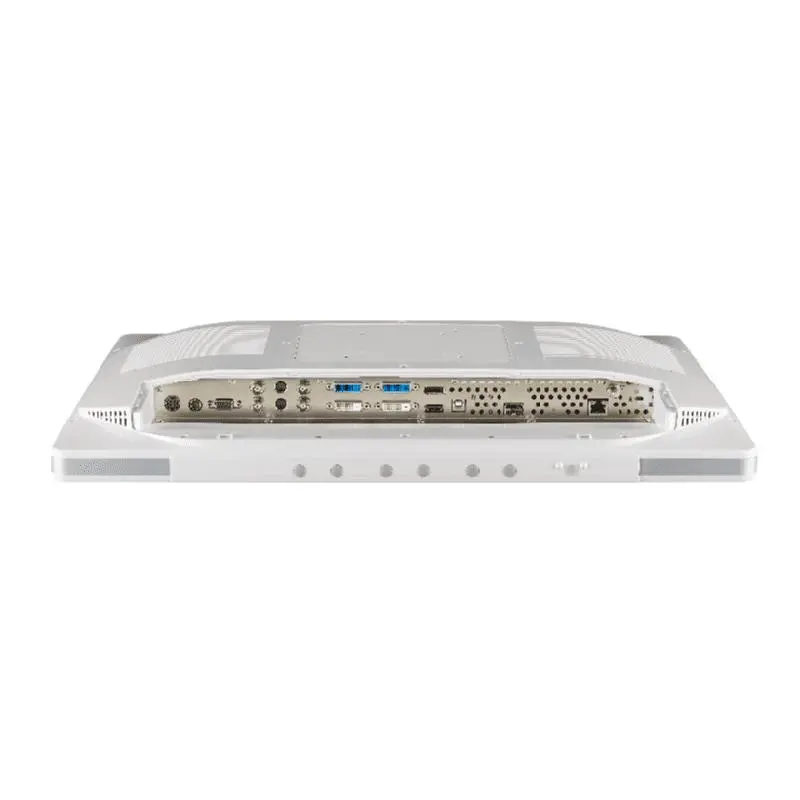

Input DP 1.2 Input DP Jack x 1 DisplayPort 1.2, 1920 x 1200 @ 60 Hz max. DisplayPort 1.2, 1920 x 1200 @ 60 Hz max. DisplayPort 1.2, 1920 x 1200 @ 60 Hz max. DisplayPort 1.2, 1920 x 1200 @ 60 Hz max.
Input HDMI 2.0 Input HDMI Jack x 1 (Type A) Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max.
Input DVI Input DVI Jack x 2 (Type D) Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max.
Input SDI1 Input BNC Jack x 1 Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max. Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max. Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max. Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max.
Input S-Video Input Mini DIN Jack x 1 (4-pin) Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC] / Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC] / Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC] / Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM]
Input Video Input BNC Jack x 1 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM]
Input USB Up USB-B Jack x 1 For Optional Touchscreen For Optional Touchscreen For Optional Touchscreen For Optional Touchscreen
Input RS-232C Mini DIN Jack x 1 (8-pin) Service Port Service Port Service Port Service Port
Input DC Power Input DC Jack x 1 DC 24 V, 4.16 A DC 24 V, 4.16 A DC 24 V, 4.16 A DC 24 V, 4.16 A
Optional Input RGB Input D-sub x 1 D-sub x 1 D-sub x 1 D-sub x 1
Optional Input Audio Input Audio Jack x 1 Audio Jack x 1 Audio Jack x 1 Audio Jack x 1
Optional Input AVAS SFP+ Module x 1 For Video Over IP Option, Please Contact Sales For Video Over IP Option, Please Contact Sales For Video Over IP Option, Please Contact Sales For Video Over IP Option, Please Contact Sales
Optional Input SDI2 Input / BNC Jack x 1 By request only By request only By request only By request only
Output DVI Jack x 2 (Type D) Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max.
Output SDI1 Output BNC Jack x 1 Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max. Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max. Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max. Serial Input Common Mode: 2.2 Vp-p (75 Ω); 1920 x 1080 @ 60 Hz max.
Output S-Video Output Mini DIN Jack x 1 (4-pin) Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC] / Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC] / Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC] / Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM] Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM]
Optional Output Audio Output Speaker 2x3W Speaker 2x3W Speaker 2x3W Speaker 2x3W
Output Video Output BNC Jack x 1 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM] 1 Vp-p (75 Ω) [NTSC / PAL / SECAM]
Output DC Power Output DC Jack x 1 DC 5 V or DC 12 V DC 5 V or DC 12 V DC 5 V or DC 12 V DC 5 V or DC 12 V
Environment Humidity Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90% Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90% Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90% Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90%
Environment Temperature Operational: 0~40° C / Storage: -20~60° C Operational: 0~40° C / Storage: -20~60° C Operational: 0~40° C / Storage: -20~60° C Operational: 0~40° C / Storage: -20~60° C
Environment Pressure Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa
Power Consumption 26.7 W 55.1W max. 55.1W max. 26.7 W
Power Rating DC 24 V, 4.16 A max. DC 24 V, 4.16 A max. DC 24 V, 4.16 A max. DC 24 V, 4.16 A max.
Physical Characteristics IP Ratings Front IP65 / Top IPX1 Front IP65 / Top IPX1 Front IP65 / Top IPX1 Front IP65 / Top IPX1

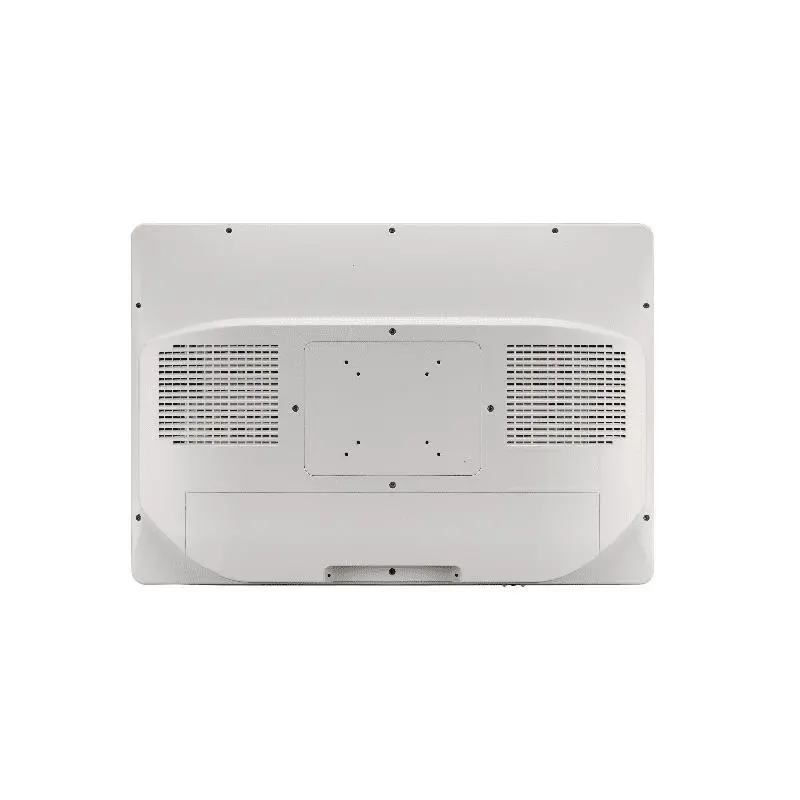

Physical Characteristics VESA Mount 100 x 100; 75 x 75 mm 100 x 100; 75 x 75 mm 100 x 100; 75 x 75 mm 100 x 100; 75 x 75 mm
Physical Characteristics Dimensions (W x D x H) 578.13 x 68 x 402.78mm 578.13 x 68 x 402.78mm 578.13 x 68 x 402.78mm 578.13 x 68 x 402.78mm
Physical Characteristics Weight 7.2 kg 7.5 kg 7.5 kg 7.2 kg
Accessories - Power Adapter Power Adapter Power Adapter Power Adapter
Certifications Safety CE MDR (EN60601-1; EN60601-1-2), RoHS ll CE MDR (EN60601-1; EN60601-1-2), RoHS ll CE MDR (EN60601-1; EN60601-1-2), RoHS ll CE MDR (EN60601-1; EN60601-1-2), RoHS ll
Warranty - 3 years 3 years 3 years 3 years
