| USM-S62-G0000 | ||
| General | Storage | 8GB micro SD card (default), supports up to 32GB |
| General | Indicators | Orange: Power and GW statusBlue: Uplink status/activity |
| General | I/O Ports | 2 x USB 2.0 host1 x SIM card slot1 x Micro SD card slot (supports SDHC cards)1 x 10/100 Ethernet RJ45 connector1 x Reset button1 x Lockable DC jack |
| Wireless Communication | LoRa Technology | Frequency:920 ~ 925 MHz for Taiwan902 ~ 928 Mhz for US863 ~ 870 MHz for Europe470 ~ 510 MHz for China921~922 MHz for Japan |
| Wireless Network | Range | >500 meters (Line of sight) |
| Wireless Network | Topology | Star |
| Connectivity | Ethernet | 10/100 RJ45 connector |
| Connectivity | Backhaul Support | 802.11ac/a/b/g/n Wi-Fi (2.4 + 5 GHz) or LTE cat. 4 |
| Power | Input Voltage | 9 ~ 20VDC via lockable DC jack |
| Mechanical | Dimensions (W x H x D) | 128 x 156 x 27.8 mm (5.03 x 6.14 x 1.09 in) |
| Mechanical | Weight | 524 g/1.15 lb |
| Mechanical | Mount Options | VESA, wall, desktop, pole, magnet, DIN rail |
| Certifications | EMC | CE/FCC/NCC/TELEC/CCC |
| Certifications | EMI | Class B |
| Environment | Vibration/shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration |
| Environment | Operating Temperature | -20 ~ 65 °C/-4 ~ 149 °F |
| Environment | Storage Temperature | -40 ~ 85 °C/-40 ~ 185 °F |
| Environment | Operating Humidity | 90% @ 40 °C/104 °F (non-condensing) |

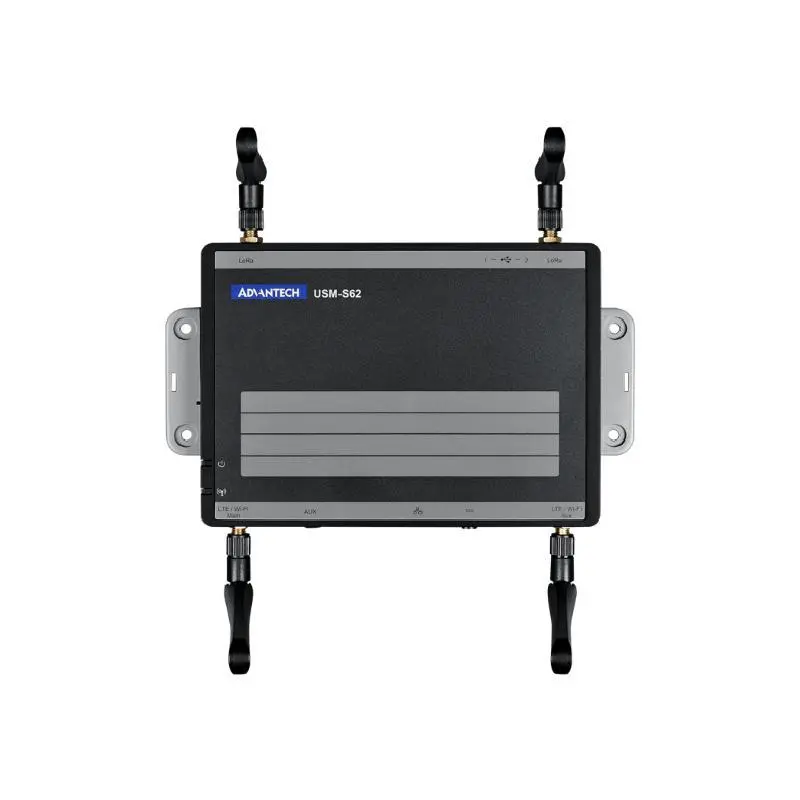

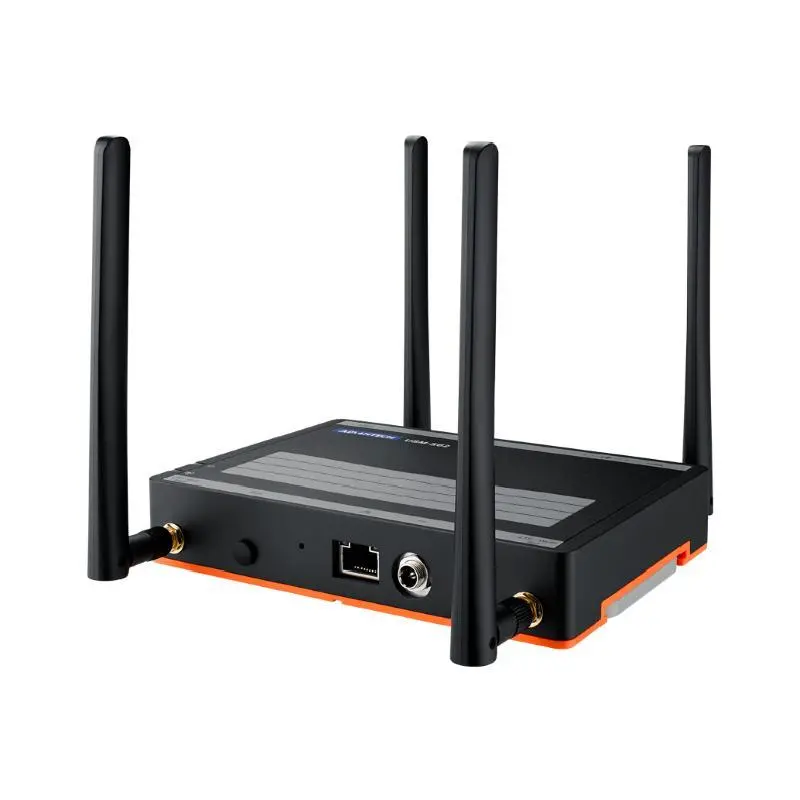

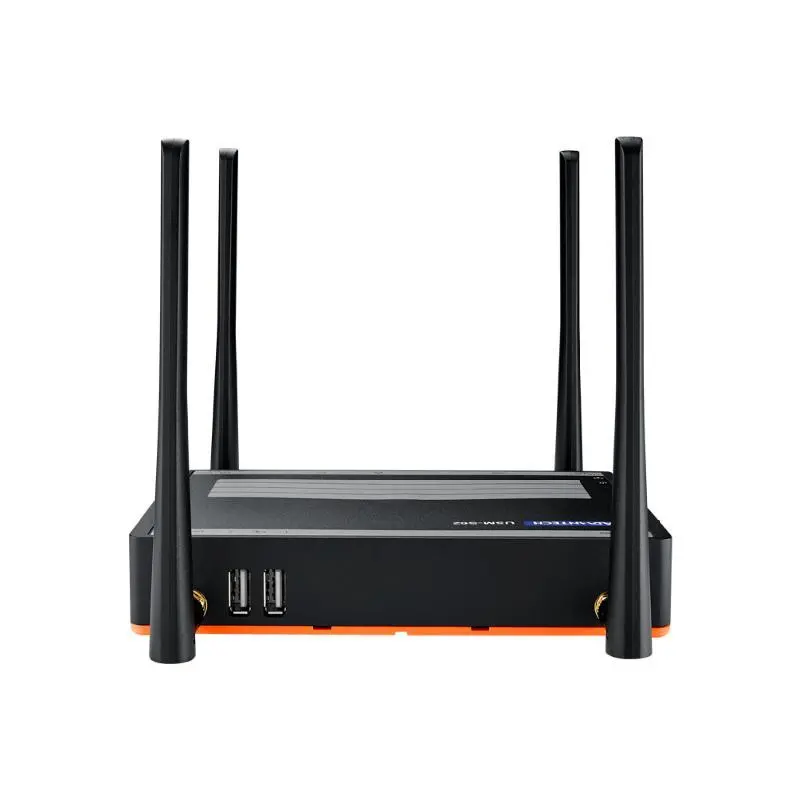

Advantech USM-S62 LoRa Data Gateway for TREK-120 Sensors
