| USM-S66-G0000 | 1751000083-01 | 1700033011-01 | 1700028201-01 | ||
| General | Storage | 8GB micro SD card (default), supports up to 32GB | 8GB micro SD card (default), supports up to 32GB | 8GB micro SD card (default), supports up to 32GB | 8GB micro SD card (default), supports up to 32GB |
| General | Indicators | Green for Power and Red for GW StatusBlue for Uplink status/activity | Green for Power and Red for GW StatusBlue for Uplink status/activity | Green for Power and Red for GW StatusBlue for Uplink status/activity | Green for Power and Red for GW StatusBlue for Uplink status/activity |

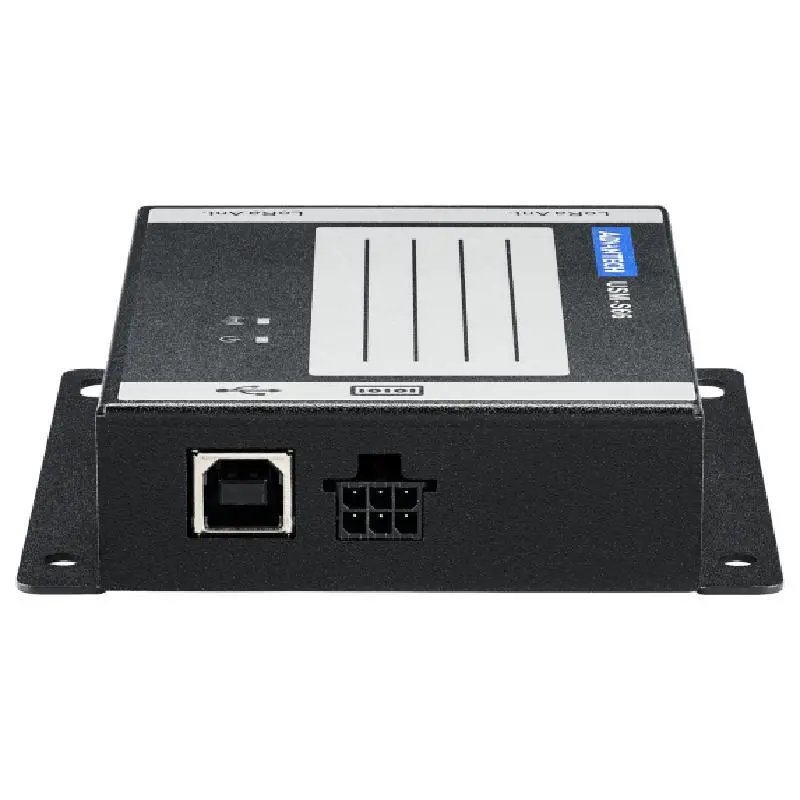

| I/O | USB 2.0 | 1 (5VDC power and Data), Type-B | 1 (5VDC power and Data), Type-B | 1 (5VDC power and Data), Type-B | 1 (5VDC power and Data), Type-B |
| I/O | Micro-Fit 3x2 | Support 2-wire UART/RS-232, 115,200bps- 2-wire UART (TX/RX), 5V tolerant- RS-232 (TX/RX)5V~36VDC input, with basic OVP protection & surge protection | Support 2-wire UART/RS-232, 115,200bps- 2-wire UART (TX/RX), 5V tolerant- RS-232 (TX/RX)5V~36VDC input, with basic OVP protection & surge protection | Support 2-wire UART/RS-232, 115,200bps- 2-wire UART (TX/RX), 5V tolerant- RS-232 (TX/RX)5V~36VDC input, with basic OVP protection & surge protection | Support 2-wire UART/RS-232, 115,200bps- 2-wire UART (TX/RX), 5V tolerant- RS-232 (TX/RX)5V~36VDC input, with basic OVP protection & surge protection |

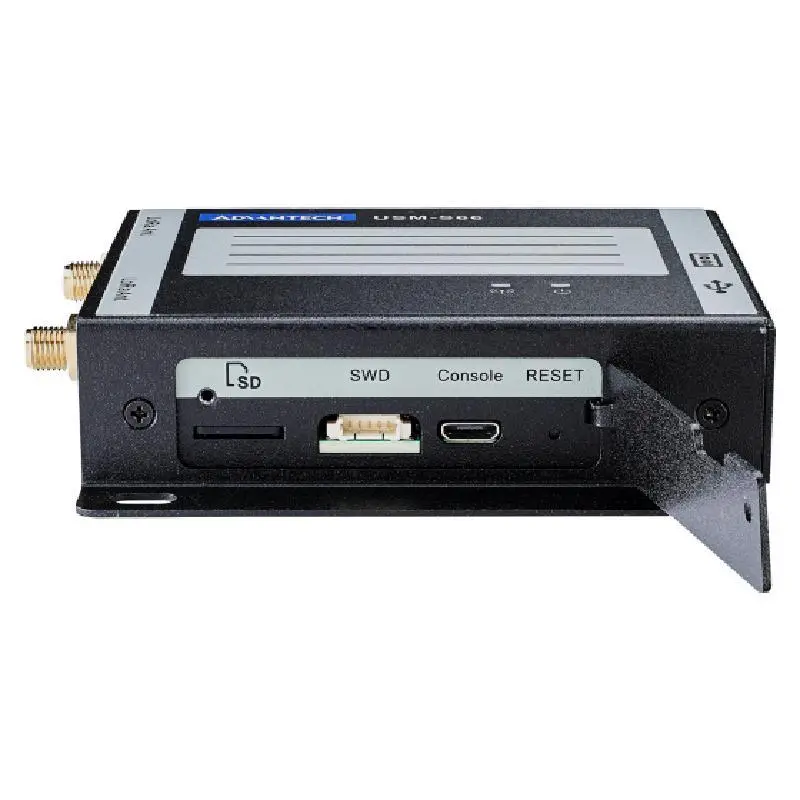

| I/O | Micro USB | Console mode | Console mode | Console mode | Console mode |

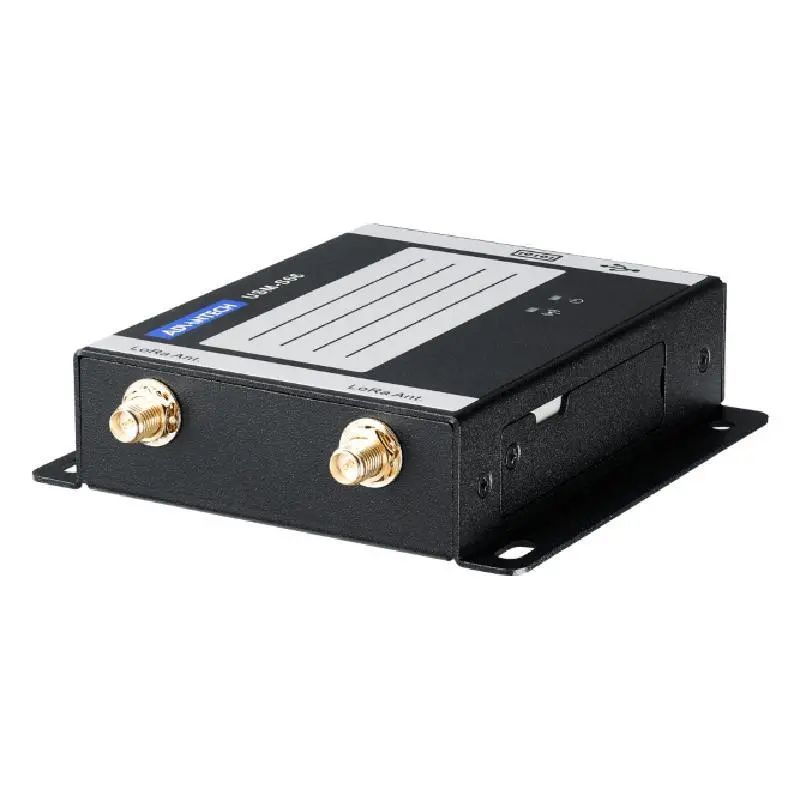

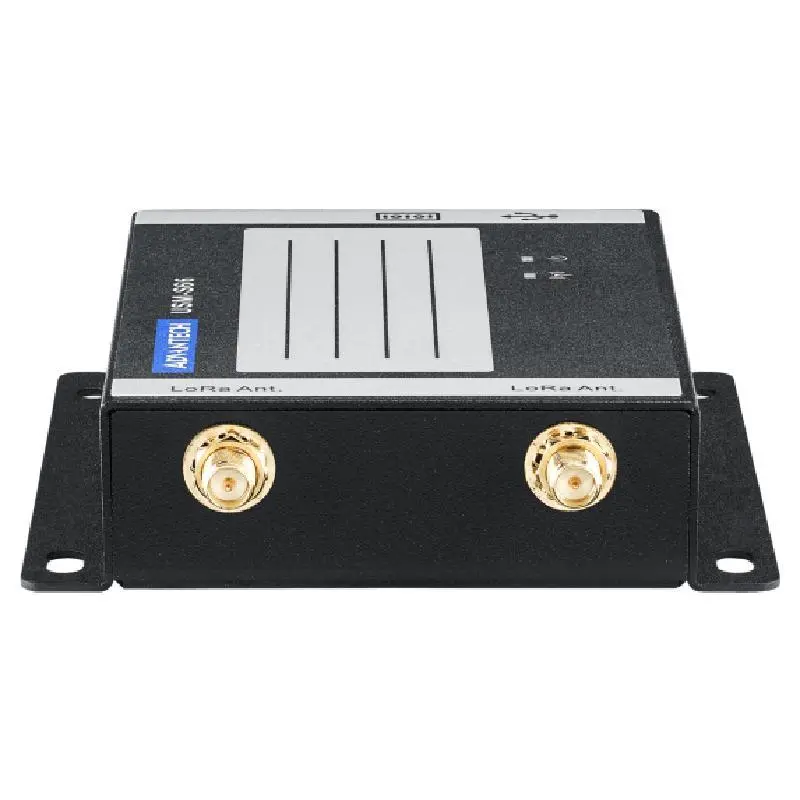

| I/O | SMA | 2x SMA connector for LoRa antenna | 2x SMA connector for LoRa antenna | 2x SMA connector for LoRa antenna | 2x SMA connector for LoRa antenna |
| I/O | Reset button | >=2s, Reset LoRa GW>=8s, Load factory default | >=2s, Reset LoRa GW>=8s, Load factory default | >=2s, Reset LoRa GW>=8s, Load factory default | >=2s, Reset LoRa GW>=8s, Load factory default |
| RF | Tehcnology | Advantech LoRa technology (WISE-Link) | Advantech LoRa technology (WISE-Link) | Advantech LoRa technology (WISE-Link) | Advantech LoRa technology (WISE-Link) |
| RF | Frequency | 902~928MHz for North America863-870MHz for Europe920-928MHz for Japan470-510MHz for China | 902~928MHz for North America863-870MHz for Europe920-928MHz for Japan470-510MHz for China | 902~928MHz for North America863-870MHz for Europe920-928MHz for Japan470-510MHz for China | 902~928MHz for North America863-870MHz for Europe920-928MHz for Japan470-510MHz for China |
| Power | Input Voltage | 5V/1A, through USB connector5V~36VDC input, with basic OVP protection & surge protection, through Microfit connector | 5V/1A, through USB connector5V~36VDC input, with basic OVP protection & surge protection, through Microfit connector | 5V/1A, through USB connector5V~36VDC input, with basic OVP protection & surge protection, through Microfit connector | 5V/1A, through USB connector5V~36VDC input, with basic OVP protection & surge protection, through Microfit connector |
| Installation | Mounting | screw mount, Tie cable | screw mount, Tie cable | screw mount, Tie cable | screw mount, Tie cable |
| Mechanical | Dimensions (W x H x D) | 90 x 89.6 x 23.48 mm | 90 x 89.6 x 23.48 mm | 90 x 89.6 x 23.48 mm | 90 x 89.6 x 23.48 mm |
| Mechanical | Weight | 270g | 270g | 270g | 270g |
| Environment | Operating Temperature | 0 ~ 65 °C (32 ~ 149 °F) | 0 ~ 65 °C (32 ~ 149 °F) | 0 ~ 65 °C (32 ~ 149 °F) | 0 ~ 65 °C (32 ~ 149 °F) |
| Environment | Storage Temperature | 0 ~ 85 °C (32 ~ 185 °F) | 0 ~ 85 °C (32 ~ 185 °F) | 0 ~ 85 °C (32 ~ 185 °F) | 0 ~ 85 °C (32 ~ 185 °F) |
| Environment | Relative Humidity | 90% @ 40 °C (non-condensing) | 90% @ 40 °C (non-condensing) | 90% @ 40 °C (non-condensing) | 90% @ 40 °C (non-condensing) |

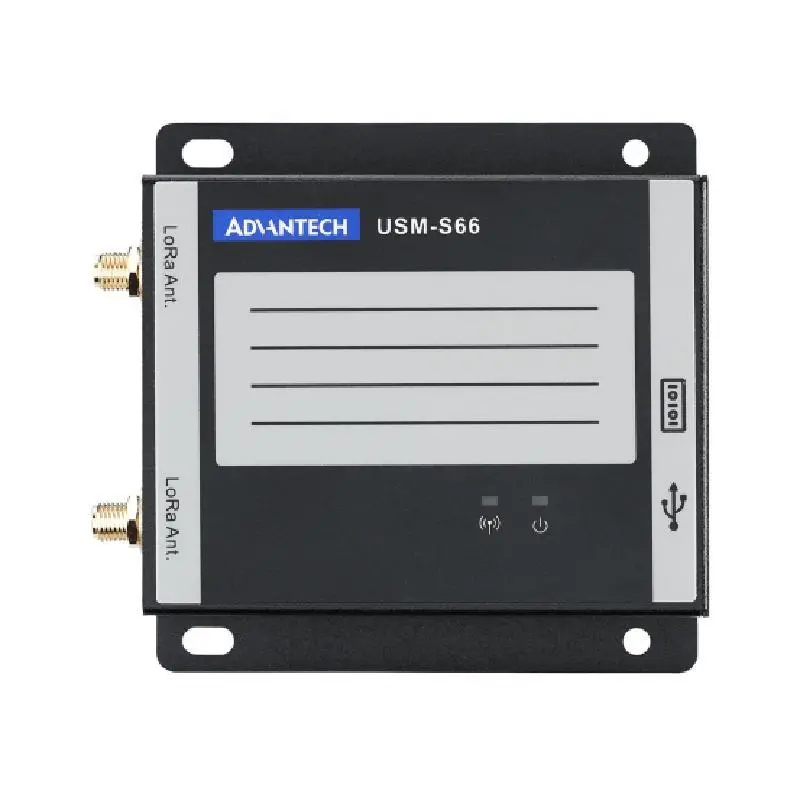

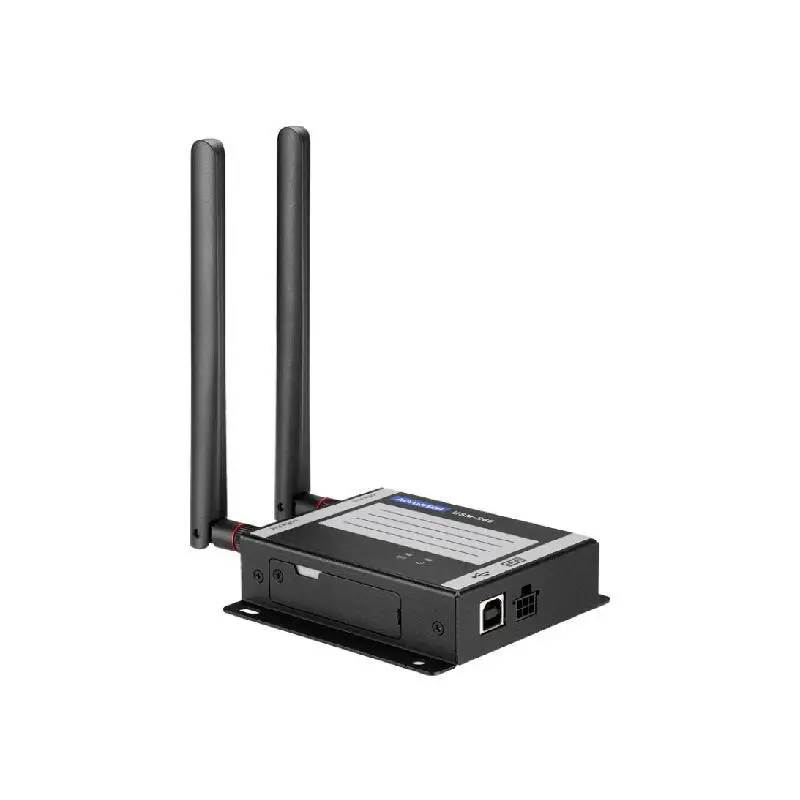

Advantech USM-S66 LoRa Vehicle Gateway
