| LEO-S550-DAG0 | ||
| I/O | Port | Type-C (Configuration) |
| I/O | Ports | 4 x DI + 2 x DO |
| I/O | Digital Input | Opto-isolated Digital Inputs, 3-24VDC (pulse counter support) |
| I/O | Digital Output | SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V |
| Serial Port | Ports | 1 x RS232 + 1 x RS485 |
| Serial Port | Baud Rate | 1200~115200 bps |
| Serial Port | Protocol | Transparent (RS232), Modbus RTU (RS485) |
| Analog Input | Ports | 2 x 4~20 mA + 2 x 0~10 V |
| Analog Input | Resolution | 12 bit |
| Analog Input (RTD) | Ports | 2 x PT100 RTD Input |
| Analog Input (RTD) | Input Connections | 2, 3-wire |
| Analog Input (RTD) | Resolution | 12 bit |
| Analog Input (RTD) | Range | -200°C ~ 800°C |

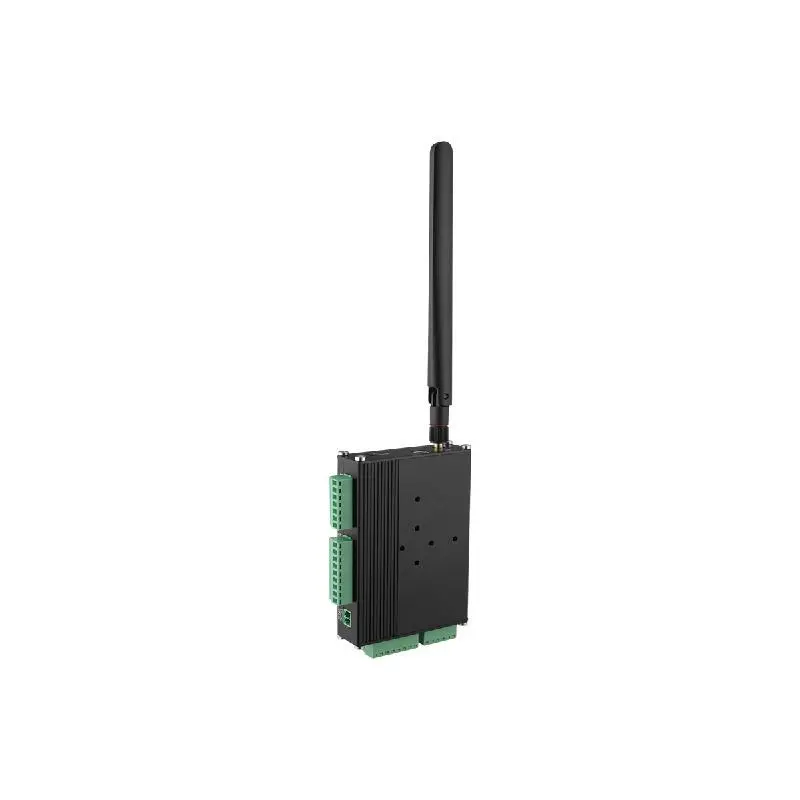

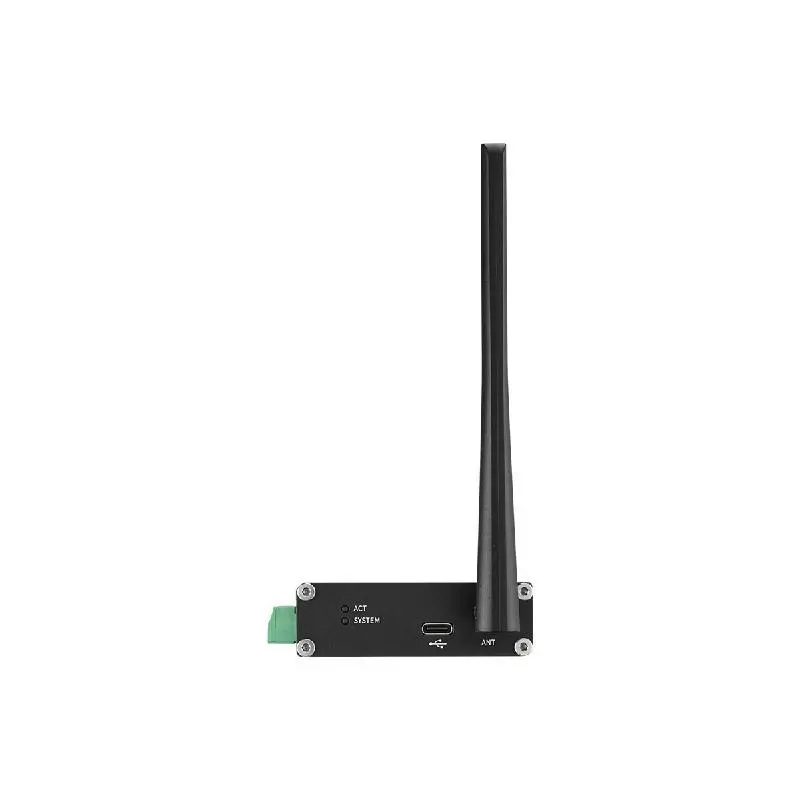

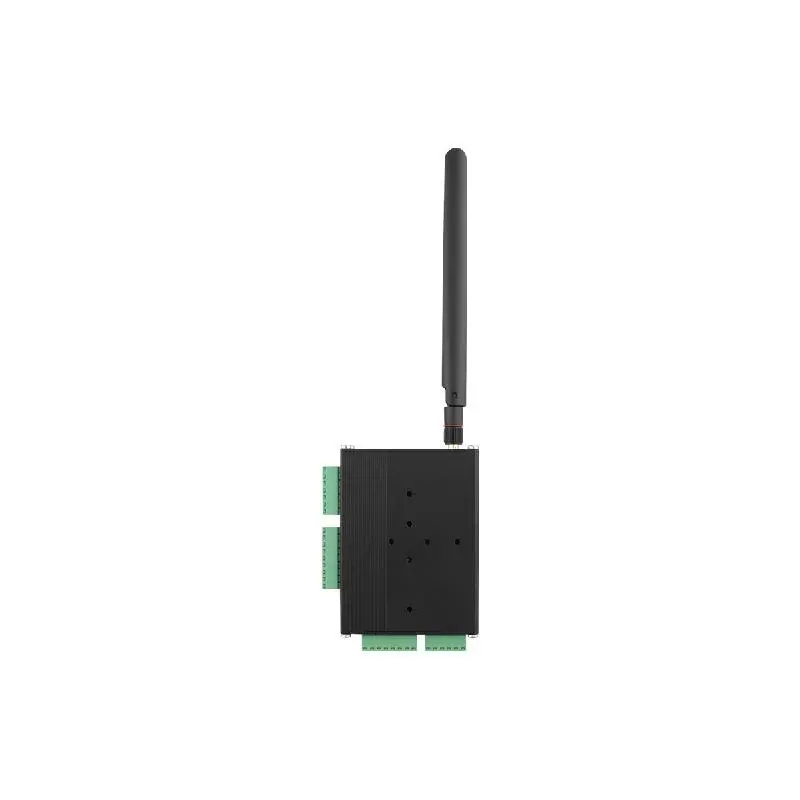

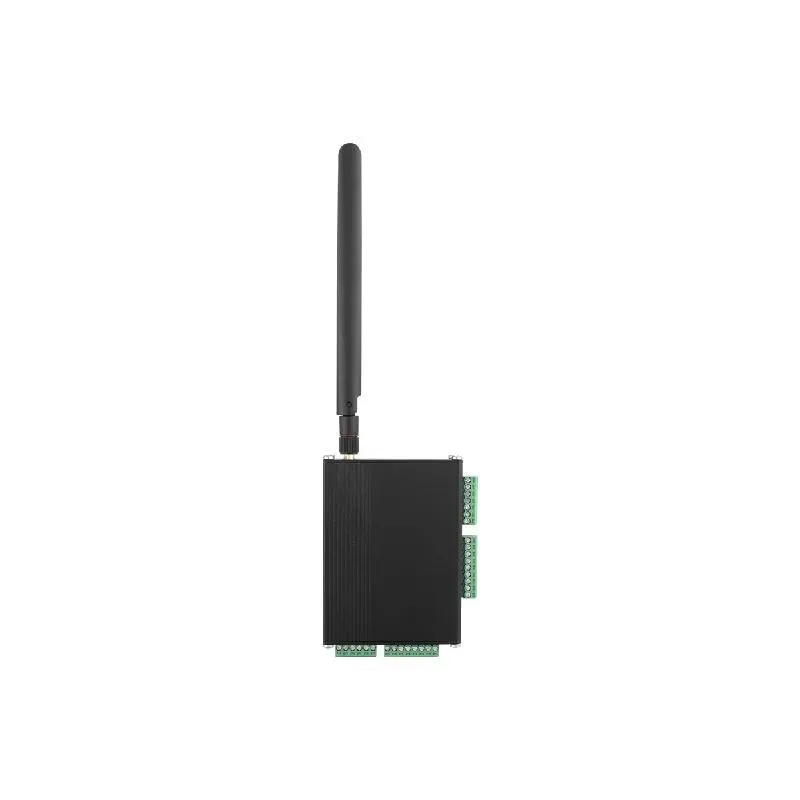

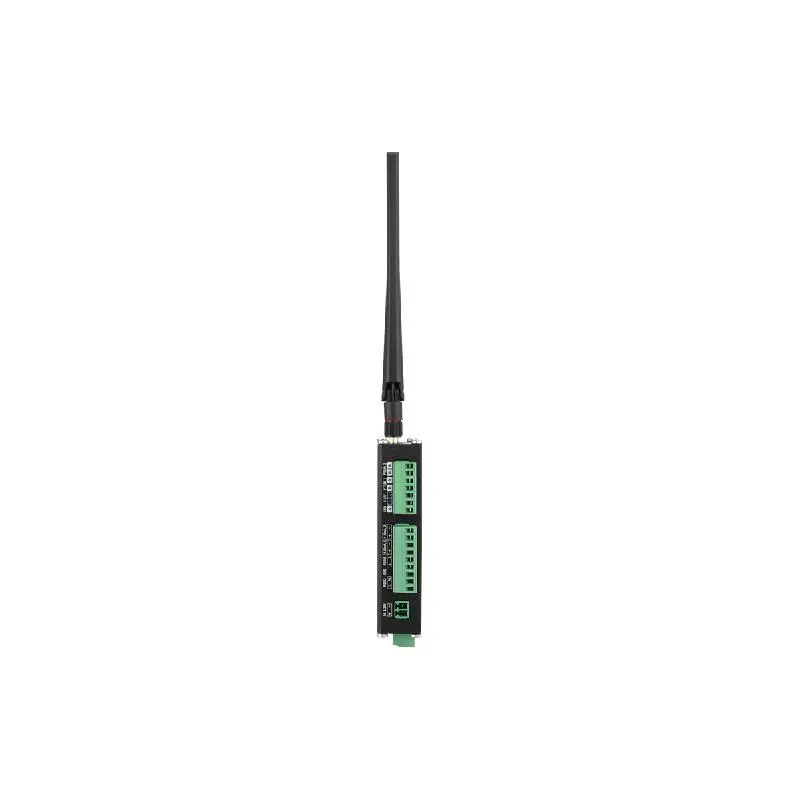

Advantech LEO-S550-DA LoRaWAN DAQ Controller
