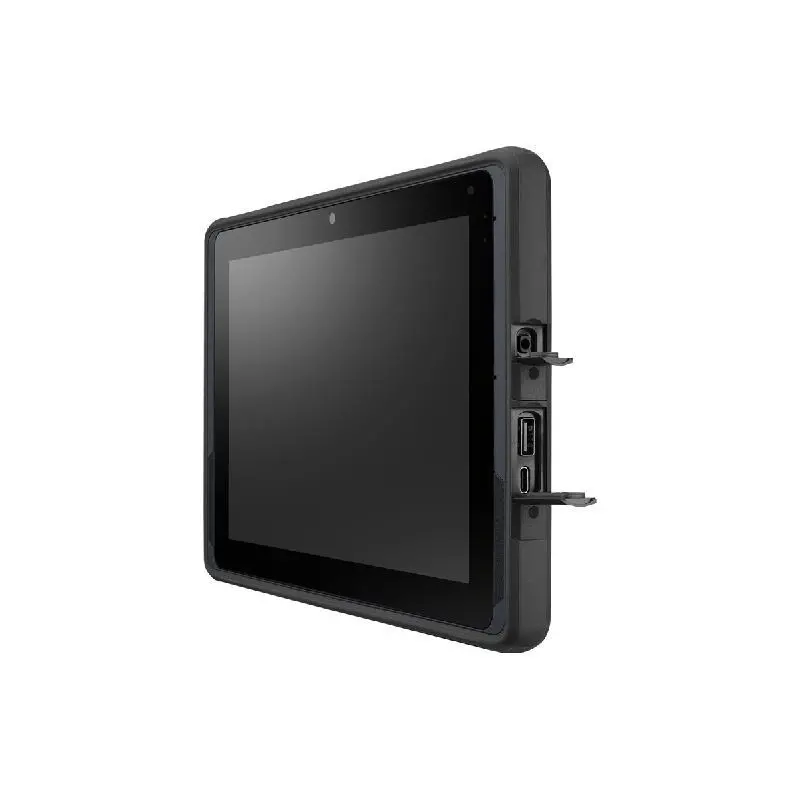

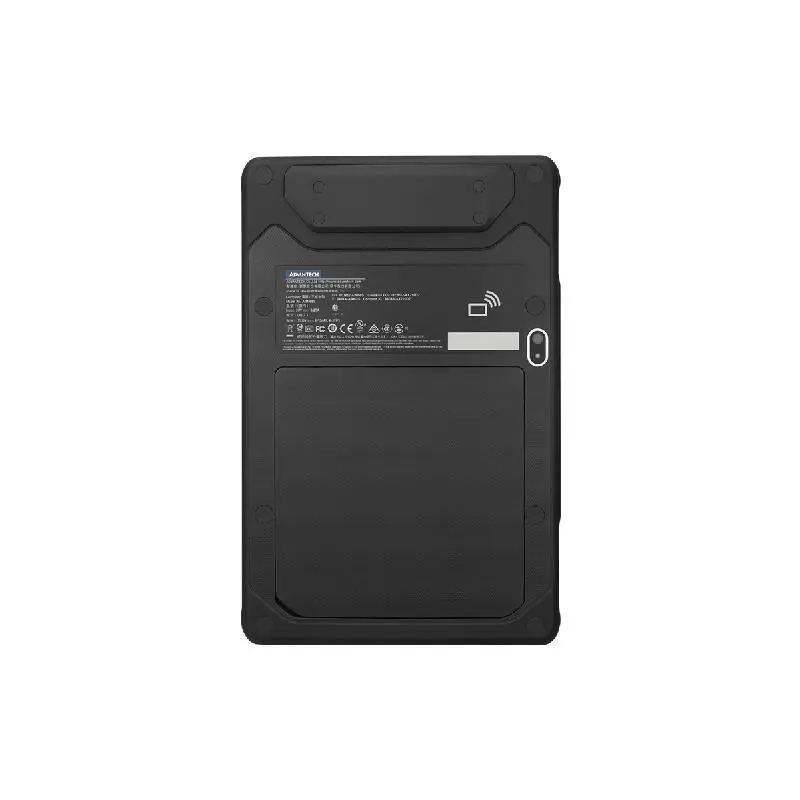

Advantech AIM-68S 10.1" Industrial-Grade Tablet

    Integrated barcode scanner supports data collection

    Intel Alder Lake-N processor for Windows 11 IoT Enterprise (GAC)

    The battery with capacity meter that shows the remaining power and recharge status minimizes system interruptions for reliable long-duration operation

    10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass 3 and multi-touch PCAP control

    Wi-Fi 6E, Bluetooth® 5.3, NFC technology for seamless communications

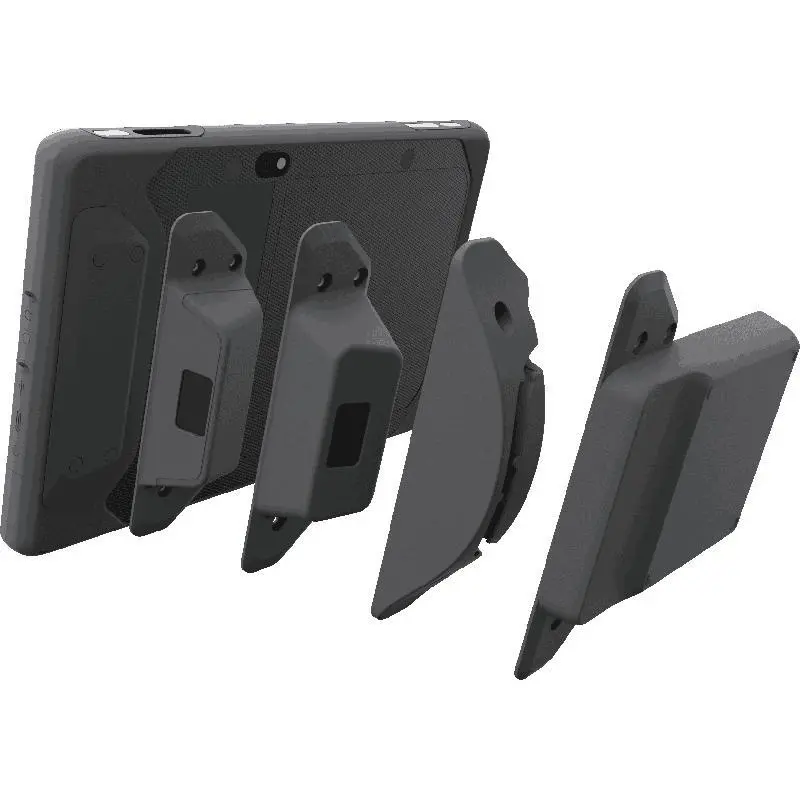

    Optional extension include 1D/2D barcode scanner, LAN module

    Equipped with DeviceOn/iService software for remote device management

AIM-68S-201000 AIM-68S-201B00 AIM-68S-201010 AIM-68S-201B10
System Processor Intel® N200, 3.70 GHz Intel® N200, 3.70 GHz Intel® N50, 3.4 GHz Intel® N50, 3.4 GHz
Option Barcode Scanner N/A Integrated 1D/2D barcode scanner N/A Integrated 1D/2D barcode scanner
Computing System Operating System Windows 11 IoT Enterprise (GAC) Windows 11 IoT Enterprise (GAC) Windows 11 IoT Enterprise (GAC) Windows 11 IoT Enterprise (GAC)
System Memory 8GB LPDDR5 8GB LPDDR5 8GB LPDDR5 8GB LPDDR5
Storage Storage m.2 NVMe SSD 128GB (Optional: 256GB) m.2 NVMe SSD 128GB (Optional: 256GB) m.2 NVMe SSD 128GB (Optional: 256GB) m.2 NVMe SSD 128GB (Optional: 256GB)
Security _ TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0
Display Type 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD
Display Resolution WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200
Display Brightness (cd/m2) 380cd/m2 380cd/m2 380cd/m2 380cd/m2
Display Touch Type 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control
Display Glass Type Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3
I/O Standard I/O Port 1x USB3.1 Type C for Charging &DP, 1x USB 3.1 type-A 1x USB3.1 Type C for Charging &DP, 1x USB 3.1 type-A 1x USB3.1 Type C for Charging &DP, 1x USB 3.1 type-A 1x USB3.1 Type C for Charging &DP, 1x USB 3.1 type-A
Wireless Communication WLAN/Bluetooth IEEE 802.11a/b/g/n/ac/ax, Bluetooth® 5.3 IEEE 802.11a/b/g/n/ac/ax, Bluetooth® 5.3 IEEE 802.11a/b/g/n/ac/ax, Bluetooth® 5.3 IEEE 802.11a/b/g/n/ac/ax, Bluetooth® 5.3
I/O Extended I/O Port 1 x AIM extension 14-pin pogo connector: 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power 1 x AIM extension 14-pin pogo connector: 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power 1 x AIM extension 14-pin pogo connector: 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power 1 x AIM extension 14-pin pogo connector: 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
Wireless Communication NFC 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica

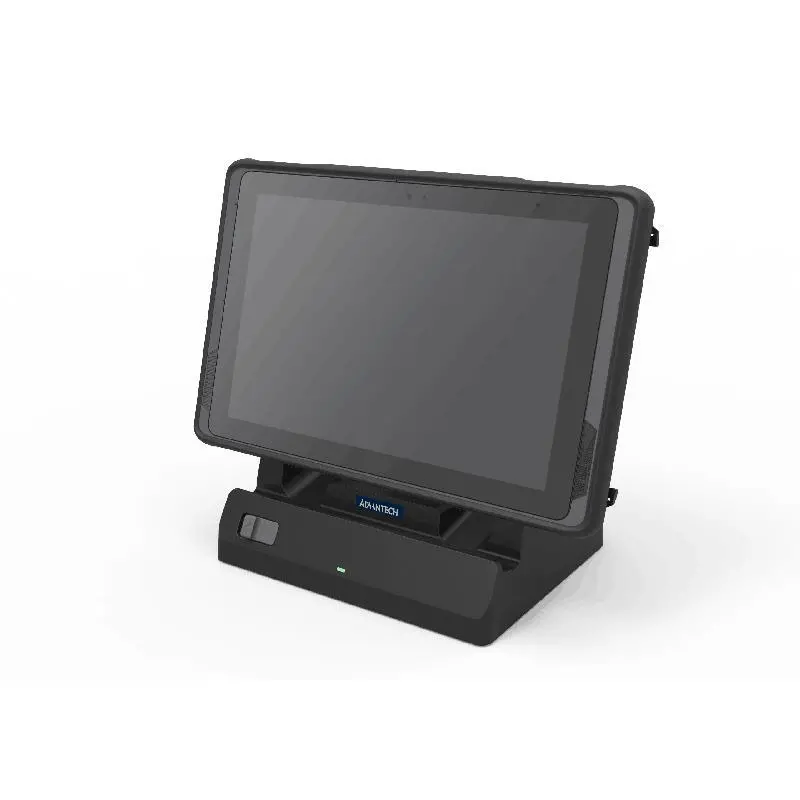

Connectivity Docking 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
Connectivity Speaker 2 x Internal speakers (2 W) 2 x Internal speakers (2 W) 2 x Internal speakers (2 W) 2 x Internal speakers (2 W)
Camera Front 5.0-megapixel fixed-focus camera 5.0-megapixel fixed-focus camera 5.0-megapixel fixed-focus camera 5.0-megapixel fixed-focus camera
Camera Rear 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash
Sensors _ Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
Control Buttons - 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
I/O Interface LED Full: green (100%); Charging: blue; Low: orange (≤10%) Full: green (100%); Charging: blue; Low: orange (≤10%) Full: green (100%); Charging: blue; Low: orange (≤10%) Full: green (100%); Charging: blue; Low: orange (≤10%)
Environment Storage Temperature -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F
Environment Operating Temperature -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F)
Environment Charging Temperature 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F)
Environment IP Rating IP65 IP65 IP65 IP65
Environment Drop Tested Up to 120 cm (4 ft) onto plywood Up to 120 cm (4 ft) onto plywood Up to 120 cm (4 ft) onto plywood Up to 120 cm (4 ft) onto plywood
Environment Shock / Vibration IEC60068-2-27 / IEC60068-2-64 IEC60068-2-27 / IEC60068-2-64 IEC60068-2-27 / IEC60068-2-64 IEC60068-2-27 / IEC60068-2-64
Environment Humidity Operating: 40 °C @ 95% relative humidity, non-condensingStorage: 60 °C @ 95% relative humidity, non-condensing Operating: 40 °C @ 95% relative humidity, non-condensingStorage: 60 °C @ 95% relative humidity, non-condensing Operating: 40 °C @ 95% relative humidity, non-condensingStorage: 60 °C @ 95% relative humidity, non-condensing Operating: 40 °C @ 95% relative humidity, non-condensingStorage: 60 °C @ 95% relative humidity, non-condensing
Environment Certifications FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC
Audio Audio Jack 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input)
Power System Battery Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh,Operating time: 5.5 hr (depending on usage scenario*)Charging time: < 3 hr Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh,Operating time: 5.5 hr (depending on usage scenario*)Charging time: < 3 hr Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh,Operating time: 5.5 hr (depending on usage scenario*)Charging time: < 3 hr Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh,Operating time: 5.5 hr (depending on usage scenario*)Charging time: < 3 hr
Mechanical Dimensions (W x H x D) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)

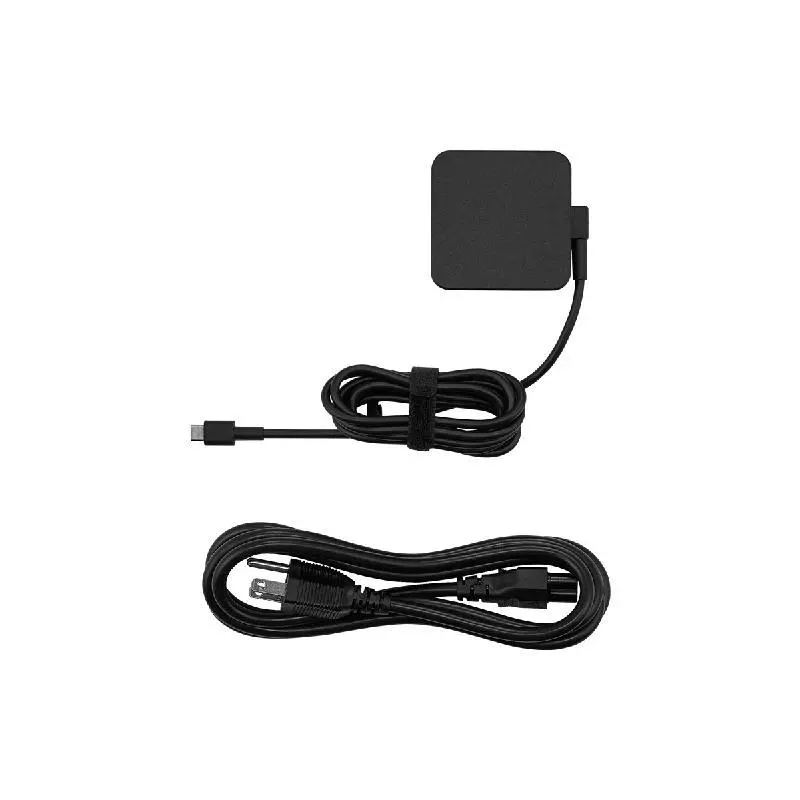

Power System Input Voltage USB Type-C: 20V/3.25ADocking pogo: 12V/2A USB Type-C: 20V/3.25ADocking pogo: 12V/2A USB Type-C: 20V/3.25ADocking pogo: 12V/2A USB Type-C: 20V/3.25ADocking pogo: 12V/2A
Mechanical Weight 1.1 Kg (2.4 lb) 1.1 Kg (2.4 lb) 1.1 Kg (2.4 lb) 1.1 Kg (2.4 lb)
