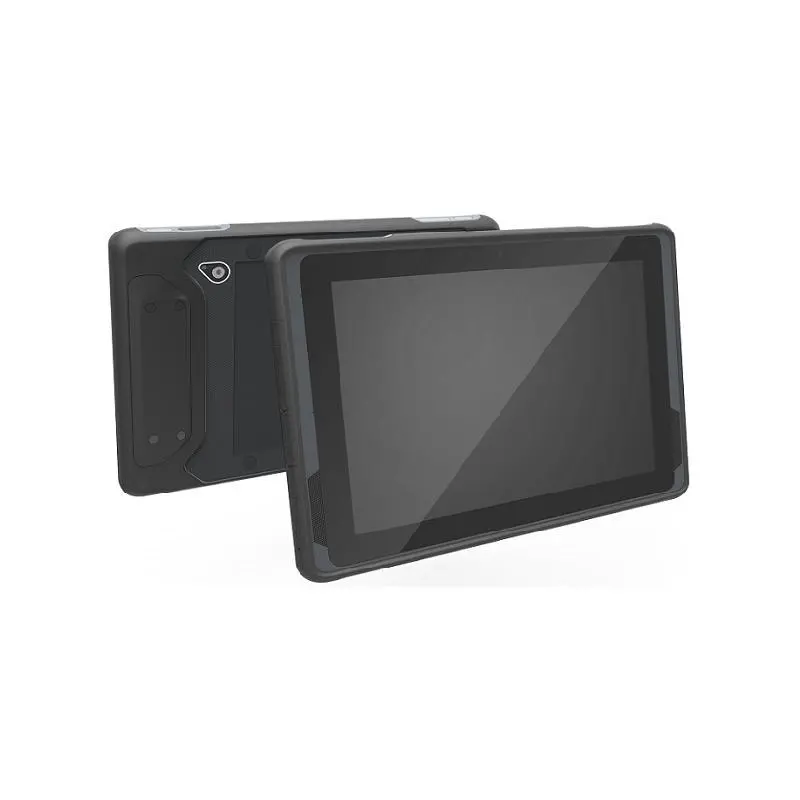

Advantech AIM-78S 10.1" Industrial-Grade Tablet with Qualcomm® Snapdragon™ 660 Processor, Android 10/13

    Qualcomm SDA660/SDM660 with Android 10/13

    10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass and multi-touch PCAP control supports glove mode

    Integrated barcode scanner supports data collection

    Fast roaming and dual band WLAN, BT 5.0, NFC, 4G LTE connectivity for seamless communications

    Optional extension include 1D/2D barcode scanner, LAN+COM module, UHF RFID module

AIM-78S-230S00 AIM-78S-230B00 AIM-78S-200S00 AIM-78S-200B00 AIM-78S-600S20 AIM-78S-600B20 AIM-78S-610S20 AIM-78S-610B20
Computing System Operating System Android 13 Android 13 Android 10 Android 10 Android 10 Android 10 Android 10 Android 10
System Processor Qualcomm SDA660 /SDM660 (up to 2.2GHz) Qualcomm SDA660 /SDM660 (up to 2.2GHz) Qualcomm SDA660 /SDM660 (up to 2.2GHz) Qualcomm SDA660 /SDM660 (up to 2.2GHz) Qualcomm SDA660 /SDM660 (up to 2.2GHz) Qualcomm SDA660 /SDM660 (up to 2.2GHz) Qualcomm SDA660 /SDM660 (up to 2.2GHz) Qualcomm SDA660 /SDM660 (up to 2.2GHz)
System Memory 4 GB LPDDR4x 4 GB LPDDR4x 4 GB LPDDR4x 4 GB LPDDR4x 4 GB LPDDR4x 4 GB LPDDR4x 4 GB LPDDR4x 4 GB LPDDR4x
Storage eMMC 64GB 64GB 64GB 64GB 64GB 64GB 64GB 64GB
Storage SD card Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB) Micro SD (Supports up to 2 TB)
Display Type 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD 10.1" FHD LCD
Display Resolution WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200 WUXGA 1920 x 1200
Display Brightness (cd/m2) 380 nits 380 nits 380 nits 380 nits 800 nits 800 nits 800 nits 800 nits
Option Barcode Scanner Optional Standard Optional Standard Optional Standard Optional Standard
Display Glass Type Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3 Corning® Gorilla® Glass 3
Wireless Communication WLAN/Bluetooth IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0 IEEE 802.11 a/b/g/n/ac/k/v/rBluetooth® v5.0
Display Touch Type 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control 10-point multi-touch P-CAP touch control
Wireless Communication LTE+GPS X X X X V V V V
Wireless Communication NFC 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
I/O Standard I/O Port 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card 1 x USB3.1 Type C supporting data transmission and USB tethering, 1 x USB 2.0 Type A,1 x Combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card
I/O Extended I/O Port 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9) 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9) 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9) 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9) 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9) 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9) 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9) 1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host, 1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact), 4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output (shared with standard I/O full RS-232 DB9)
I/O Buttons 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
Audio Audio Jack 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input) 1 x Audio combo jack (combines stereo audio output and mono microphone input)
Camera Front 8.0-megapixel fixed-focus camera 8.0-megapixel fixed-focus camera 8.0-megapixel fixed-focus camera 8.0-megapixel fixed-focus camera 8.0-megapixel fixed-focus camera 8.0-megapixel fixed-focus camera 8.0-megapixel fixed-focus camera 8.0-megapixel fixed-focus camera
Camera Rear 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash 13.0-megapixel aufo-focus camera with LED flash
Sensors _ Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
Environment Operating Temperature -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F)
Environment Storage Temperature -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F -20 ~ 60 °C/-4 ~ 140 °F
Environment IP Rating IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
Environment Certifications FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC
Mechanical Dimensions (W x H x D) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
Mechanical Weight 980 g 980 g 980 g 980 g 980 g 980 g 980 g 980 g
Multimedia Speaker 2 x Internal Speaker 2 x Internal Speaker 2 x Internal Speaker 2 x Internal Speaker 2 x Internal Speaker 2 x Internal Speaker 2 x Internal Speaker 2 x Internal Speaker
Power System Battery Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr Swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr
Power System Input Voltage DC jack: 19V/3.42A, Docking pogo: 12V/2A DC jack: 19V/3.42A, Docking pogo: 12V/2A DC jack: 19V/3.42A, Docking pogo: 12V/2A DC jack: 19V/3.42A, Docking pogo: 12V/2A DC jack: 19V/3.42A, Docking pogo: 12V/2A DC jack: 19V/3.42A, Docking pogo: 12V/2A DC jack: 19V/3.42A, Docking pogo: 12V/2A DC jack: 19V/3.42A, Docking pogo: 12V/2A
