| TREK-570-LWBXA1E | TREK-570-LWBXB1E | TREK-570-00A1E | ||
| Core | Processor | Intel Atom® E3826, dual-core, 1.46 GHz | Intel Atom® E3826, dual-core, 1.46 GHz | Intel Atom® E3826, dual-core, 1.46 GHz |
| Core | Memory | 1 x 4 GB DDR3L SODIMM 1600 MHz, non-ECC | 1 x 4 GB DDR3L SODIMM 1600 MHz, non-ECC | 1 x 4 GB DDR3L SODIMM 1600 MHz, non-ECC |
| Core | Graphic | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine |
| Core | Operating System | Win10 IoT LTSB, Linux Lubuntu 16.04 | Win10 IoT LTSB, Linux Lubuntu 16.04 | NA |
| Storage | mSATA | 1 x 32 GB UMLC, SQFlash mSATA, with support for system bootup | 1 x 32 GB UMLC, SQFlash mSATA, with support for system bootup | NA |
| Display | Smart Display Ports | 1 x 12V/2A power output for TREK-30x1 x 18-bit LVDS with 800 x 480/1024 x 768 resolution and automatic detection1 x Line-Out2 (for TREK-30x speakers)2 x UART (TX/RX, TX/RX/RTS) (for touchscreen, hot keys, and brightness/light sensor control)1 x USB 2.0 Type-A1 x Power button1 x Reset button | 1 x 12V/2A power output for TREK-30x1 x 18-bit LVDS with 800 x 480/1024 x 768 resolution and automatic detection1 x Line-Out2 (for TREK-30x speakers)2 x UART (TX/RX, TX/RX/RTS) (for touchscreen, hot keys, and brightness/light sensor control)1 x USB 2.0 Type-A1 x Power button1 x Reset button | 1 x 12V/2A power output for TREK-30x1 x 18-bit LVDS with 800 x 480/1024 x 768 resolution and automatic detection1 x Line-Out2 (for TREK-30x speakers)2 x UART (TX/RX, TX/RX/RTS) (for touchscreen, hot keys, and brightness/light sensor control)1 x USB 2.0 Type-A1 x Power button1 x Reset button |
| Display | HDMI | 1 x HDMI (up to 2560 x 1600 resolution) | 1 x HDMI (up to 2560 x 1600 resolution) | 1 x HDMI (up to 2560 x 1600 resolution) |
| Expansion | Edge AI | 1 x full size, mini PCIe (PCUe/USB 2.0) for edge AI; supports up to Hailo 8R (13 tops) | 1 x full size, mini PCIe (PCUe/USB 2.0) for edge AI; supports up to Hailo 8R (13 tops) | 1 x full size, mini PCIe (PCUe/USB 2.0) for edge AI; supports up to Hailo 8R (13 tops) |
| Sensors | _ | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope |
| I/O | Vehicle I/O | 2 x CAN bus with raw CAN, J1939, and OBD-II/ISO 15765 support (configurable via firmware)1 x J1708 with J1587 support1 x 4-wire RS-485 with auto flow control | 2 x CAN bus with raw CAN, J1939, and OBD-II/ISO 15765 support (configurable via firmware)1 x J1708 with J1587 support1 x 4-wire RS-485 with auto flow control | 2 x CAN bus with raw CAN, J1939, and OBD-II/ISO 15765 support (configurable via firmware)1 x J1708 with J1587 support1 x 4-wire RS-485 with auto flow control |
| I/O | Generic I/O | 2 x 4-wire RS-2324 x Isolated DI (dry contact)4 x Isolated DO (open collector output, driven by relay)1 x CVBS-In (for real-time rear view monitoring)1 x Line-Out1 x Mic-In | 2 x 4-wire RS-2324 x Isolated DI (dry contact)4 x Isolated DO (open collector output, driven by relay)1 x CVBS-In (for real-time rear view monitoring)1 x Line-Out1 x Mic-In | 2 x 4-wire RS-2324 x Isolated DI (dry contact)4 x Isolated DO (open collector output, driven by relay)1 x CVBS-In (for real-time rear view monitoring)1 x Line-Out1 x Mic-In |
| I/O | Standard I/O | 1 x USB 3.0 Type-A (rear side, with cable clip)1 x USB 2.0 Type-A (rear side, with cable clip)1 x High-speed full RS-232, DB-9 (Pin 9 = ring, 12/5 V @0.5 A in BOM; optional via jumper setting)1 x Giga LAN, with locking RJ-45 connector | 1 x USB 3.0 Type-A (rear side, with cable clip)1 x USB 2.0 Type-A (rear side, with cable clip)1 x High-speed full RS-232, DB-9 (Pin 9 = ring, 12/5 V @0.5 A in BOM; optional via jumper setting)1 x Giga LAN, with locking RJ-45 connector | 1 x USB 3.0 Type-A (rear side, with cable clip)1 x USB 2.0 Type-A (rear side, with cable clip)1 x High-speed full RS-232, DB-9 (Pin 9 = ring, 12/5 V @0.5 A in BOM; optional via jumper setting)1 x Giga LAN, with locking RJ-45 connector |
| I/O | LED Indicators | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) |
| I/O | Power Button | Via TREK-30x in-vehicle smart display; system is powered on by vehicle ignition as a default | Via TREK-30x in-vehicle smart display; system is powered on by vehicle ignition as a default | Via TREK-30x in-vehicle smart display; system is powered on by vehicle ignition as a default |
| I/O | Reset button | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) |
| RF | WLAN + Bluetooth | IEEE 802.11a/b/g/n/ac/ax + Bluetooth V5.X via full mini PCIe slot (optional high-power WLAN/WLAN roaming available upon request) | IEEE 802.11a/b/g/n/ac/ax + Bluetooth V5.X via full mini PCIe slot (optional high-power WLAN/WLAN roaming available upon request) | IEEE 802.11a/b/g/n/ac/ax + Bluetooth V5.X via full mini PCIe slot (optional high-power WLAN/WLAN roaming available upon request) |
| RF | WWAN | 4G (LTE, HSPA+, GSM/GPRS/EDGE, EV-DO Rev. a1, 1xRTT) Sierra AirPrime WP76XX via full mini PCIe slot(default: WP7610 for US/WP7607 for EU) | 4G (LTE, HSPA+, GSM/GPRS/EDGE, EV-DO Rev. a1, 1xRTT) Sierra AirPrime WP76XX via full mini PCIe slot(default: WP7610 for US) | NA |
| RF | GPS | Built-in uBlox MAX-M8Q (Max-M8U module is by project based)/w GPS/GLONASS/BeiDou 3 in 1 module | Built-in uBlox MAX-M8Q (Max-M8U module is by project based)/w GPS/GLONASS/BeiDou 3 in 1 module | Built-in uBlox MAX-M8Q (Max-M8U module is by project based)/w GPS/GLONASS/BeiDou 3 in 1 module |
| RF | Antenna | 5 x SMA-type antenna holes for GPS, Wi-Fi+Bluetooth MIMO, WWAN/LTE MIMO | 5 x SMA-type antenna holes for GPS, Wi-Fi+Bluetooth MIMO, WWAN/LTE MIMO | 5 x SMA-type antenna holes for GPS, Wi-Fi+Bluetooth MIMO, WWAN/LTE MIMO |
| Power Supply | Input Voltage | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) |
| Power Supply | Intelligent Vehicle Power Management (iVPM 2.0) | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics |
| Mechanical | Dimensions (W x H x D) | Standalone unit: 230 x 72 x 118 mm (9.05 x 2.83 x 4.64 in)With IP54-rated I/O cover: 230 x 72 x 198 mm (9.05 x 2.83 x 7.79 in) | Standalone unit: 230 x 72 x 118 mm (9.05 x 2.83 x 4.64 in)With IP54-rated I/O cover: 230 x 72 x 198 mm (9.05 x 2.83 x 7.79 in) | Standalone unit: 230 x 72 x 118 mm (9.05 x 2.83 x 4.64 in)With IP54-rated I/O cover: 230 x 72 x 198 mm (9.05 x 2.83 x 7.79 in) |
| Mechanical | Weight | Standalone unit: 2.0 kg (4.4 lb) With IP54-rated I/O cover: 2.7 kg (5.95 lb) | Standalone unit: 2.0 kg (4.4 lb) With IP54-rated I/O cover: 2.7 kg (5.95 lb) | Standalone unit: 2.0 kg (4.4 lb) With IP54-rated I/O cover: 2.7 kg (5.95 lb) |
| Environmental | Shock / Vibration | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) |
| Environmental | IP Rating | IP30 (optional IP54-rated I/O cover available upon request) | IP30 (optional IP54-rated I/O cover available upon request) | IP30 (optional IP54-rated I/O cover available upon request) |
| Environmental | Storage Temperature | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F |
| Environmental | Safety | UL/cUL, CB | UL/cUL, CB | UL/cUL, CB |
| Environmental | EMC | CE, FCC, CCC | CE, FCC, CCC | CE, FCC, CCC |
| Environmental | Vehicle Regulation | E-Mark (E13) | E-Mark (E13) | E-Mark (E13) |
| Environmental | Operating Temperature | -30 ~ 70°C w/o airflow | -30 ~ 70°C w/o airflow | -30 ~ 70°C w/o airflow |
| Environmental | RF Regulation | CE (R&TTE), FCC ID, PTCRB | CE (R&TTE), FCC ID, PTCRB | CE (R&TTE), FCC ID, PTCRB |

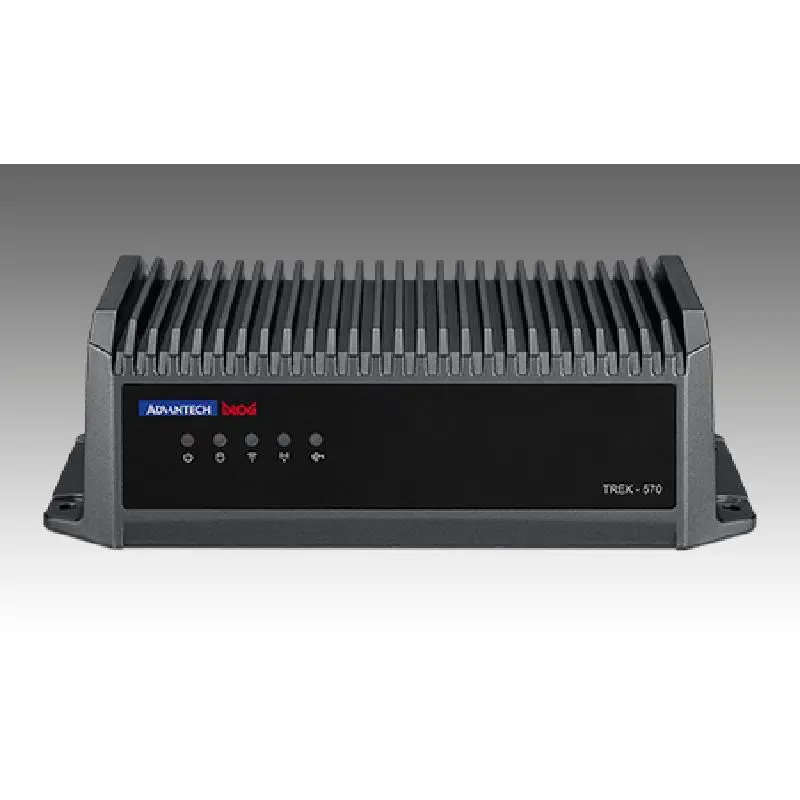

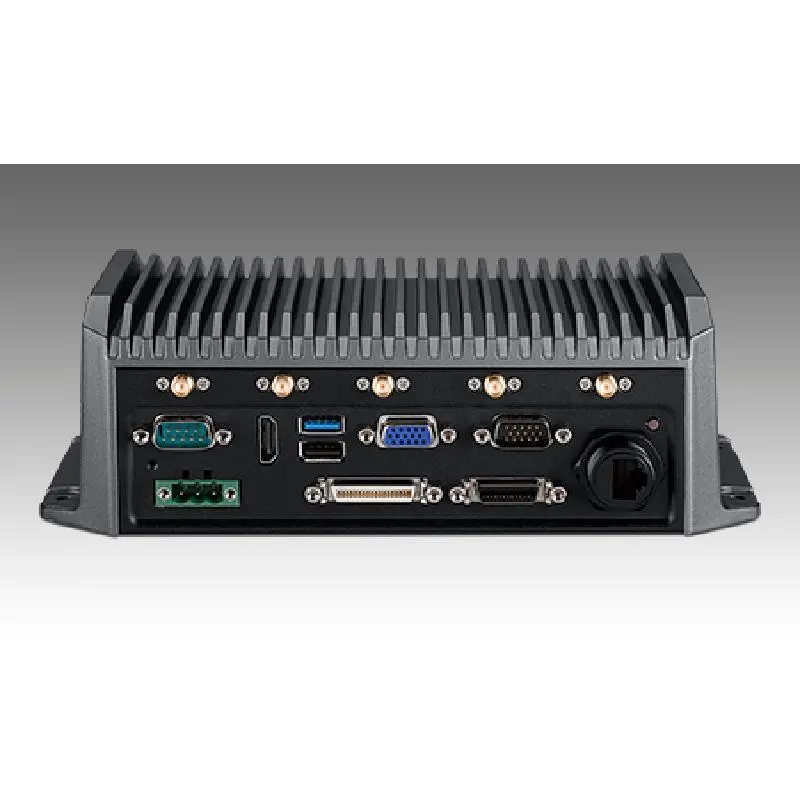

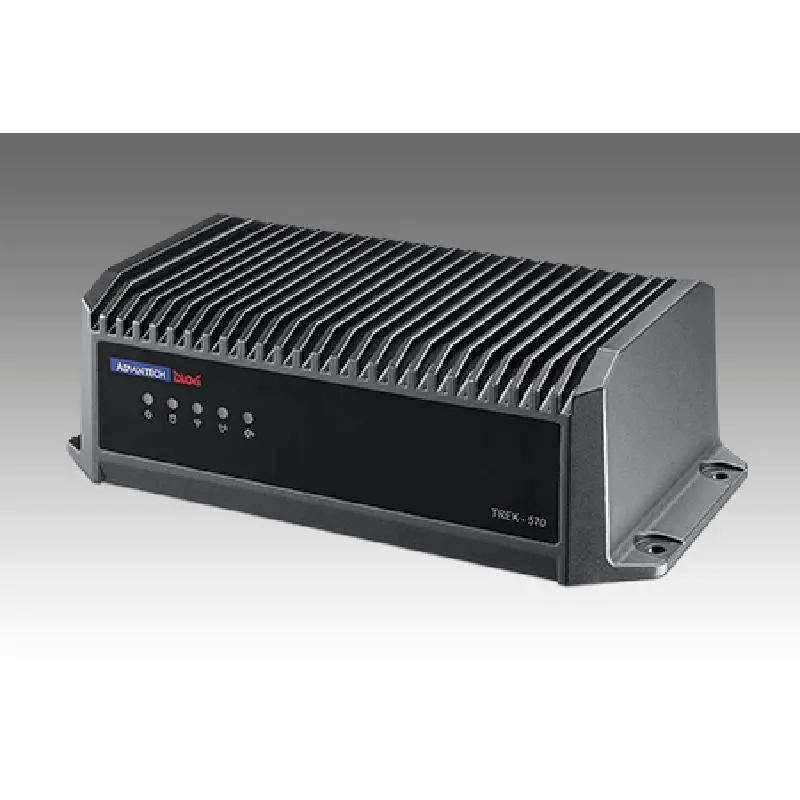

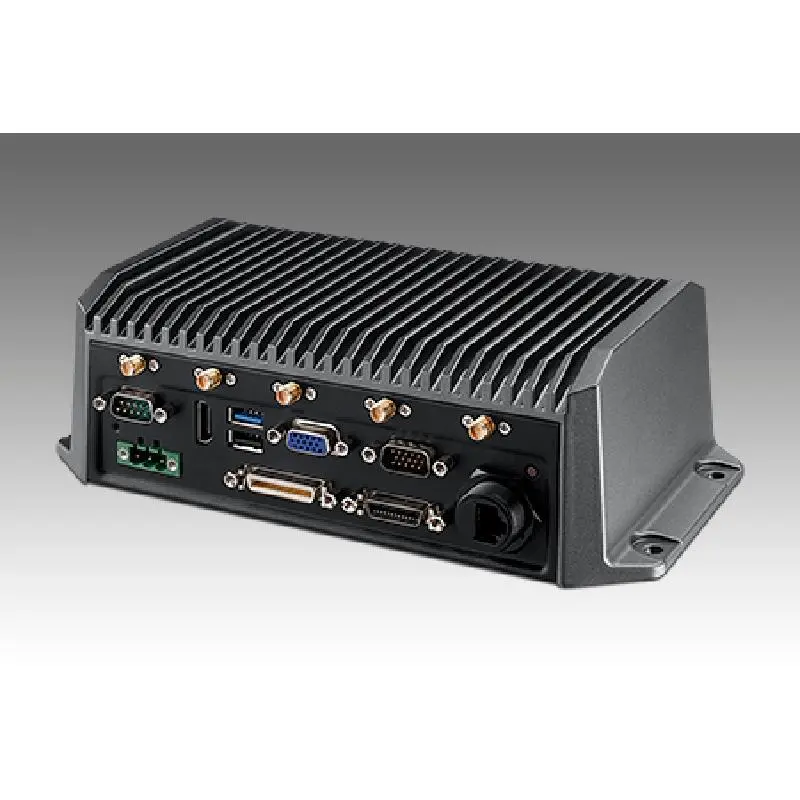

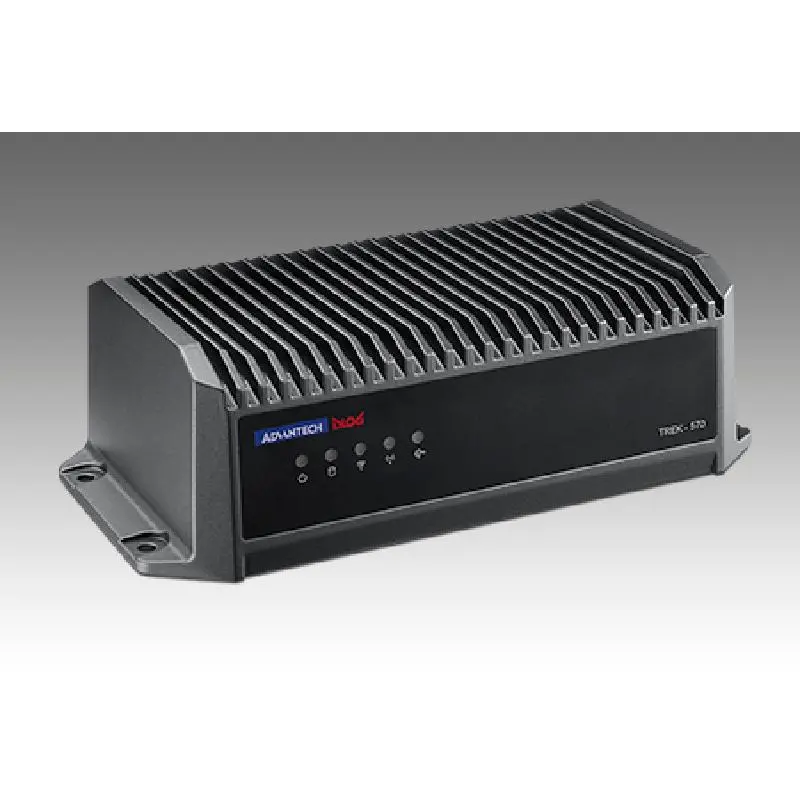

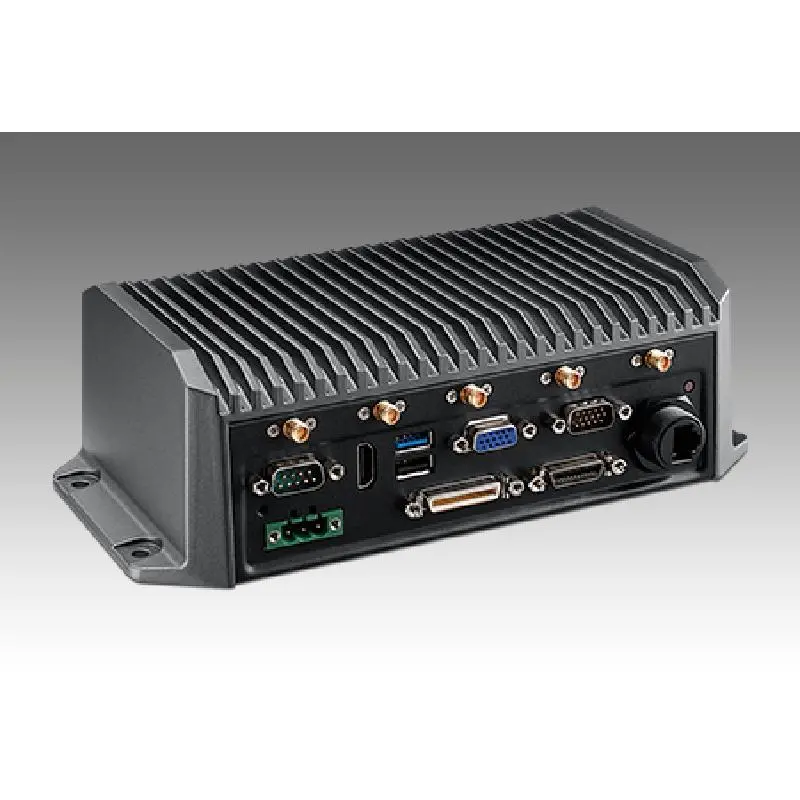

Advantech TREK-570 Compact In-vehicle Computing Box for Fleet Management
