Advantech TREK-303 7" Smart Vehicle Display - industrial computer

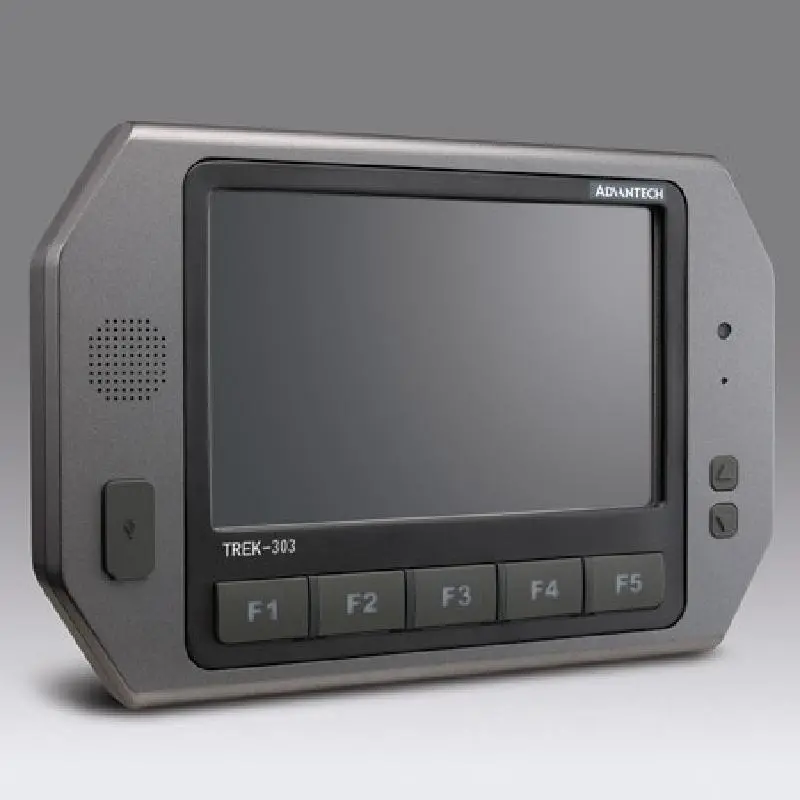

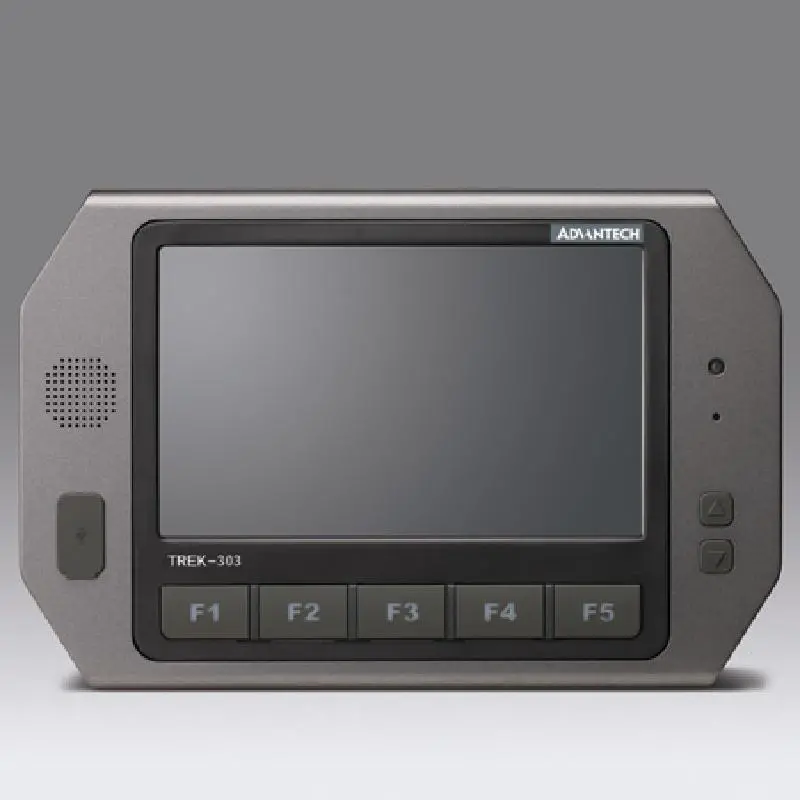

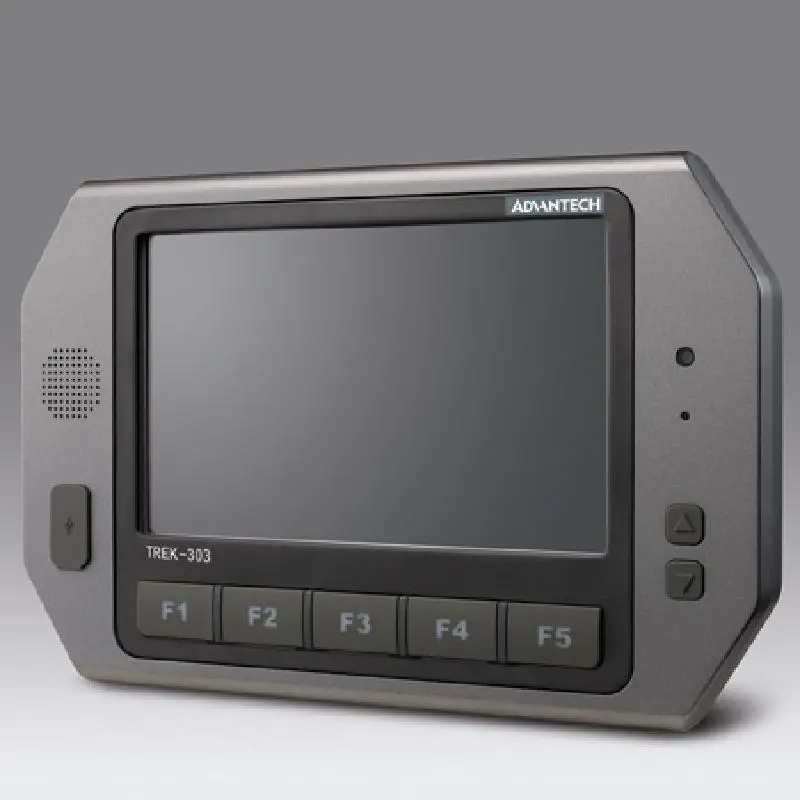

Advantech TREK-303 7" Smart Vehicle Display

7” display with touchscreen supports both 480 x 234 & 800 x 480 resolutions for different LCD panels

-30 to 70° C wide range temperature support

Five user-defined function keys, 2 watt speaker, and USB host.

Supports auto-adjust light sensor LCD backlight brightness control

One cable connects with TREK-5xx series

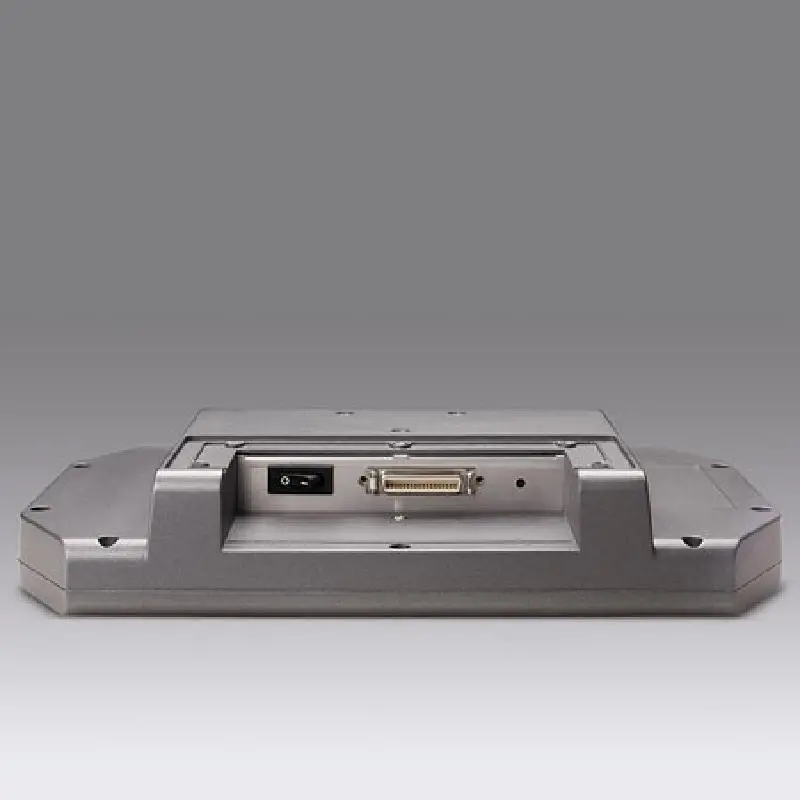

Wake up/power button on back for easy to wake up/power up; LCD backlight power button

CE/FCC/e13 certified

Inquiry

Description

		TREK-303R-HA0E	RAM-MOUNT-07E
Audio	Speaker	1 x 2-watt speaker	2x 2-watt speaker
Display	Backlight Life (hrs)	50,000 hrs	50,000 hrs
Display	Brightness (cd/m2)	500 nits with TS 400 nits	400 nits With TS 325 nits
Display	Max. Resolution	800 x 480	800 x 480
Display	size/type	7" (16:9) TFT LCD	7" (16:9) TFT LCD
Environment	IP Rating	IP54 (with I/O cover)	IP54 (without I/O)
Environment	Operating	-30° C ~ 70° C	-30° C ~ 70° C
Touch Screen	Type	4-wire resistive type	4-wire resistive type
