| TREK-60-M2PN0E | TREK-60-52PN0E | TREK-60-73PN0E | TREK-60-7KPXN0E | TREK-60-5EPXN0E | TREK-60-5EPAXN0E | TREK-60-5EPBXN0E | TREK-60-MBPAXN0E | TREK-60-MCPXN0E | ||
| Core | Processor | Intel® Atom™ X5-E3940 quad-core, 1.8 GHz | Intel® Core™ i5-7300U dual-core, 3.5 GHz | Intel® Core™ i7-7600U dual-core, 3.9 GHz | Intel® Core™ i7-7600U dual-core, 3.9 GHz | Intel® Core™ i5-7300U dual-core, 3.5 GHz | Intel® Core™ i5-7300U dual-core, 3.5 GHz | Intel® Core™ i5-7300U dual-core, 3.5 GHz | Intel® Atom™ X5-E3940 quad-core, 1.8 GHz | Intel® Atom™ X5-E3940 quad-core, 1.8 GHz |
| Core | Memory | 1 x SODIMM, up to 8 GB DDR3L 1866 non-ECCmemory | 2 x SODIMM, up to 32 GB DDR4 2133 non-ECC memory(with dual channel support) | 2 x SODIMM, up to 32 GB DDR4 2133 non-ECC memory(with dual channel support) | 2 x SODIMM, up to 32 GB DDR4 2133 non-ECC memory(with dual channel support) | 2 x SODIMM, up to 32 GB DDR4 2133 non-ECC memory(with dual channel support) | 2 x SODIMM, up to 32 GB DDR4 2133 non-ECC memory(with dual channel support) | 2 x SODIMM, up to 32 GB DDR4 2133 non-ECC memory(with dual channel support) | 1 x SODIMM, up to 8 GB DDR3L 1866 non-ECCmemory | 1 x SODIMM, up to 8 GB DDR3L 1866 non-ECCmemory |
| Core | Graphic | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine | Integrated 2D/3D graphics engine |
| Core | Operating System | NA | NA | NA | Windows 10 IoT Enterprise 2019 LTSC (64 bit), Linux (available upon request) | Windows 10 IoT Enterprise 2019 LTSC (64 bit), Linux (available upon request) | Windows 10 IoT Enterprise 2019 LTSC (64 bit), Linux (available upon request) | Windows 10 IoT Enterprise 2019 LTSC (64 bit), Linux (available upon request) | Windows 10 IoT Enterprise 2019 LTSC (64 bit), Linux (available upon request) | Windows 10 IoT Enterprise 2019 LTSC (64 bit), Linux (available upon request) |
| Storage | mSATA | NA | NA | NA | 1 x internal mSATA, up to 128 GB (supports UMLC/MLC/TLC industrial-grade storage and system bootup) | 1 x internal mSATA, up to 128 GB (supports UMLC/MLC/TLC industrial-grade storage and system bootup) | 1 x internal mSATA, up to 128 GB (supports UMLC/MLC/TLC industrial-grade storage and system bootup) | 1 x internal mSATA, up to 128 GB (supports UMLC/MLC/TLC industrial-grade storage and system bootup) | 1 x internal mSATA, up to 128 GB (supports UMLC/MLC/TLC industrial-grade storage and system bootup) | 1 x internal mSATA, up to 128 GB (supports UMLC/MLC/TLC industrial-grade storage and system bootup) |
| Storage | SSD | NA | NA | NA | 1 x externally accessible 2.5" SSD tray with key-lock protection, up to 7.6 TB TLC industrial-grade SSD | 1 x externally accessible 2.5" SSD tray with key-lock protection, up to 7.6 TB TLC industrial-grade SSD | 1 x externally accessible 2.5" SSD tray with key-lock protection, up to 7.6 TB TLC industrial-grade SSD | 1 x externally accessible 2.5" SSD tray with key-lock protection, up to 7.6 TB TLC industrial-grade SSD | 1 x externally accessible 2.5" SSD tray with key-lock protection, up to 7.6 TB TLC industrial-grade SSD | 1 x externally accessible 2.5" SSD tray with key-lock protection, up to 7.6 TB TLC industrial-grade SSD |
| Storage | Micro SD Card (upon request) | NA | NA | NA | 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup) | 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup) | 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup) | 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup) | 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup) | 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup) |
| Display | Smart Display Port 2.0* | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) | 12V/2A power output for TREK displays1 x high-resolution video, 1 x audio signal, 1 x USB 2.01 x power button and 1 x reset button (via the smart display)(the SDP settings are configurable via MRM SDK) |
| Display | HDMI | 1 x HDMI 1.3 | 1 x HDMI 1.3 | 1 x HDMI 1.3 | 1 x HDMI 1.3 | 1 x HDMI 1.3 | 1 x HDMI 1.3 | 1 x HDMI 1.3 | 1 x HDMI 1.3 | 1 x HDMI 1.3 |
| Sensors | _ | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope | 1 x g-sensor and gyroscope |
| I/O | VIO2.0 (via VIO cable) | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK | 1 x ignition and power input1 x J1708 (supports J1587)2 x CAN bus; compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s;configurable via MRM SDK |
| I/O | Generic I/O 2.0 (via generic I/O cable) | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in | 2 x 4-wire RS-232 (default)/RS-4852 x 2-wire RS-2326 x isolated DI (dry/wet), 4 x isolated DO2 x line-out, 2 x mic-in |
| I/O | Standard I/O | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) | 1 x USB 3.0 Type A (front accessible with key-lock protection)2 x USB 2.0 Type A2 x Giga LAN (with optional locking mechanism, or M12 connector) |
| I/O | LED Indicators | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) | 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) |
| I/O | Power Button | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default | Via second-generation TREK display; system configured to wake-on-ignition as default |
| I/O | CCMOS Button | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) | 1 x Clear CMOS button (front accessible with key-lock protection) |
| I/O | Reset button | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) | 1 x Reset button (front accessible with key-lock protection) |
| I/O (Via Orin NX) | PoE | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliantPower output shared by all cameras/devices is limited to 30WSupports PoE power control and Ethernet management1 (via MRM SDK) |
| I/O (Via Orin NX) | Display | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) | HDMI (Max. resolution 3840 x 2160 @ 60Hz) |
| I/O (Via Orin NX) | USB | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A | 1 x USB 3.0 Type A |
| I/O (Via Orin NX) | OTG USB | 1 x Micro USB | 1 x Micro USB | 1 x Micro USB | 1 x Micro USB | 1 x Micro USB | 1 x Micro USB | 1 x Micro USB | 1 x Micro USB | 1 x Micro USB |
| Develop Tools (Via Orin NX) | SDK | JetPack 5.1 | JetPack 5.1 | JetPack 5.1 | JetPack 5.1 | JetPack 5.1 | JetPack 5.1 | JetPack 5.1 | JetPack 5.1 | JetPack 5.1 |
| Processor (Via Orin NX) | CPU | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE | NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex®-A78AE |
| Processor (Via Orin NX) | GPU | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| Processor (Via Orin NX) | Memory | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s | NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s |
| Processor (Via Orin NX) | Storage | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) | 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) |
| Operating System (Via Orin NX) | Linux | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above | Ubuntu 20.04/ JetPack 5.1 above |
| RF (WLAN/WWAN via RF extension) | WLAN/Bluetooth | NA | NA | NA | NA | NA | 1 x full-size mini PCIe (PCIe/USB 2.0) for SparkLAN 802.11a/b/g/n/ac Wi-Fi 5 + Bluetooth V5.0 combo module; optional high-power Wi-Fi module1 x M.2 2230 (A+E Key) for 802.11a/b/g/n/ac/ax Wi-Fi 6 + Bluetooth V5.0 combo module | 1 x full-size mini PCIe (PCIe/USB 2.0) for SparkLAN 802.11a/b/g/n/ac Wi-Fi 5 + Bluetooth V5.0 combo module; optional high-power Wi-Fi module1 x M.2 2230 (A+E Key) for 802.11a/b/g/n/ac/ax Wi-Fi 6 + Bluetooth V5.0 combo module | 1 x full-size mini PCIe (PCIe/USB 2.0) for SparkLAN 802.11a/b/g/n/ac Wi-Fi 5 + Bluetooth V5.0 combo module; optional high-power Wi-Fi module1 x M.2 2230 (A+E Key) for 802.11a/b/g/n/ac/ax Wi-Fi 6 + Bluetooth V5.0 combo module | NA |
| RF (WLAN/WWAN via RF extension) | WWAN | NA | NA | NA | NA | NA | 1 x full-size mini PCIe (USB 2.0) for 4G module (LTE Cat-4, HSPA+, GSM/GPRS/EDGE)1 x externally accessible mini SIM card socket with cover, 1 x embedded SIM (available upon request)1 x M.2 3042/3052 (B key, USB 3.0) for 4G/5G module(EU regulation) | 1 x full-size mini PCIe (USB 2.0) for 4G module (LTE Cat-4, HSPA+, GSM/GPRS/EDGE)1 x externally accessible mini SIM card socket with cover, 1 x embedded SIM (available upon request)1 x M.2 3042/3052 (B key, USB 3.0) for 4G/5G module(US regulation) | 1 x full-size mini PCIe (USB 2.0) for 4G module (LTE Cat-4, HSPA+, GSM/GPRS/EDGE)1 x externally accessible mini SIM card socket with cover, 1 x embedded SIM (available upon request)1 x M.2 3042/3052 (B key, USB 3.0) for 4G/5G module(EU regulation) | NA |
| RF (WLAN/WWAN via RF extension) | GPS | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request | Built-in u-blox Neo-M8N supports concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)2.5-meter accuracy, GPS management (via MRM SDK)Optional Neo-M8U/Neo-M8L (dead reckoning) available upon request |
| RF (WLAN/WWAN via RF extension) | Antenna | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support | 5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE(D/L-code) with Wi-Fi/WWAN MIMO support |
| Power Supply | Input Voltage | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) | 12/24 V vehicle power (6 ~ 32 VDC input) (ISO 7637-2 and SAE J1113 compliant) |
| Power Supply | Intelligent Vehicle Power Management (iVPM 2.0) | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics | System power on/off/hibernate management (programmable ignition on/off/delay)PoE power total/on/off management (via MRM SDK)Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensorSystem power protection (vehicle battery low-voltage protection)System monitoring and diagnostics |
| Mechanical | Dimensions (W x H x D) | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in | 314 x 165.5 x 75.1 mm/12.36 x 6.51 x 2.95 in |
| Mechanical | Weight | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) | 4.2 kg/9.25 lb (excludes SSD) |
| Environmental | IP Rating | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) | IP65 (excludes rear I/O) (optional IP65-rated M12 system I/O cover available upon request) |
| Environmental | Shock / Vibration | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) | MIL-STD-810G, EN60721-3(5M3) |
| Environmental | EMC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC | CE, FCC, RCM, CCC |
| Environmental | Vehicle Regulation | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 | E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 |
| Environmental | RF Regulation | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID | CE (RED), FCC ID, IC ID |
| Environmental | Operating Temperature | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) | -30 ~ 70 °C/-22 ~ 158 °F (Atom™ X5-E3940), -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 60 °C/-4 ~ 140 °F available upon request) |
| Environmental | Storage Temperature | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F | -40 ~ 80 °C/-40 ~ 176 °F |

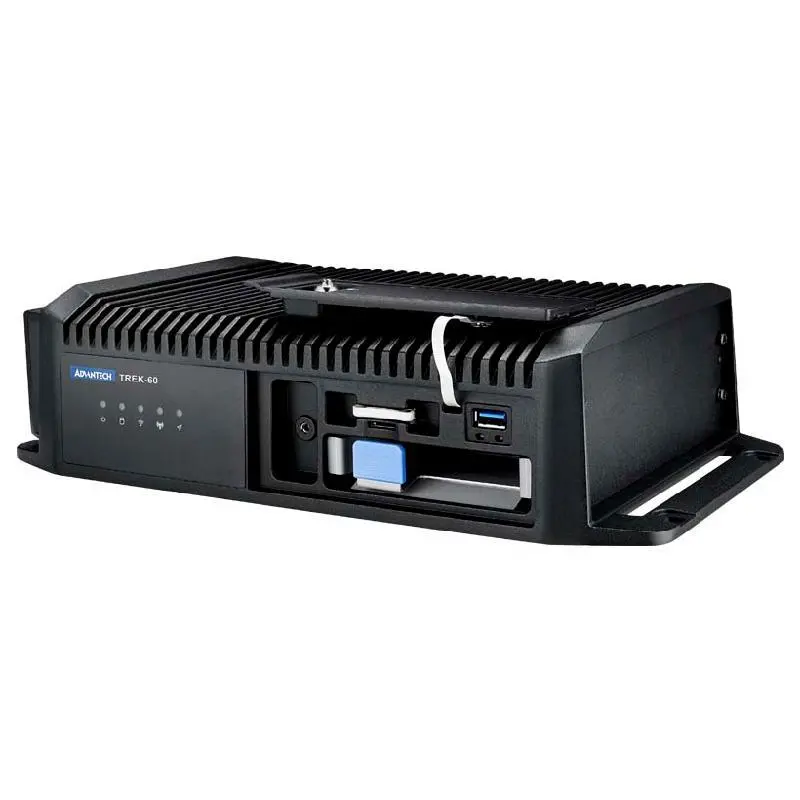

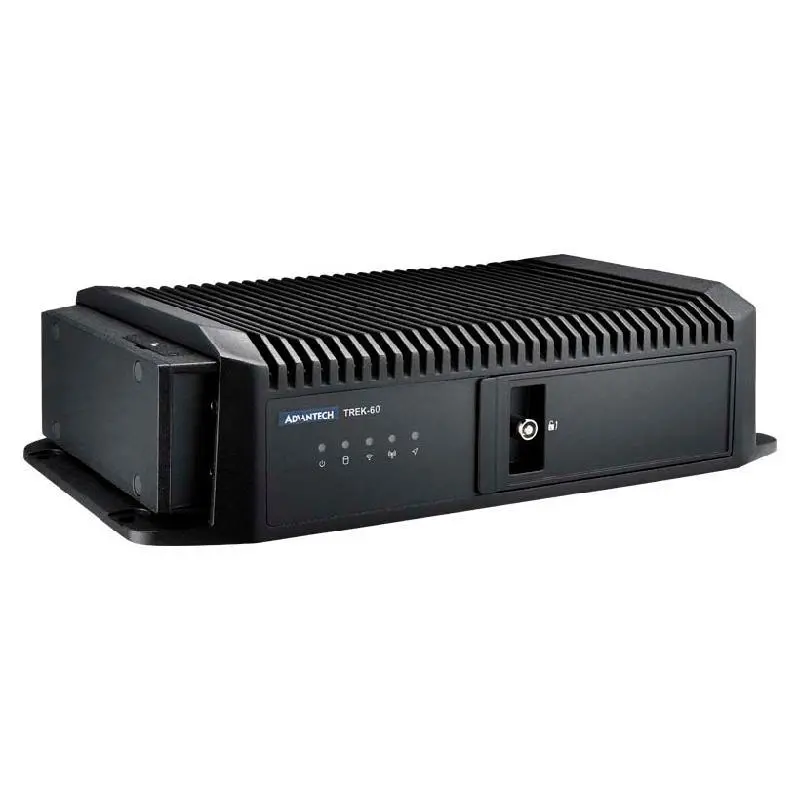

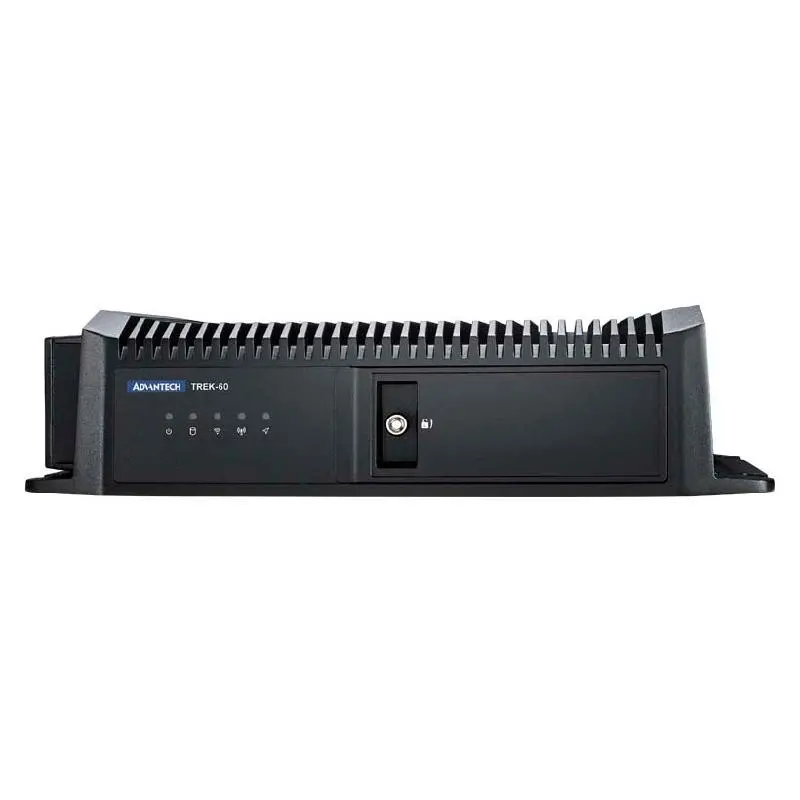

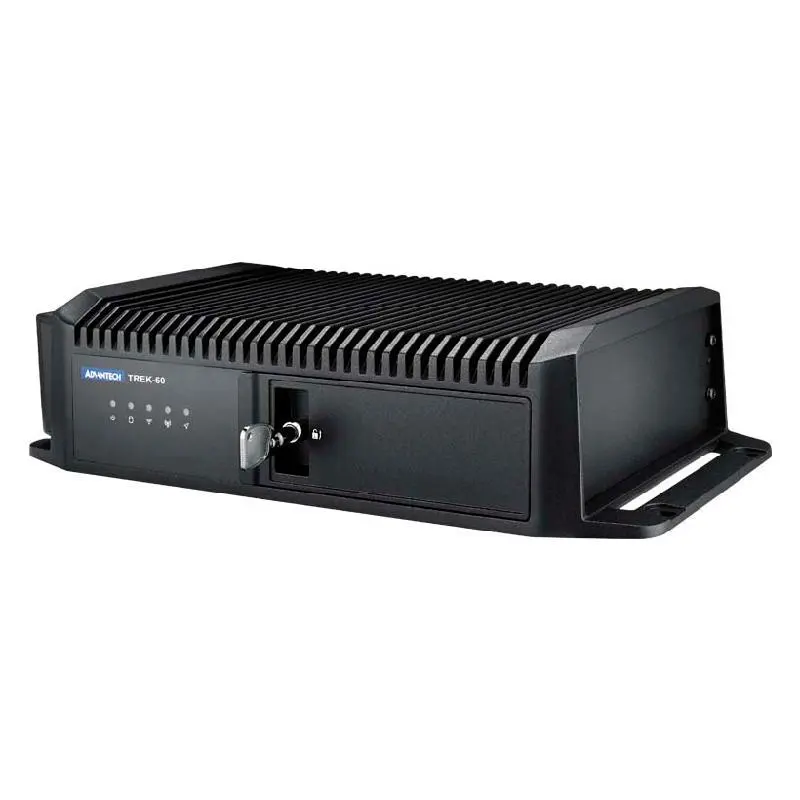

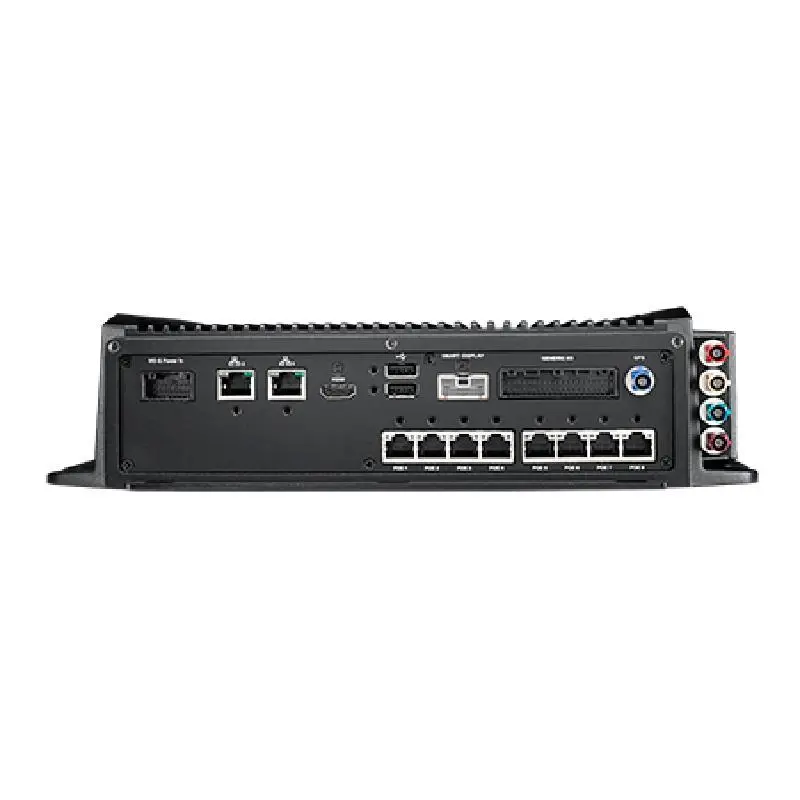

Advantech TREK-60 Rugged In-Vehicle Edge AI Platform with 8 Channel PoE for In-Vehicle & Harsh Environments
