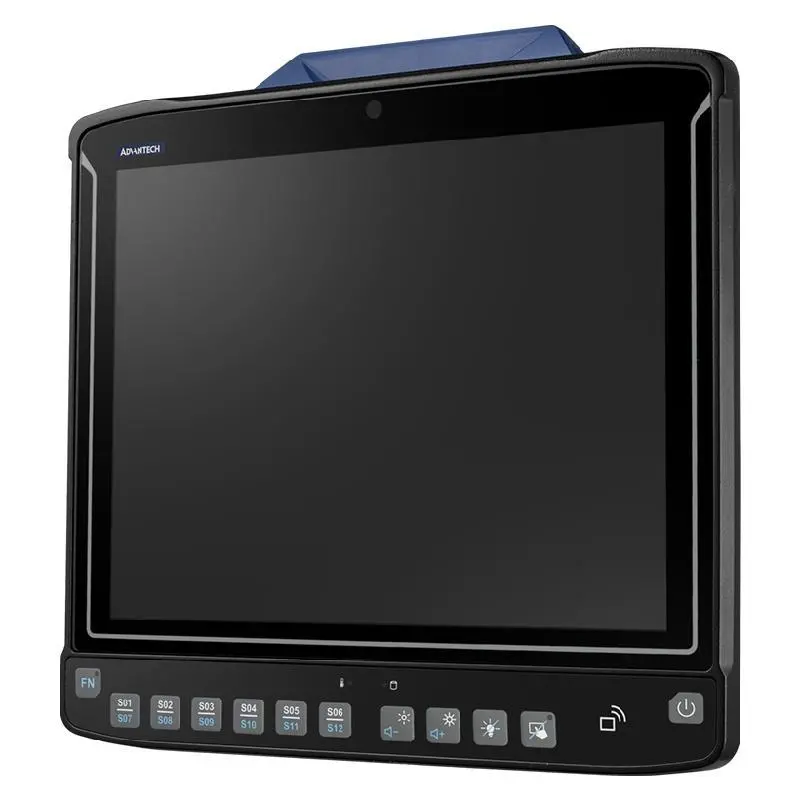

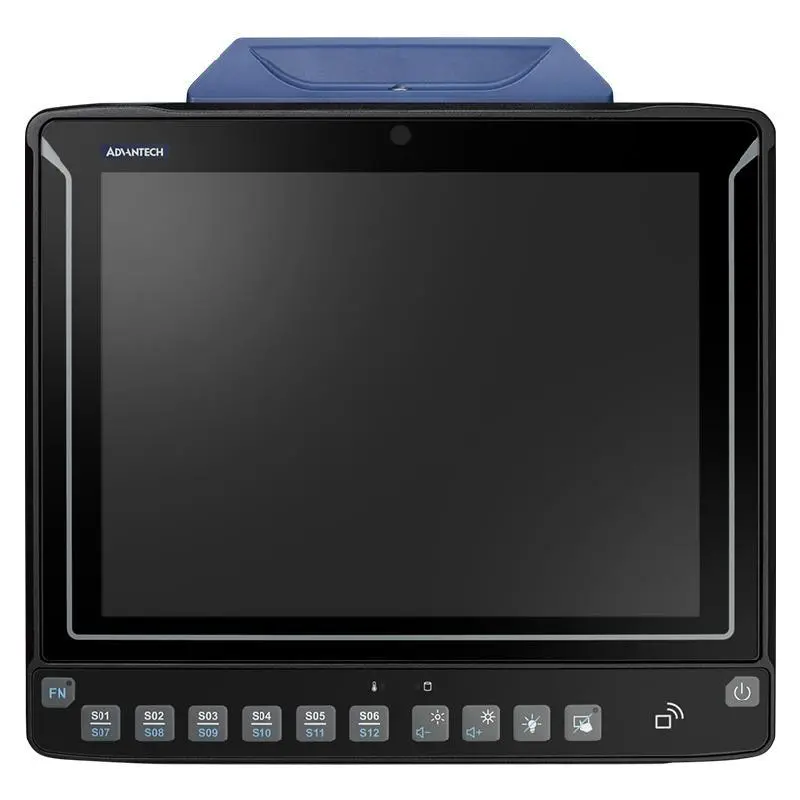

Advantech DLT-V73 10.4"/12.1" Rugged X86-Based Vehicle Mount Terminal

    Intel® Core™ i5-1145GRE quad-core / Celeron® 6305E dual-core processor

    10.4"/12.1" color TFT XGA display with 3/12 control buttons

    Supports Windows and Linux OS

    Resistive/ PCT touchscreen with optical bonding technology

    Full IP66-rated design, IK08-certified touchscreen for impact tolerance and abrasion resistance

    Shock and vibration resistance with 5M3 and MIL-STD-810F

    Wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F) to withstand extreme environments

    AddOn Module for extended I/O ports

    Supports Wi-Fi 6, 4G/LTE, GPS, and BT 5.3

DLV7310-2PQ110W00 DLV7312-2PQ110W00 DLV7312-2QQ110W00 DLV7310-2PQ410W0C0 DLV7312-2PQ410W0C0 DLV7312-2QQ110W0C0 DLV7310-4PQ110W00 DLV7312-4PQ110W00 DLV7312-4QQ110W00
System CPU Intel® Celeron® 6305E dual-core, 1.8 GHz Intel® Celeron® 6305E dual-core, 1.8 GHz Intel® Celeron® 6305E dual-core, 1.8 GHz Intel® Celeron® 6305E dual-core, 1.8 GHz Intel® Celeron® 6305E dual-core, 1.8 GHz Intel® Celeron® 6305E dual-core, 1.8 GHz Intel® Core™ i5-1145GRE quad-core, 1.5 GHz Intel® Core™ i5-1145GRE quad-core, 1.5 GHz Intel® Core™ i5-1145GRE quad-core, 1.5 GHz
System RAM 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X 8 GB RAM LPDDR4X
System Storage 128 GB CFast 128 GB CFast 128 GB CFast 128 GB CFast 128 GB CFast 128 GB CFast 128 GB CFast 128 GB CFast 128 GB CFast
System TPM TPM 2.0 (X86 only) TPM 2.0 (X86 only) TPM 2.0 (X86 only) TPM 2.0 (X86 only) TPM 2.0 (X86 only) TPM 2.0 (X86 only) TPM 2.0 (X86 only) TPM 2.0 (X86 only) TPM 2.0 (X86 only)
Display Type 10.4" XGA color TFT 12.1" XGA color TFT 12.1" XGA color TFT 10.4" XGA color TFT 12.1" XGA color TFT 12.1" XGA color TFT 10.4" XGA color TFT 12.1" XGA color TFT 12.1" XGA color TFT
Display Resolution 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768
Display Brightness (cd/m2) 500 cd/m² 600 cd/m² 600 cd/m² 500 cd/m² 600 cd/m² 600 cd/m² 500 cd/m² 600 cd/m² 600 cd/m²
Touch Screen Type Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive
Front keys Front keys 12 12 3 front keys (1 x Power, 1 x brightness up, 1 x brightness down) 12 12 3 front keys (1 x Power, 1 x brightness up, 1 x brightness down) 12 12 12
OS Operating System Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC Windows 10 IoT Enterprise LTSC
Communications WLAN IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Communications WWAN LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional ) LTE, UMTS, HSPA+, GPS (Optional )
Communications LAN 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s)
Communications WPAN Bluetooth 5.3 Bluetooth 5.3 Bluetooth 5.3 Bluetooth 5.3 Bluetooth 5.3 Bluetooth 5.3 Bluetooth 5.3 Bluetooth 5.3 Bluetooth 5.3
Communications NFC NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE
Interface Serial 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable) 1 x COM RS-232: 5VDC/12VDC/RI (switchable)
Interface USB 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2, 1 x Service USB-C 3.2 Gen2
Interface External Antenna 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS* 1 x RSMA for WLAN, 1 x SMA for WWAN*,1 x SMA for GPS*
Interface CAN 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module) 1 x CAN bus (CAN2.0/J1939/CAN FD)* (optional with AddOn Module)
Environmental IP Rating IP66 rating for the entire system IP66 rating for the entire system IP66 rating for the entire system IP66 rating for the entire system IP66 rating for the entire system IP66 rating for the entire system IP66 rating for the entire system IP66 rating for the entire system IP66 rating for the entire system
Environmental Operating Temperature -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F) -30 ~ 50 °C (-22 ~ 122 °F)
Environmental Shock / Vibration 5M3, MIL-STD 810F 5M3, MIL-STD 810F 5M3, MIL-STD 810F 5M3, MIL-STD 810F 5M3, MIL-STD 810F 5M3, MIL-STD 810F 5M3, MIL-STD 810F 5M3, MIL-STD 810F 5M3, MIL-STD 810F
Environmental Touchscreen Durability IK08 IK08 IK08 IK08 IK08 IK08 IK08 IK08 IK08
Power Supply Input Voltage 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition 12/24/48V certified vehicle power; Automatic power on/off via ignition
Power Supply Uninterruptible Power Supply (UPS) via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)* via battery pack (support up to 20 minutes)*
