| UTC-115HP-WWW1F | UTC-115HP-WUS1F | UTC-115HP-NUS1F | UTC-115HP-WEU1F | UTC-115HP-WEF1F | ||
| Color | Color | Silver | Silver | Silver | Silver | Silver |
| Display | Size | 15.6" TFT LCD | 15.6" TFT LCD | 15.6" TFT LCD | 15.6" TFT LCD | 15.6" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Display | Brightness | 400 cd/m² | 400 cd/m² | 400 cd/m² | 400 cd/m² | 400 cd/m² |
| Display | Pixel Pitch (um) | 179(H) x 179(V) | 179(H) x 179(V) | 179(H) x 179(V) | 179(H) x 179(V) | 179(H) x 179(V) |
| Display | View Angle | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Touch Screen | Type | Projected Capacitive | Projected Capacitive | Projected Capacitive | Projected Capacitive | Projected Capacitive |
| Processor System | CPU | Intel® Core™ i5-8365UE | Intel® Core™ i5-8365UE | Intel® Core™ i5-8365UE | Intel® Core™ i5-8365UE | Intel® Core™ i3-8145UE |
| Processor System | RAM | 4G | 8G DDR4 | 8G DDR4 | 8G DDR4 | 8G DDR4 |
| Processor System | Storage | 128G SSD | 128G SSD | 128G SSD | 128G SSD | 128G SSD |
| Processor System | OS | Windows 10 IoT Enterprise 64bit | Windows 10 IoT Enterprise 64bit | N/A | Windows 10 IoT Enterprise 64bit | Windows 10 IoT Enterprise 64bit |
| I/O Interface | Serial Port | 2 x COM (RS-232) | 2 x COM (RS-232) | 2 x COM (RS-232) | 2 x COM (RS-232) | 2 x COM (RS-232) |
| I/O Interface | USB Port | 4 x USB3.0 | 4 x USB3.0 | 4 x USB3.0 | 4 x USB3.0 | 4 x USB3.0 |
| I/O Interface | Output | 1 x HDMI 1.4 | 1 x HDMI 1.4 | 1 x HDMI 1.4 | 1 x HDMI 1.4 | 1 x HDMI 1.4 |
| I/O Interface | Audio | 1 x Audio Phone Jack | 1 x Audio Phone Jack | 1 x Audio Phone Jack | 1 x Audio Phone Jack | 1 x Audio Phone Jack |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet ports | 2 x Gigabit Ethernet ports | 2 x Gigabit Ethernet ports | 2 x Gigabit Ethernet ports | 2 x Gigabit Ethernet ports |
| I/O Interface | Speaker | 2 x 2W Speaker | 2 x 2W Speaker | 2 x 2W Speaker | 2 x 2W Speaker | 2 x 2W Speaker |
| I/O Interface | Extendable Slot | 1 x M.2 key2230, 1 x M.2 key2242 | 1 x M.2 key2230, 1 x M.2 key2242 | 1 x M.2 key2230, 1 x M.2 key2242 | 1 x M.2 key2230, 1 x M.2 key2242 | 1 x M.2 key2230, 1 x M.2 key2242 |
| Peripheral | Bluetooth | Bluetooth® v4.1 | Bluetooth® v4.1 | Bluetooth® v4.1 | Bluetooth® v4.1 | Bluetooth® v4.1 |
| Peripheral | WLAN | IEEE 802.11a/b/g/n/ac | IEEE 802.11a/b/g/n/ac | IEEE 802.11a/b/g/n/ac | IEEE 802.11a/b/g/n/ac | IEEE 802.11a/b/g/n/ac |
| Environment | Operating Temperature | 0 ~ 35 °C (32 ~ 95 °F)* | 0 ~ 35 °C (32 ~ 95 °F)* | 0 ~ 35 °C (32 ~ 95 °F)* | 0 ~ 35 °C (32 ~ 95 °F)* | 0 ~ 35 °C (32 ~ 95 °F)* |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | Vibration | 0.5G | 0.5G | 0.5G | 0.5G | 0.5G |
| Environment | Shock | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) |
| Environment | System Protection | IP65 front panel | IP65 front panel | IP65 front panel | IP65 front panel | IP65 front panel |
| Power | Input Rating | 12 V/5 A~24 V/2.5 A (60W ITE Adapter) | 12 V/5 A~24 V/2.5 A (60W ITE Adapter) | 12 V/5 A~24 V/2.5 A (60W ITE Adapter) | 12 V/5 A~24 V/2.5 A (60W ITE Adapter) | 12 V/5 A~24 V/2.5 A (60W ITE Adapter) |
| Power | PoE | N/A | N/A | N/A | N/A | N/A |

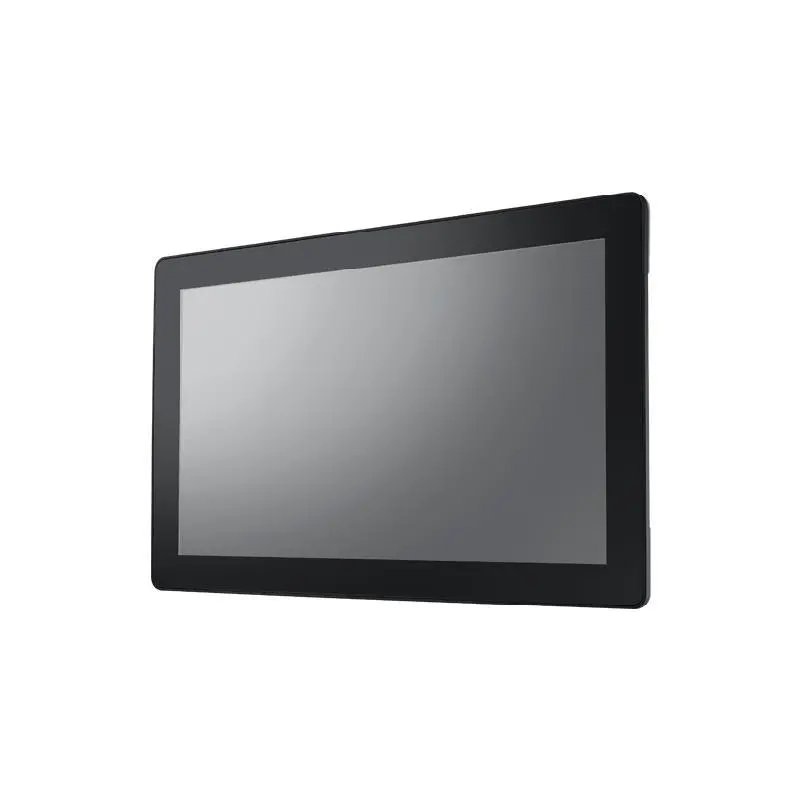

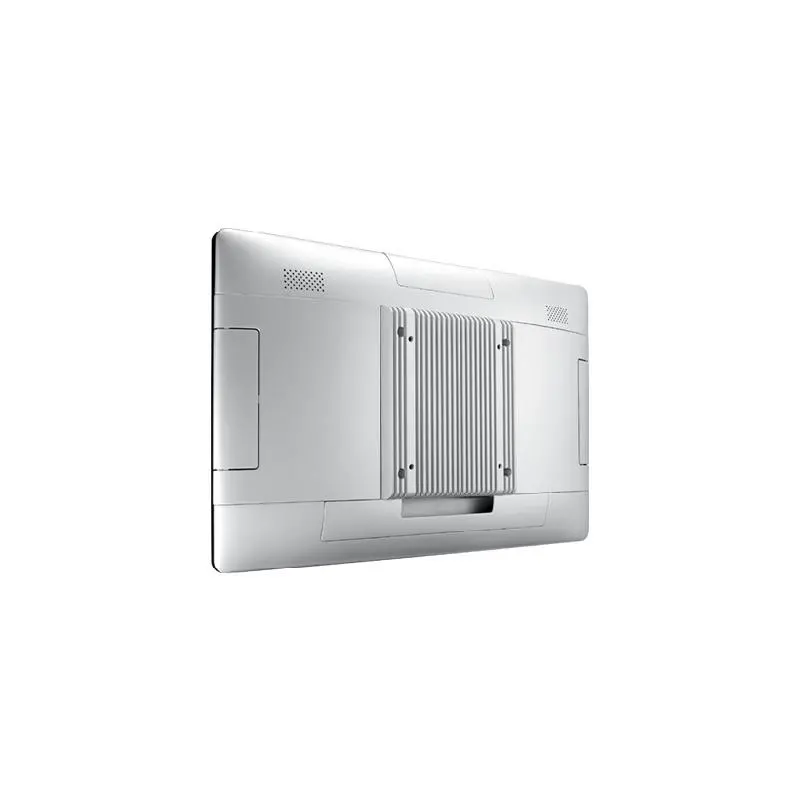

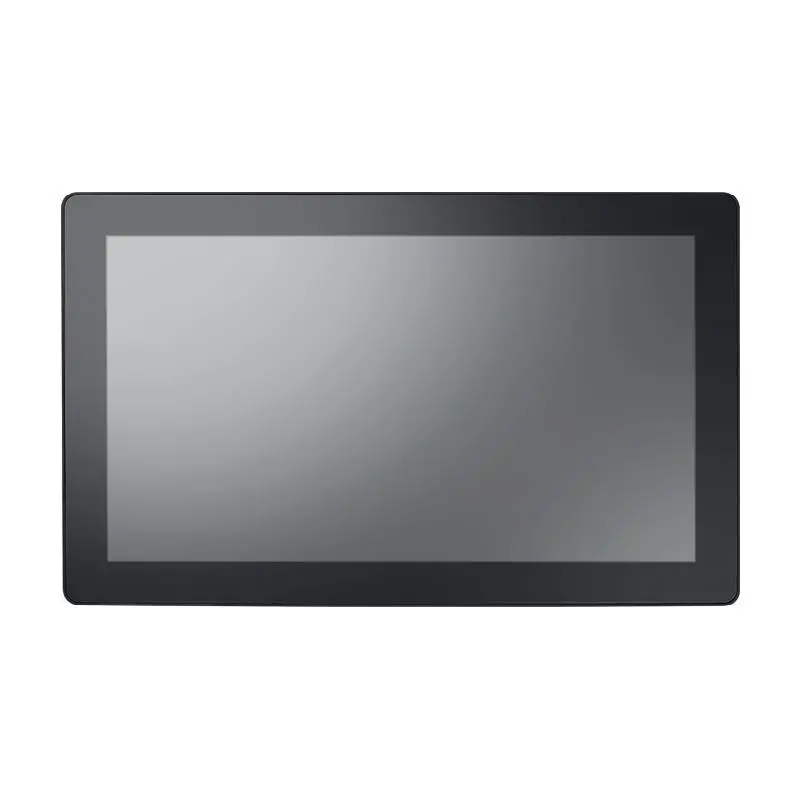

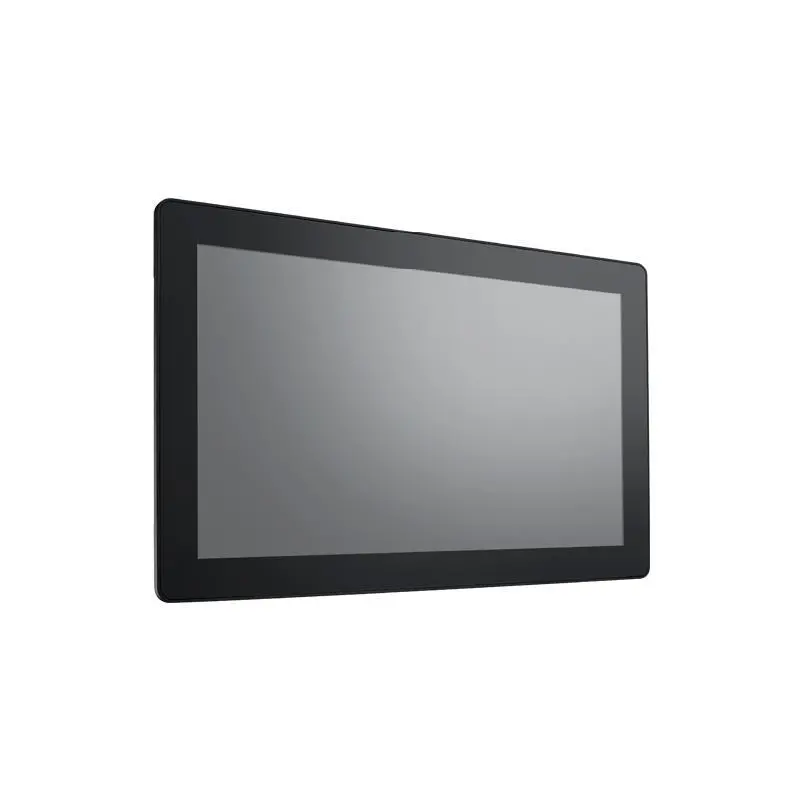

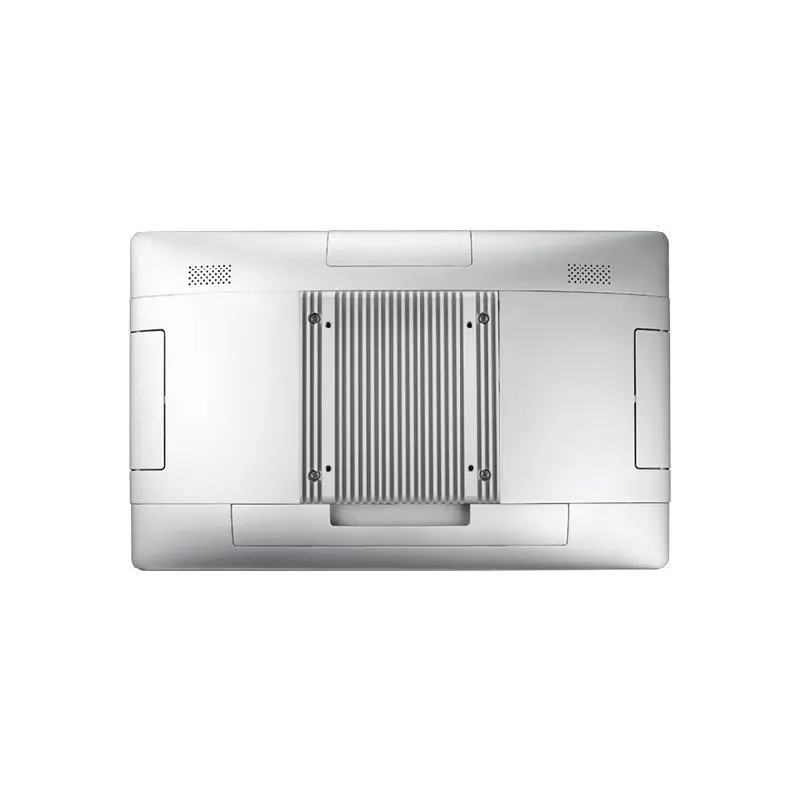

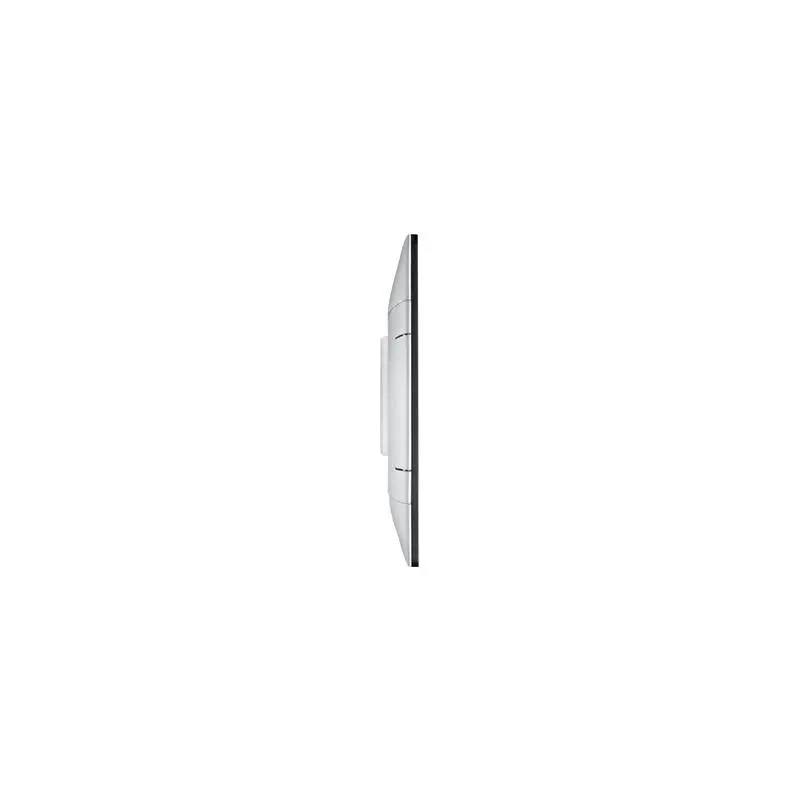

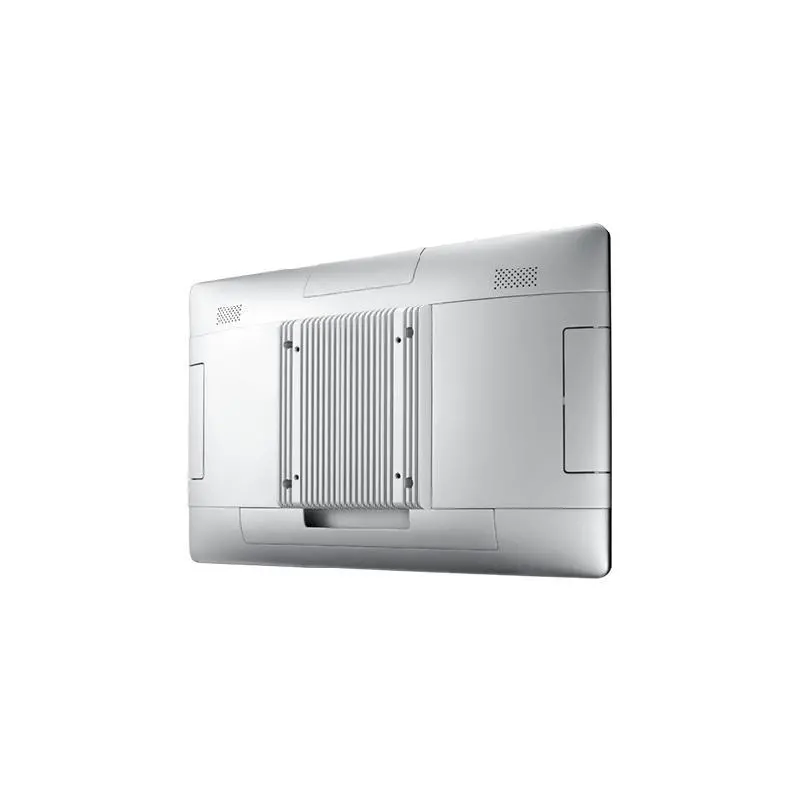

Advantech UTC-115H 15.6" All-in-One Touch Computer with 8th Gen Intel® Core™ i5-8365UE / i3-8145UE Processor
