Advantech UTC-115G 15.6" All-in-One Touch Computer with Intel® Pentium® N4200 Processor

    Low power and fanless system design

    Built-in Intel Pentium® N4200

    15.6" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

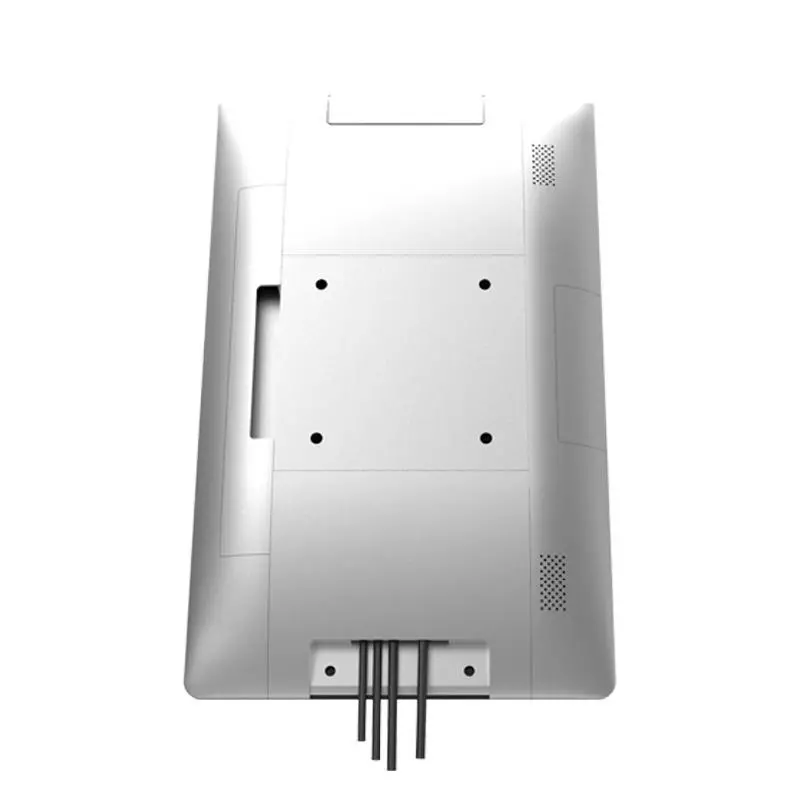

    Clean back cover design with 3 Way IO cable routing

    Supports both landscape and portrait screen orientations

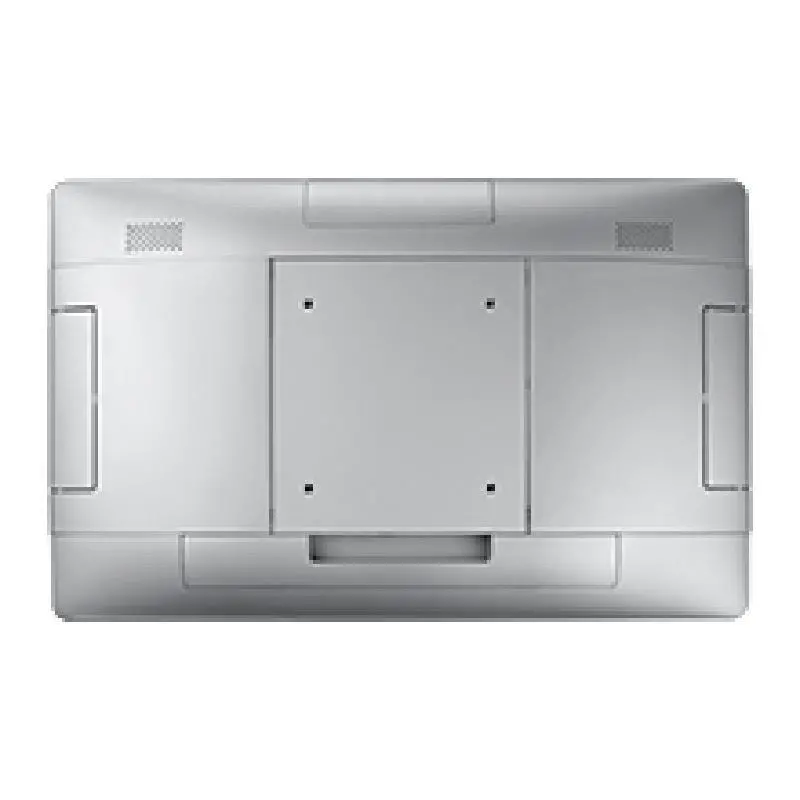

    VESA 100 mm standard mounting holes for varied mounting demands

    PoE supported on Pentium N4200 platform (with optional module)

    Support DeviceOn/iService software for remote device management

UTC-115GP-WWW1F UTC-115GP-AWW1F UTC-115GP-WUS1F UTC-115GP-NUS1F UTC-115GP-WEU1F UTC-115GP-IOT2E
Color Color Silver Silver Silver Silver Silver Silver
Display Size 15.6" TFT LCD 15.6" TFT LCD 15.6" TFT LCD 15.6" TFT LCD 15.6" TFT LCD 15.6" TFT LCD
Display Max. Resolution FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080)
Display Brightness 300 cd/m² 300 cd/m² 300 cd/m² 300 cd/m² 300 cd/m² 300 cd/m²
Touch Screen Type Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive
Processor System CPU Intel® Pentium® N4200 Intel® Pentium® N4200 Intel® Pentium® N4200 Intel® Pentium® N4200 Intel® Pentium® N4200 Intel® Pentium® N4200
Process System Base/Burst Frequency 1.10Ghz/2.50Ghz (Quad-Core) 1.10Ghz/2.50Ghz (Quad-Core) 1.10Ghz/2.50Ghz (Quad-Core) 1.10Ghz/2.50Ghz (Quad-Core) 1.10Ghz/2.50Ghz (Quad-Core) 1.10Ghz/2.50Ghz (Quad-Core)
Processor System RAM 4GB DDR3L 4GB DDR3L 4GB DDR3L 4GB DDR3L 4GB DDR3L 4GB DDR3L
Processor System Storage 128G SSD 128G SSD 128G SSD 128G SSD 128G SSD 128G SSD
Processor System OS Windows 10 IoT Enterprise 64bit Android 8.1 Windows 10 IoT Enterprise 64bit N/A Windows 10 IoT Enterprise 64bit Windows 10 IoT Enterprise 64bit
Process System Stereo Speaker 2 x 2W 2 x 2W 2 x 2W 2 x 2W 2 x 2W 2 x 2W
Process System Dimension (WxHxD) 398.8 x 248.2 x 29.5 398.8 x 248.2 x 29.5 398.8 x 248.2 x 29.5 398.8 x 248.2 x 29.5 398.8 x 248.2 x 29.5 398.8 x 248.2 x 29.5
Process System Weight 2.4 Kg 2.4 Kg 2.4 Kg 2.4 Kg 2.4 Kg 2.4 Kg
I/O Interface Serial Port 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232)
I/O Interface USB Port 4 x USB 3.0 / 2 x USB 3.0 (optional) 4 x USB 3.0 / 2 x USB 3.0 (optional) 4 x USB 3.0 / 2 x USB 3.0 (optional) 4 x USB 3.0 / 2 x USB 3.0 (optional) 4 x USB 3.0 / 2 x USB 3.0 (optional) 4 x USB 3.0 / 2 x USB 3.0 (optional)
I/O Interface Output 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI
I/O Interface Audio 1 x Audio Phone Jack 1 x Audio Phone Jack 1 x Audio Phone Jack 1 x Audio Phone Jack 1 x Audio Phone Jack 1 x Audio Phone Jack
I/O Interface Ethernet 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (1 with PoE)
I/O Interface Speaker 2 x 2W Speaker 2 x 2W Speaker 2 x 2W Speaker 2 x 2W Speaker 2 x 2W Speaker 2 x 2W Speaker
I/O Interface Extendable Slot 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Peripheral WLAN IEEE 802.11a/b/g/n/ac IEEE 802.11a/b/g/n/ac IEEE 802.11a/b/g/n/ac IEEE 802.11a/b/g/n/ac IEEE 802.11a/b/g/n/ac IEEE 802.11a/b/g/n/ac
Peripheral Bluetooth Bluetooth® v4.1 Bluetooth® v4.1 Bluetooth® v4.1 Bluetooth® v4.1 Bluetooth® v4.1 Bluetooth® v4.1
Environment Operating Temperature 0~40° C 0~40° C 0~40° C 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F)
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment Vibration 0.5G 0.5G 0.5G 0.5G 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Environment System Protection IP65 front panel IP65 front panel IP65 front panel IP65 front panel IP65 front panel IP65 front panel
Power Input Rating 12 V/5 A~24 V/2.5 A (60W ITE Adapter) 12 V/5 A~24 V/2.5 A (60W ITE Adapter) 12 V/5 A~24 V/2.5 A (60W ITE Adapter) 12 V/5 A~24 V/2.5 A (60W ITE Adapter) 12 V/5 A~24 V/2.5 A (60W ITE Adapter) 12 V/5 A~24 V/2.5 A (60W ITE Adapter)
Power PoE IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional)
Power Supply Power consumption 26W 26W 26W 26W 26W 26W
