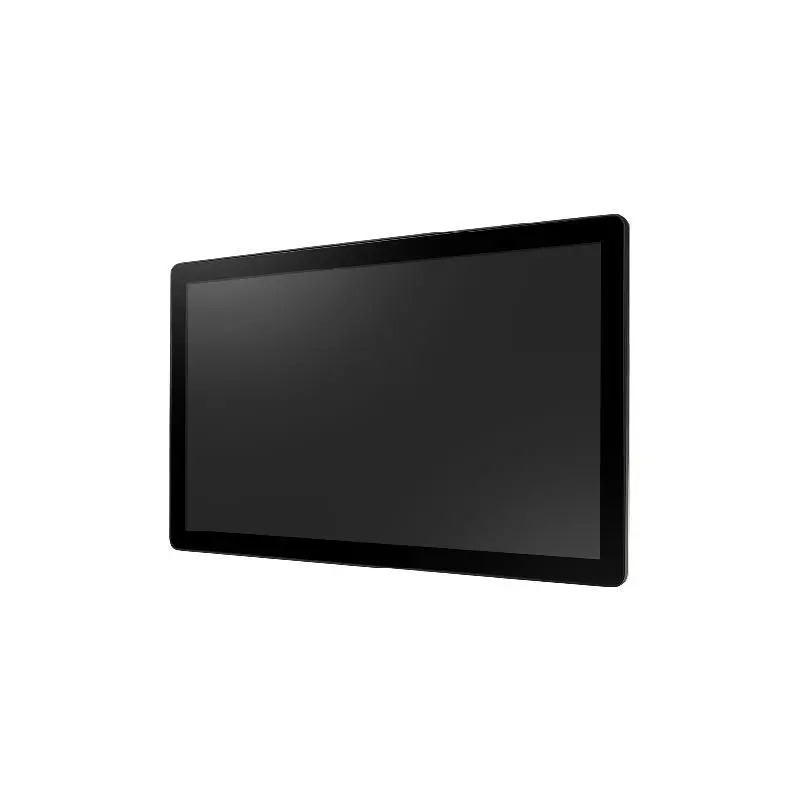

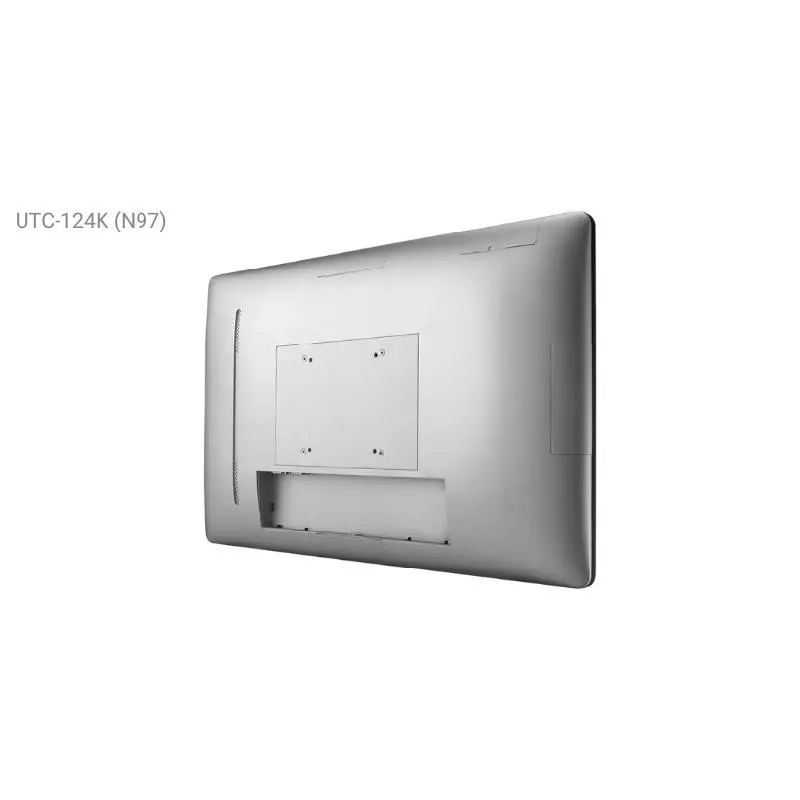

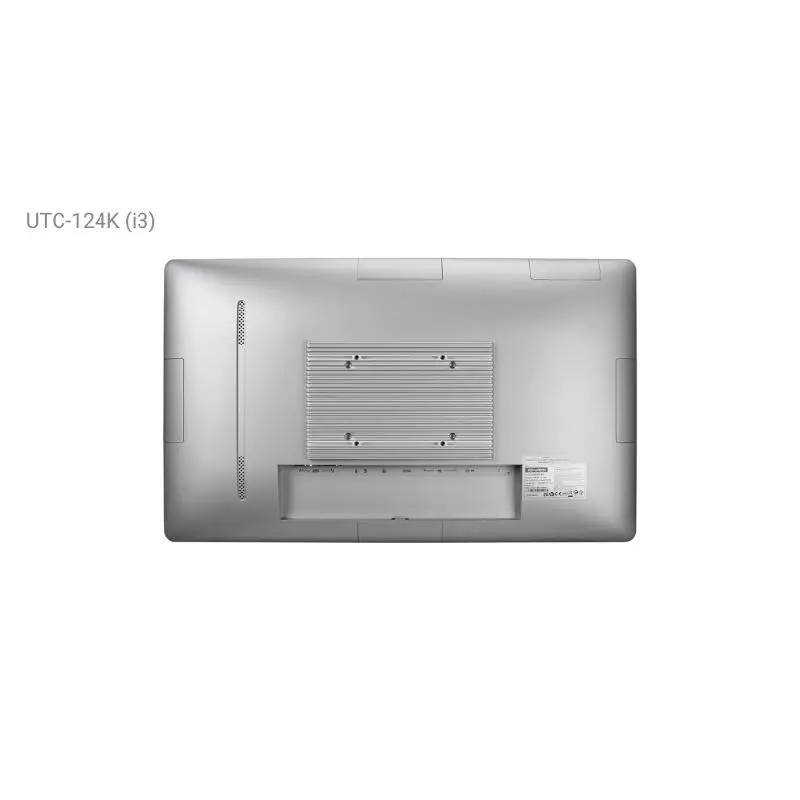

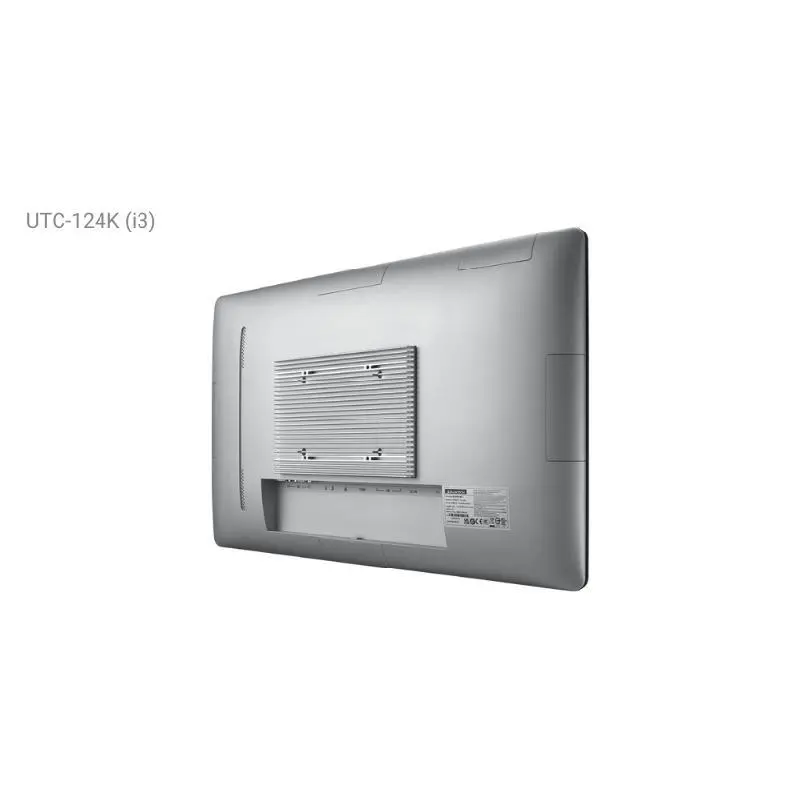

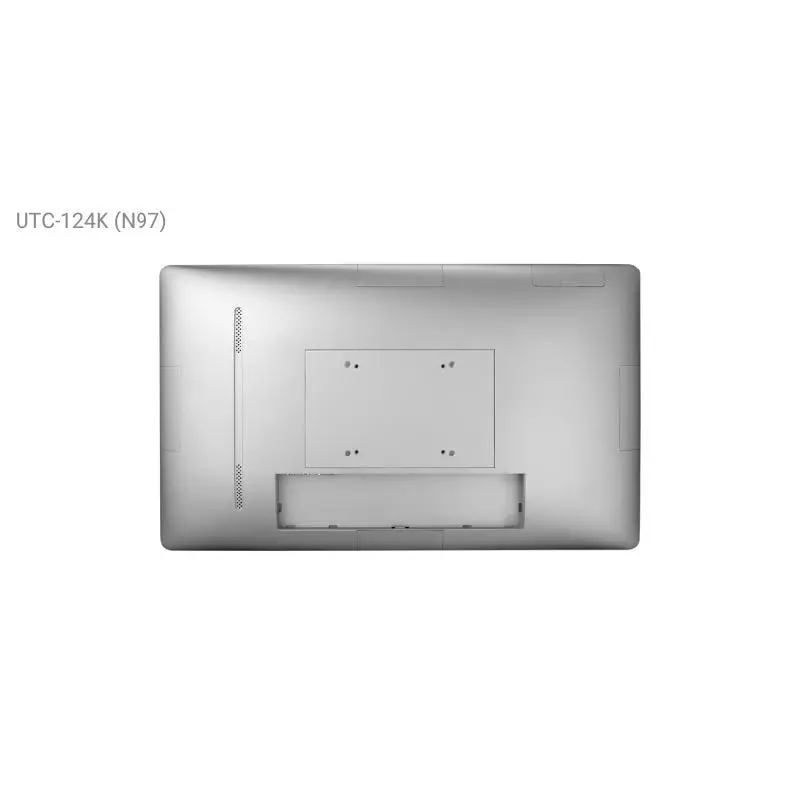

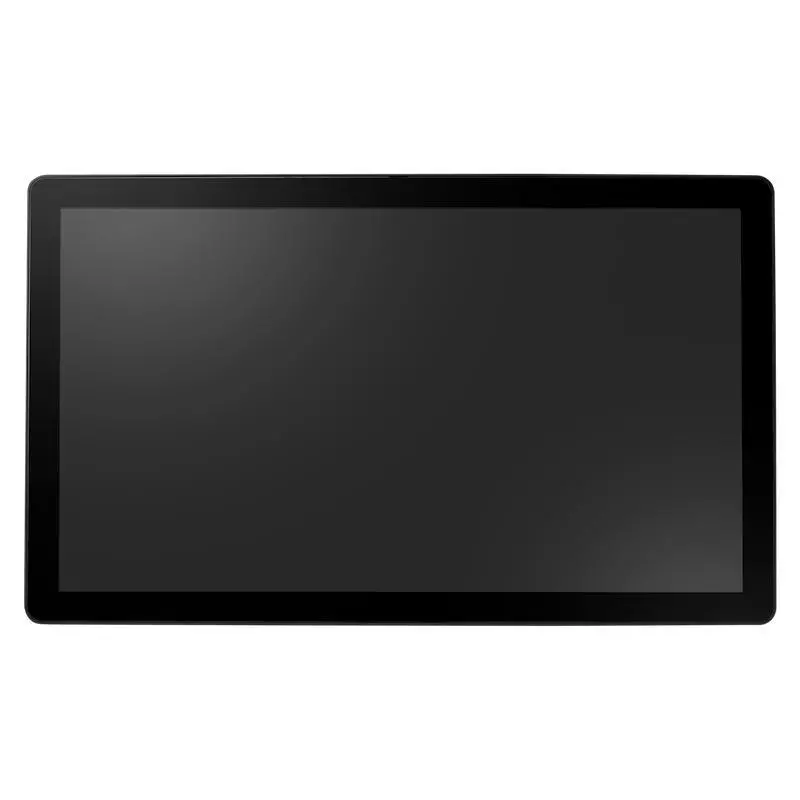

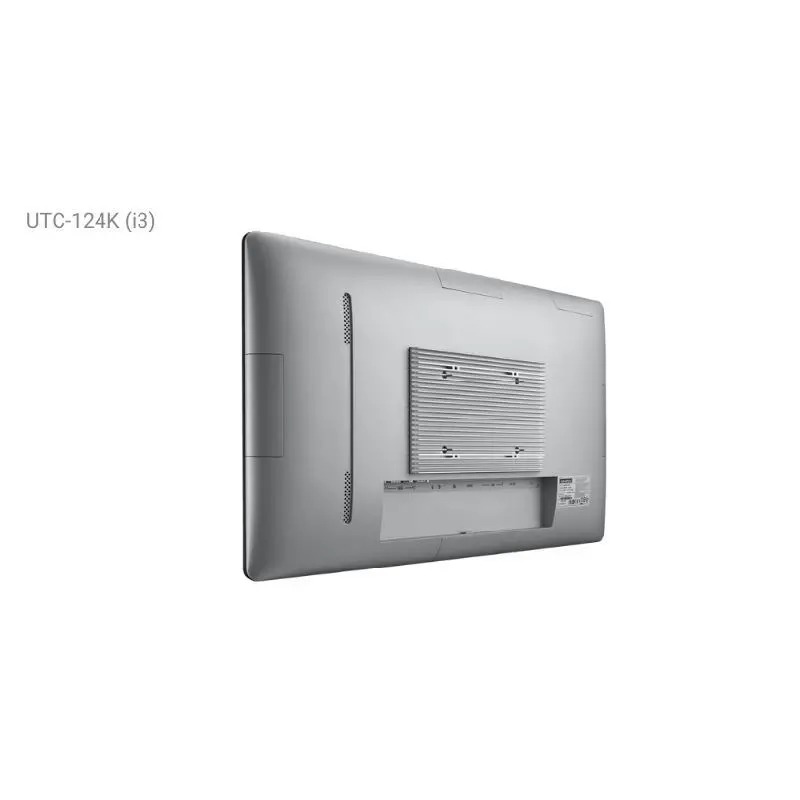

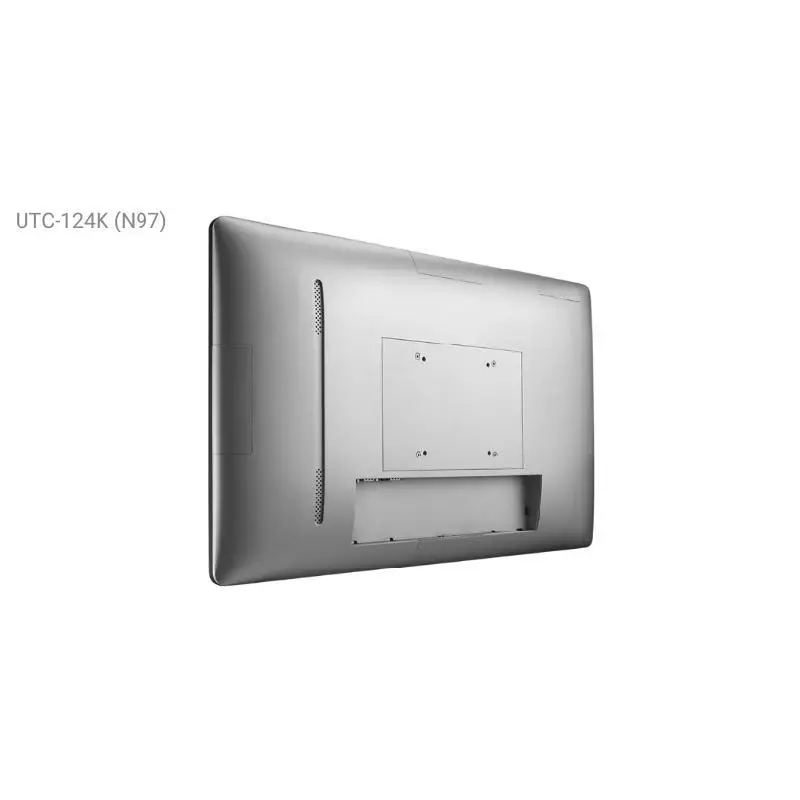

Advantech UTC-124K 23.8" Ubiquitous Touch Computer with Intel® Core™ i3/ N97 Processor

    Slimmer and lighter design

    Low power and fanless system design

    Built-in Intel® Core™ N97

    23.8" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

    Clean back cover design with 3 Way IO cable routing

    Supports both landscape and portrait screen orientations

    VESA 100 mm standard mounting holes for varied mounting demands

    Support DeviceOn/iService software for remote device management

UTC-124KP-WWW1E UTC-124KP-NWW1E UTC-124KP-WWF1E
Color Color Silver Silver Silver
Display Size 23.8" TFT LCD 23.8" TFT LCD 23.8" TFT LCD
Display Max. Resolution FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080)
Display Brightness 350 cd/m² 350 cd/m² 350 cd/m²
Touch Screen Type Projected Capacitive Projected Capacitive Projected Capacitive
Processor System CPU Intel® Processor N97 Intel® Processor N97 Intel® Processor i3-N305
Processor System RAM 8GB DDR5 8GB DDR5 8GB DDR5
Processor System Storage 128GB SSD 128GB SSD 256GB SSD
Processor System OS Windows 11 IoT Enterprise 64bit N/A Windows 11 IoT Enterprise 64bit
I/O Interface Serial Port 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232)
I/O Interface USB Port 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x USB 3.2 Gen 1 Type-C, 1 x DC-in USB Type-C 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x USB 3.2 Gen 1 Type-C, 1 x DC-in USB Type-C 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x USB 3.2 Gen 1 Type-C, 1 x DC-in USB Type-C
I/O Interface Ethernet 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports
I/O Interface Output 1 x HDMI 1.4 1 x HDMI 1.4 1 x HDMI 1.4
I/O Interface Audio 1 x Audio Phone Jack 1 x Audio Phone Jack 1 x Audio Phone Jack
I/O Interface Speaker 2 x 2W Speaker 2 x 2W Speaker 2 x 2W Speaker
I/O Interface Extendable Slot 1 x M.2 key2230, 1 x M.2 key2280 1 x M.2 key2230, 1 x M.2 key2280 1 x M.2 key2230, 1 x M.2 key2280
Peripheral WLAN IEEE 802.11ax IEEE 802.11ax IEEE 802.11ax
Peripheral Bluetooth Bluetooth® 5.3 Bluetooth® 5.3 Bluetooth® 5.3
Environment Operating Temperature 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F)
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment Vibration 0.5G 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Environment System Protection IP65 front panel IP65 front panel IP65 front panel
Power Input Rating 20V/4.5A (90W) 20V/4.5A (90W) 20V/4.5A (90W)
