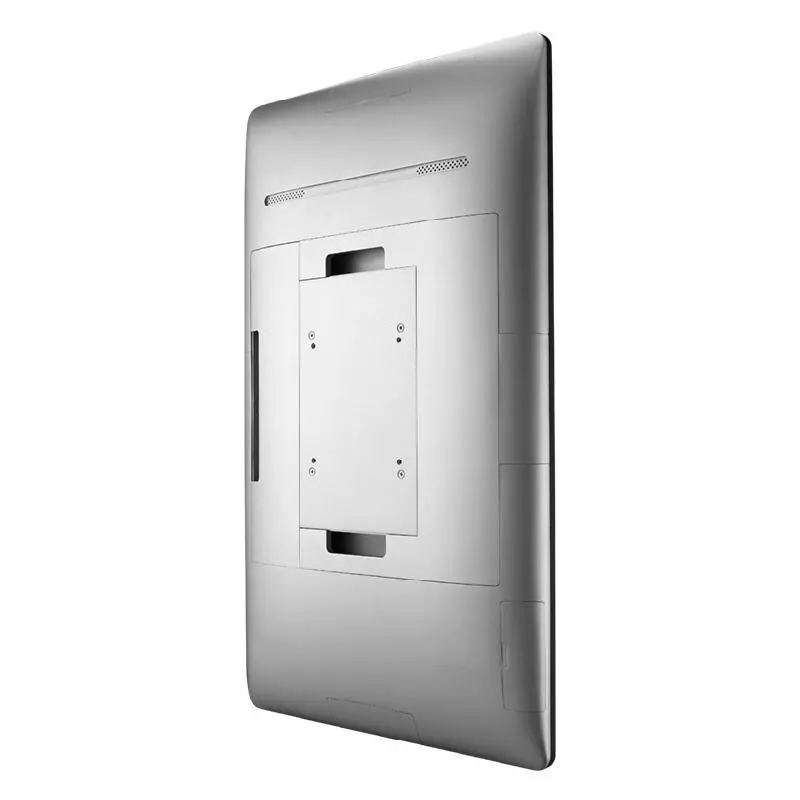

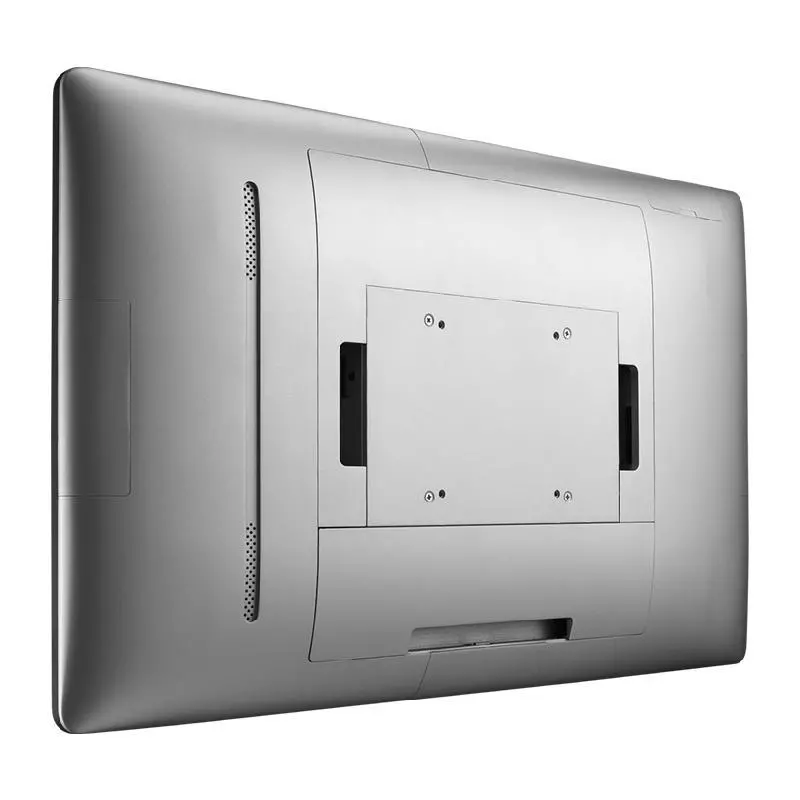

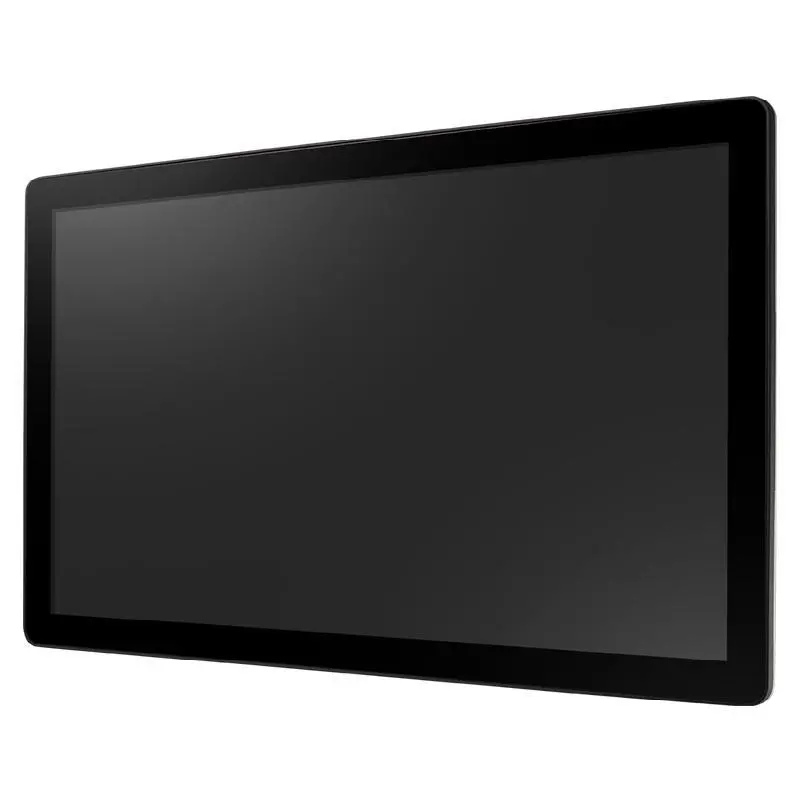

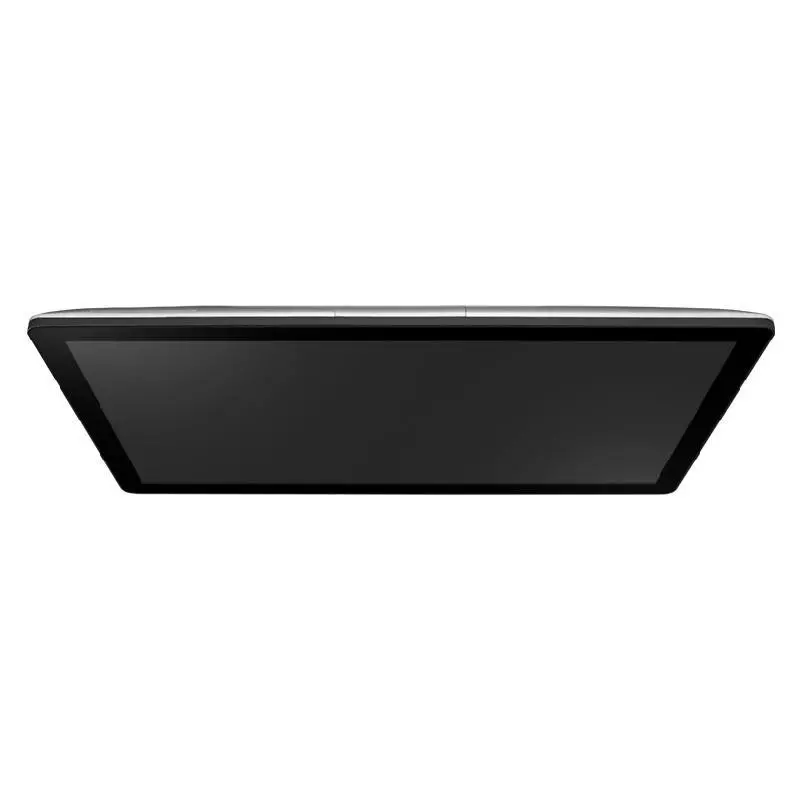

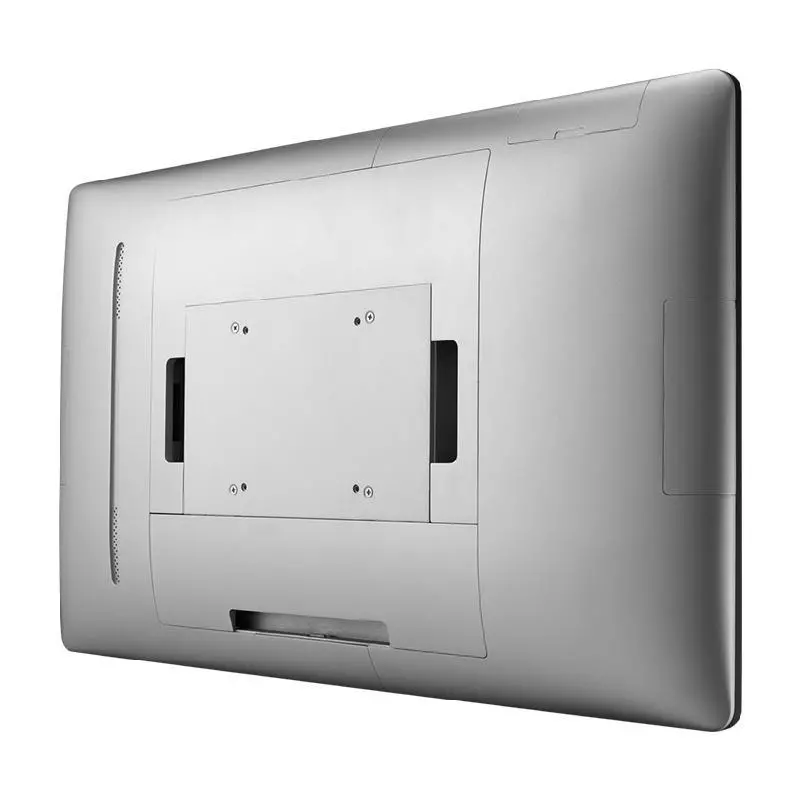

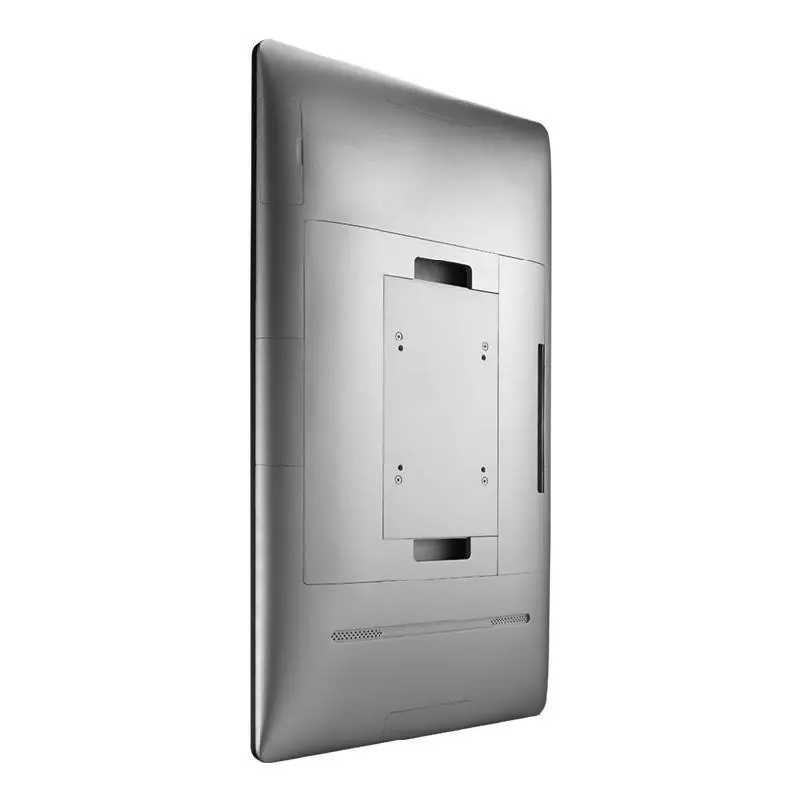

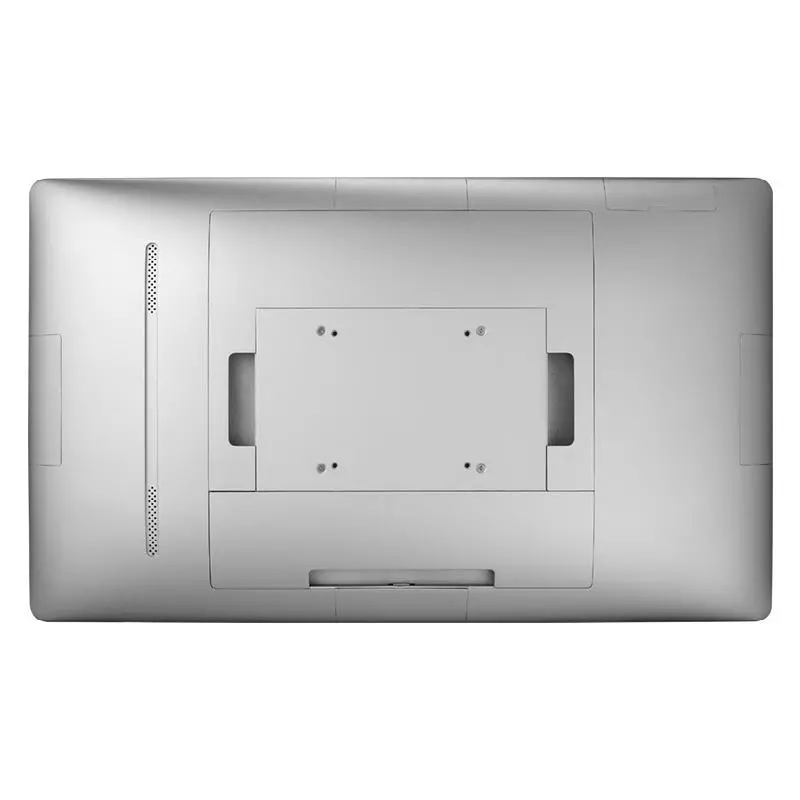

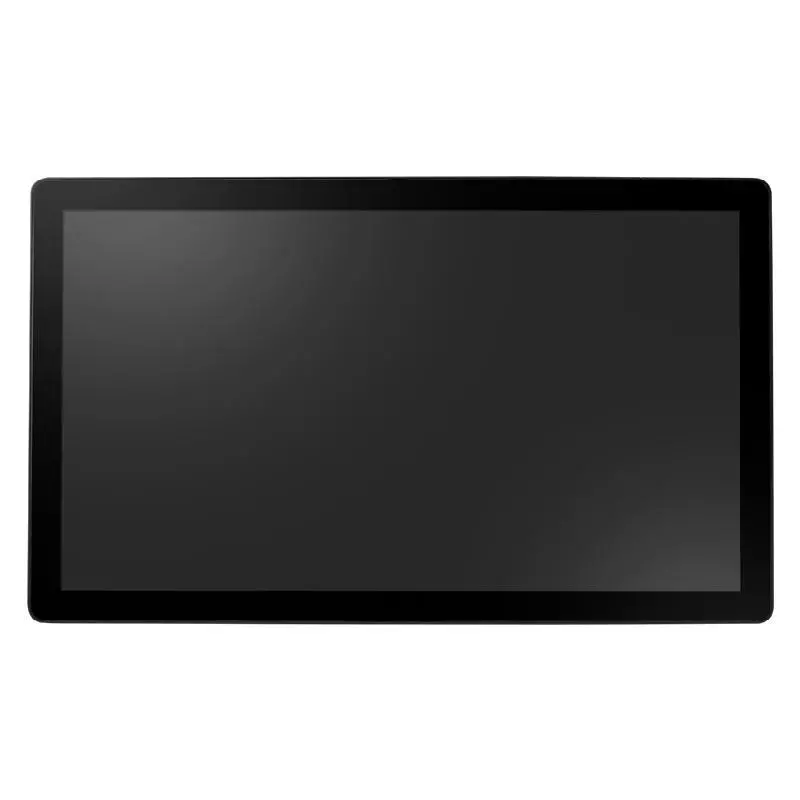

Advantech UTC-124G1 23.8" All-in-One Touch Computer with Intel® Celeron® J3455 Processor

    Slimmer and lighter design

    Low power and fanless system design

    Built-in Intel® Celeron® J3455 processor

    23.8" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

    Clean back cover design with 3 Way IO cable routing

    Supports both landscape and portrait screen orientations

    VESA 100 mm standard mounting holes for varied mounting demands

    Support DeviceOn remote device management

UTC-124G1P-WWW1E UTC-124G1P-NWW1E UTC-124G1P-WUS1E
Color Color Silver Silver Silver
Display Size 23.8" TFT LCD 23.8" TFT LCD 23.8" TFT LCD
Display Max. Resolution FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080)
Display Brightness 350 cd/m² 350 cd/m² 350 cd/m²
Touch Screen Type Projected Capacitive Projected Capacitive Projected Capacitive
Processor System CPU Intel® Celeron® J3455 Intel® Celeron® J3455 Intel® Celeron® J3455
Processor System RAM 4GB DDR3L 4GB DDR3L 4GB DDR3L
Processor System Storage 128G SSD 128G SSD 128G SSD
Processor System OS Windows 10 IoT Enterprise 64bit Win 10 IoT Enterprise 64bit / Android 10.1 / Linux Ubuntu 20.04 Windows 10 IoT Enterprise 64bit
I/O Interface Serial Port 2 x COM (RS-232) 1 x COM (RS-232) 2 x COM (RS-232)
I/O Interface USB Port 4 x USB3.0 4 x USB3.0 4 x USB3.0
I/O Interface Ethernet 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports
I/O Interface Output 1 x HDMI 1.4 1 x HDMI 1.4 1 x HDMI
I/O Interface Audio 1 x Audio Phone Jack 1 x Audio Phone Jack 1 x Audio Phone Jack
I/O Interface Speaker 2 x 2W Speaker 2 x 2W Speaker 2 x 2W Speaker
I/O Interface Extendable Slot 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Peripheral WLAN IEEE 802.11a/b/g/n/ac N/A IEEE 802.11a/b/g/n/ac
Peripheral Bluetooth Bluetooth® v4.1 N/A Bluetooth® v4.1
Environment Operating Temperature 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F) 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment Vibration 0.5G 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Environment System Protection IP65 front panel IP65 front panel IP65 front panel
Power Input Rating 12-24 V/7-3.5 A (90W Adapter) 12-24 V/7-3.5 A (90W Adapter) 12-24 V/7-3.5 A (90W Adapter)
