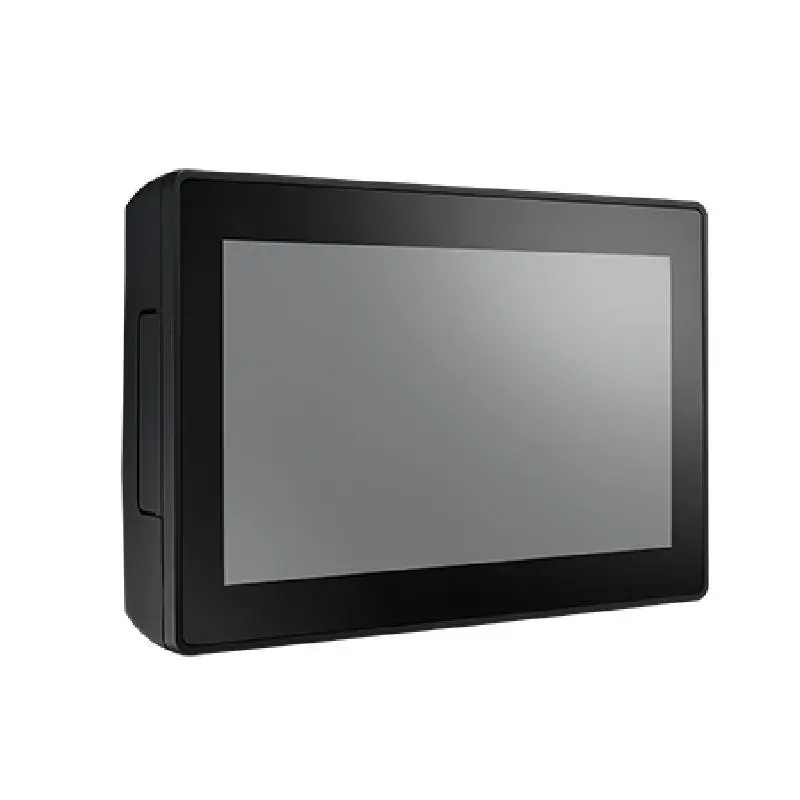

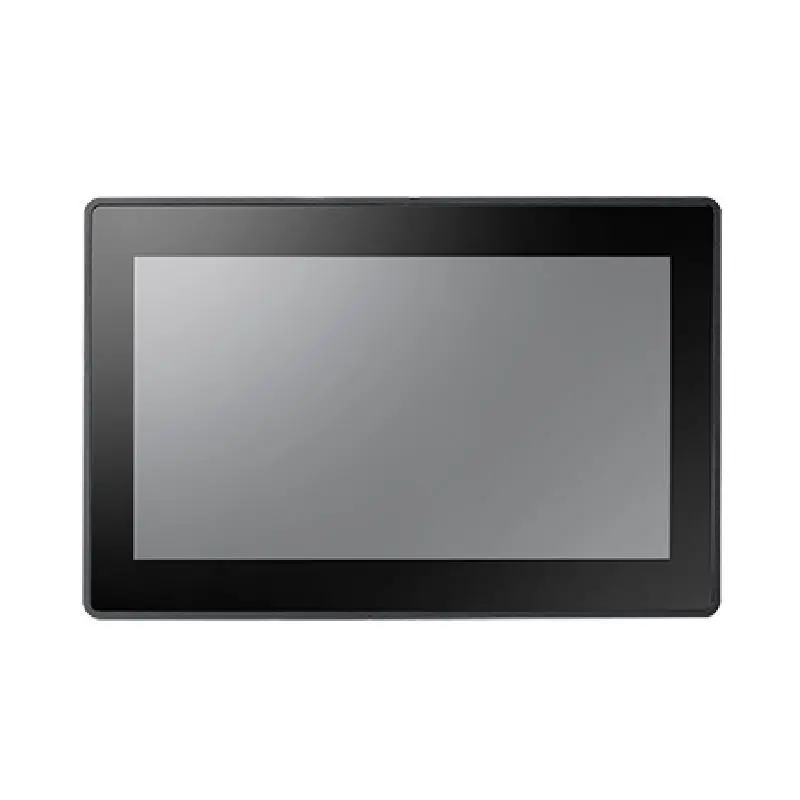

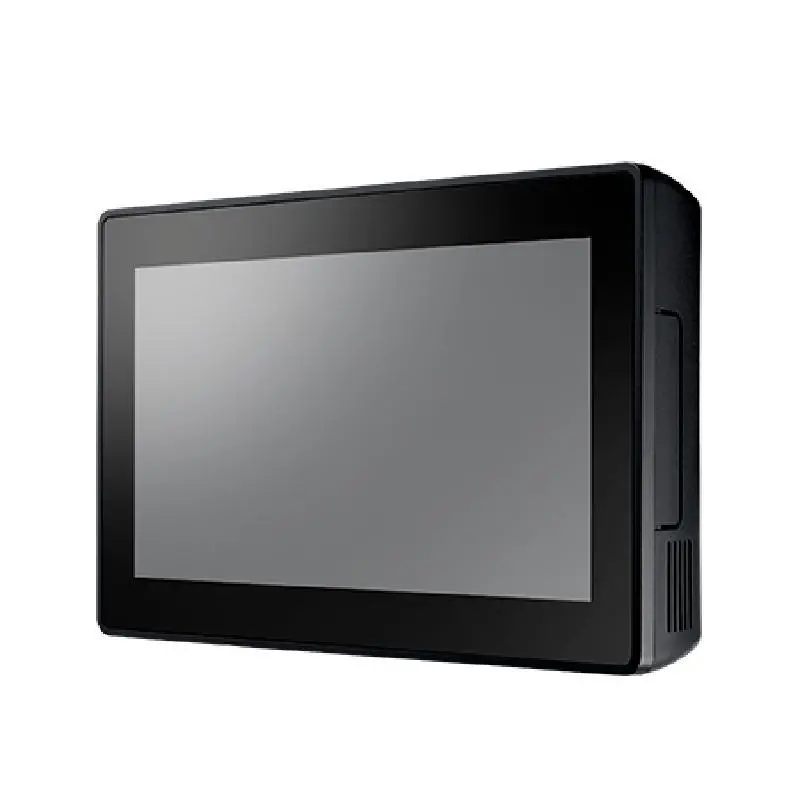

Advantech UTC-307G 7" All-in-One Touch Computer with Intel® Celeron® N3350 / Pentium® N4200 Processors

    Low power and fanless system design

    Built-in Intel® Celeron® N3350 / Pentium® N4200 (UTC-307G)

    7" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

    Supports both landscape and portrait screen orientations

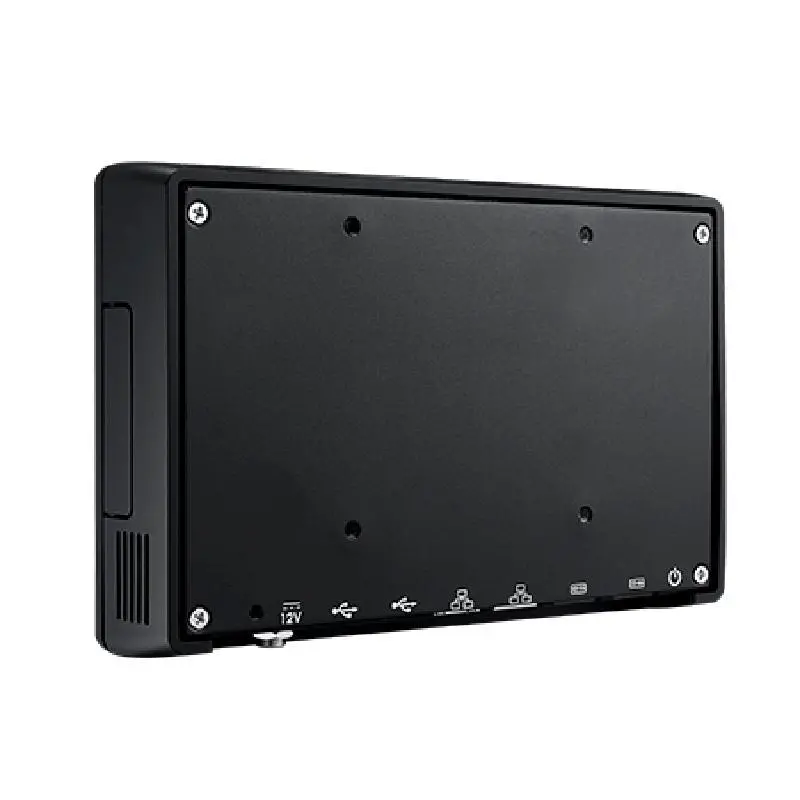

    VESA 75 mm standard mounting holes for varied mounting demand

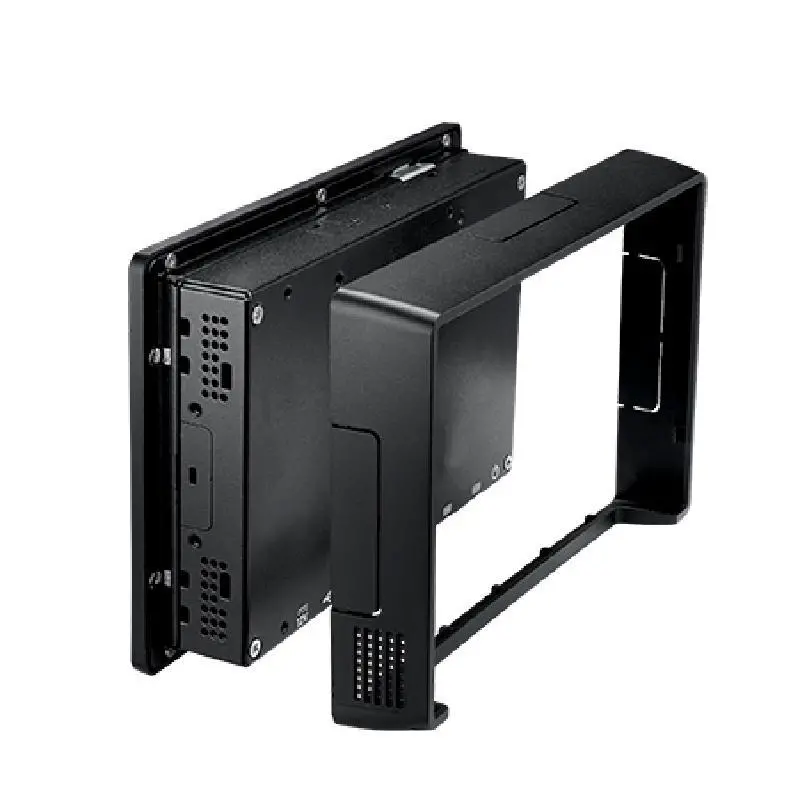

    Detachable plastic frame design for panel mount applications

    PoE supported on Celeron® N3350 / Pentium® N4200 platform

UTC-307GP-ATB0E UTC-307GP-ATB1E UTC-307GP-USB0E UTC-307GP-USB1E UTC-307GP-USW1E UTC-307GP-IOT0E
Color Color Black Black Black Black White Black
Display Size 7" TFT LCD 7" TFT LCD 7" TFT LCD 7" TFT LCD 7" TFT LCD 7" TFT LCD
Display Max. Resolution WVGA (800 x 480) WVGA (800 x 480) WVGA (800 x 480) WVGA (800 x 480) WVGA (800 x 480) WVGA (800 x 480)
Display Brightness 450 cd/m² 450 cd/m² 450 cd/m² 450 cd/m² 450 cd/m² 450 cd/m²
Touch Screen Type Projected Capacitive / Glass panel (by required) Projected Capacitive / Glass panel (by required) Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive
Processor System CPU Intel® Celeron® N3350 1.10GHz Intel® Pentium® N4200 1.10GHz Intel® Celeron® N3350 1.10GHz Intel® Pentium® N4200 1.10GHz Intel® Pentium® N4200 1.10GHz Intel® Pentium® N4200
Processor System RAM 2G DDR3L installed 2G DDR3L installed 2G DDR3L installed 2G DDR3L installed 2G DDR3L installed 4GB DDR3L
Processor System Storage 1 x M.2 2242 SSD 1 x M.2 2242 SSD 1 x M.2 2242 SSD 1 x M.2 2242 SSD 1 x M.2 2242 SSD 128G SSD
Processor System OS Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04 Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04 Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04 Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04 Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04 Windows 10 IoT Enterprise 64bit

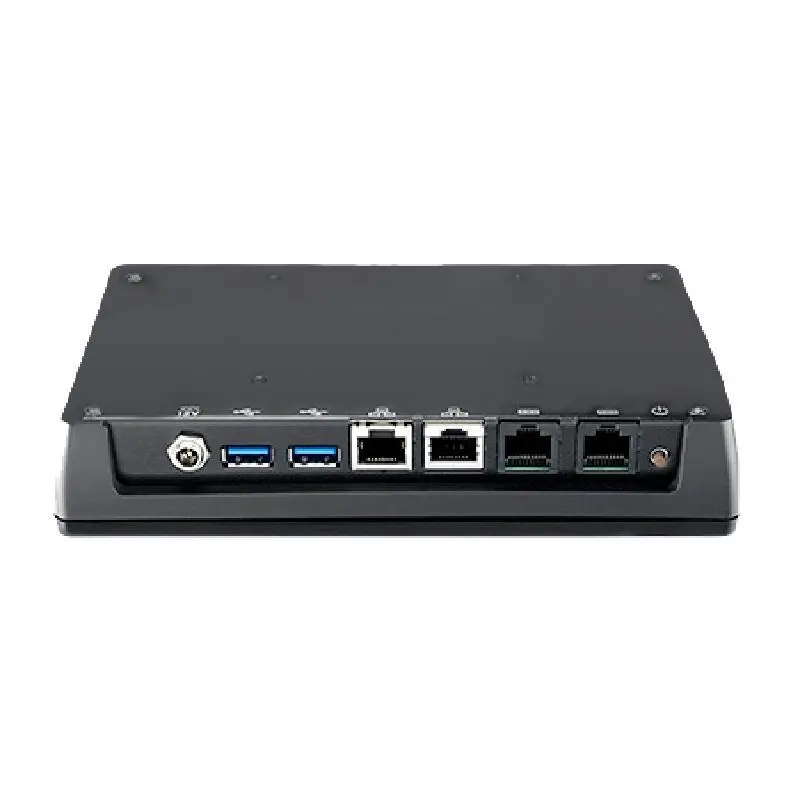

I/O Interface Serial Port 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232)
I/O Interface USB Port 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional)
I/O Interface Ethernet 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE)
I/O Interface Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker
I/O Interface Extendable Slot 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Environment Operating Temperature 0~40° C 0~40° C 0~40° C 0~40° C 0~40° C 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment Vibration 0.5G 0.5G 0.5G 0.5G 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Power Input Rating 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) / Optional IEEE 802.3at/30W PoE 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) / Optional IEEE 802.3at/30W PoE 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) / Optional IEEE 802.3at/30W PoE 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) / Optional IEEE 802.3at/30W PoE 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) / Optional IEEE 802.3at/30W PoE 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) / Optional IEEE 802.3at/30W PoE
Power PoE IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional)
