| UTC-310JP-ATB1E | UTC-310JP-ATW1E | ||
| Color | Color | Black | White |
| Display | Size | 10.1" TFT LCD with LED backlight | 10.1" TFT LCD with LED backlight |
| Display | Max. Resolution | WXGA (1280 X 800) | WXGA (1280 X 800) |
| Display | Brightness | 350 cd/m² | 350 cd/m² |
| Touch Screen | Type | Projected Capacitive / Glass panel (by required) | Projected Capacitive / Glass panel (by required) |
| Processor System | CPU | Intel® Celeron® J6412 | Intel® Celeron® J6412 |
| Processor System | RAM | 8G DDR4 | 8G DDR4 |
| Processor System | Storage | 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage bay (2.5" N/A with Internal PoE) | 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage bay (2.5" N/A with Internal PoE) |
| Processor System | OS | Win 10 IoT Enterprise 64bit / Android 12 / Linux | Win 10 IoT Enterprise 64bit / Android 12 / Linux |
| I/O Interface | Serial Port | 2 x RS-232 COM (COM2 RS-232/422/485) | 2 x RS-232 COM (COM2 RS-232/422/485) |
| I/O Interface | USB Port | 2 x USB3.0 / 2 x USB3.0 (optional) | 2 x USB3.0 / 2 x USB3.0 (optional) |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet ports (1 with optional PoE) | 2 x Gigabit Ethernet ports (1 with optional PoE) |
| I/O Interface | Speaker | 1 x 2W Speaker | 1 x 2W Speaker |
| I/O Interface | Extendable Slot | 1 x M.2 key2230, 1 x M.2 key2242 | 1 x M.2 key2230, 1 x M.2 key2242 |
| Environment | Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) | 0 ~ 40 °C (32 ~ 104 °F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | Vibration | 0.5G | 0.5G |
| Environment | Shock | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) |
| Power | Input Rating | 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) | 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) |
| Power | PoE | IEEE 802.3at/30W (Optional) | IEEE 802.3at/30W (Optional) |

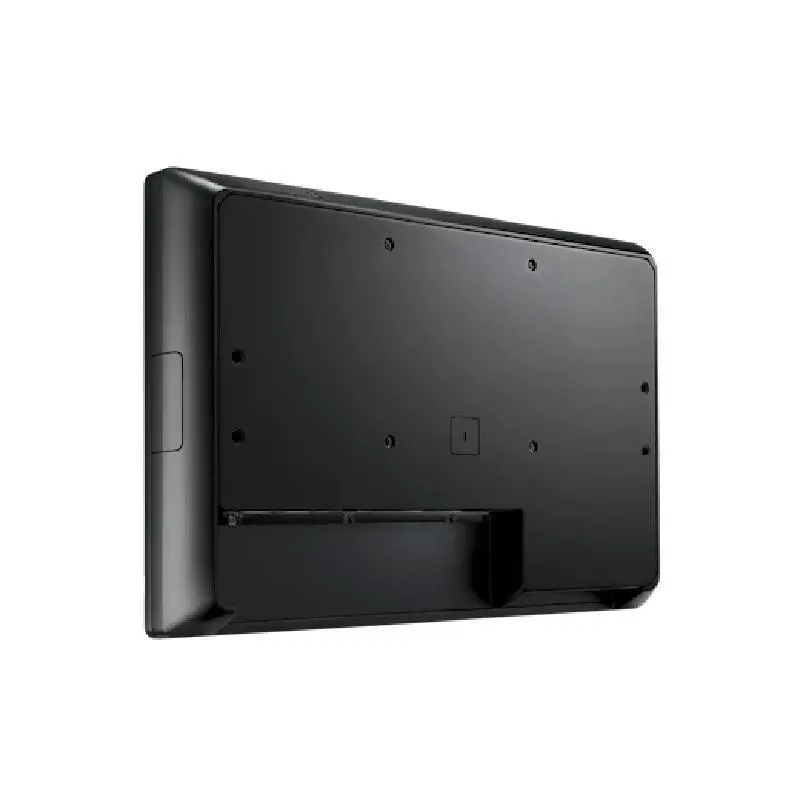

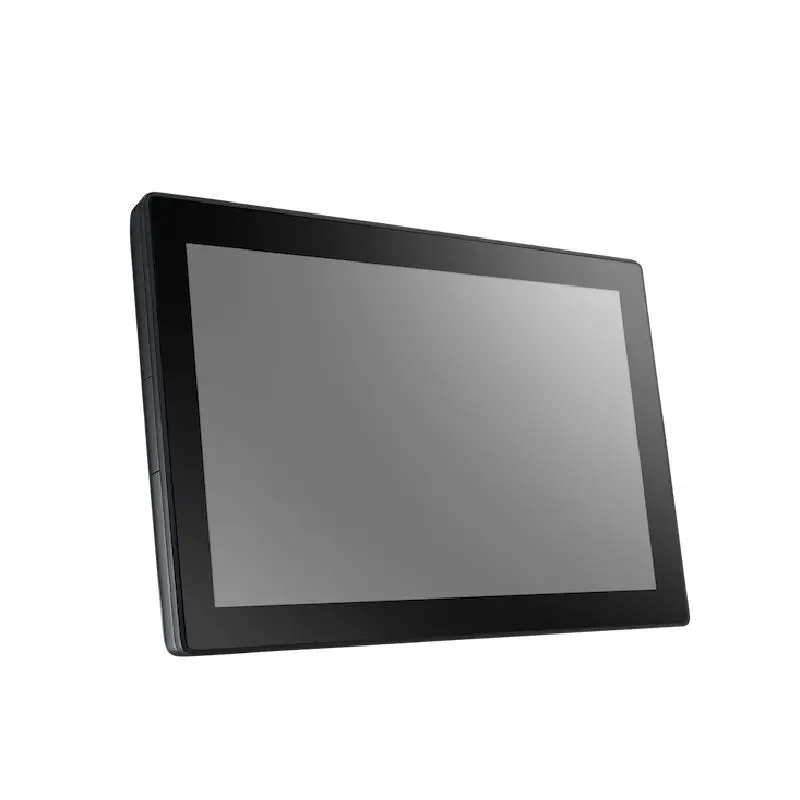

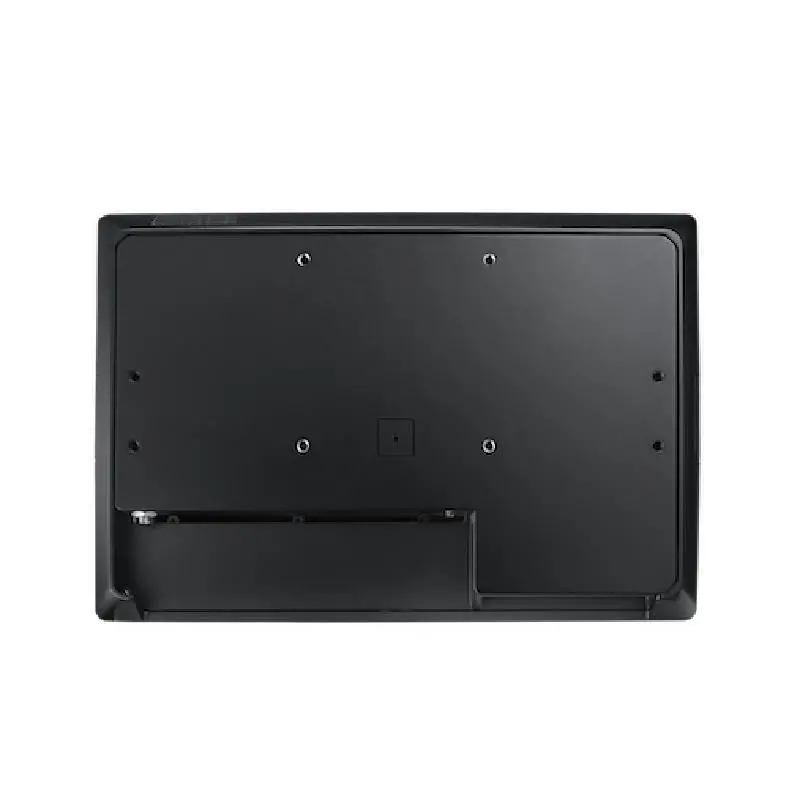

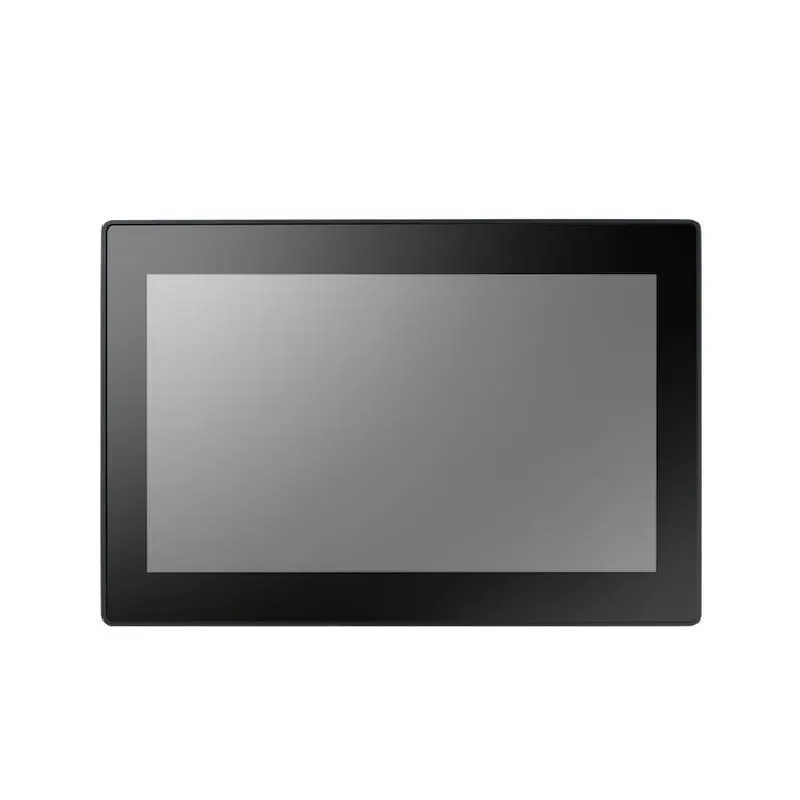

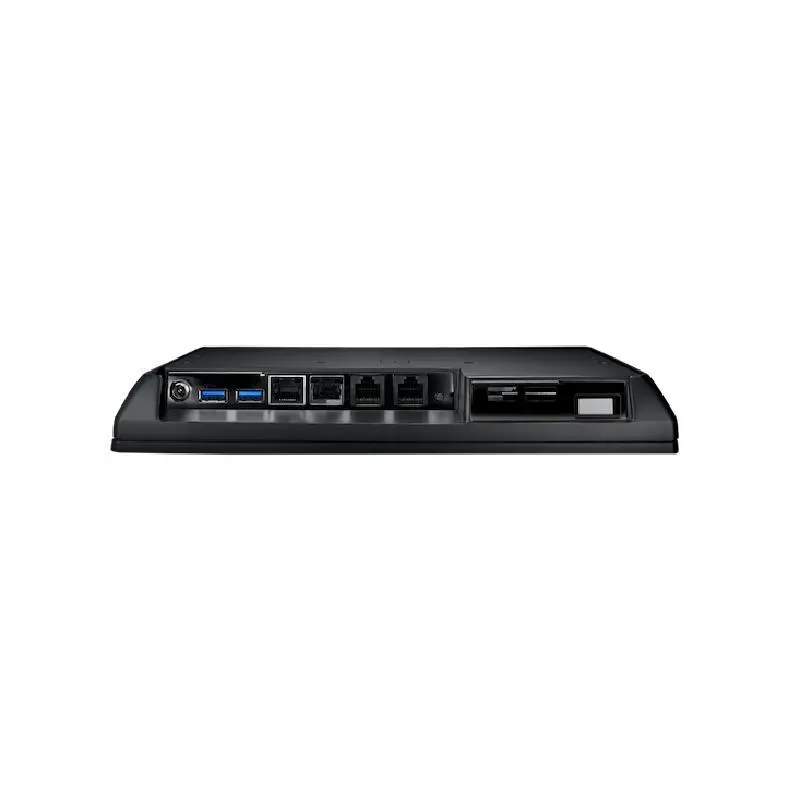

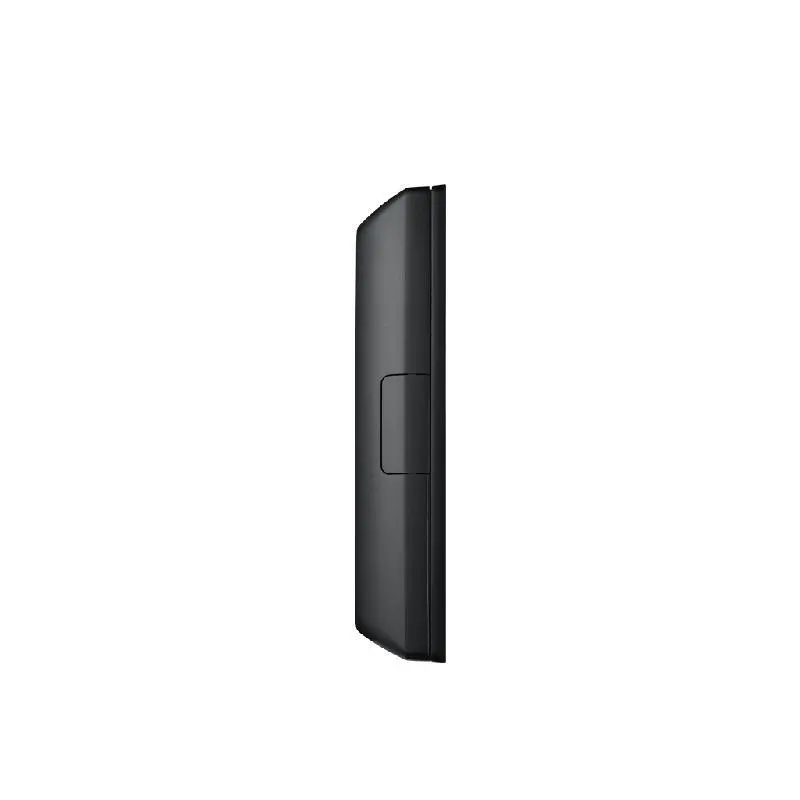

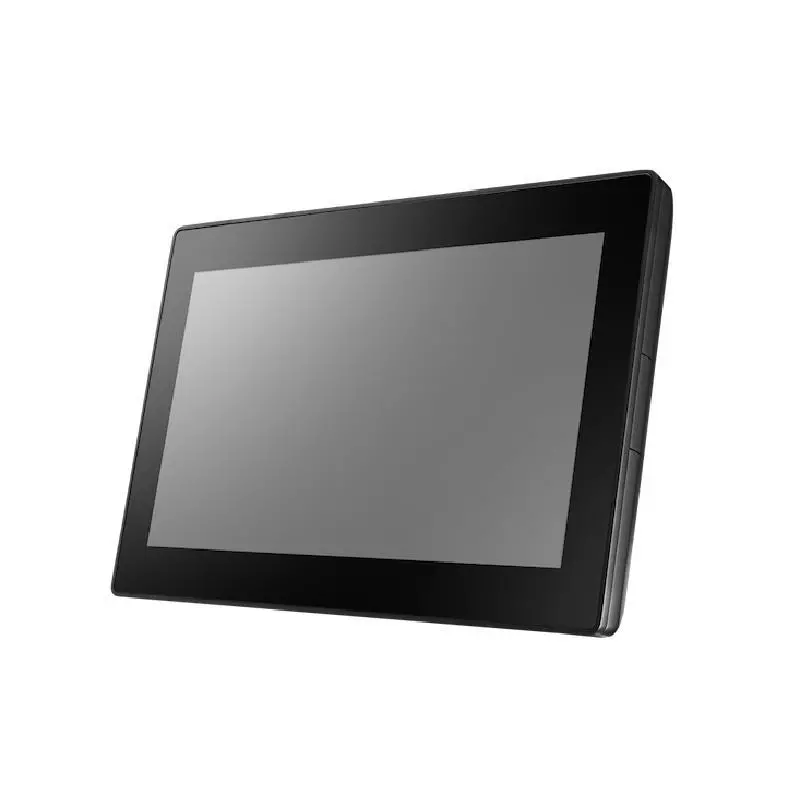

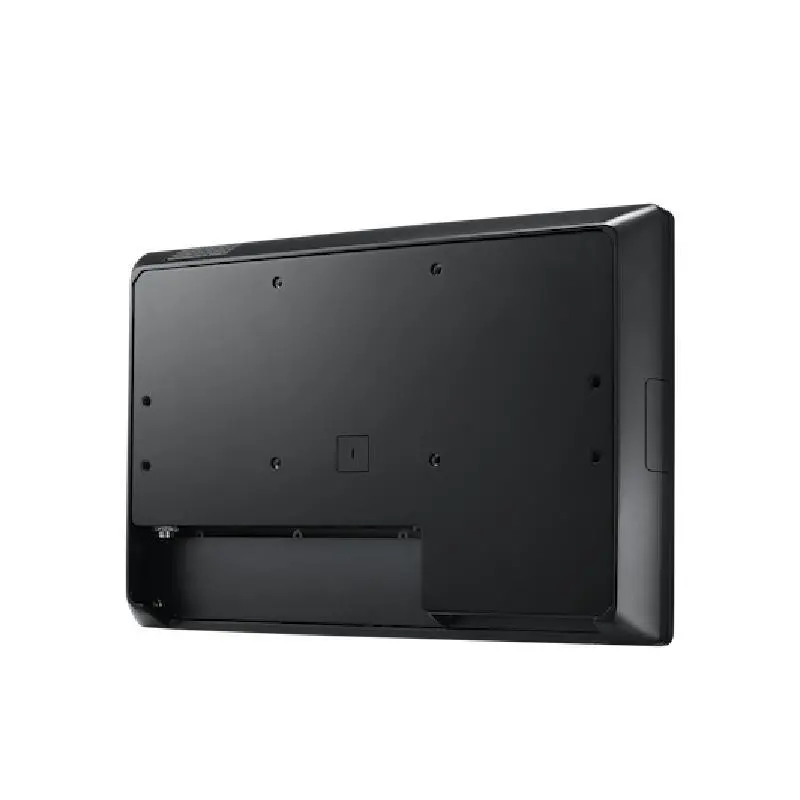

Advantech UTC-310J 10.1" Ubiquitous Touch Computer with Intel® Celeron® J6412 processors
