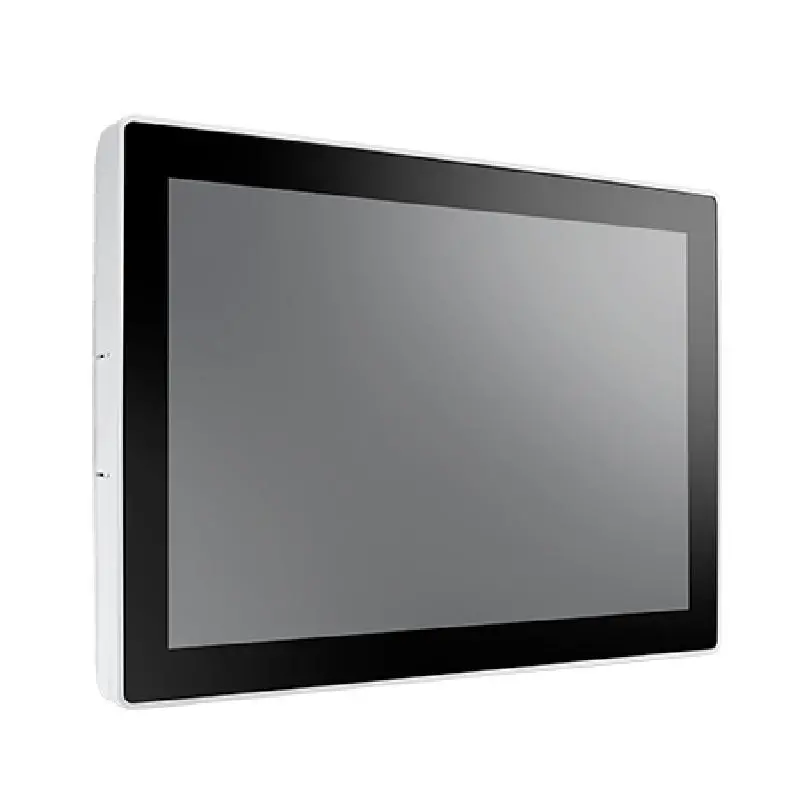

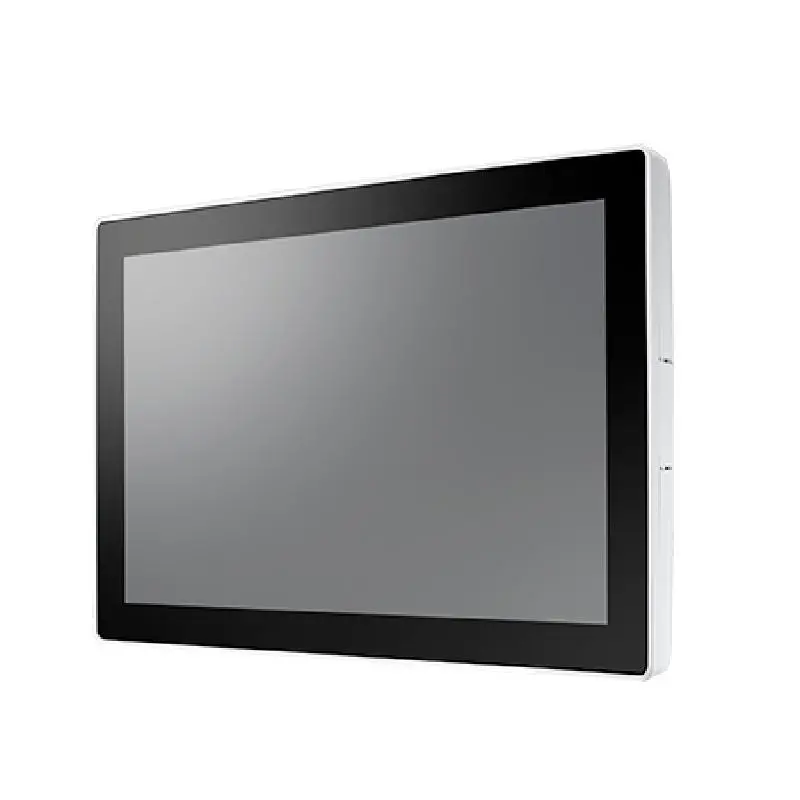

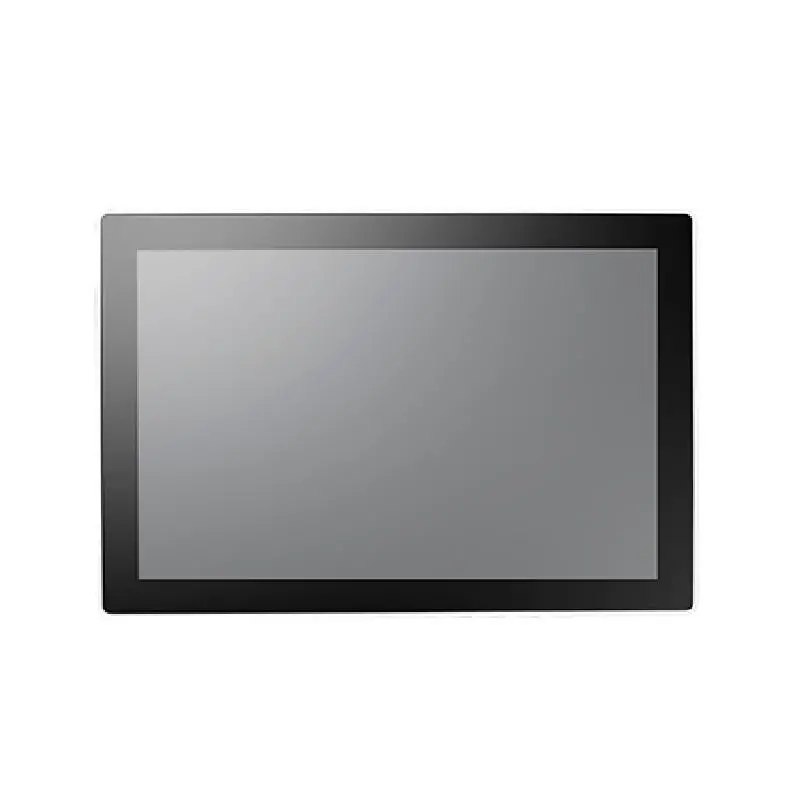

Advantech UTC-310G 10.1" All-in-One Touch Computer with Intel® Celeron® N3350 / Pentium® N4200 Processors

    Low power and fanless system design

    Built-in Intel® Celeron® N3350 / Pentium® N4200 (UTC-310G)

    10.1" monitor with 16:10 widescreen display

    IP65-rated front panel for water and dust resistance

    Supports both landscape and portrait screen orientations

    VESA 75 mm standard mounting holes for varied mounting demands

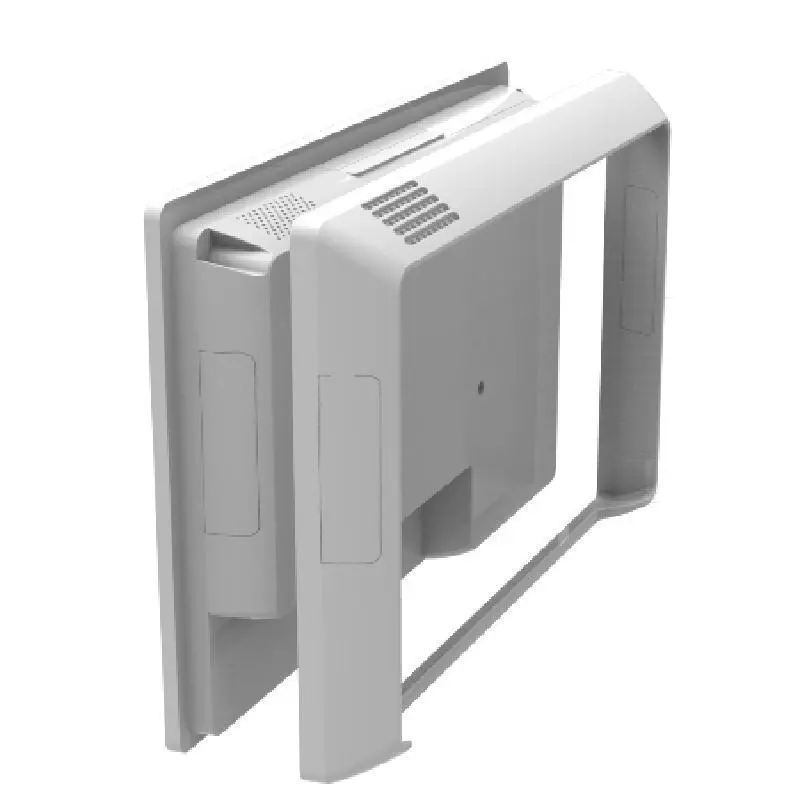

    Detachable plastic frame design for panel mount applications

UTC-310GP-ATB0E UTC-310GP-USB1E UTC-310GP-USW1E UTC-310GP-ATB1E UTC-310GP-ATW0E UTC-310GP-ATW1E
Color Color Black Black White Black White White
Display Size 10.1" TFT LCD 10.1" TFT LCD 10.1" TFT LCD 10.1" TFT LCD 10.1" TFT LCD 10.1" TFT LCD
Display Max. Resolution WXGA (1280 X 800) WXGA (1280 X 800) WXGA (1280 X 800) WXGA (1280 X 800) WXGA (1280 X 800) WXGA (1280 X 800)
Display Brightness 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m²
Touch Screen Type Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive Projected Capacitive
Processor System CPU Intel® Celeron® N3350 1.10GHz Intel® Pentium® N4200 1.10GHz Intel® Pentium® N4200 1.10GHz Intel® Pentium® N4200 1.10GHz Intel® Celeron® N3350 1.10GHz Intel® Pentium® N4200 1.10GHz
Processor System RAM 2G DDR3L installed 2G DDR3L installed 2G DDR3L installed 2G DDR3L installed 2G DDR3L installed 2G DDR3L installed
Processor System Storage 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
I/O Interface Serial Port 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232) 2 x COM (RS-232)
I/O Interface USB Port 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional) 2 x USB3.0, 2 x USB3.0 (optional)
I/O Interface Ethernet 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE) 2 x Gigabit Ethernet (1 with PoE)
I/O Interface Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker 1 x 2W Speaker
I/O Interface Extendable Slot 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Environment Operating Temperature 0~40° C 0~40° C 0~40° C 0~40° C 0~40° C 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment Vibration 0.5G 0.5G 0.5G 0.5G 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Power Input Rating 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter)
Power PoE IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional) IEEE 802.3at/30W (Optional)
