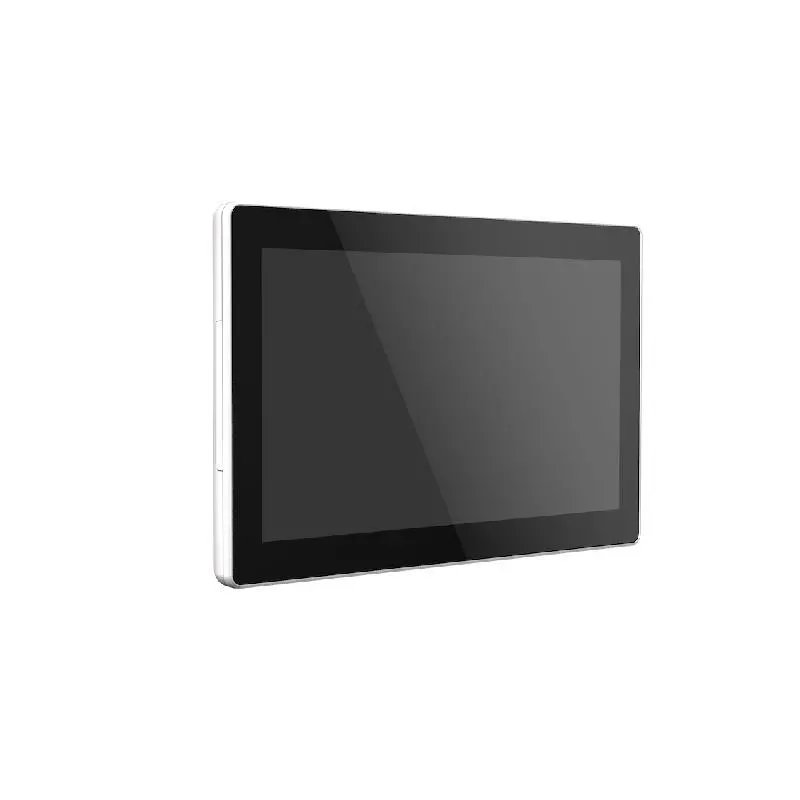

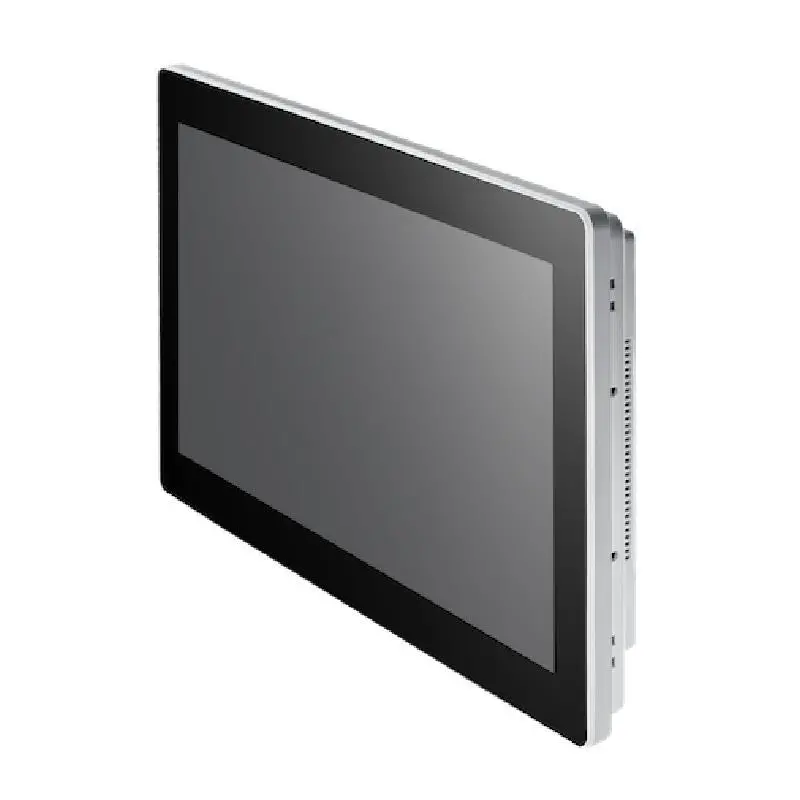

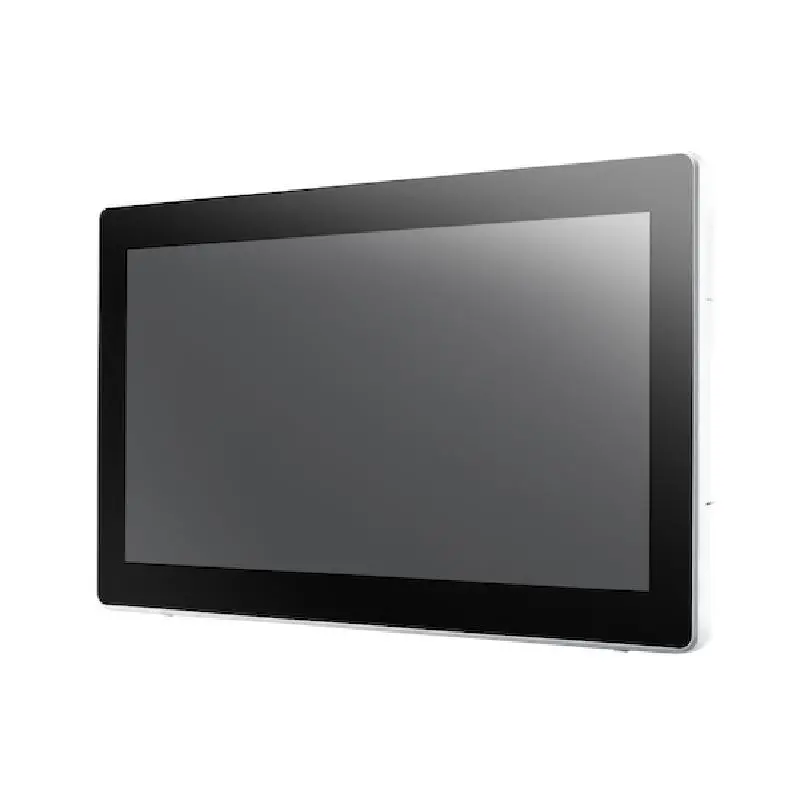

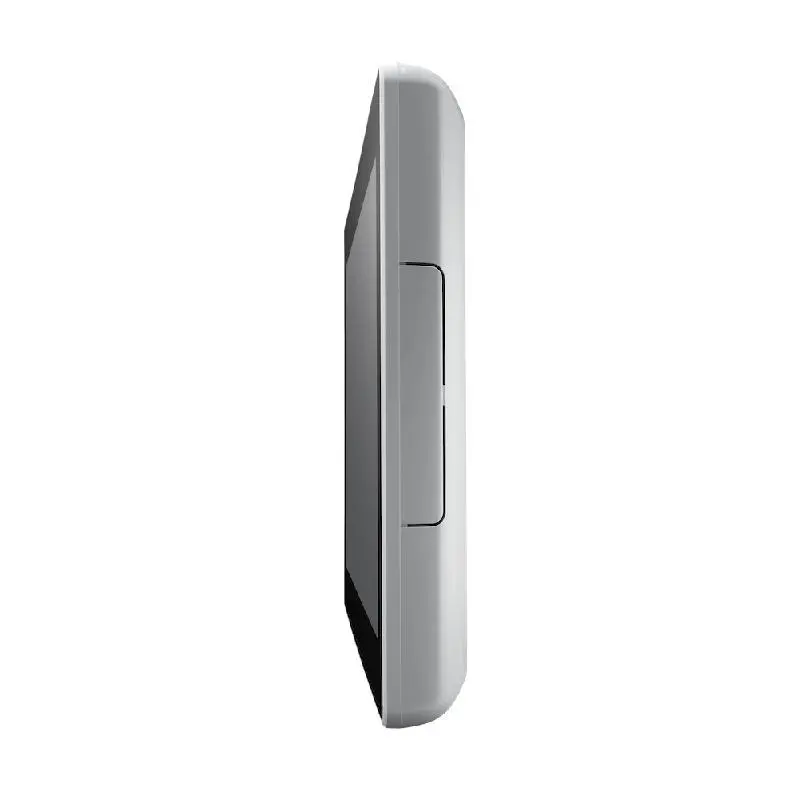

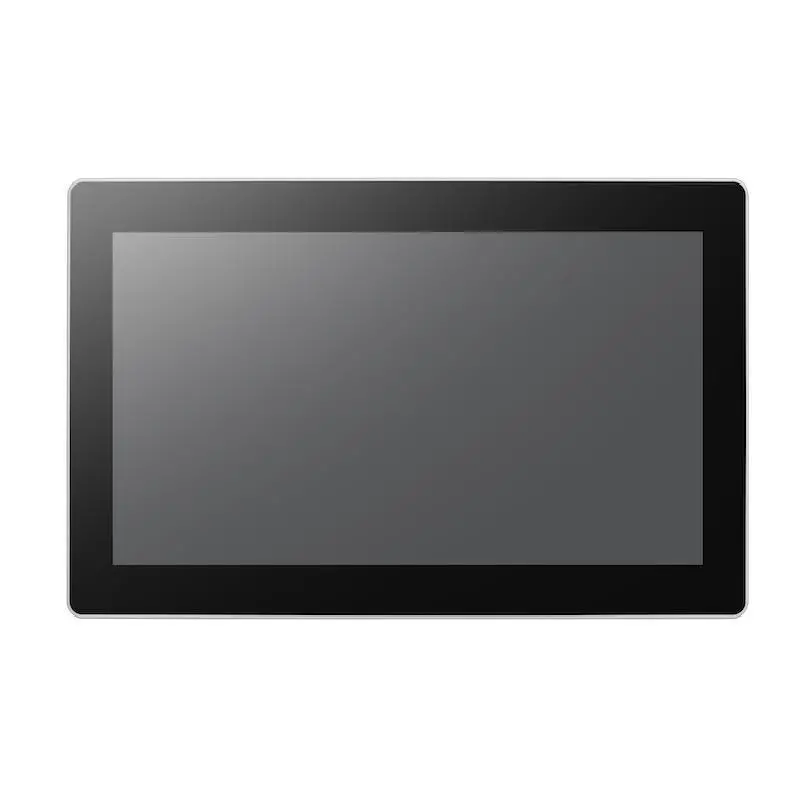

Advantech UTC-315K 15.6" Touch Computer with Intel® N97/ Core™ i3-N305 Processors

    Low power and fanless system design

    Built in Intel® Atom N97/ Core™ i3-N305 processors

    15.6" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

    Supports both landscape and portrait screen orientations

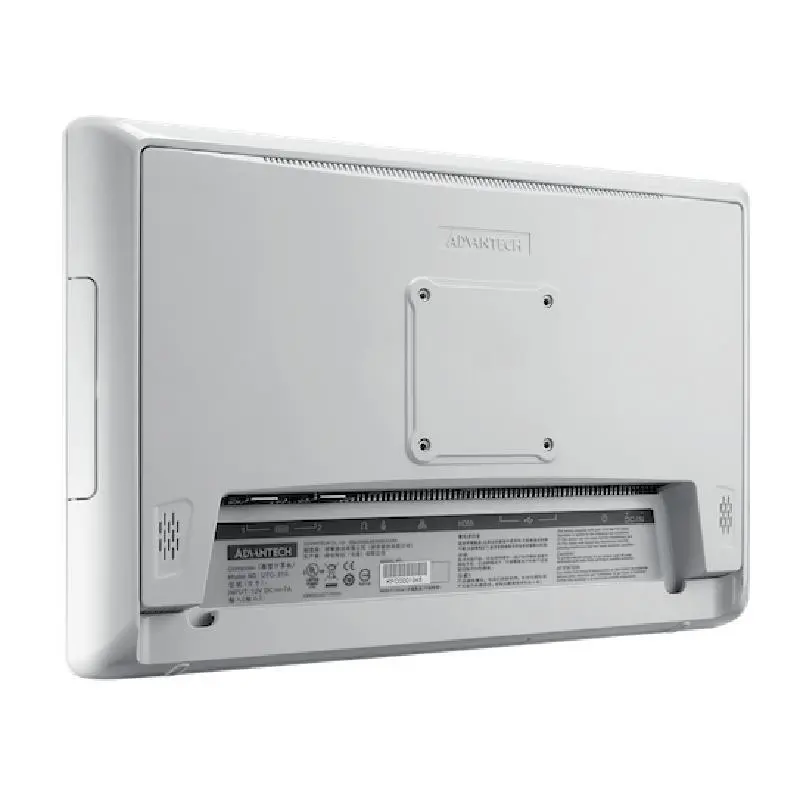

    VESA 75 mm standard mounting holes for varied mounting demands

    Detachable frame design for panel mount applications

    Support TPM 2.0

UTC-315KP-ATB0E UTC-315KP-ATB1E
Color Color Black Black
Display Size 15.6" TFT LCD 15.6" TFT LCD
Display Max. Resolution 1920 x 1080 1920 x 1080
Display Brightness 220 cd/m² 220 cd/m²
Touch Screen Type Projected Capacitive Projected Capacitive
Processor System CPU Intel® Atom® N97 Intel® Core™ i3-N305
OS Support OS Support Win 10/11 IoT Enterprise 64bit/ Linux / Android 14 Win 10/11 IoT Enterprise 64bit/ Linux / Android 14
Processor System RAM 1 x 262pin SO-DIMM DDR5 4800MHz up to 16GB 1 x 262pin SO-DIMM DDR5 4800MHz up to 16GB
Processor System Storage 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
I/O Interface Serial Port 1 x RS-232 (RJ-48) ; 1 x RS-232/422/485 (RJ-48) 1 x RS-232 (RJ-48) ; 1 x RS-232/422/485 (RJ-48)
I/O Interface USB Port 1 x USB Type C DC IN, 1 x USB Type C, 2 x USB 3.2, 2 x USB 2.0 Type A 1 x USB Type C DC IN, 1 x USB Type C, 2 x USB 3.2, 2 x USB 2.0 Type A
I/O Interface Ethernet 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (RJ-45)
I/O Interface Output 1 x HDMI 1 x HDMI
I/O Interface Audio 1 x 3.5mm Universal Audio Jack 1 x 3.5mm Universal Audio Jack
I/O Interface Speaker 2 x 2W Speaker 2 x 2W Speaker
I/O Interface Extendable Slot 1 x M.2 2280/2242 M-Key for NVMe(PCIe Gen3) / SATA SSD 1 x M.2 2230 E-Key 1 x M.2 2280/2242 M-Key for NVMe(PCIe Gen3) / SATA SSD 1 x M.2 2230 E-Key
Environment Operating Temperature 0~40° C 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment System Protection IP65/ NEMA4 Compliant front panel IP65/ NEMA4 Compliant front panel
Environment Vibration 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Power Input Rating 20V/4.5A (70W) 20V/4.5A (70W)
