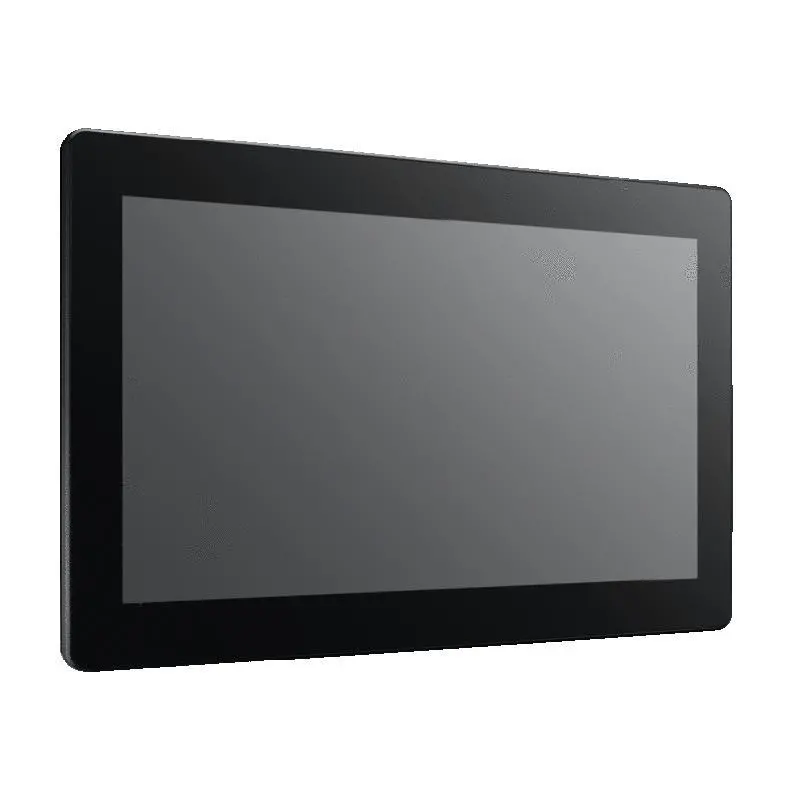

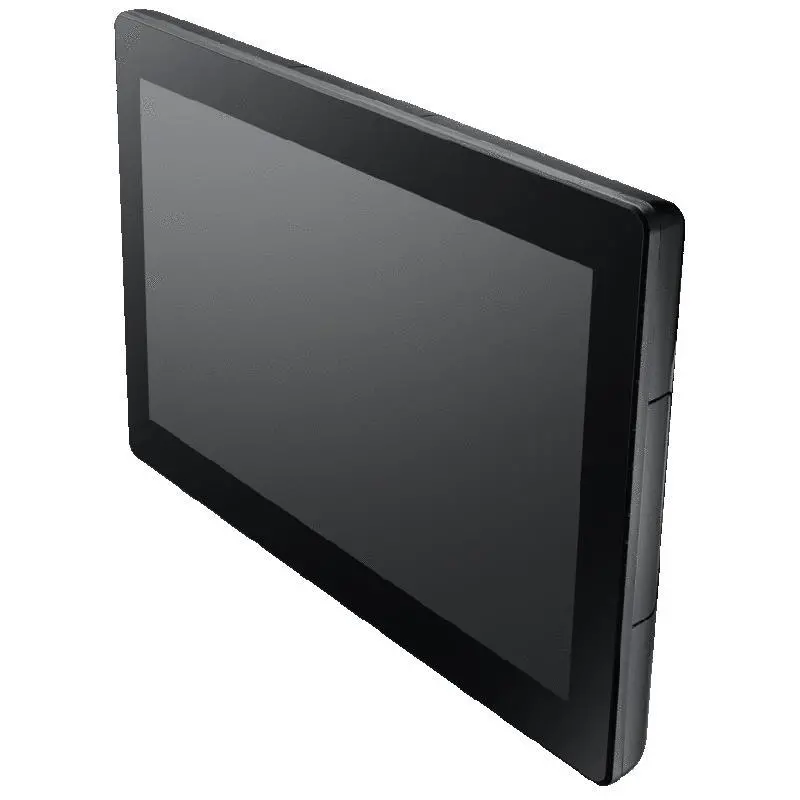

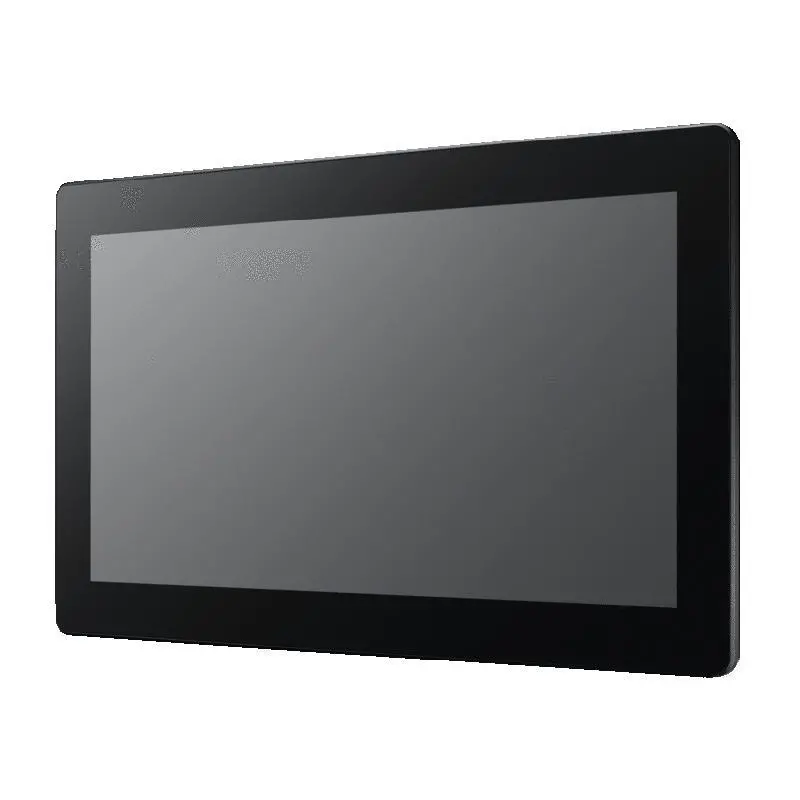

Advantech UTC-315H 15.6" Ubiquitous Touch Computer with 8th Gen Intel® Core™ i7/i5/i3 Processor

Low power and fanless system design

Built in Intel® Core™ i5-8365UE

15.6" monitor with 16:9 widescreen display

IP65-rated front panel for water and dust resistance

Supports both landscape and portrait screen orientations

VESA 75 mm standard mounting holes for varied mounting demands

Detachable frame design for panel mount applications

Support TPM 2.0

		UTC-315HR-ATB0E	UTC-315HP-ATB0E
Color	Color	Black	Black
Display	Size	15.6" TFT LCD	15.6" TFT LCD
Display	Max. Resolution	FHD (1920 x 1080)	FHD (1920 x 1080)
Display	Brightness	220 cd/m²	220 cd/m²
Touch Screen	Type	Analog Resistive 5-wires (Res. Flat Glass)	Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel
Processor System	CPU	Intel® Core™ i5-8365UE	Intel® Core™ i5-8365UE
Processor System	RAM	1 x SO-DIMM DDR3L 1866 MHz up to 8GB	1 x SO-DIMM DDR3L 1866 MHz up to 8GB
Processor System	Storage	1 x 2.5 internal SATA HDD bay	1 x 2.5 internal SATA HDD bay
I/O Interface	Serial Port	1 x COM (RS-232) ; 1 x COM (RS-232/422/485)	1 x COM (RS-232) ; 1 x COM (RS-232/422/485)
I/O Interface	USB Port	2 x USB2.0, 4 x USB3.0	2 x USB2.0, 4 x USB3.0
I/O Interface	Ethernet	2 x Gigabit Ethernet (RJ-45)	2 x Gigabit Ethernet (RJ-45)
I/O Interface	Output	1 x HDMI	1 x HDMI
I/O Interface	Audio	1 x Line-out, 1 x Mic-in	1 x Line-out, 1 x Mic-in
I/O Interface	Extendable Slot	M.2 2230/mSATA	M.2 2230/mSATA
Environment	Operating Temperature	0~40° C	0~40° C
Environment	Operating Humidity	10 ~ 95% @ 40°C non-condensing	10 ~ 95% @ 40°C non-condensing
Power	Input Rating	12 V/7 A (84W ITE Adapter)*Optional 12-30V	12 V/7 A (84W ITE Adapter)*Optional 12-30V
OS Support	OS Support	Win 10 IoT Enterprise 64bit/ Linux	Win 10 IoT Enterprise 64bit/ Linux
