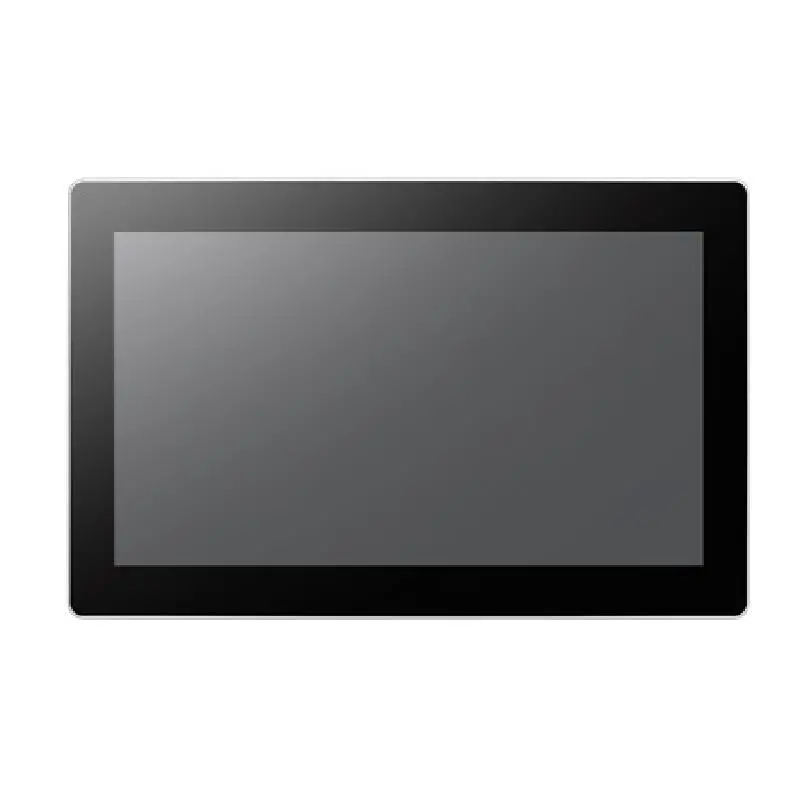

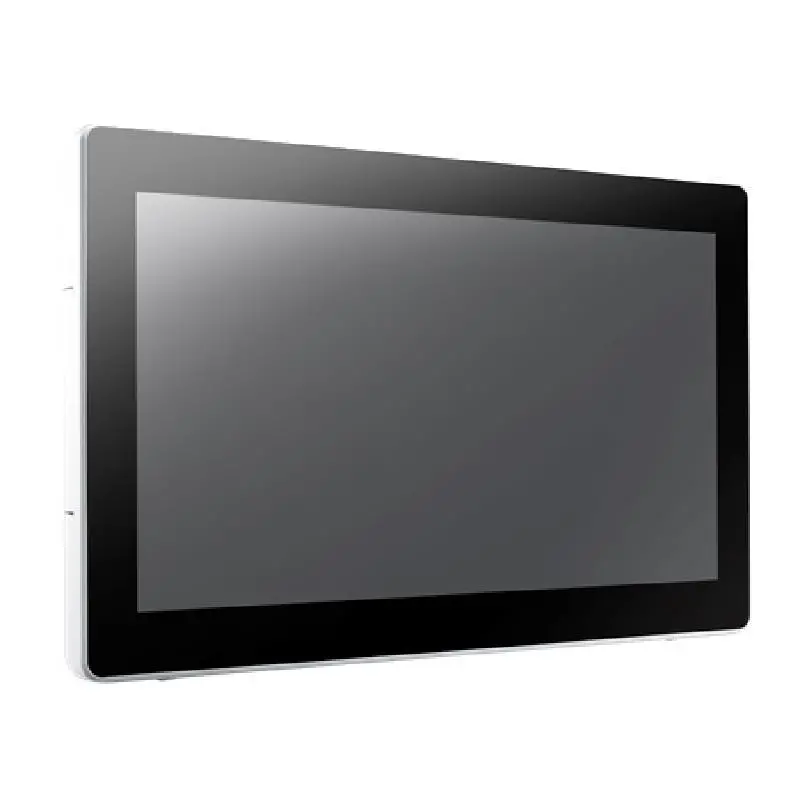

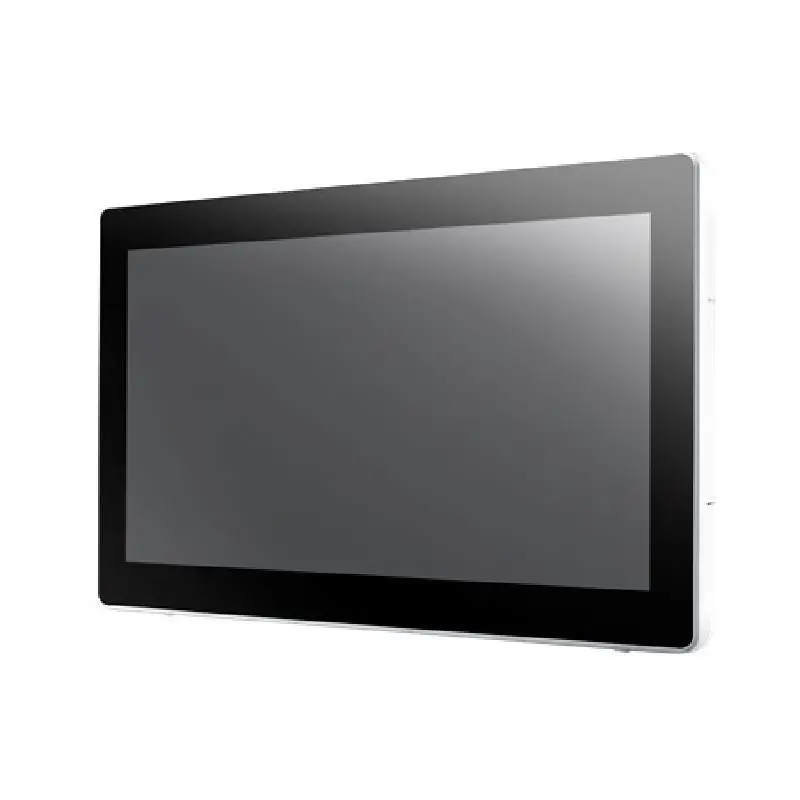

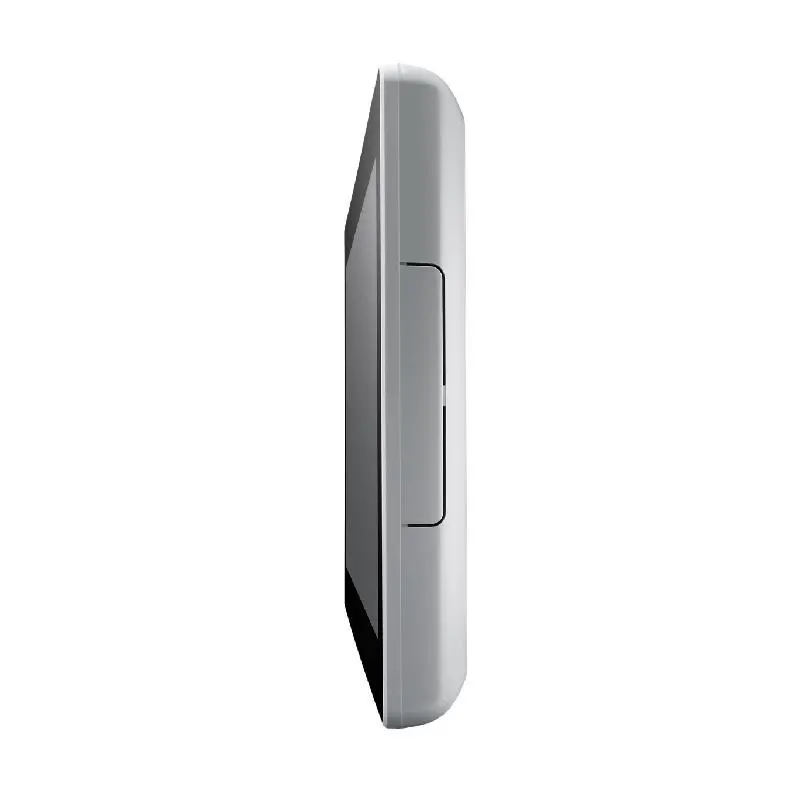

Advantech UTC-315G 15.6" Ubiquitous Touch Computer with Intel® Celeron® N3350 / Pentium® N4200 Processor

Low power and fanless system design

Built in Intel Pentium® N4200E

15.6" monitor with 16:9 widescreen display

IP65-rated front panel for water and dust resistance

Supports both landscape and portrait screen orientations

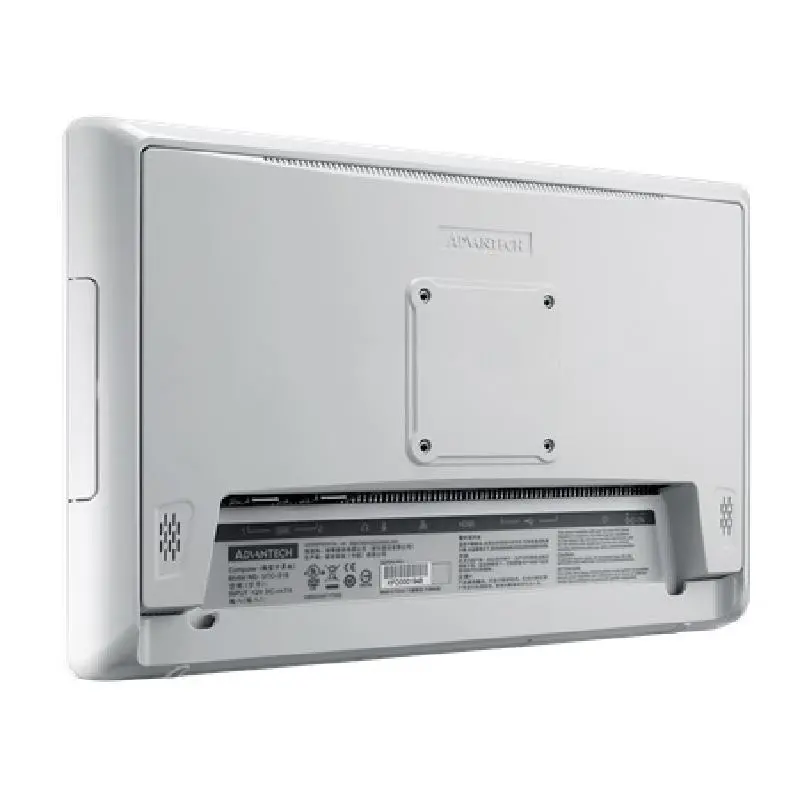

VESA 75 mm standard mounting holes for varied mounting demands

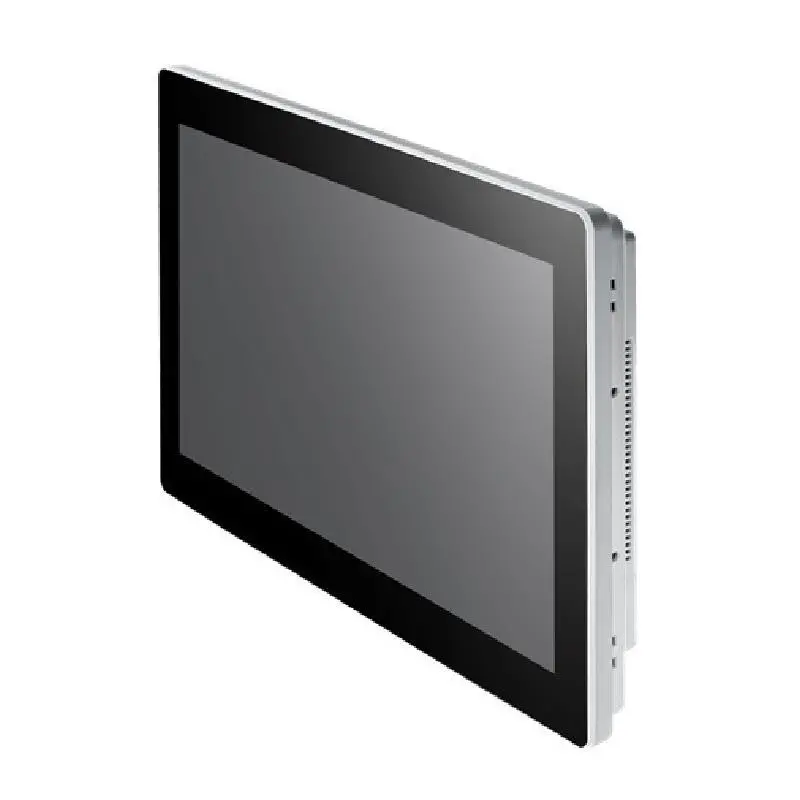

Detachable frame design for panel mount applications

		UTC-315GR-ATB0E	UTC-315GP-ATB0E
Color	Color	Black	Black
Display	Size	15.6" TFT LCD	15.6" TFT LCD
Display	Max. Resolution	FHD (1920 x 1080)	FHD (1920 x 1080)
Display	Brightness	220 cd/m²	220 cd/m²
Touch Screen	Type	Analog Resistive 5-wire	Projected Capacitive
Processor System	CPU	Intel® Pentium® N4200 1.10GHz	Intel® Pentium® N4200 1.10GHz
OS Support	OS Support	Win 10 IoT Enterprise 64bit/ Linux/ Android 6.0	Win 10 IoT Enterprise 64bit/ Linux/ Android 6.0
Processor System	RAM	4GB DDR3L	4GB DDR3L
Processor System	Storage	1 x 2.5 internal SATA HDD bay	1 x 2.5 internal SATA HDD bay
I/O Interface	Serial Port	1 x COM (RS-232) ; 1 x COM (RS-232/422/485)	1 x COM (RS-232) ; 1 x COM (RS-232/422/485)
I/O Interface	USB Port	2 x USB2.0, 4 x USB3.0	2 x USB2.0, 4 x USB3.0
I/O Interface	Ethernet	2 x Gigabit Ethernet (RJ-45)	2 x Gigabit Ethernet (RJ-45)
I/O Interface	Output	1 x HDMI	1 x HDMI
I/O Interface	Cash Drawer	1 x RJ11	1 x RJ11
I/O Interface	Audio	1 x Line-out, 1 x Mic-in	1 x Line-out, 1 x Mic-in
I/O Interface	Extendable Slot	M.2 2230/mSATA	M.2 2230/mSATA
Environment	Operating Temperature	0~40° C	0~40° C
Environment	Operating Humidity	10 ~ 95% @ 40°C non-condensing	10 ~ 95% @ 40°C non-condensing
Power	Input Rating	12 V/7 A (84W ITE Adapter)*Optional 12-30V	12 V/7 A (84W ITE Adapter)*Optional 12-30V
