| UTC-318HR-ATB0E | UTC-318HP-ATB0E | ||
| Color | Color | Black | Black |
| Display | Size | 18.5" TFT LCD | 18.5" TFT LCD |
| Display | Max. Resolution | HD (1366 x 768) | HD (1366 x 768) |
| Display | Brightness | 250 cd/m² | 250 cd/m² |
| Touch Screen | Type | Analog Resistive 5-wires (Res. Flat Glass) | Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel |
| Processor System | CPU | Intel® Core™ i5-8365UE | Intel® Core™ i5-8365UE |
| Processor System | RAM | 1 x SO-DIMM DDR3L 1866 MHz up to 8GB | 1 x SO-DIMM DDR3L 1866 MHz up to 8GB |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| I/O Interface | Serial Port | 1 x COM (RS-232) ; 1 x COM (RS-232/422/485) | 1 x COM (RS-232) ; 1 x COM (RS-232/422/485) |
| I/O Interface | USB Port | 2 x USB2.0, 4 x USB3.0 | 2 x USB2.0, 4 x USB3.0 |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) |
| I/O Interface | Output | 1 x HDMI | 1 x HDMI |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Speaker | 2 x 2W Speaker | 2 x 2W Speaker |
| I/O Interface | Extendable Slot | M.2 2230/mSATA | M.2 2230/mSATA |
| Environment | Operating Temperature | 0~40° C | 0~40° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | System Protection | IP65 front panel | IP65 front panel |
| Environment | Vibration | 0.5G | 0.5G |
| Environment | Shock | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) |
| Power | Input Rating | 12 V/7 A (84W ITE Adapter)*Optional 12-30V | 12 V/7 A (84W ITE Adapter)*Optional 12-30V |
| OS Support | OS Support | Win 10 IoT Enterprise 64bit/ Linux | Win 10 IoT Enterprise 64bit/ Linux |

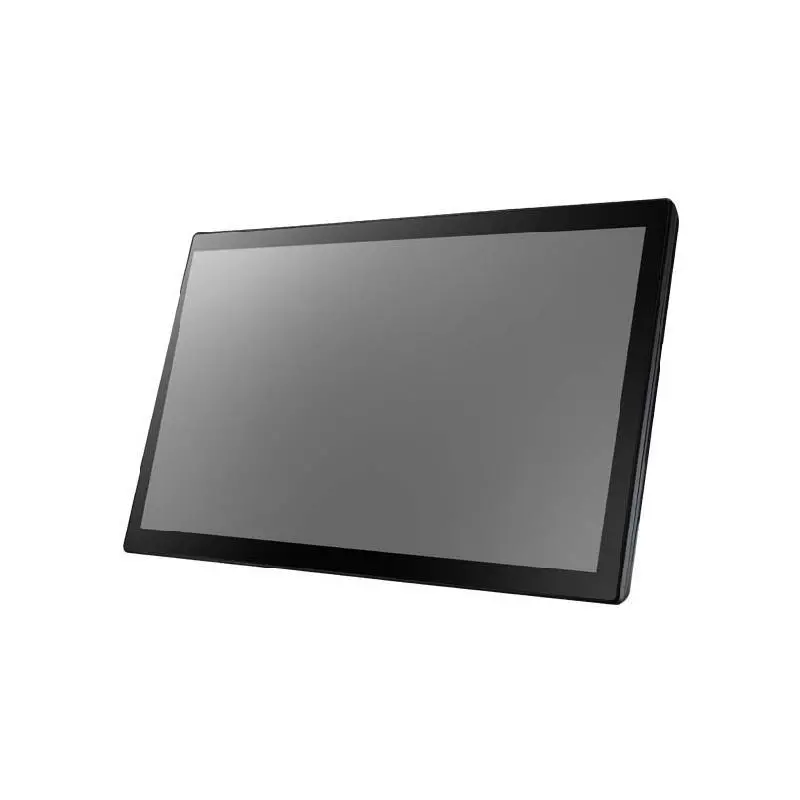

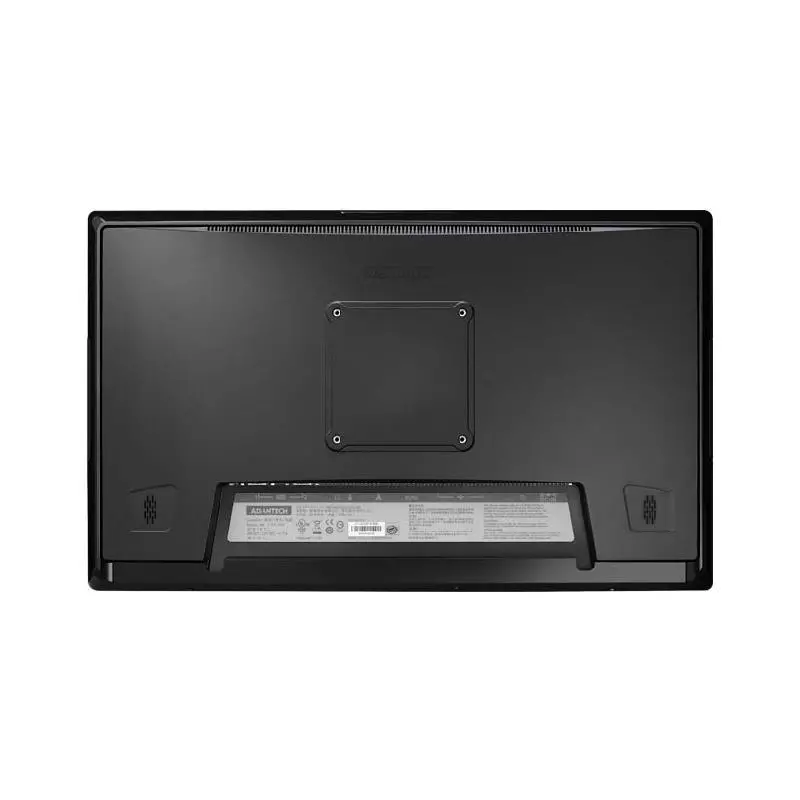

Advantech UTC-318H 18.5" Ubiquitous Touch Computer with 8th Gen Intel® Core™ i7/i5/i3 Processor
