| UTC-320IR-ATW0E | UTC-320IR-ATB0E | UTC-320IP-ATW0E | UTC-320IP-ATB0E | ||
| Color | Color | White | Black | White | Black |
| Display | Size | 21.5" TFT LCD | 21.5" TFT LCD | 21.5" TFT LCD | 21.5" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Display | Brightness | 250 cd/m² | 250 cd/m² | 250 cd/m² | 250 cd/m² |
| Touch Screen | Type | Analog Resistive 5-wires (Res. Flat Glass) | Analog Resistive 5-wires (Res. Flat Glass) | Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel | Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel |
| Processor System | CPU | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E |
| Processor System | RAM | 8G DDR4 | 8G DDR4 | 8G DDR4 | 8G DDR4 |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| Processor System | OS | Windows 10 IoT Enterprise 64bit / Linux | Windows 10 IoT Enterprise 64bit / Linux | Windows 10 IoT Enterprise 64bit / Linux | Windows 10 IoT Enterprise 64bit / Linux |
| Processor System | TPM | TPM 2.0 | TPM 2.0 | TPM 2.0 | TPM 2.0 |
| Processor System | Speaker | 2 x 2W Speaker | 2 x 2W Speaker | 2 x 2W Speaker | 2 x 2W Speaker |
| I/O Interface | Serial Port | 1 x COM (RS-232) ; 1 x COM (RS-232/485) | 1 x COM (RS-232) ; 1 x COM (RS-232/485) | 1 x COM (RS-232) ; 1 x COM (RS-232/485) | 1 x COM (RS-232) ; 1 x COM (RS-232/485) |
| I/O Interface | USB Port | 2 x USB 2.0, 4 x USB 3.2 | 2 x USB 2.0, 4 x USB 3.2 | 2 x USB 2.0, 4 x USB 3.2 | 2 x USB 2.0, 4 x USB 3.2 |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) |
| I/O Interface | Output | 1 x HDMI | 1 x HDMI | 1 x HDMI | 1 x HDMI |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Extendable Slot | 1x M.2 2280/2242 M-Key for NVMe/SATA SSD,1x M.2 2230 E-Key | 1x M.2 2280/2242 M-Key for NVMe/SATA SSD,1x M.2 2230 E-Key | 1x M.2 2280/2242 M-Key for NVMe/SATA SSD,1x M.2 2230 E-Key | 1x M.2 2280/2242 M-Key for NVMe/SATA SSD,1x M.2 2230 E-Key |
| Power | Input Rating | 12-30V DC, 12V/ 7A 84W or 12V/ 8A 96W ITE adapter (dependent on stock) | 12-30V DC, 12V/ 7A 84W or 12V/ 8A 96W ITE adapter (dependent on stock) | 12-30V DC, 12V/ 7A 84W or 12V/ 8A 96W ITE adapter (dependent on stock) | 12-30V DC, 12V/ 7A 84W or 12V/ 8A 96W ITE adapter (dependent on stock) |
| Environment | Operating Temperature | 0~40° C | 0~40° C | 0~40° C | 0~40° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | Vibration | 0.5G | 0.5G | 0.5G | 0.5G |
| Environment | System Protection | IP65 front panel | IP65 front panel | IP65 front panel | IP65 front panel |
| Environment | Certification | CE. FCC, UL, CCC, CB, BSMI, BIS, UKCA | CE. FCC, UL, CCC, CB, BSMI, BIS, UKCA | CE. FCC, UL, CCC, CB, BSMI, BIS, UKCA | CE. FCC, UL, CCC, CB, BSMI, BIS, UKCA |
| OS Support | OS Support | Win 10 loT Enterprise 64bit/ Win 11 loT Enterprise 64bit/ Linux | Win 10 loT Enterprise 64bit/ Win 11 loT Enterprise 64bit/ Linux | Win 10 loT Enterprise 64bit/ Win 11 loT Enterprise 64bit/ Linux | Win 10 loT Enterprise 64bit/ Win 11 loT Enterprise 64bit/ Linux |

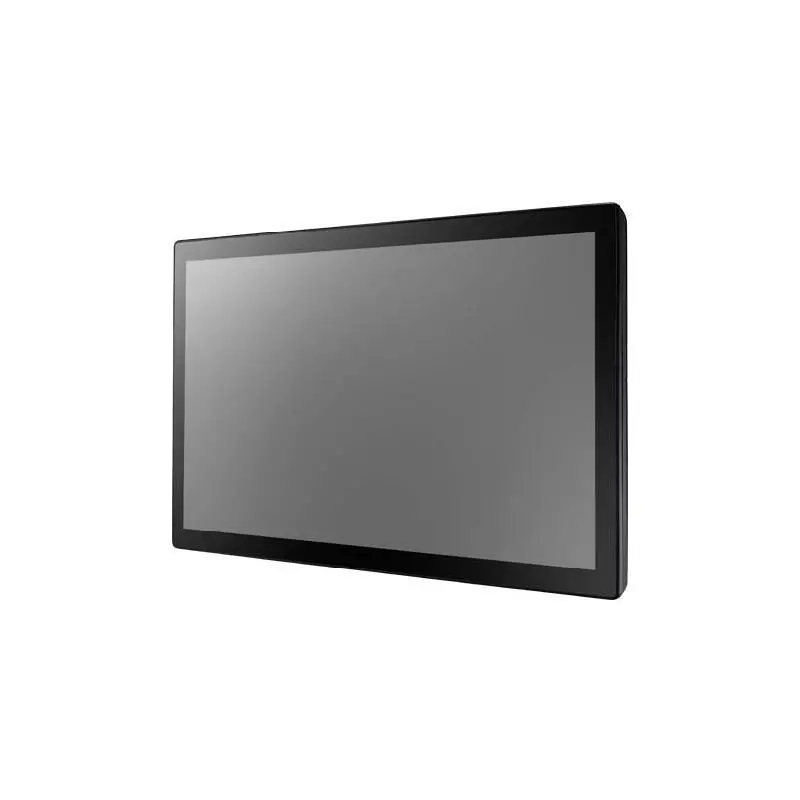

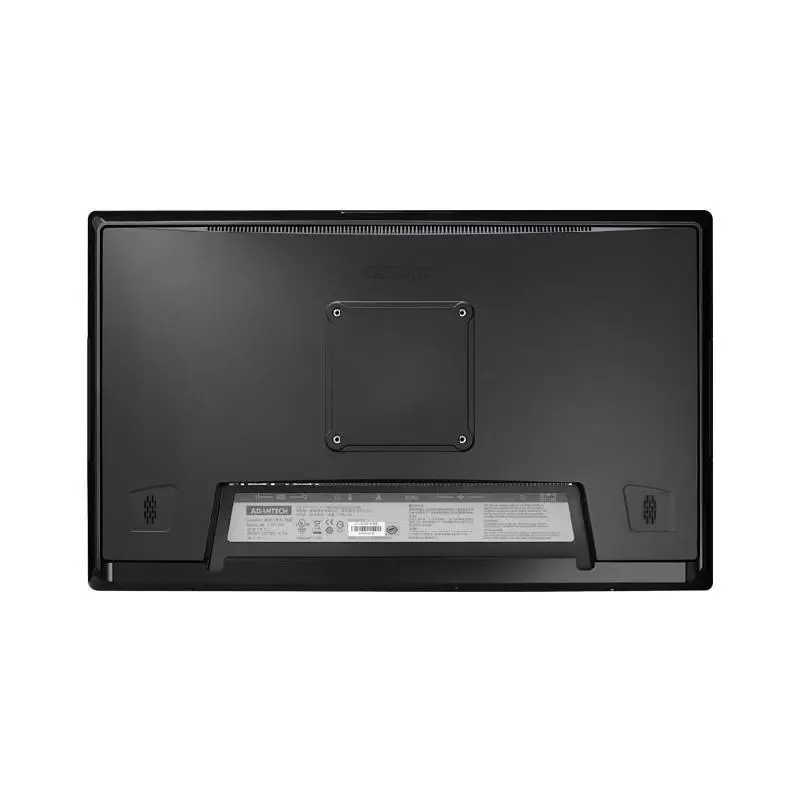

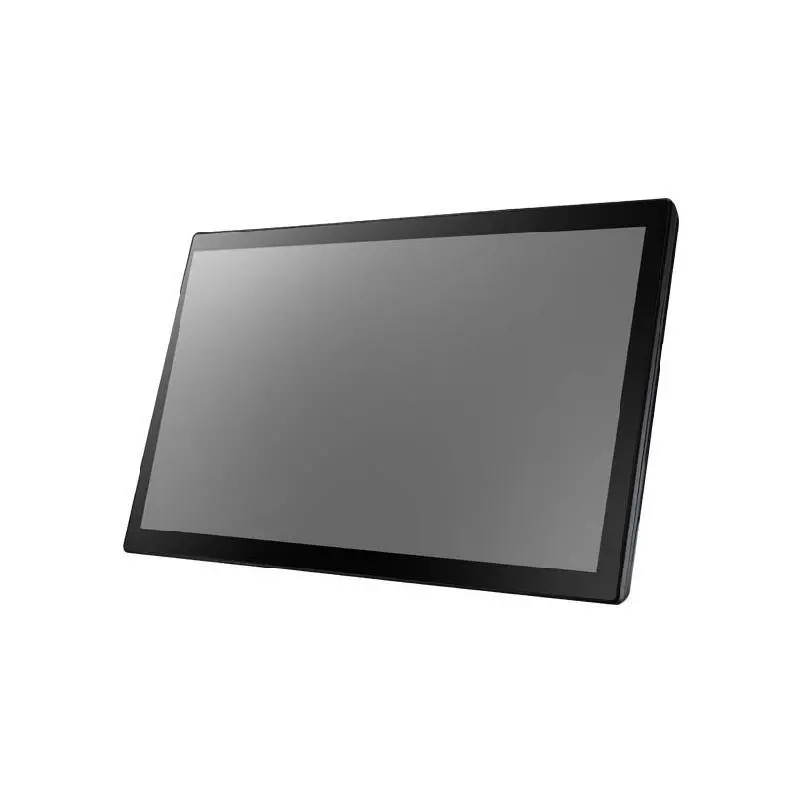

Advantech UTC-320I 21.5" Ubiquitous Touch Computer with 11th Gen Intel® Core™ i7/i5/i3 and Celeron 6305E Processor
