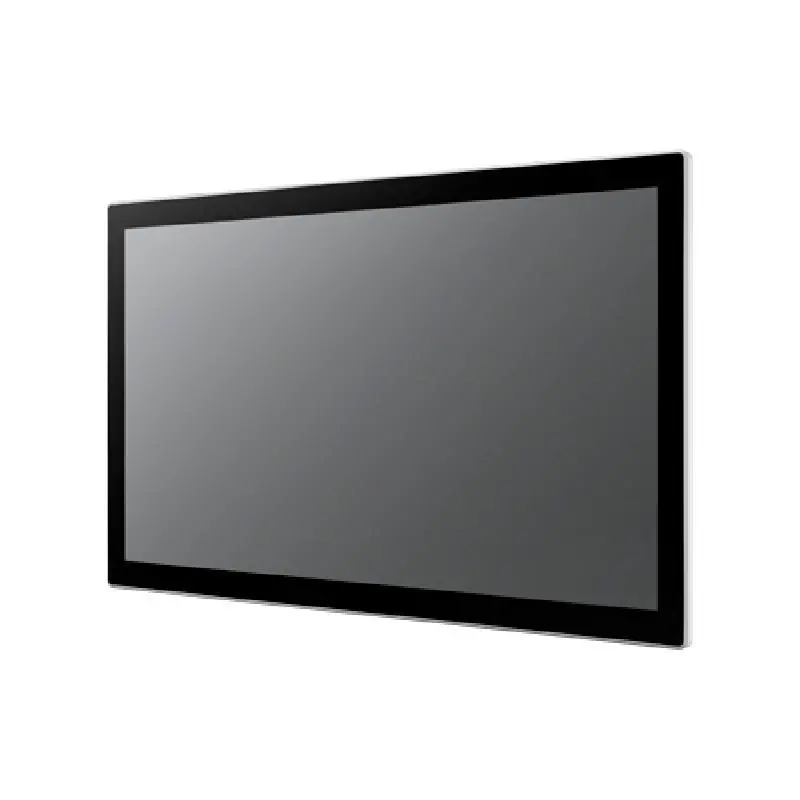

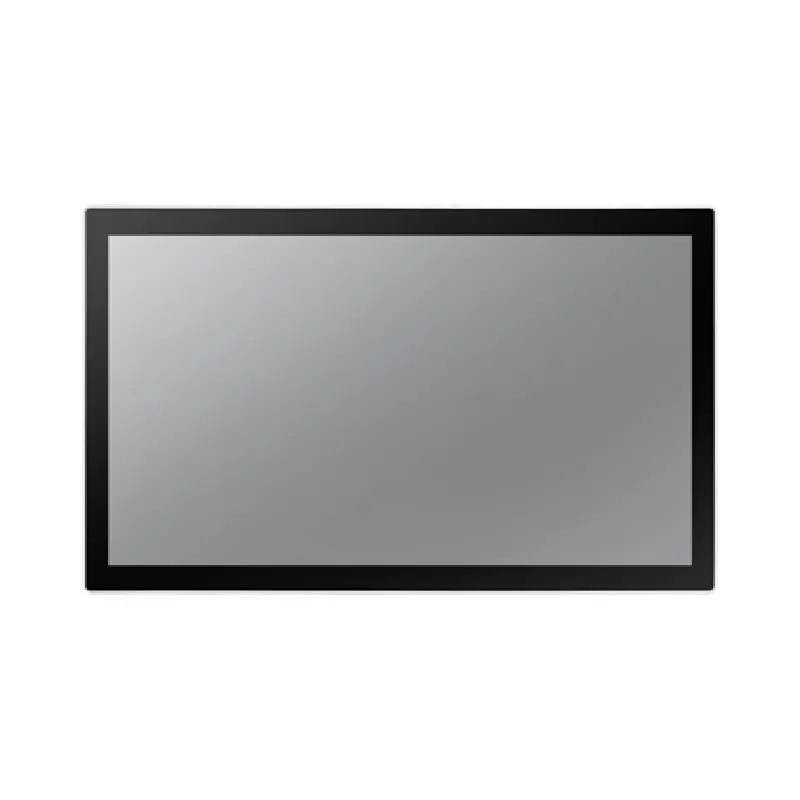

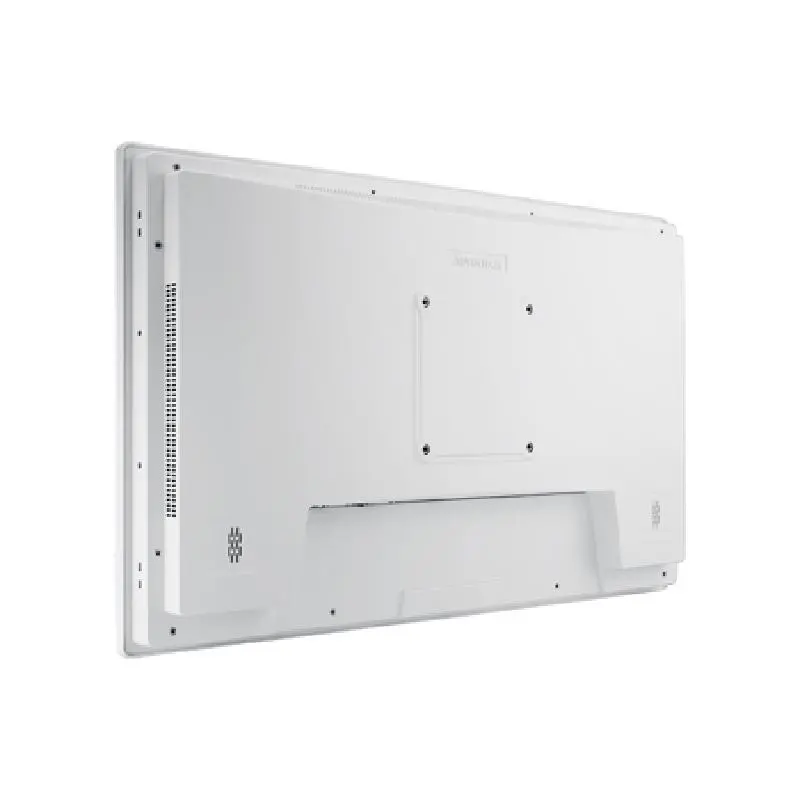

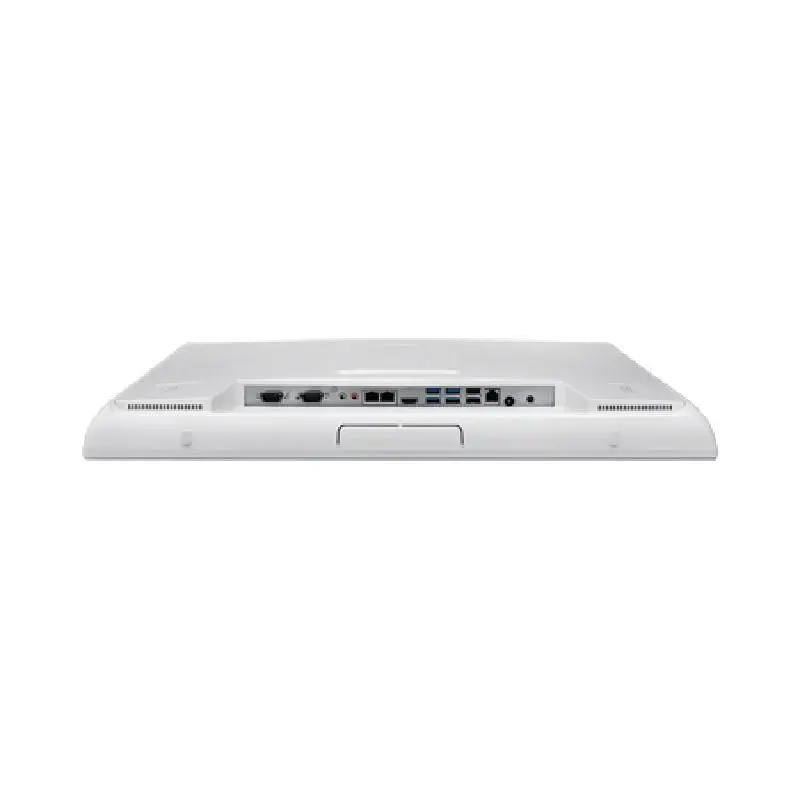

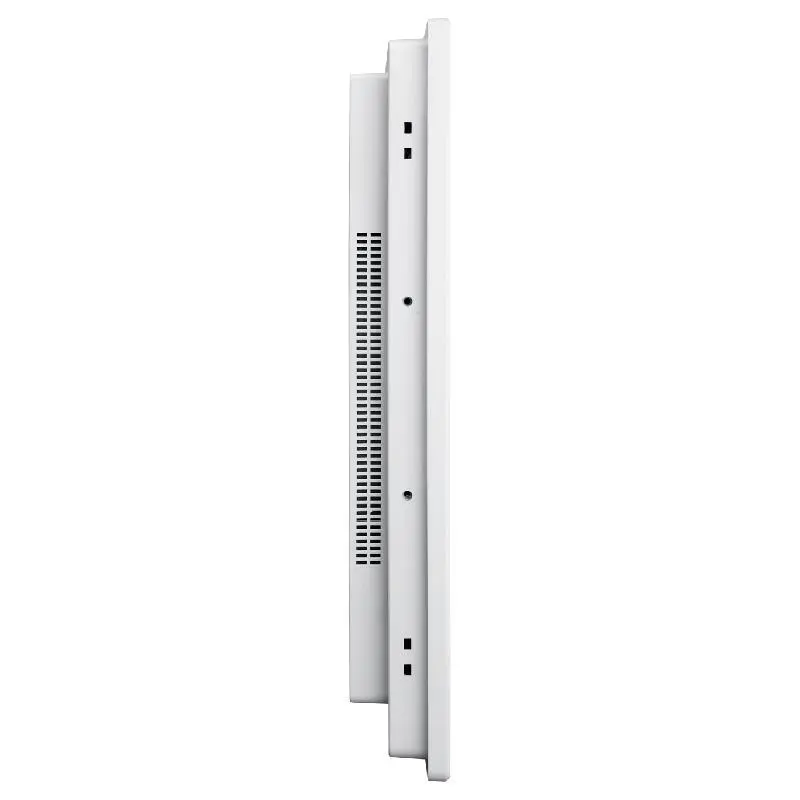

Advantech UTC-320G 21.5" Ubiquitous Touch Computer with Intel® Celeron® N3350 / Pentium® N4200 Processor

    Low power and fanless system design

    Built-in Intel® Pentium® N4200 processor

    21.5" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

    Supports both landscape and portrait screen orientations

    VESA 100 mm standard mounting holes for varied mounting demands

    Detachable frame design for panel mount applications

    Support DeviceOn/iService software for remote device management (UTC-320D/F only)

    Support TPM 2.0 (UTC-320F&H)

UTC-320GR-ATB0E UTC-320GP-ATW0E UTC-320GP-ATB0E
Color Color Black White Black
Display Size 21.5" TFT LCD 21.5" TFT LCD 21.5" TFT LCD
Display Max. Resolution FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080)
Display Brightness 250 cd/m² 250 cd/m² 250 cd/m²
Touch Screen Type Analog Resistive 5-wire Projected Capacitive Projected Capacitive
Processor System CPU Intel® Pentium® N4200 Intel® Pentium® N4200 Intel® Pentium® N4200
Processor System RAM 4GB DDR3L 4GB DDR3L 4GB DDR3L
Processor System Storage 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
I/O Interface Serial Port 1 x COM (RS-232) ; 1 x COM (RS-232/422/485) 1 x COM (RS-232) ; 1 x COM (RS-232/422/485) 1 x COM (RS-232) ; 1 x COM (RS-232/422/485)
I/O Interface USB Port 2 x USB2.0, 4 x USB3.0 2 x USB2.0, 4 x USB3.0 2 x USB2.0, 4 x USB3.0
I/O Interface Ethernet 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (RJ-45)
I/O Interface Output 1 x HDMI 1 x HDMI 1 x HDMI
I/O Interface Cash Drawer 1 x RJ11 1 x RJ11 1 x RJ11
I/O Interface Audio 1 x Line-out, 1 x Mic-in 1 x Line-out, 1 x Mic-in 1 x Line-out, 1 x Mic-in
I/O Interface Speaker 2 x 1W Speaker 2 x 1W Speaker 2 x 1W Speaker
I/O Interface Extendable Slot M.2 2230/mSATA M.2 2230/mSATA M.2 2230/mSATA
Environment Operating Temperature 0~40° C 0~40° C 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment System Protection IP65 front panel IP65 front panel IP65 front panel
Environment Vibration 0.5G 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Power Input Rating 12 V/7 A (84W ITE Adapter)*Optional 12-30V 12 V/7 A (84W ITE Adapter)*Optional 12-30V 12 V/7 A (84W ITE Adapter)*Optional 12-30V
OS Support OS Support Win 10 IoT Enterprise 64bit/ Linux/ Android 10.0 Win 10 IoT Enterprise 64bit/ Linux/ Android 10.0 Win 10 IoT Enterprise 64bit/ Linux/ Android 10.0
