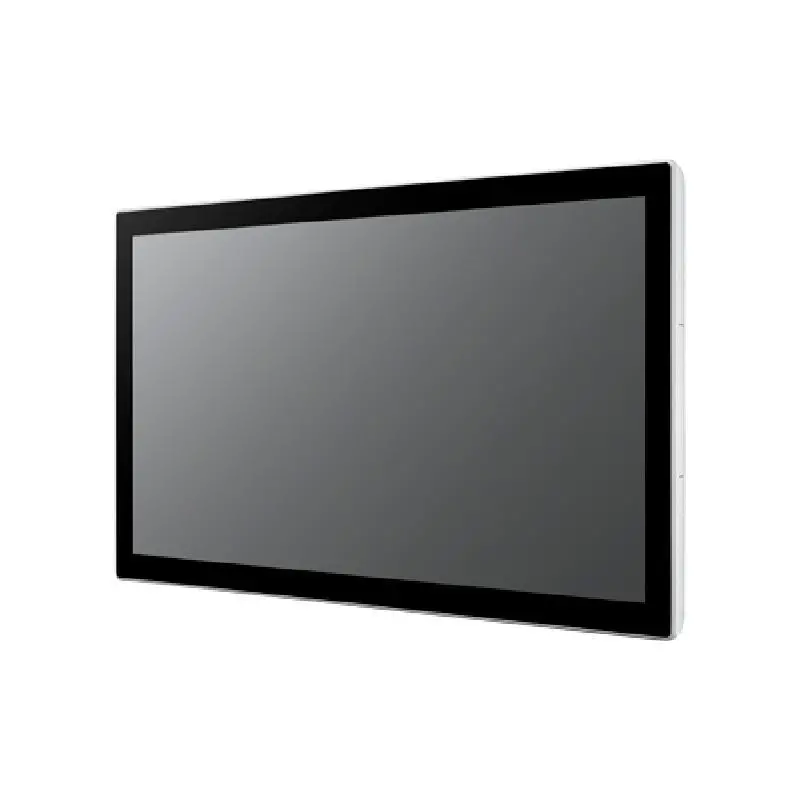

Advantech UTC-320F 21.5" Ubiquitous Touch Computer with 6th Gen Intel® Core™ i5/i3 Processor

    Low power and fanless system design

    Built in Intel Core™ i5-6300U

    21.5" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

    Supports both landscape and portrait screen orientations

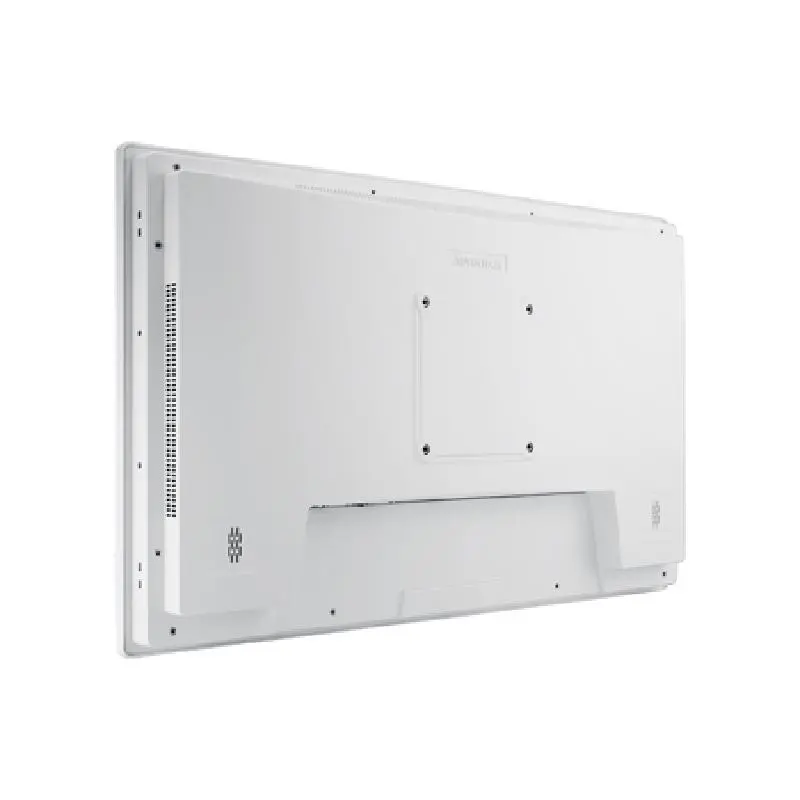

    VESA 100 mm standard mounting holes for varied mounting demands

    Detachable frame design for panel mount applications

    Support DeviceOn/iService software for remote device management

    Support TPM 2.0

UTC-320FR-USW0E UTC-320FR-ATB0E UTC-320FP-ATB0E
Color Color White Black Black
Display Size 21.5" TFT LCD 21.5" TFT LCD 21.5" TFT LCD
Display Max. Resolution FHD (1920 x 1080) FHD (1920 x 1080) FHD (1920 x 1080)
Display Brightness 250 cd/m² 250 cd/m² 250 cd/m²
Touch Screen Type Analog Resistive 5-wires (Res. Flat Glass) Analog Resistive 5-wires (Res. Flat Glass) Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel
Processor System CPU Intel® Core™ i5-6300U Intel® Core™ i5-6300U Intel® Core™ i5-6300U
Processor System RAM 4G DDR4 4G DDR4 4G DDR4
Processor System Storage 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay

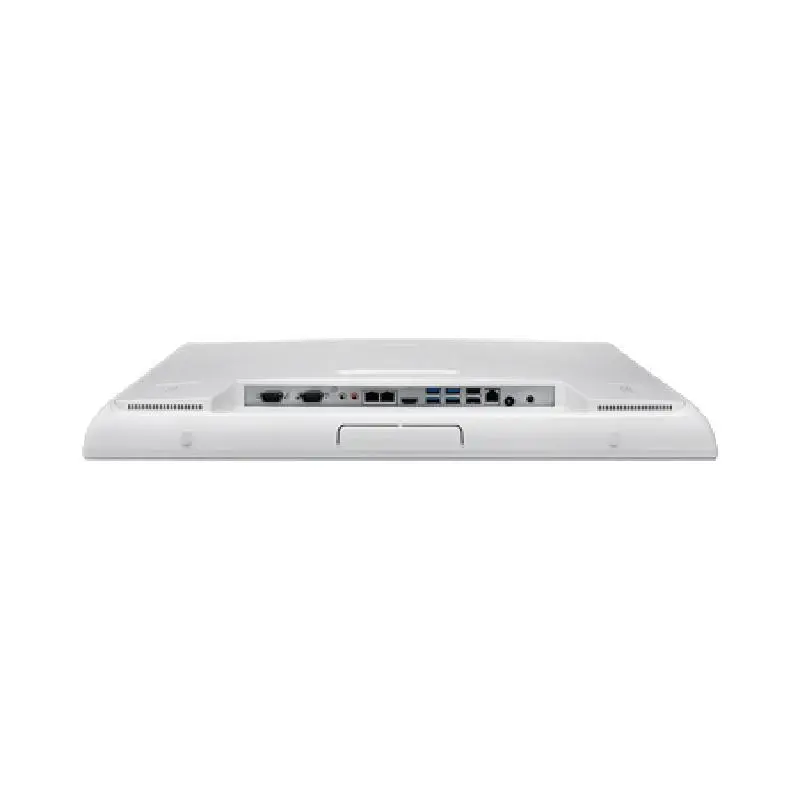

I/O Interface Serial Port 1 x COM (RS-232) ; 1 x COM (RS-232/422/485) 1 x COM (RS-232) ; 1 x COM (RS-232/422/485) 1 x COM (RS-232) ; 1 x COM (RS-232/422/485)
I/O Interface USB Port 2 x USB2.0, 4 x USB3.0 2 x USB2.0, 4 x USB3.0 2 x USB2.0, 4 x USB3.0
I/O Interface Ethernet 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (RJ-45)
I/O Interface Output 1 x HDMI 1 x HDMI 1 x HDMI
I/O Interface Cash Drawer 1 x RJ11 1 x RJ11 1 x RJ11
I/O Interface Audio 1 x Line-out & Mic-in 1 x Line-out, 1 x Mic-in 1 x Line-out, 1 x Mic-in
I/O Interface Extendable Slot Full-size MiniPCIe/mSATA Full-size MiniPCIe/mSATA Full-size MiniPCIe/mSATA
Environment Operating Temperature 0~40° C 0~40° C 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment System Protection IP65 front panel IP65 front panel IP65 front panel
Environment Vibration 0.5G 0.5G 0.5G
Environment Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Power Input Rating 12-30V/7A (84W ITE Adapter) 12-30V/7A (84W ITE Adapter) 12-30V/7A (84W ITE Adapter)
OS Support OS Support Win 10 IoT Enterprise 64bit/ Linux Win 10 IoT Enterprise 64bit/ Linux Win 10 IoT Enterprise 64bit/ Linux
