| UTC-510GP-ATB1E | UTC-510GP-ATN1E | ||
| Display | Size | 10.1" TFT LCD | 10.1" TFT LCD |
| Display | Max. Resolution | WXGA (1280 X 800) | WXGA (1280 X 800) |
| Display | Brightness | 350 cd/m² | 350 cd/m² |
| Display | Camera | 5 Mega Pixel (Optional) | Optional built-in camera |
| Processor System | CPU | Intel® Pentium® N4200 | Intel® Pentium® N4200 |
| Processor System | OS | Window 10 IoT Enterprise, Linux Ubuntu 20.04, Android 12 | Window 10 IoT Enterprise, Linux Ubuntu 20.04, Android 12 |
| Touch Screen | Type | Projected Capacitive | Projected Capacitive |
| Processor System | RAM | 4GB DDR3L | 4GB DDR3L |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| I/O Interface | Serial Port | 2 x COM (RS-232) | 2 x COM (RS-232) |
| I/O Interface | USB Port | 2 x USB3.0, 2 x USB2.0 (optional) | 2 x USB3.0, 2 x USB2.0 (optional) |
| I/O Interface | Output | 1 x VGA | 1 x VGA |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Ethernet | 1 x Gigabit Ethernet (RJ-45)/ 1 x Gigabit Ethernet ports with POE (Optional) | 1 x Gigabit Ethernet (Supports Wake on LAN) |
| I/O Interface | Speaker | 1 x 2W Speaker | 2 x 1W Speaker |
| I/O Interface | Extendable Slot | 1 Full size MiniPCIe / 1 Half size mSATA | 1 x Full-size Mini PCIe, 1 x mSATA |
| Environment | Operating Temperature | 0~45° C | 0~45° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | System Protection | IP 65 Compliant | IP65 front panel |
| Environment | Shock | 5G peak acceleration (11 msec. duration) | 5G peak acceleration (11 msec. duration) |
| Power | Input Rating | 12 V/3 A (36W ITE Adapter)/POE IEEE 802.3at/30W (optional) | 12V/3A (36W ITE Adapter) |

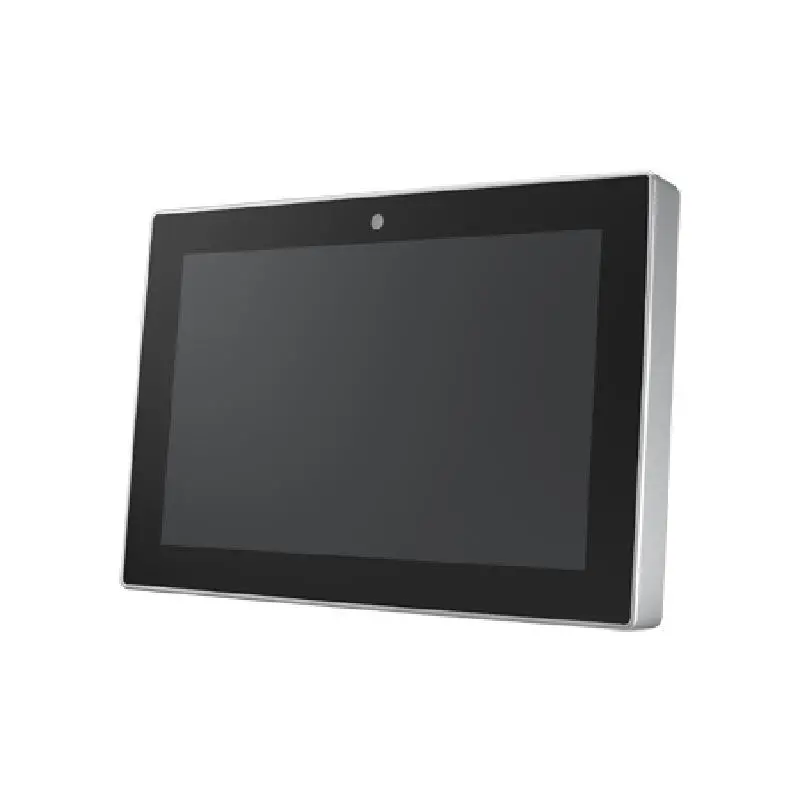

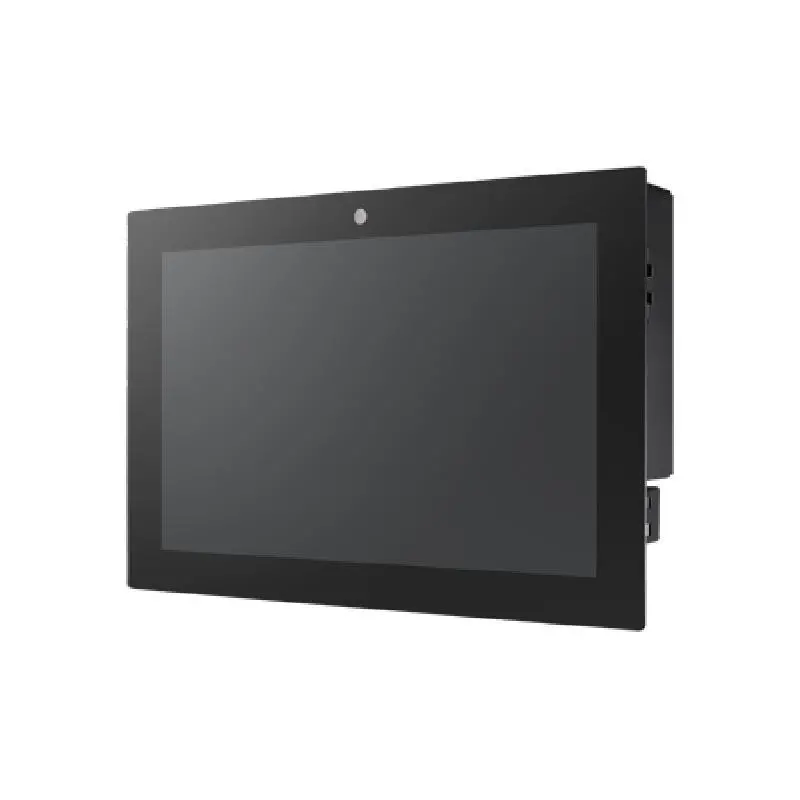

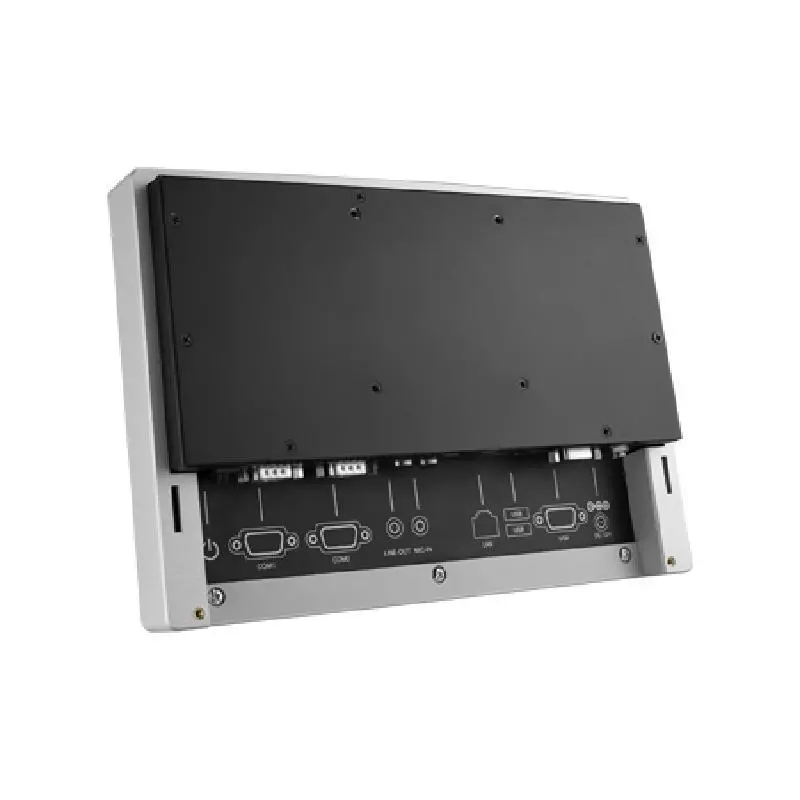

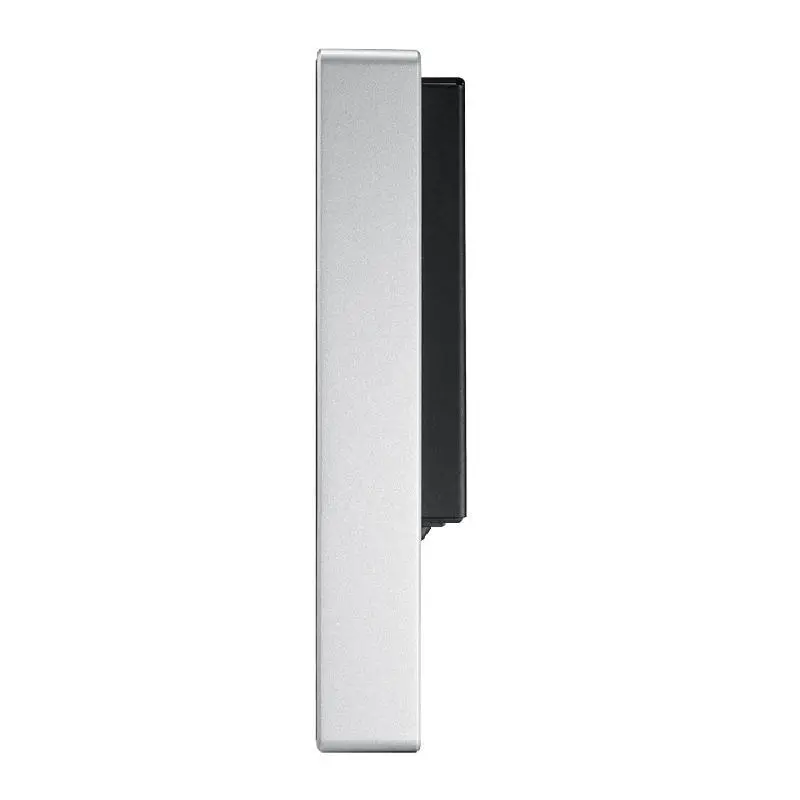

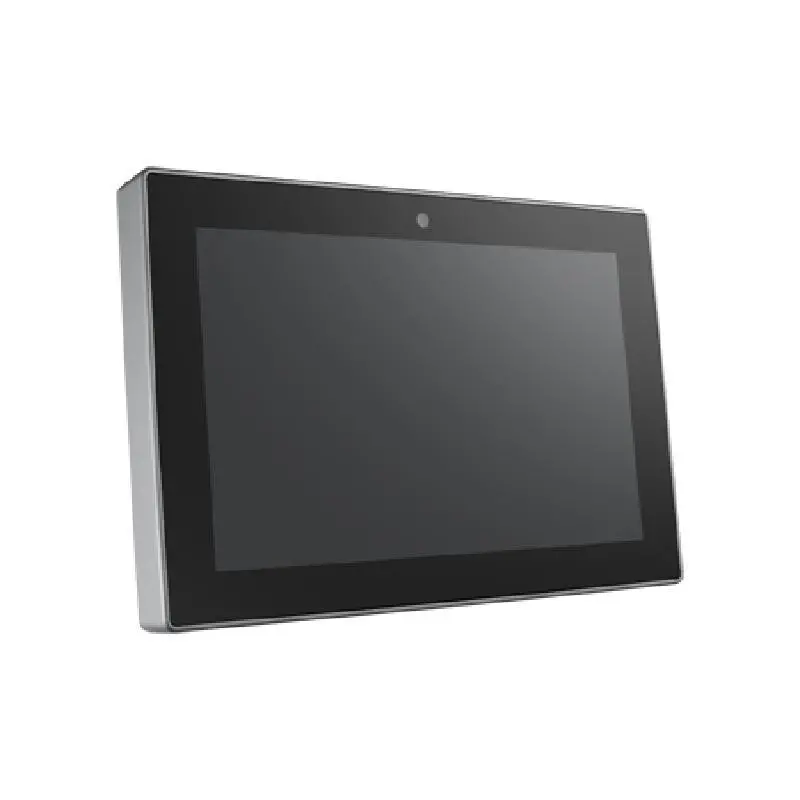

Advantech UTC-510G 10.1" Ubiquitous Touch Computer with Intel® Pentium® N4200
