| UTC-510DP-ATB1E | ||
| Display | Size | 10.1" TFT LCD |
| Display | Max. Resolution | WXGA (1280 X 800) |
| Display | Brightness | 350 cd/m² |
| Display | Camera | 5 Mega Pixel (Optional) |
| Touch Screen | Type | Projected Capacitive. Glass Panel |
| Processor System | CPU | Intel® Celeron J1900 |
| Processor System | RAM | 4GB DDR3L |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay |
| Processor System | OS | WE8S 32bit, Windows Embedded 8.1 Industry Pro 64bit, Win 10 IoT Enterprise 64bit, Linux Ubuntu 18.04, Android 6.0 |

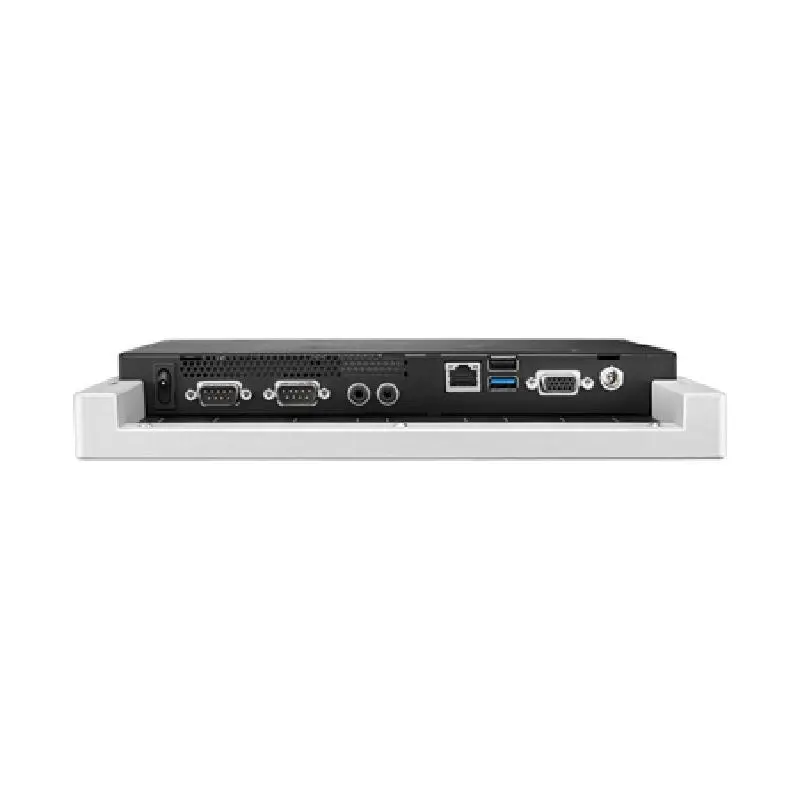

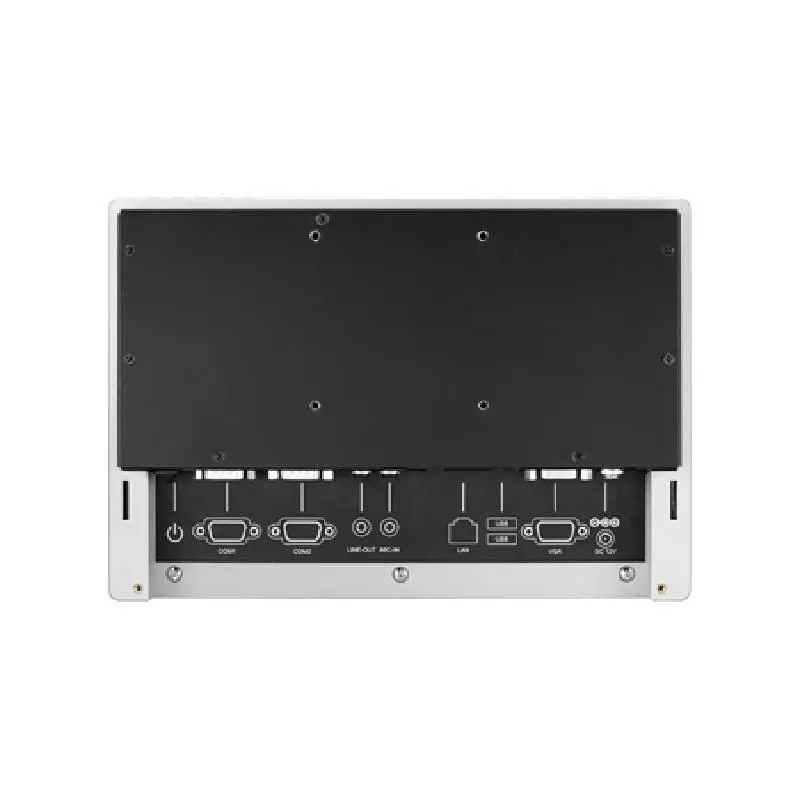

| I/O Interface | Serial Port | 2 x COM (RS-232) |
| I/O Interface | USB Port | 1 x USB 2.0 / 1 x USB 3.0 / 2 x USB 2.0 (optional) |
| I/O Interface | Output | 1 x VGA |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45) |
| I/O Interface | Speaker | 1 x 2W Speaker |
| I/O Interface | Extendable Slot | 1 Full size MiniPCIe / 1 Half size mSATA |
| Power | Input Rating | 12V/3A (36W ITE Adapter) |
| Environment | Operating Temperature | 0 ~ 35 °C (32 ~ 95 °F)* |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing |
| Environment | System Protection | IP65 front panel |
| Environment | Shock | 5G peak acceleration (11 msec. duration) |

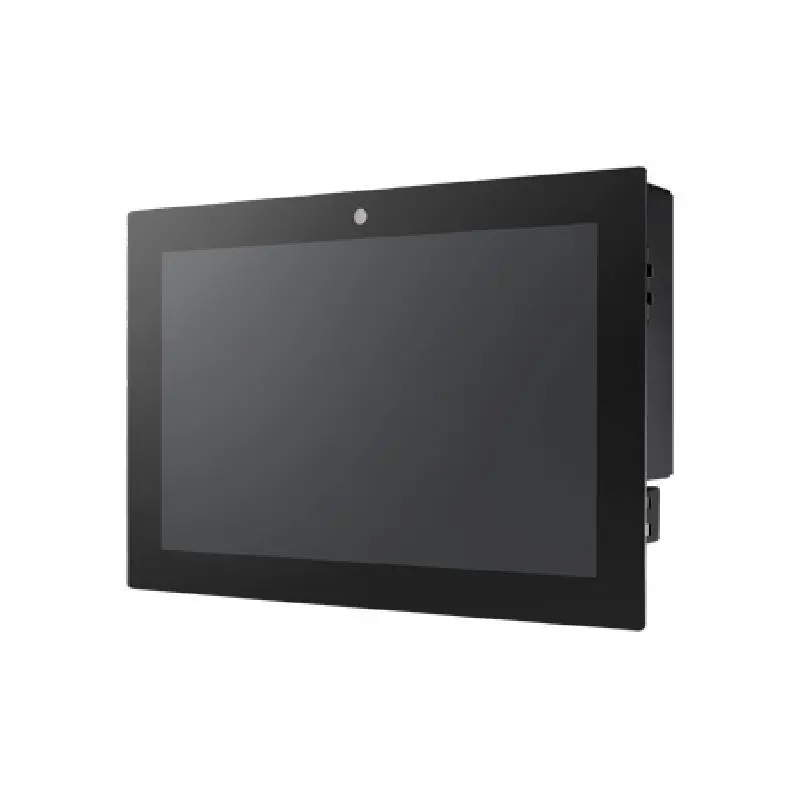

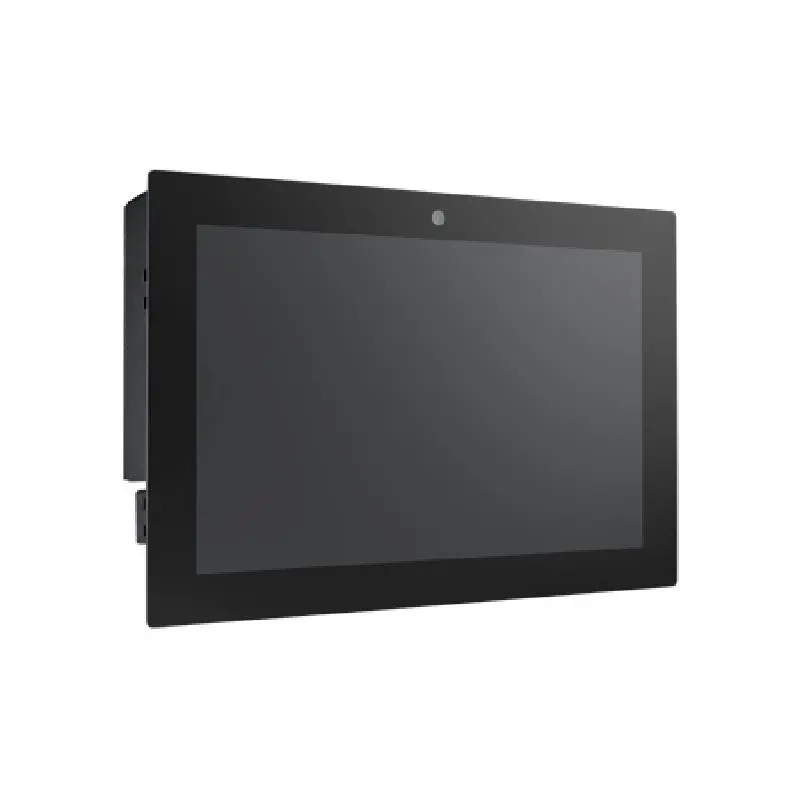

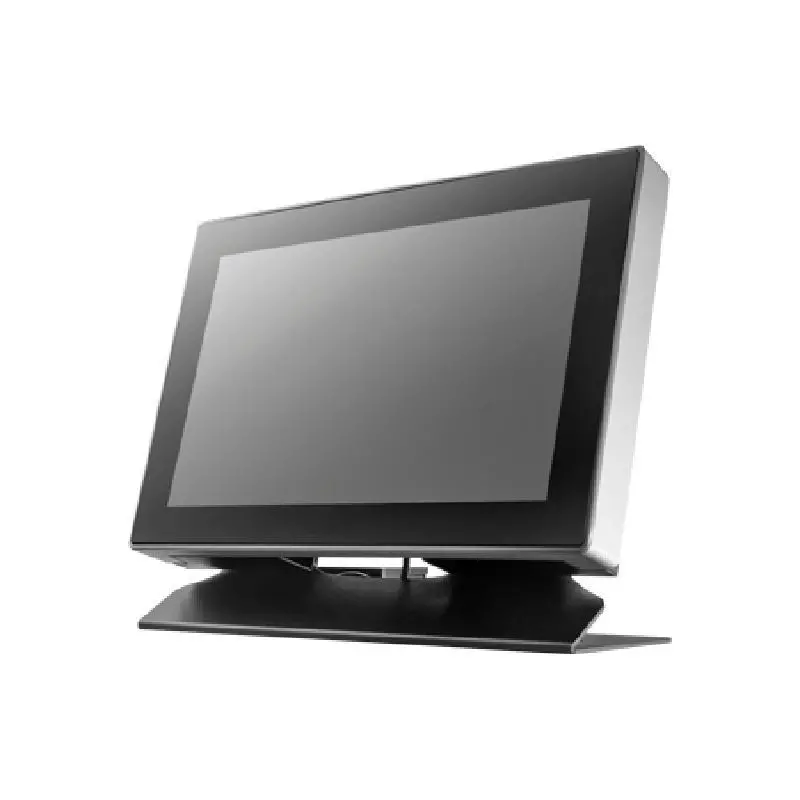

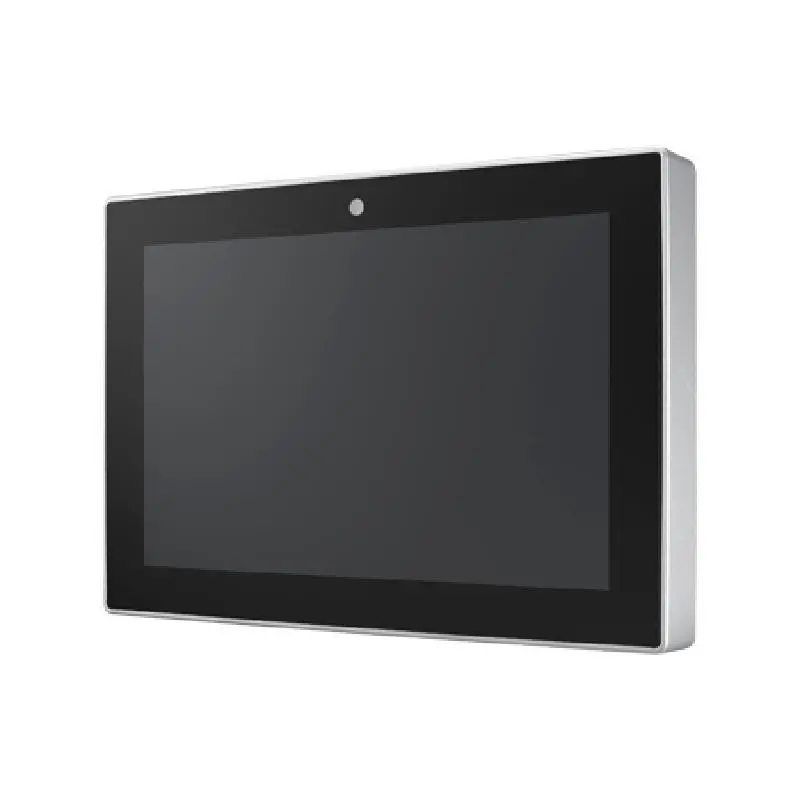

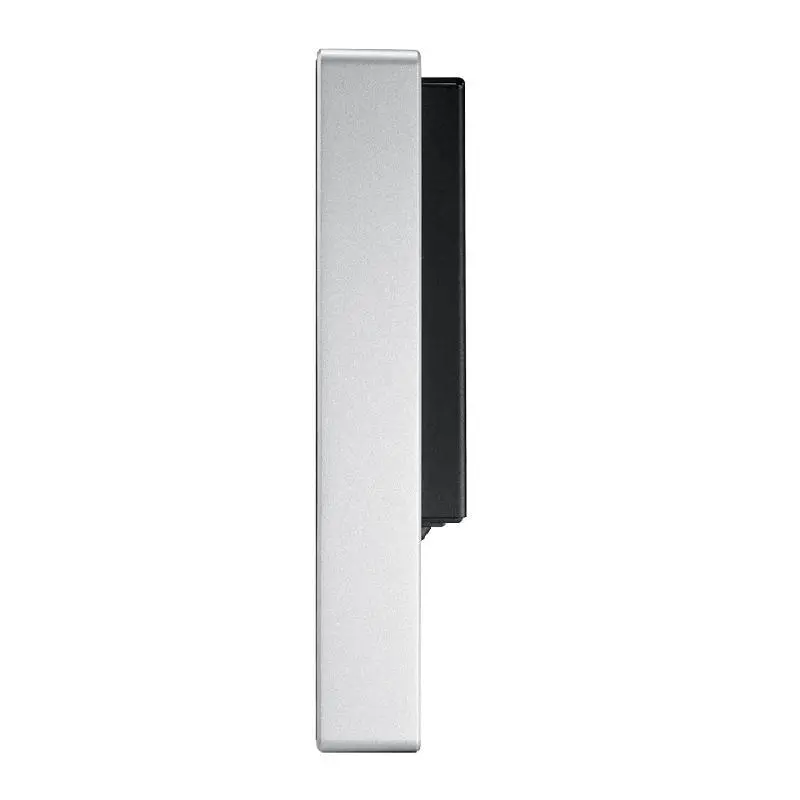

Advantech UTC-510D 10.1" Ubiquitous Touch Computer with Intel® Celeron® J1900
