| UTC-515J-PE | UTC-515JP-ATB0E | UTC-515JR-ATB0E | ||
| Display | Size | 15.6" TFT LCD (LED backlight) | 15.6" TFT LCD (LED backlight) | 15.6" TFT LCD |
| Display | Max. Resolution | HD (1366 x 768) ; Optional FHD (1920 x 1080) | HD (1366 x 768) ; Optional FHD (1920 x 1080) | FHD (1920 x 1080) |
| Display | Brightness | 400 cd/m² | 400 cd/m² | 400 cd/m² |
| Touch Screen | Type | Projected Capacitive | Projected Capacitive | Analog Resistive 5-wire |
| Processor System | CPU | Intel® Celeron® J6412 | Intel® Celeron® J6412 | Intel® Celeron® J6412 |
| Processor System | RAM | 4G DDR4 | 4G DDR4 | 4G DDR4 |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| Processor System | OS | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 |
| Processor System | TPM | TPM 2.0 | TPM 2.0 | TPM 2.0 |
| I/O Interface | USB Port | 4 x USB3.2 Gen2 (10Gbps) | 4 x USB3.2 Gen2 (10Gbps) | 2 x USB 2.0/ 1 x USB 3.0 |
| I/O Interface | Output | 1 x HDMI / 1 x DP | 1 x HDMI / 1 x DP | 1 x HDMI / 1 x DP |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in | 1 x Line-out |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (Supports Wake on LAN) | 2 x Gigabit Ethernet (Supports Wake on LAN) | 2 x Gigabit Ethernet (RJ-45, supports Wake on LAN, M12 waterproof connector) |
| I/O Interface | Speaker | 2 x 2W Speaker | 2 x 2W Speaker | 2 x 3W Speaker |
| I/O Interface | Extendable Slot | 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module1x M-Key support SATA M.2 2242 module | 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module1x M-Key support SATA M.2 2242 module | 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module1x M-Key support SATA M.2 2242 module |
| Power | Input Rating | 12 V/7 A (84 W ITE Adapter) | 12 V/7 A (84 W ITE Adapter) | 12 ~ 24V, 7 A (84W ITE adapter) |
| I/O Interface | Serial Port | 2 x COM (RS-232) | 2 x COM (RS-232) | 2 x COM (RS-232) |
| Environment | Operating Temperature | -10 ~ 50 °C | -10 ~ 50 °C | -10 ~ 50 °C |
| Environment | System Protection | IP65 front panel | IP65 front panel | IP66/69K full system |
| Environment | Operating Humidity | 95% @ 40 °C/104 °F, non-condensing | 95% @ 40 °C/104 °F, non-condensing | 95% @ 40 °C/104 °F, non-condensing |
| Environment | Certification | CE (RED Compliance), EN 61000-6-2: 2005 /AC: 2005, FCC, UL, CB, CCC, BSMI | CE (RED Compliance), EN 61000-6-2: 2005 /AC: 2005, FCC, UL, CB, CCC, BSMI | CE, FCC, UL, CB |
| Environment | Shock | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 |
| Environment | Vibration | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD |

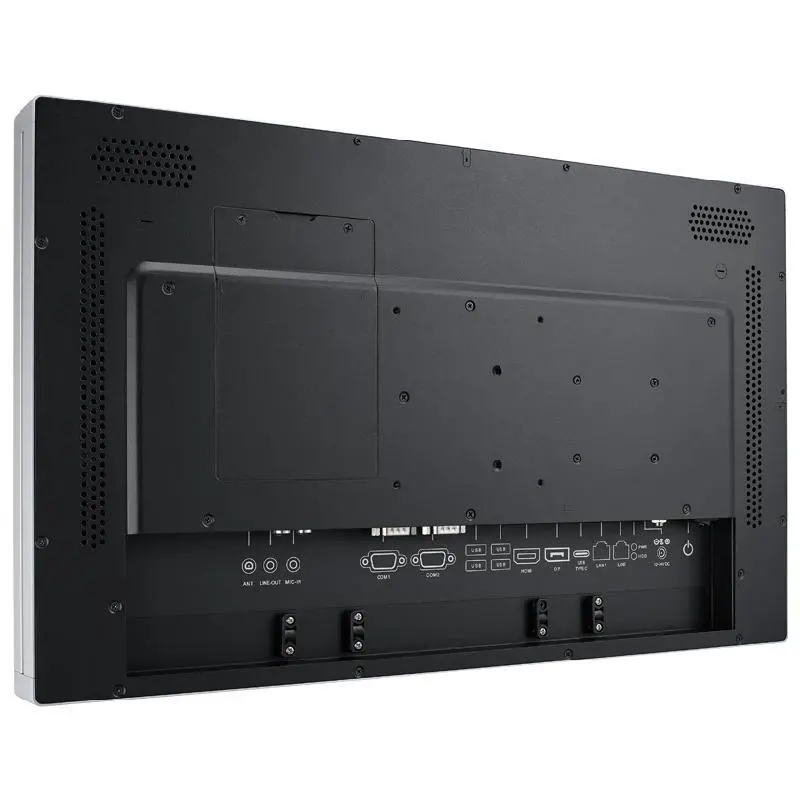

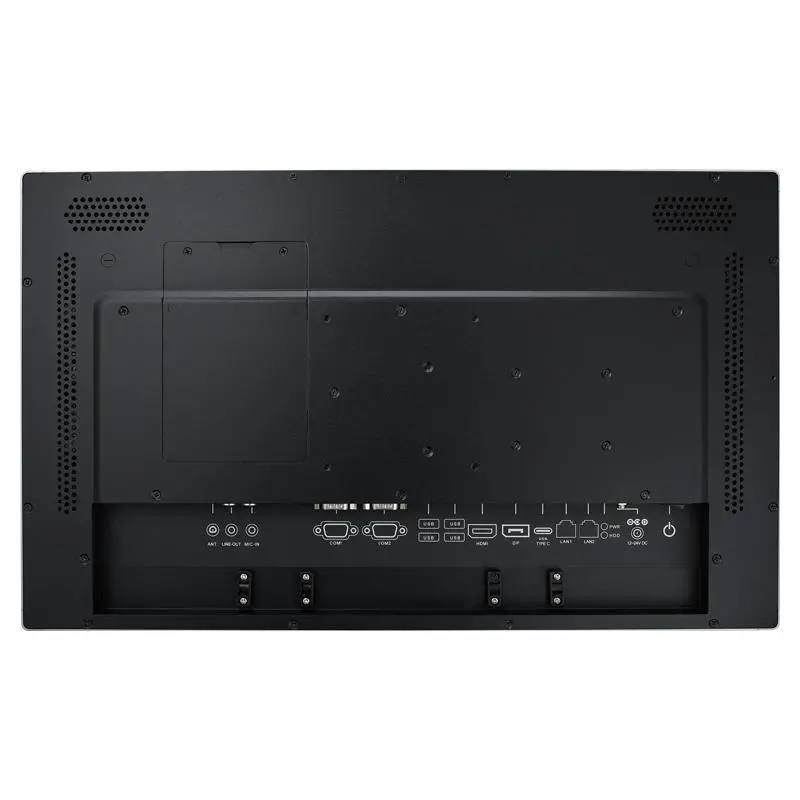

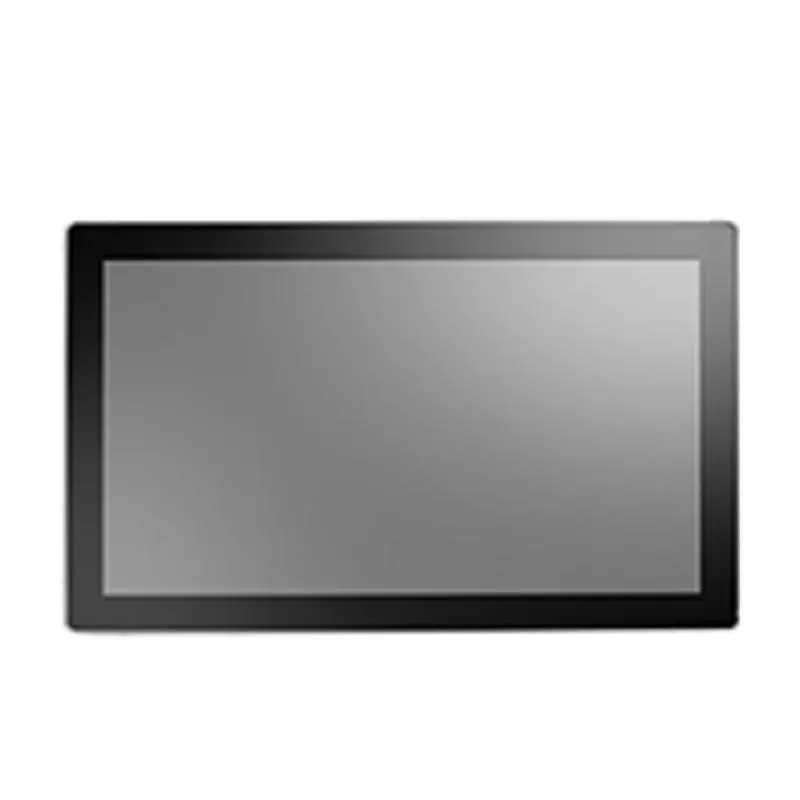

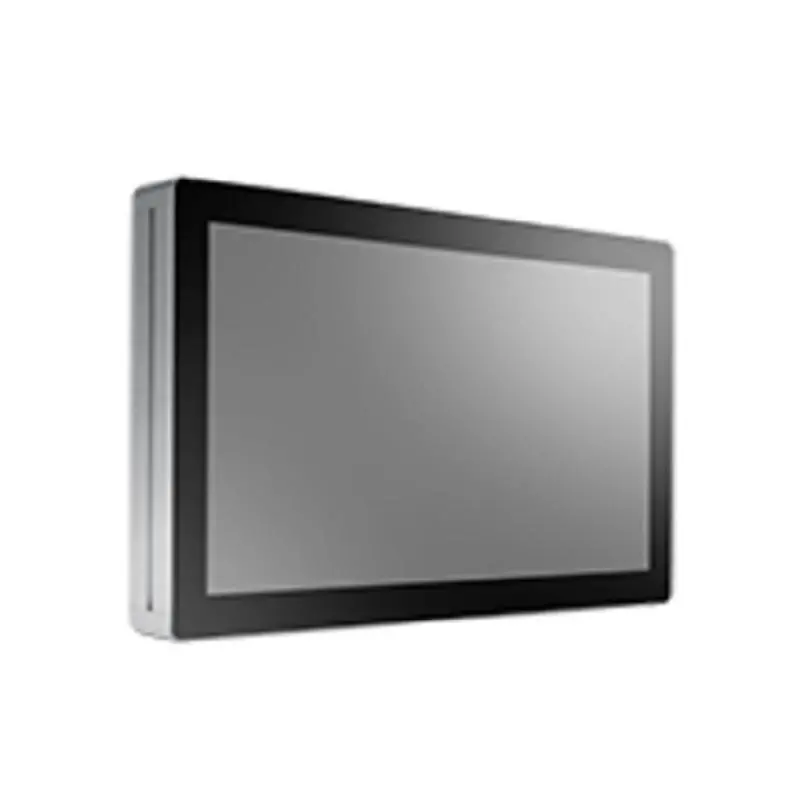

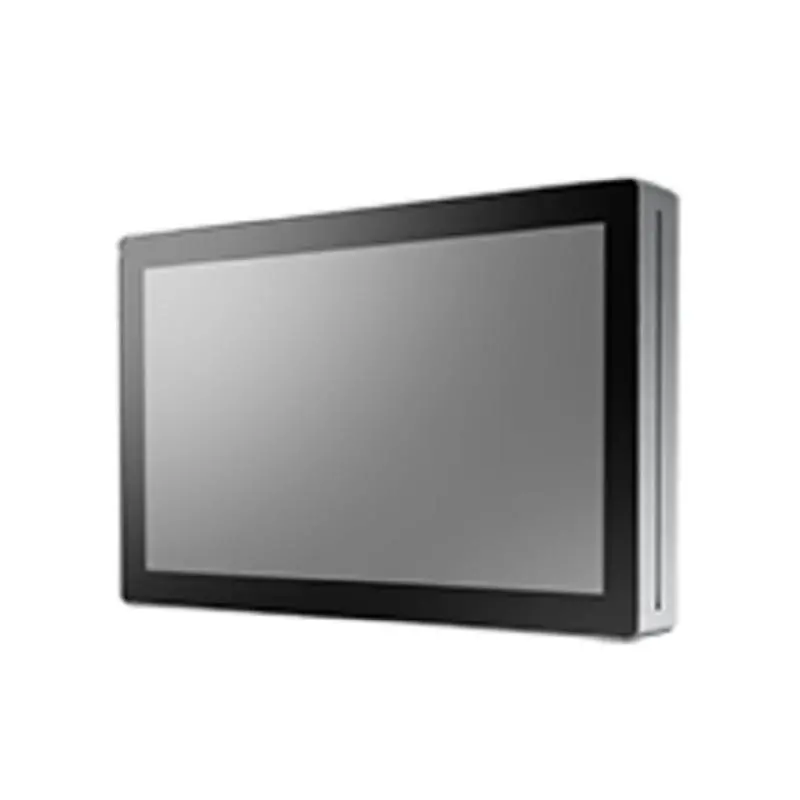

Advantech UTC-515J 15.6" Ubiquitous Touch Computer with Intel® Celeron® J6412
