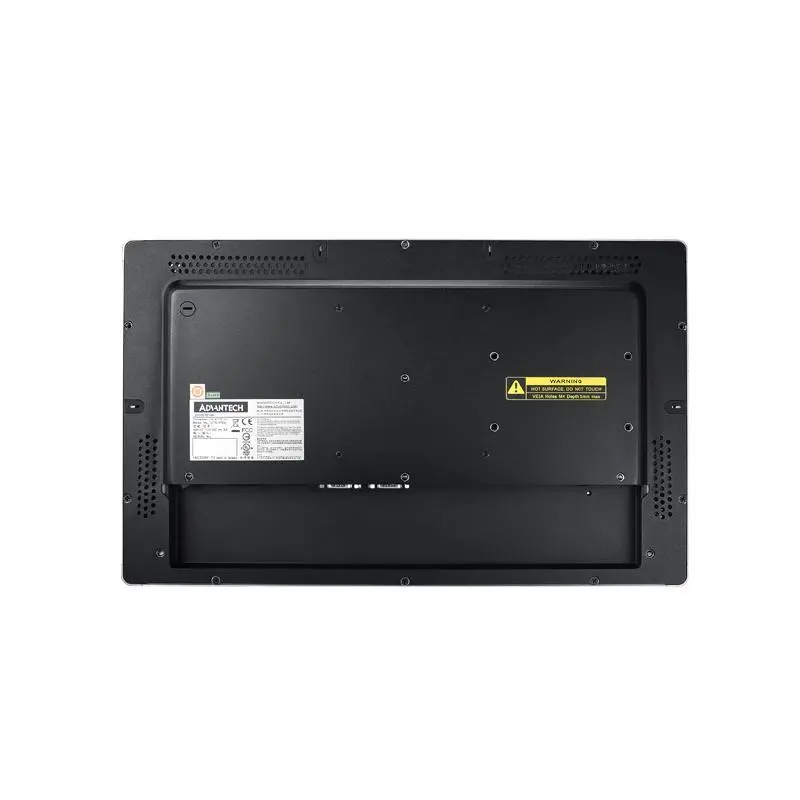

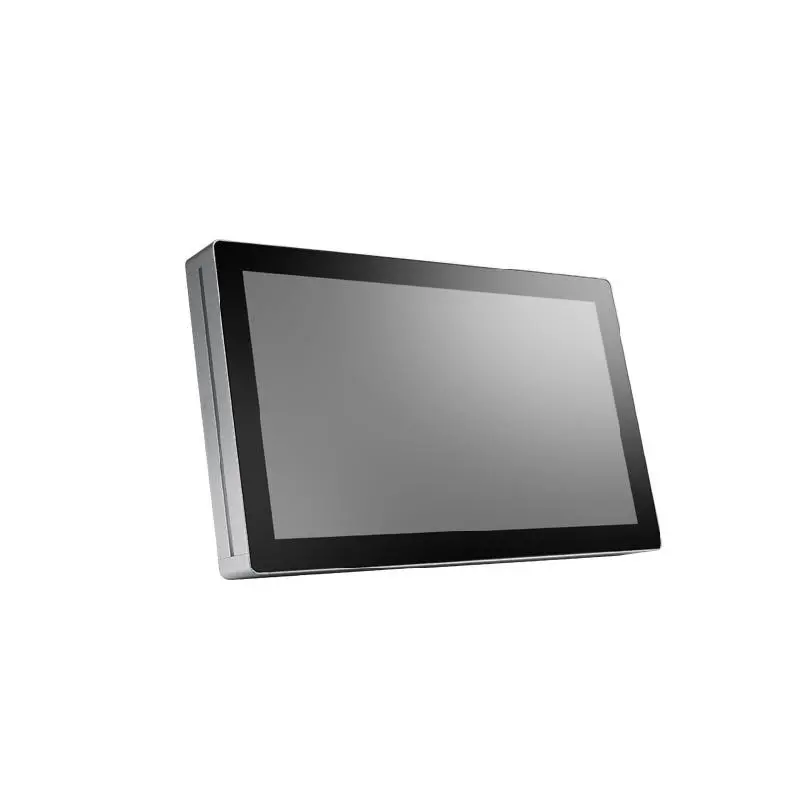

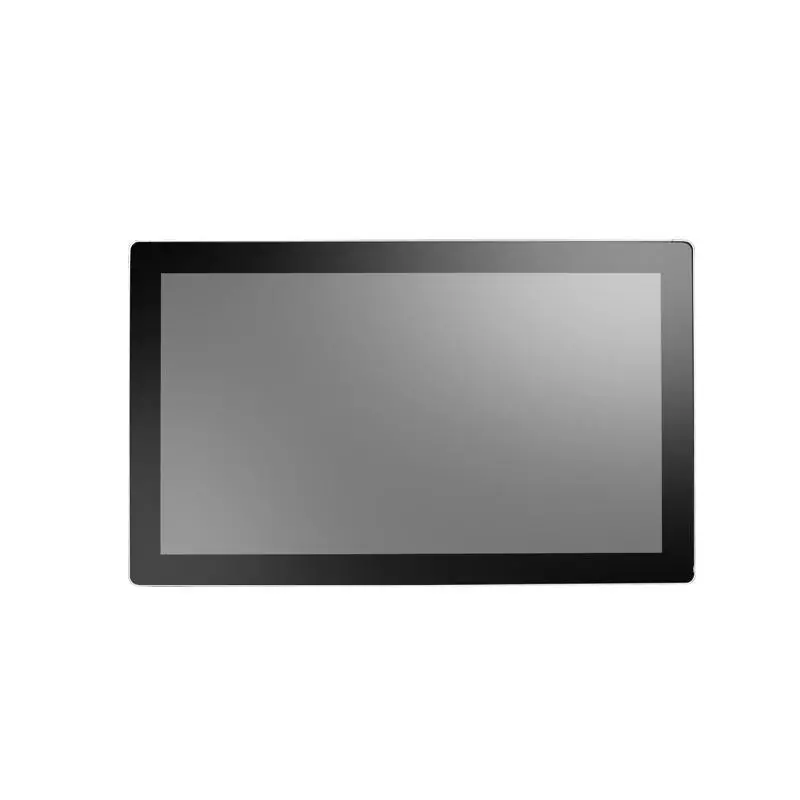

Advantech UTC-515H 15.6" Ubiquitous Touch Computer with Intel® Core™ i3-8145UE processor

    Low power and fanless system design

    Built-in Intel® Core™ i3-8145UE processor

    15.6" monitor with 16:9 widescreen display

    IP65-rated front panel for water and dust resistance

    All in one aluminum extrusion design

    Support both landscape and portrait screen orientation

    VESA 100 mm standard mounting holes for varied mounting demands

    Side groove design for flexible peripheral installation

    Support DeviceOn/iService software for remote device management

UTC-515HP-ATB0E UTC-515HR-ATB0E
Display Size 15.6" TFT LCD 15.6" TFT LCD
Display Max. Resolution HD (1366 x 768) ; Optional FHD (1920 x 1080) HD (1366 x 768) ; Optional FHD (1920 x 1080)
Display Brightness 400 cd/m² 400 cd/m²
Touch Screen Type Projected Capacitive / Anti-Glare Available Analog Resistive 5-wire
Processor System CPU Intel® Core™ i3-8145UE Intel® Core™ i3-8145UE
Processor System RAM 4G DDR4 4G DDR4
Processor System Storage 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
Processor System OS Win 10 IoT Enterprise / Linux Ubuntu 20.04 Win 10 IoT Enterprise / Linux Ubuntu 20.04
I/O Interface Serial Port 2 x COM (RS-232) 2 x COM (RS-232)
I/O Interface USB Port 4 x USB 3.1 4 x USB 3.1
I/O Interface Ethernet 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (RJ-45)
I/O Interface Output 1 x HDMI 1 x HDMI
I/O Interface Audio 1 x Line-out, 1 x Mic-in 1 x Line-out, 1 x Mic-in
I/O Interface Speaker 1 x 2W Speaker 1 x 2W Speaker
I/O Interface Extendable Slot 1 x M.2 E-key 2230, 1 x M.2 B-key 2280 (NVMe PCIex2), 3042 LTE module (support USB2.0 only), optional M-key 2280 NVMe PCIex4 1 x M.2 E-key 2230, 1 x M.2 B-key 2280 (NVMe PCIex2), 3042 LTE module (support USB2.0 only), optional M-key 2280 NVMe PCIex4
Power Input Rating 12 V/5 A (60 W ITE Adapter) 12 V/5 A (60 W ITE Adapter)
Environment System Protection IP65 front panel IP65 front panel
Environment Operating Temperature 0~40° C 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Environment Vibration 0.5G 0.5G
Environment Shock 5G peak acceleration (11 msec. duration) 5G peak acceleration (11 msec. duration)
Environment Certification CE (No RED certification), FCC, CB, UL,CCC, BSMI CE (No RED certification), FCC, CB, UL,CCC, BSMI
