| UTC-515GP-ATB0E | UTC-515GR-ATB0E | ||
| Display | Size | 15.6" TFT LCD | 15.6" TFT LCD |
| Display | Max. Resolution | HD (1366 x 768) ; Optional FHD (1920 x 1080) | HD (1366 x 768) ; Optional FHD (1920 x 1080) |
| Display | Brightness | 400 cd/m² | 400 cd/m² |
| Touch Screen | Type | Projected Capacitive | Analog Resistive 5-wire |
| Processor System | CPU | Intel® Pentium® N4200 | Intel® Pentium® N4200 |
| Processor System | RAM | 4GB DDR3L | 4GB DDR3L |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| Processor System | OS | Win 10 IoT Enterprise / Android 6.0 / Linux Ubuntu 17.04 | Win 10 IoT Enterprise / Android 6.0 / Linux Ubuntu 17.04 |
| I/O Interface | Serial Port | 2 x COM (RS-232) | 2 x COM (RS-232) |
| I/O Interface | USB Port | 2 x USB2.0, 1 x OTG USB /4 x USB2.0, 1 x OTG USB | 2 x USB2.0, 1 x OTG USB /4 x USB2.0, 1 x OTG USB |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) |
| I/O Interface | Output | 1 x VGA port, 1 x HDMI port | 1 x VGA port, 1 x HDMI port |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Extendable Slot | Full-size Mini PCIe / M.2 | Full-size Mini PCIe / M.2 |
| Power | Input Rating | 12 V/5 A (60 W ITE Adapter) | 12 V/5 A (60 W ITE Adapter) |
| Environment | Operating Temperature | 0~40° C | 0~40° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | System Protection | IP65 front panel | IP65 front panel |
| Environment | Vibration | 0.5G | 0.5G |
| Environment | Shock | 5G peak acceleration (11 msec. duration) | 5G peak acceleration (11 msec. duration) |
| Environment | Certification | CE (RED Compliance), FCC, CB, UL, CCC,BSMI | CE (RED Compliance), FCC, CB, UL, CCC,BSMI |

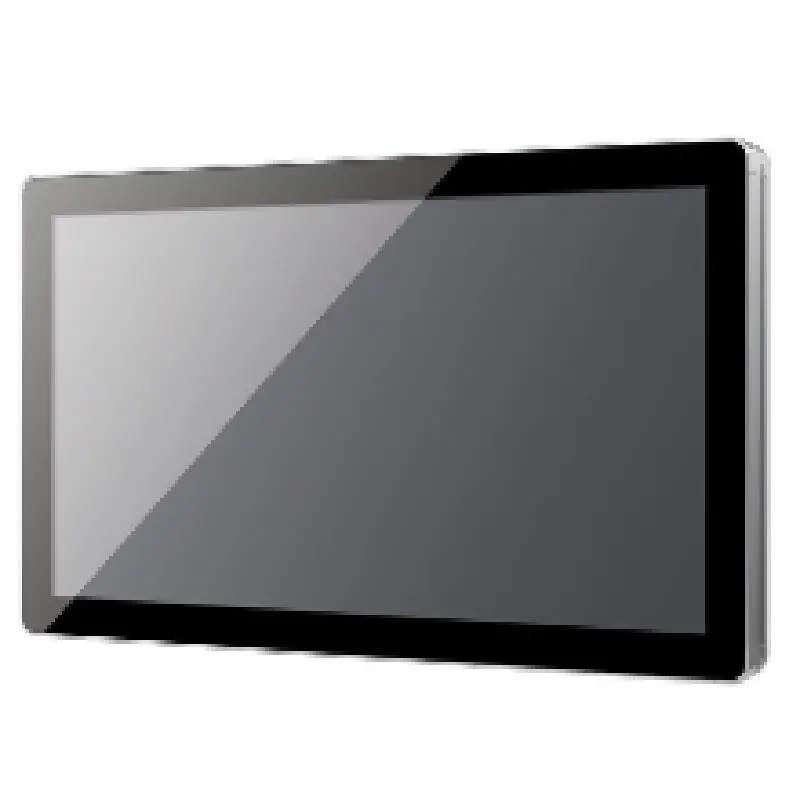

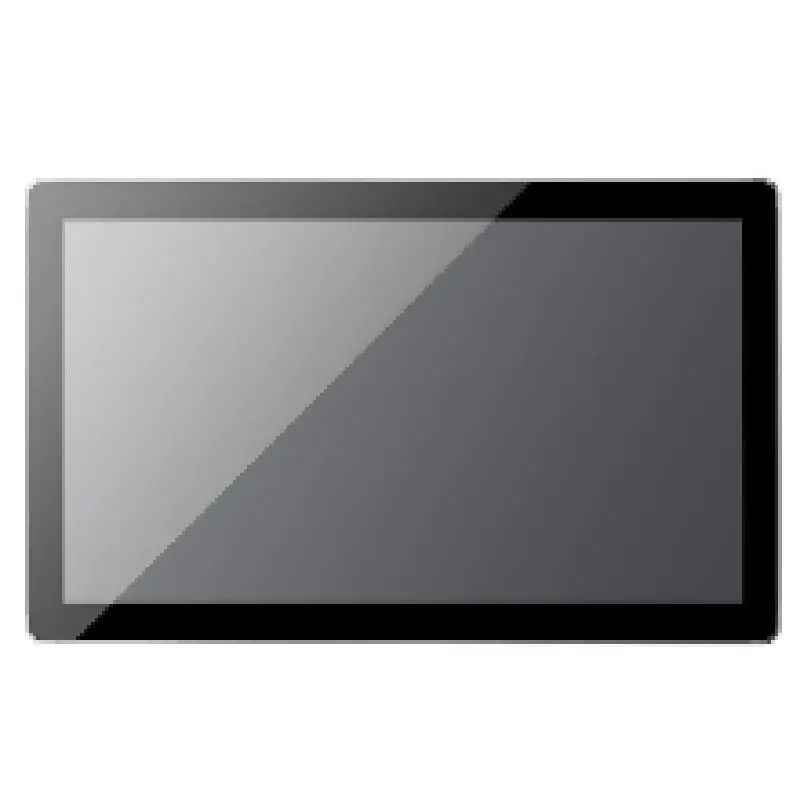

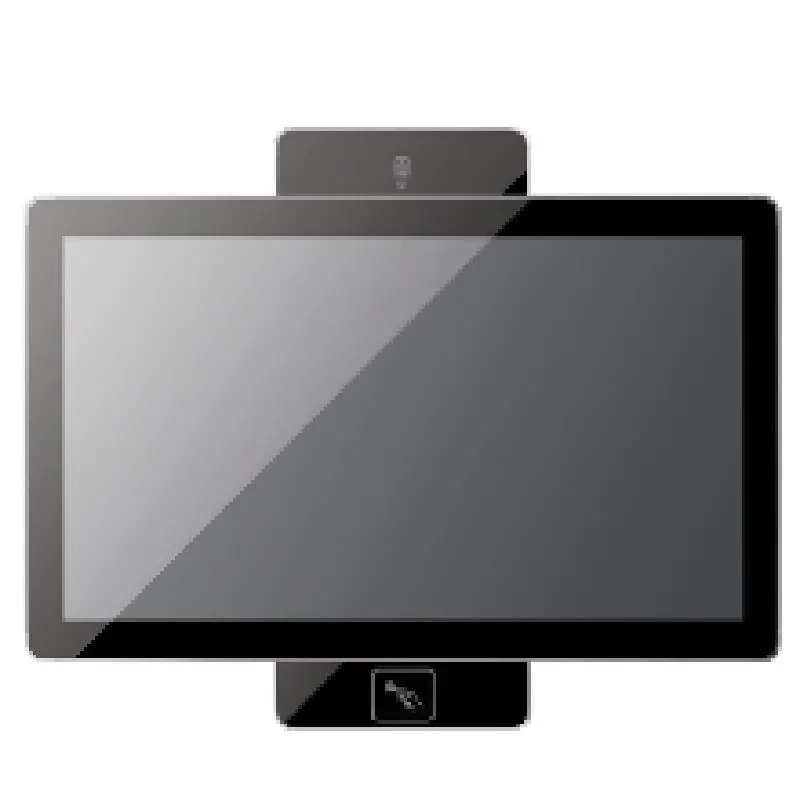

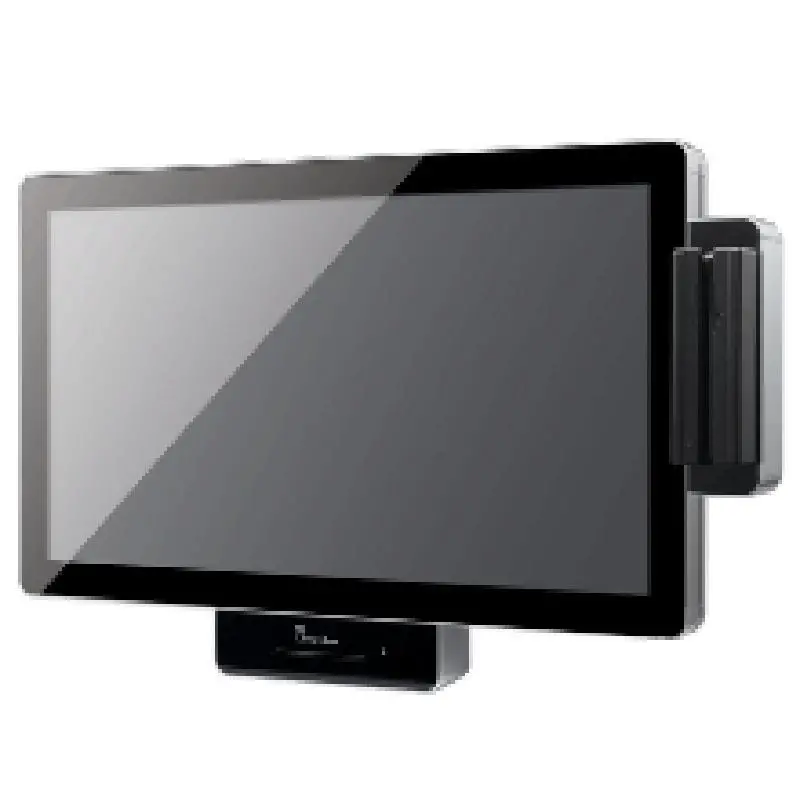

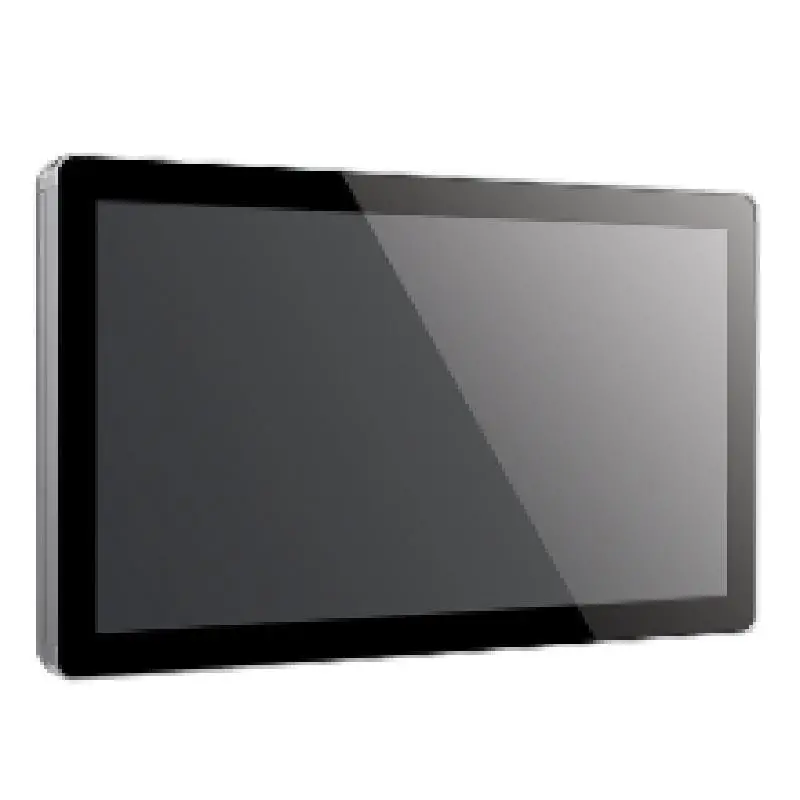

Advantech UTC-515G 15.6" Ubiquitous Touch Computer with Intel® Pentium® N4200 processor
