| UTC-520J-PE | UTC-520JP-ATB0E | UTC-520JR-ATB0E | ||
| Display | Size | 21.5" TFT LCD | 21.5" TFT LCD | 21.5" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Display | Brightness | 250 cd/m² (optional 400 nits) | 250 cd/m² (optional 400 nits) | 250 cd/m² (optional 400 nits) |
| Touch Screen | Type | Projected Capacitive | Projected Capacitive | 5-wire resistive |
| Processor System | CPU | Intel® Celeron® J6412 | Intel® Celeron® J6412 | Intel® Celeron® J6412 |
| Processor System | RAM | 4G DDR4 | 4G DDR4 | 4G DDR4 |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| Processor System | OS | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 |
| Processor System | TPM | TPM 2.0 | TPM 2.0 | TPM 2.0 |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet ports | 2 x Gigabit Ethernet ports | 2 x Gigabit Ethernet ports |
| I/O Interface | Serial Port | 2 x COM (RS-232) | 2 x COM (RS-232) | 2 x COM (RS-232) |
| I/O Interface | Output | 1 x HDMI / 1 x DP | 1 x HDMI / 1 x DP | 1 x HDMI / 1 x DP |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Speaker | 2 x 3W Speaker | 2 x 3W Speaker | 2 x 3W Speaker |
| I/O Interface | Extendable Slot | 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module1x M-Key support SATA M.2 2242 module | 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module1x M-Key support SATA M.2 2242 module | 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module1x M-Key support SATA M.2 2242 module |
| Power | Input Rating | 12 V/7 A (84 W ITE Adapter) | 12 V/7 A (84 W ITE Adapter) | 12 ~ 24V, 7 A (84W ITE adapter) |
| Environment | System Protection | IP65 front panel | IP65 front panel | IP65 front panel |
| Environment | Operating Temperature | 0~40° C | 0~40° C | 0~40° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | Shock | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) |

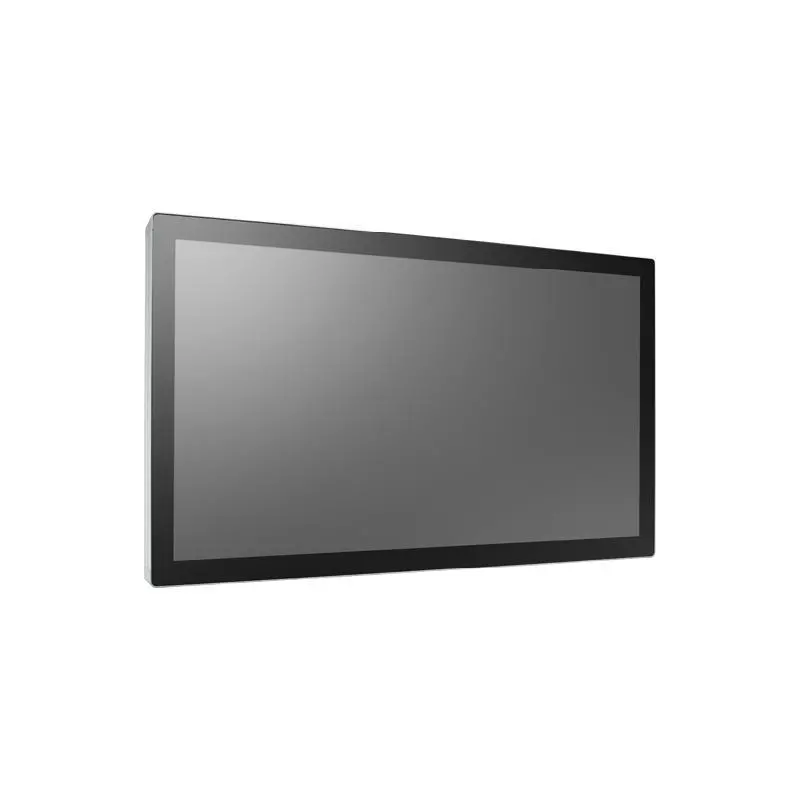

Advantech UTC-520J 21.5" Ubiquitous Touch Computer with Intel® Celeron® J6412
