| UTC-520I-PE | UTC-520IP-ATB0E | UTC-520IR-ATB0E | ||
| Display | Size | 21.5" TFT LCD | 21.5" TFT LCD | 21.5" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Display | Brightness | 250 cd/m² (optional 400 nits) | 250 cd/m² (optional 400 nits) | 250 cd/m² (optional 400 nits) |
| Touch Screen | Type | Projected Capacitive | Projected Capacitive | Analog Resistive 5-wire |
| Processor System | CPU | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E |
| Processor System | RAM | Maximum up to 64GB | 8G DDR4 | 8G DDR4 |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| Processor System | OS | Win 10 IoT Enterprise / Linux Ubuntu 20.04 | Win 10 IoT Enterprise / Linux Ubuntu 20.04 | Win 10 IoT Enterprise / Linux Ubuntu 20.04 |
| I/O Interface | Serial Port | 2 x RS-232 COM (RS-422/485) | 2 x RS-232 COM (RS-422/485) | 2 x COM (RS-232) |
| I/O Interface | USB Port | 4 x USB 3.2, 1 x USB Type C | 4 x USB 3.2, 1 x USB Type C | 4 x USB 3.2, 1 x USB Type C |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (Supports Wake on LAN) | 2 x Gigabit Ethernet (Supports Wake on LAN) | 2 x Gigabit Ethernet (Supports Wake on LAN) |
| I/O Interface | Output | 1 x HDMI / 1 x DP | 1 x HDMI / 1 x DP | 1 x HDMI / 1 x DP |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Speaker | 2 x 3W Speaker | 2 x 3W Speaker | 2 x 2W Speaker |
| I/O Interface | Extendable Slot | 1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x M.2 M-Key 2280 (optional SATA) | 1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x M.2 M-Key 2280 (optional SATA) | 1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x M.2 M-Key 2280 (optional SATA) |
| Power | Input Rating | 12 V/7 A (84 W ITE Adapter) | 12 V/7 A (84 W ITE Adapter) | 12 V/7 A (84 W ITE Adapter) |
| Environment | System Protection | IP65 front panel | IP65 front panel | IP65 front panel |
| Environment | Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) | 0 ~ 40 °C (32 ~ 104 °F) | 0 ~ 40 °C (32 ~ 104 °F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | Vibration | 0.5G | 0.5G | 0.5G |
| Environment | Shock | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) |

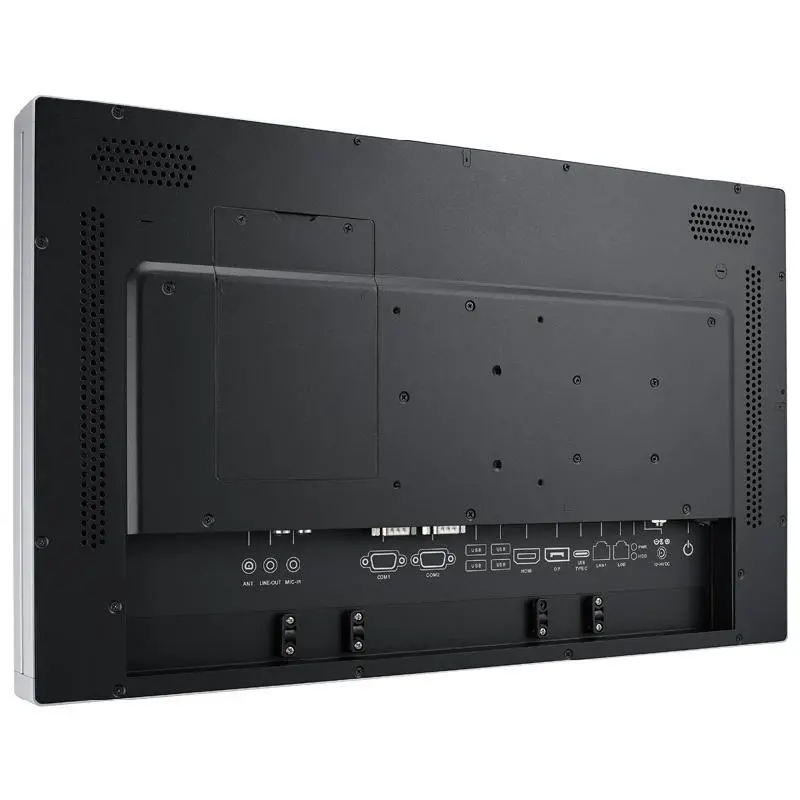

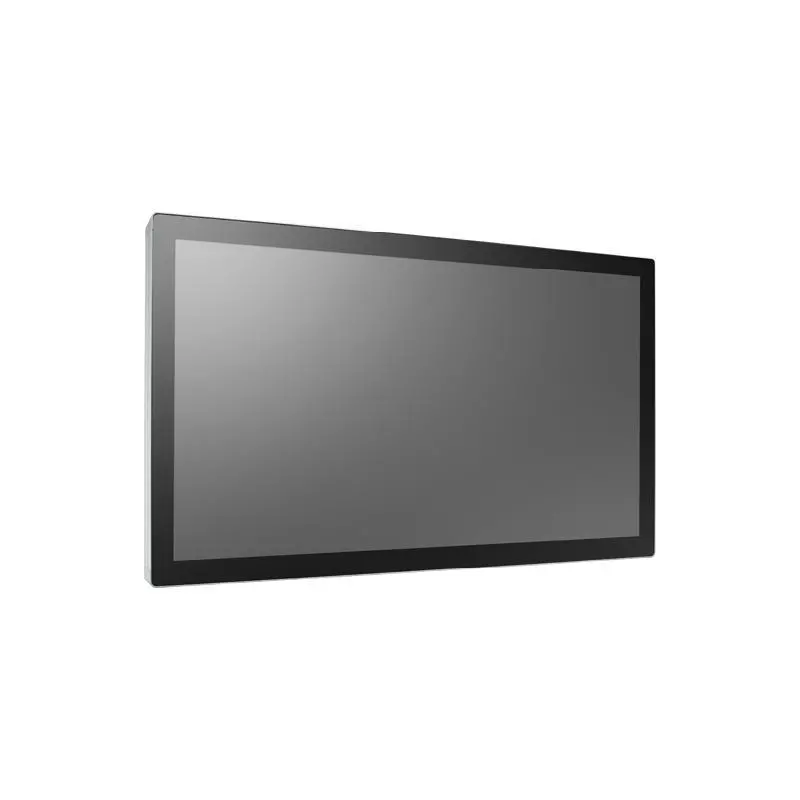

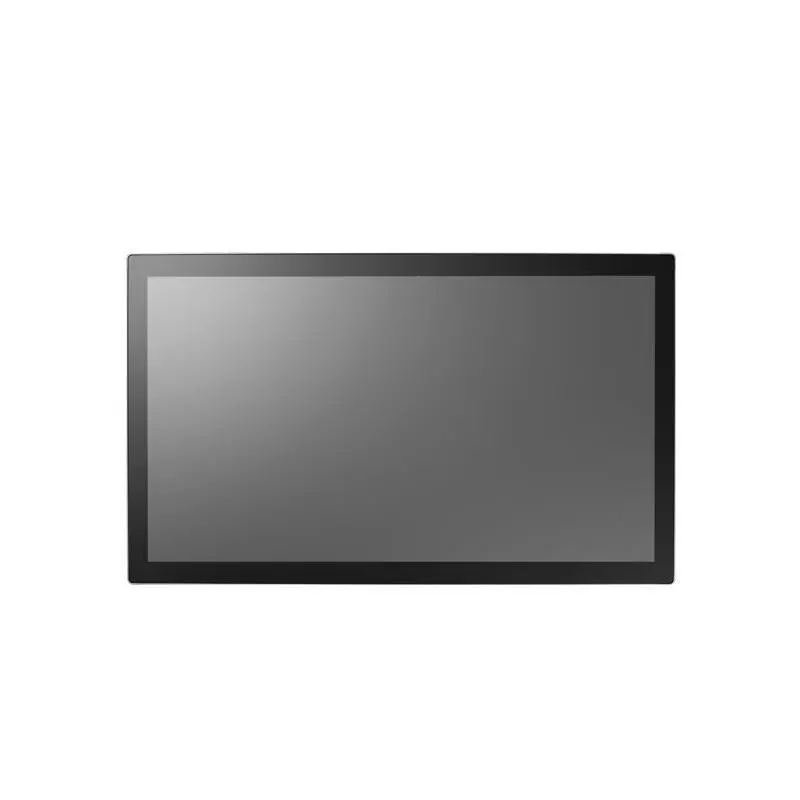

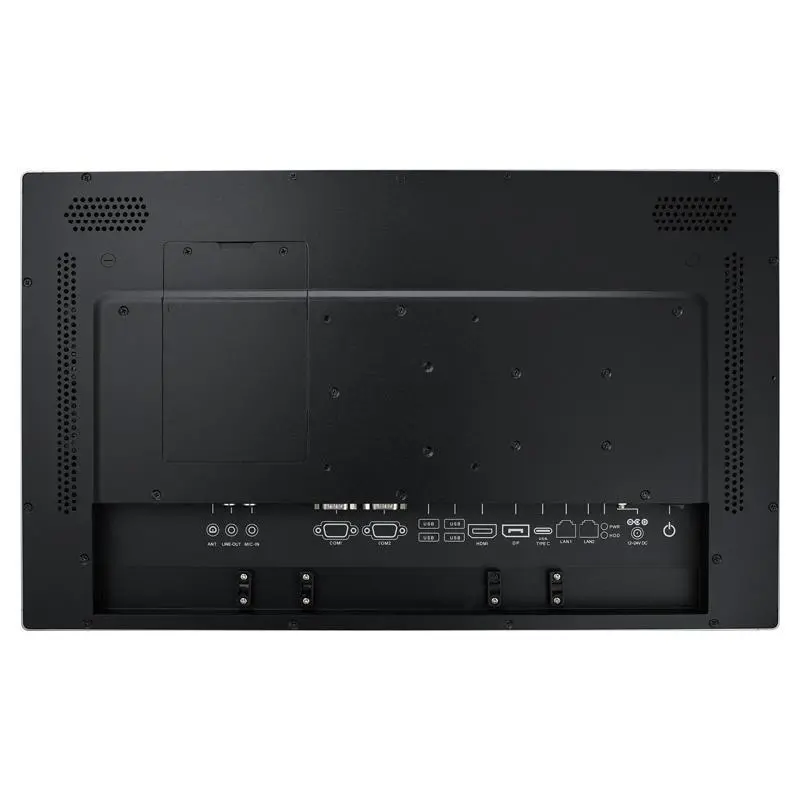

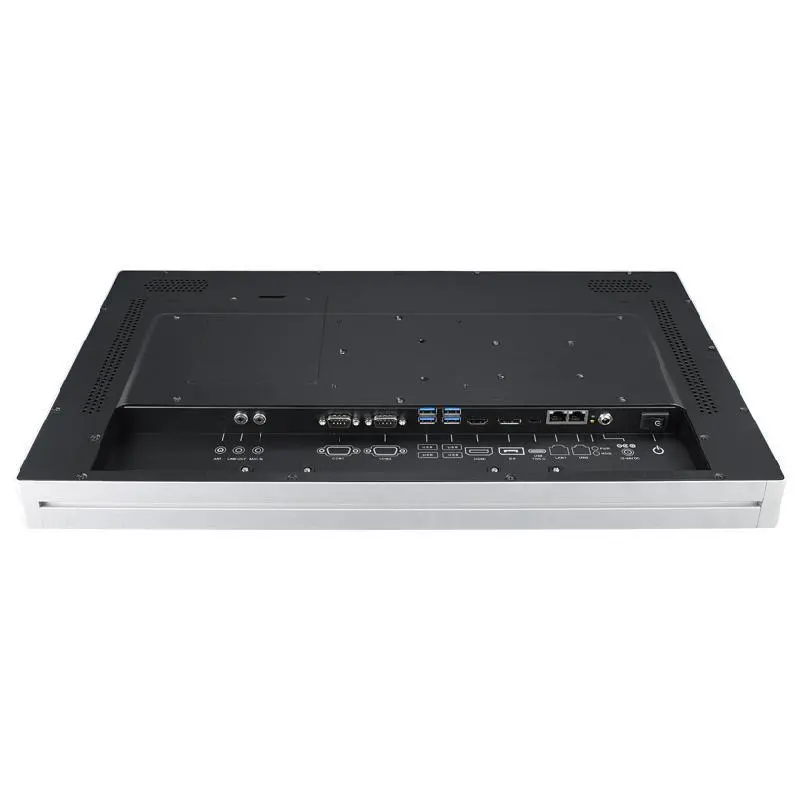

Advantech UTC-520I 21.5" Ubiquitous Touch Computer with 11th Gen Intel Core i7/i5/i3 Processor
