| UTC-520H-PE | UTC-520HP-ATB0E | UTC-520HR-ATB0E | ||
| Display | Size | 21.5" TFT LCD | 21.5" TFT LCD | 21.5" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Display | Brightness | 250 cd/m² (optional 400 nits) | 250 cd/m² (optional 400 nits) | 250 cd/m² (optional 400 nits) |
| Touch Screen | Type | Projected Capacitive / Anti-Glare Available | Projected Capacitive / Anti-Glare Available | Projected Capacitive / Anti-Glare Available |
| Processor System | CPU | Intel® Core™ i5-8365UE | Intel® Core™ i5-8365UE | Intel® Core™ i5-8365UE |
| Processor System | RAM | 8G DDR4 | 8G DDR4 | 8G DDR4 |
| Processor System | Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| Processor System | OS | Windows 10 IoT Enterprise, Linux Ubuntu 22.04 | Windows 10 IoT Enterprise, Linux Ubuntu 22.04 | Windows 10 IoT Enterprise, Linux Ubuntu 22.04 |
| I/O Interface | Serial Port | 2 x COM (RS-232) | 2 x COM (RS-232) | 2 x COM (RS-232) |
| I/O Interface | USB Port | 4 x USB 3.1 | 4 x USB 3.1 | 4 x USB 3.1 |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) |
| I/O Interface | Output | 1 x HDMI | 1 x HDMI | 1 x HDMI |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Speaker | 2 x 3W Speaker | 2 x 3W Speaker | 2 x 3W Speaker |
| I/O Interface | Extendable Slot | 1 x M.2 E-key 2230, 1 x M.2 B-key 2280 (NVMe PCIe x 4) / M.2 B-Key 3042 LTE module supports USB 2.0 only (optional) | 1 x M.2 E-key 2230, 1 x M.2 B-key 2280 (NVMe PCIe x 4) / M.2 B-Key 3042 LTE module supports USB 2.0 only (optional) | 1 x M.2 E-key 2230, 1 x M.2 B-key 2280 (NVMe PCIex2), 3042 LTE module (support USB2.0 only), optional M-key 2280 NVMe PCIex4 |
| Power | Input Rating | 12 V/7 A (84 W ITE Adapter) | 12 V/7 A (84 W ITE Adapter) | 12 V/7 A (84 W ITE Adapter) |
| Environment | System Protection | IP65 front panel | IP65 front panel | IP65 front panel |
| Environment | Operating Temperature | 0~40° C | 0~40° C | 0~40° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | Vibration | 0.5G | 0.5G | 0.5G |
| Environment | Shock | 5G peak acceleration (11 msec. duration) | 5G peak acceleration (11 msec. duration) | 5G peak acceleration (11 msec. duration) |

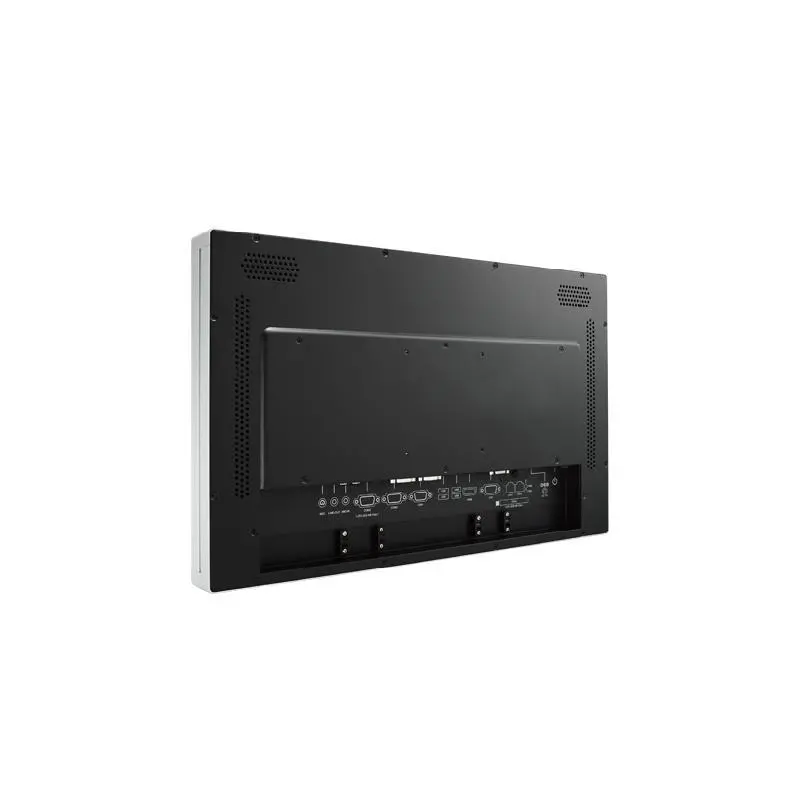

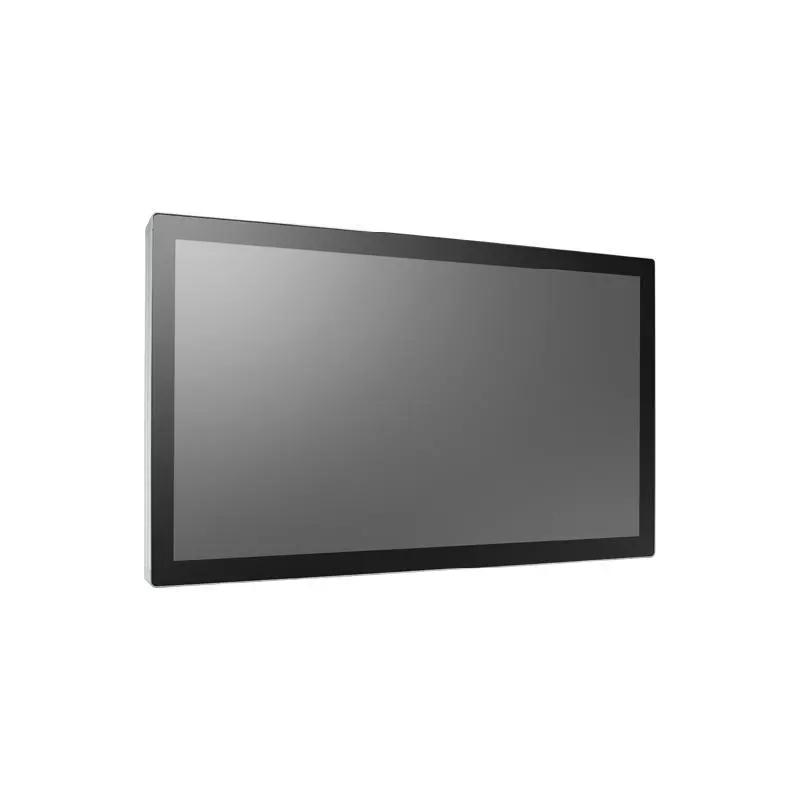

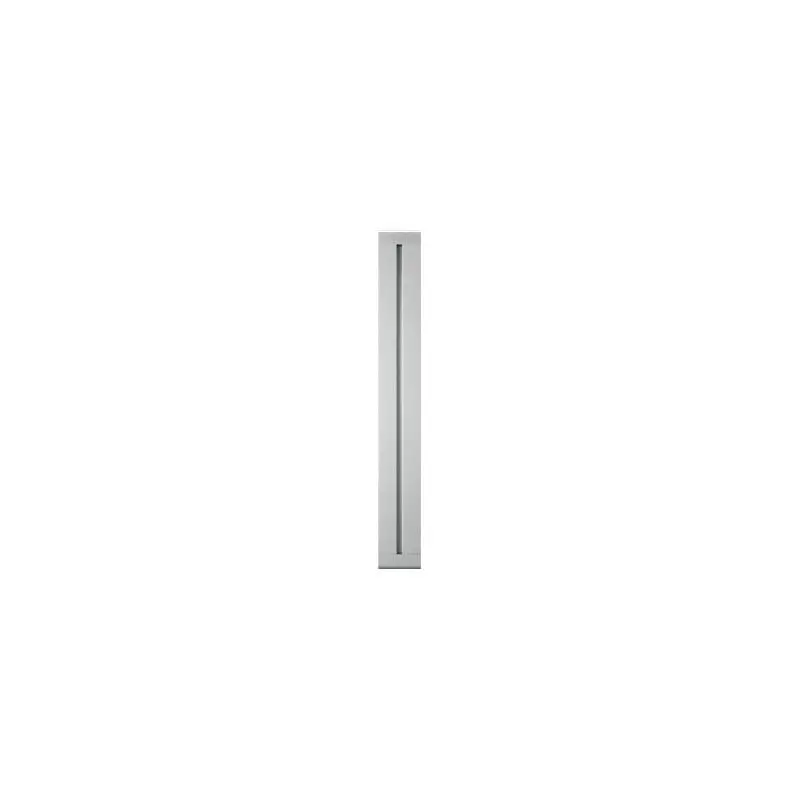

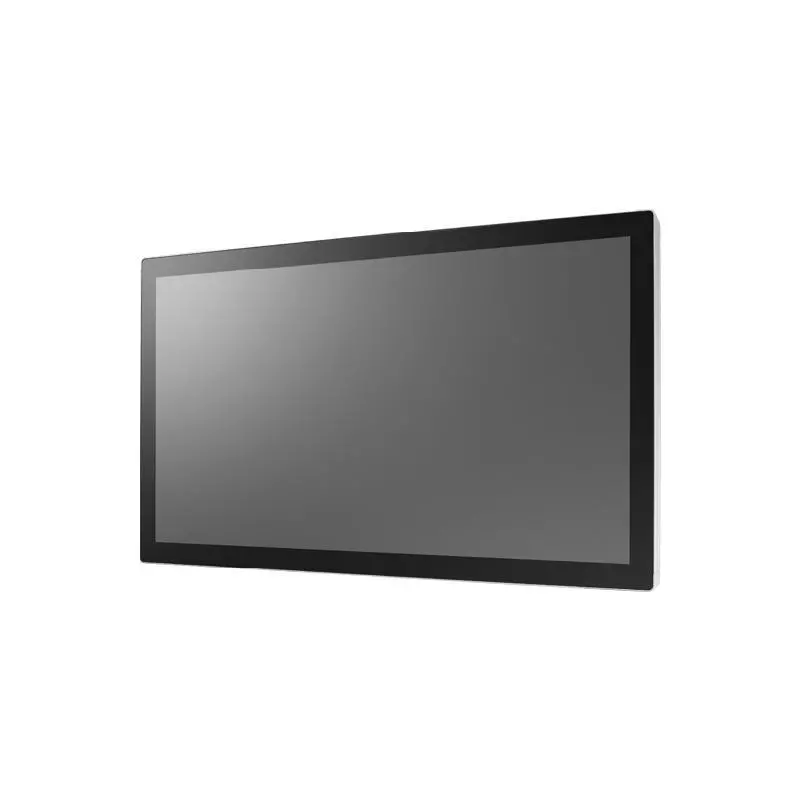

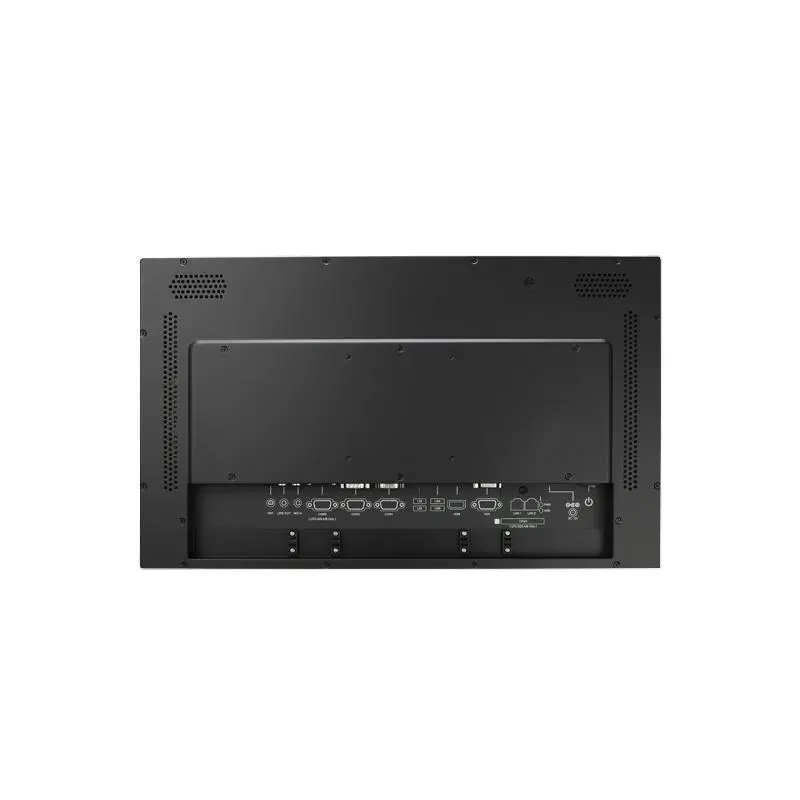

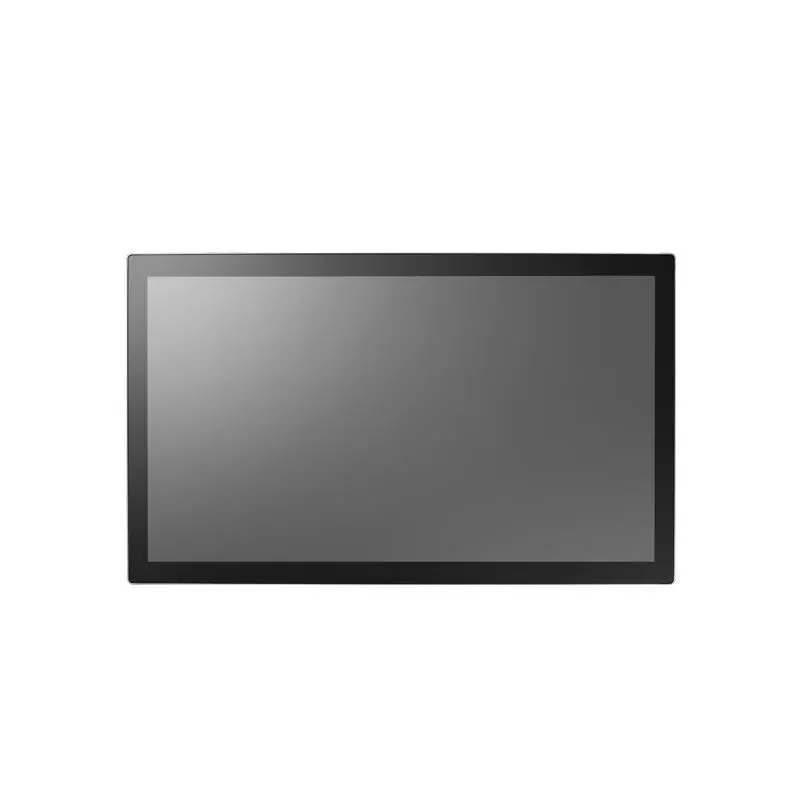

Advantech UTC-520H 21.5" Ubiquitous Touch Computer with 8th Gen Intel® Core™ i7/i5/i3 Processor
