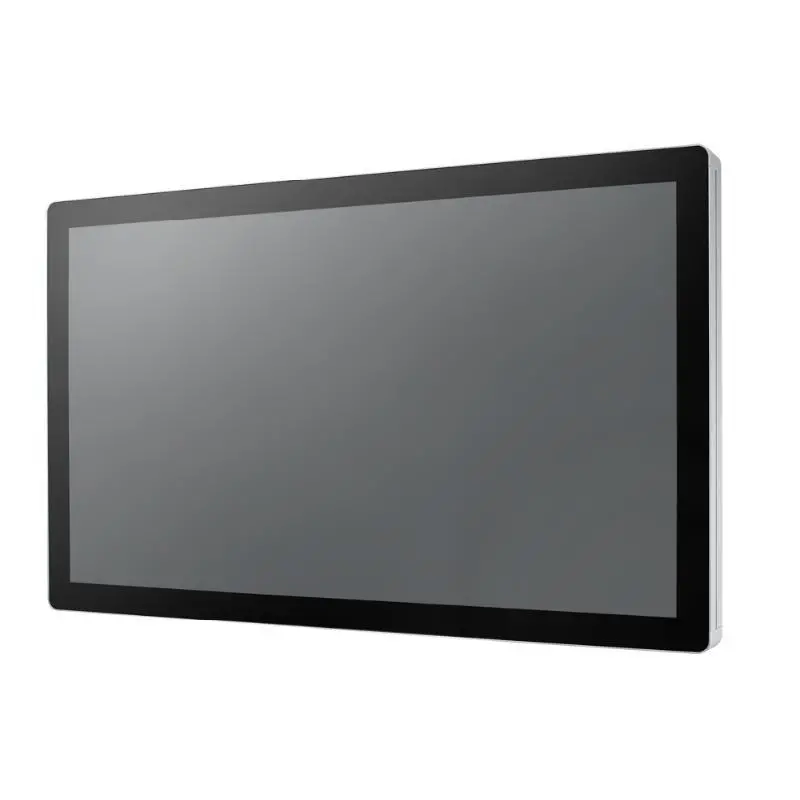

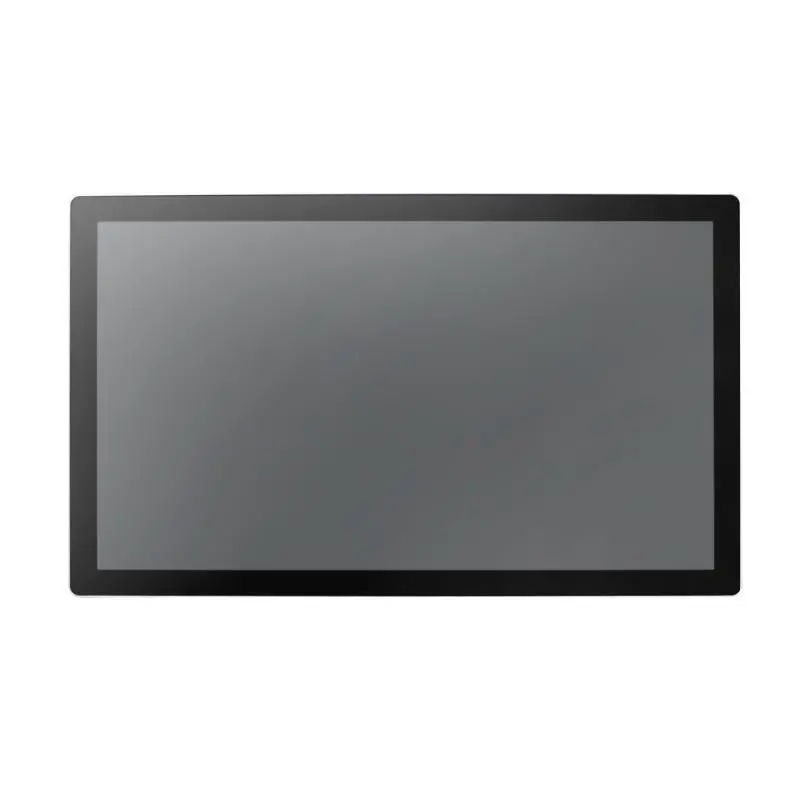

Advantech UTC-532G 31.5" Ubiquitous Touch Computer with Intel® Pentium® N4200

High performance and fanless system design

Built-in Intel Pentium N4200 processor

Built-in Intel® Core™ i5-6300U (UTC-532F)

31.5" monitor with 16:9 widescreen display

IP65-rated front panel for water and dust resistance

Aluminum frame with side groove design for flexible peripheral installation

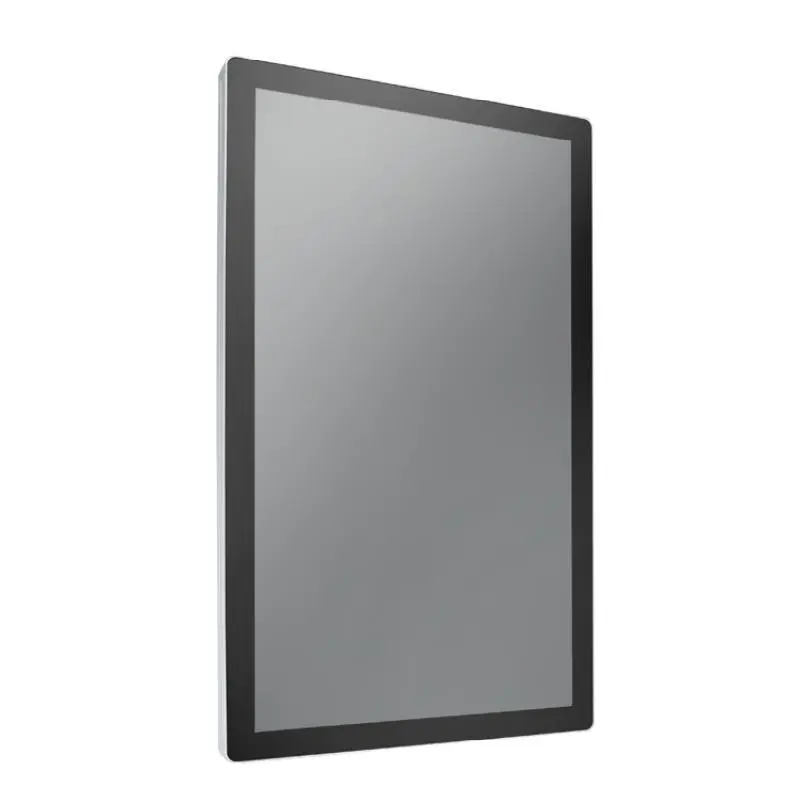

Supports both landscape and portrait screen orientations

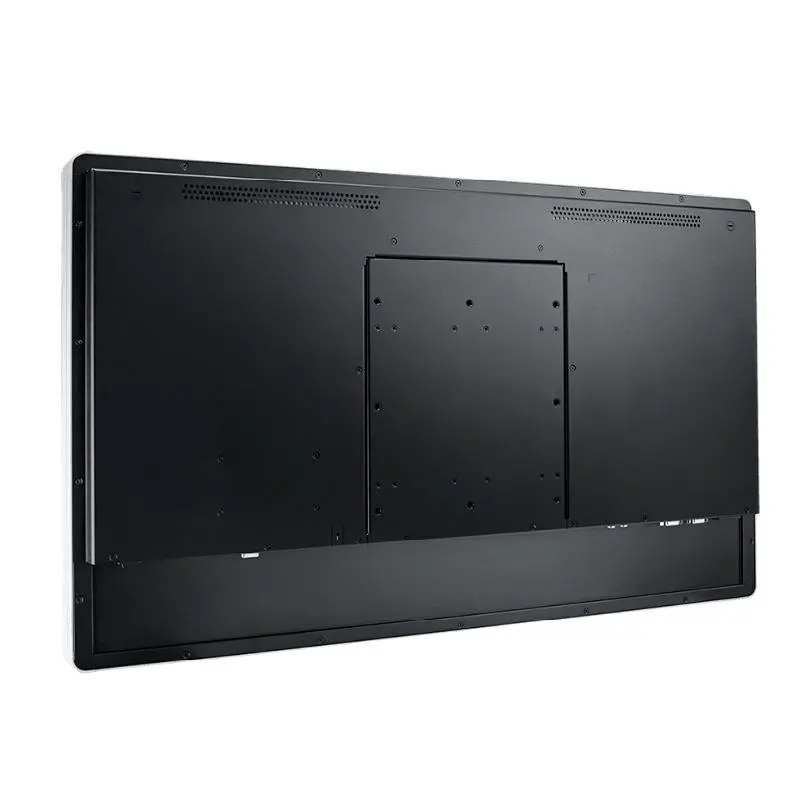

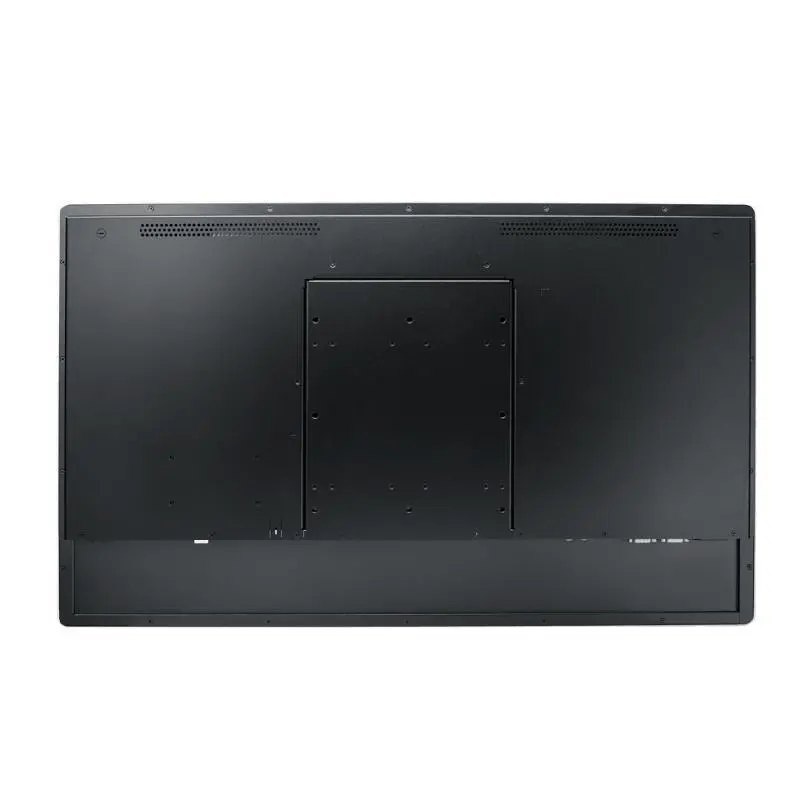

VESA 200 mm standard mounting holes for varied mounting demands

Support Advantech WISE-PaaS/RMM

		UTC-532GP-ATB0E
Display	Size	31.5" TFT LCD
Display	Max. Resolution	FHD (1920 x 1080)
Display	Brightness	300 cd/m²
Touch Screen	Type	Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel (No touch function)
Processor System	CPU	Intel® Pentium® N4200 (Default) / Intel® Atom® N3950 (Available)
Processor System	RAM	4GB DDR3L
Processor System	Storage	1 x 2.5 internal SATA HDD bay
Processor System	OS	Win 10 IoT Enterprise / Android 6.0 / Linux Ubuntu 17.04
I/O Interface	Serial Port	2 x COM (RS-232)
I/O Interface	USB Port	2 x USB2.0, 2 x USB3.0
I/O Interface	Ethernet	2 x Gigabit Ethernet (RJ-45)
I/O Interface	Output	1 x VGA port, 1 x HDMI port
I/O Interface	Audio	1 x Line-out, 1 x Mic-in
I/O Interface	Extendable Slot	Full-size Mini PCIe / M.2
Environment	Operating Temperature	0~40° C
Environment	Operating Humidity	10 ~ 95% @ 40°C non-condensing
Power	Input Rating	100-240VAC ~ 50/60Hz 2.5A
