| UTC-542GP-ATB0E | ||
| Display | Size | 42.5" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) |
| Display | Brightness | 450 cd/m² |
| Touch Screen | Type | Projected Capacitive |
| Processor System | CPU | Intel® Pentium® N4200 |
| Processor System | RAM | 4GB DDR3L |
| Processor System | Storage | Dual hot-swappable HDD/SSD slots with RAID 0,1 support |
| Processor System | OS | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 |
| I/O Interface | Serial Port | 1 x COM (RS-232) |
| I/O Interface | USB Port | 3 x USB 2.0, 2 x USB 3.0 |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45) |
| I/O Interface | Output | 1 x VGA port, 1 x HDMI port |
| I/O Interface | Speaker | 2 x 10W Speaker |
| I/O Interface | Extendable Slot | Full-size Mini PCIe / M.2 |
| Power | Input Rating | 100-240VAC ~ 50/60Hz 3.7A |
| Environment | System Protection | IP65 front panel |
| Environment | Operating Temperature | 0~40° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing |
| Environment | Vibration | 0.5G |
| Environment | Shock | 5G peak acceleration (11 msec. duration) |

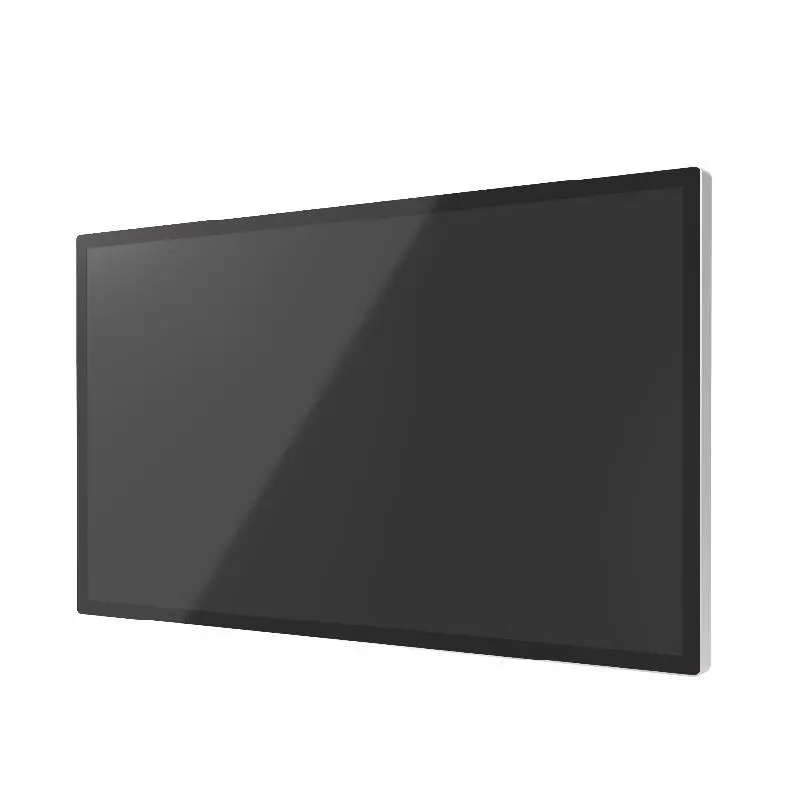

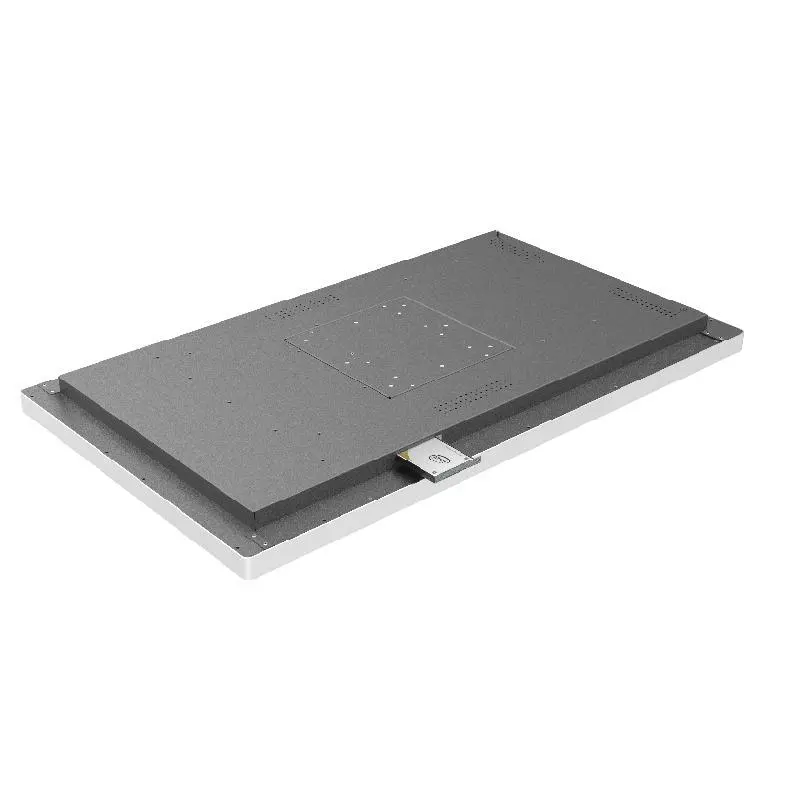

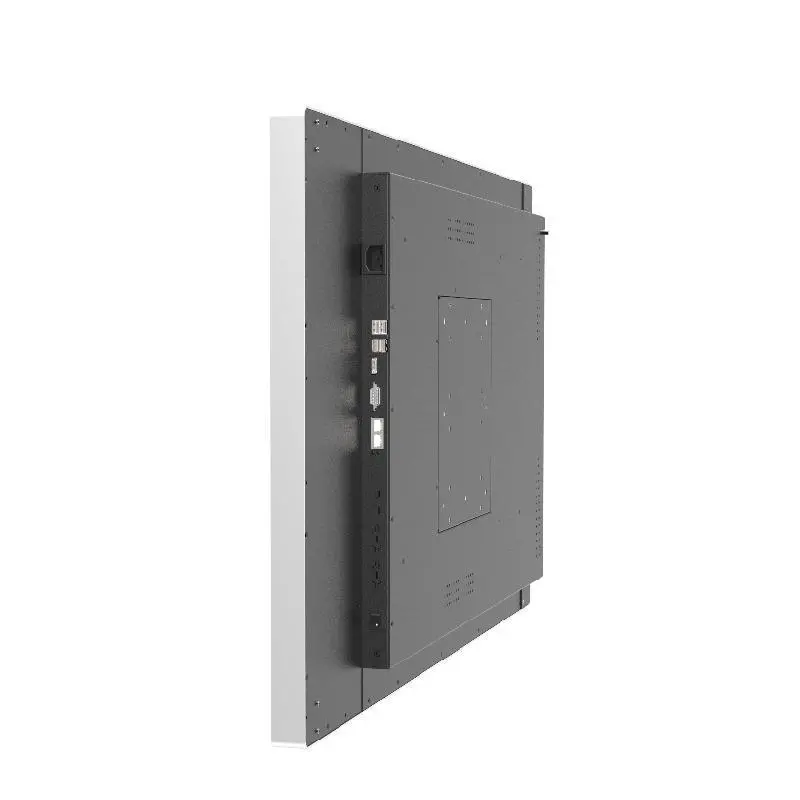

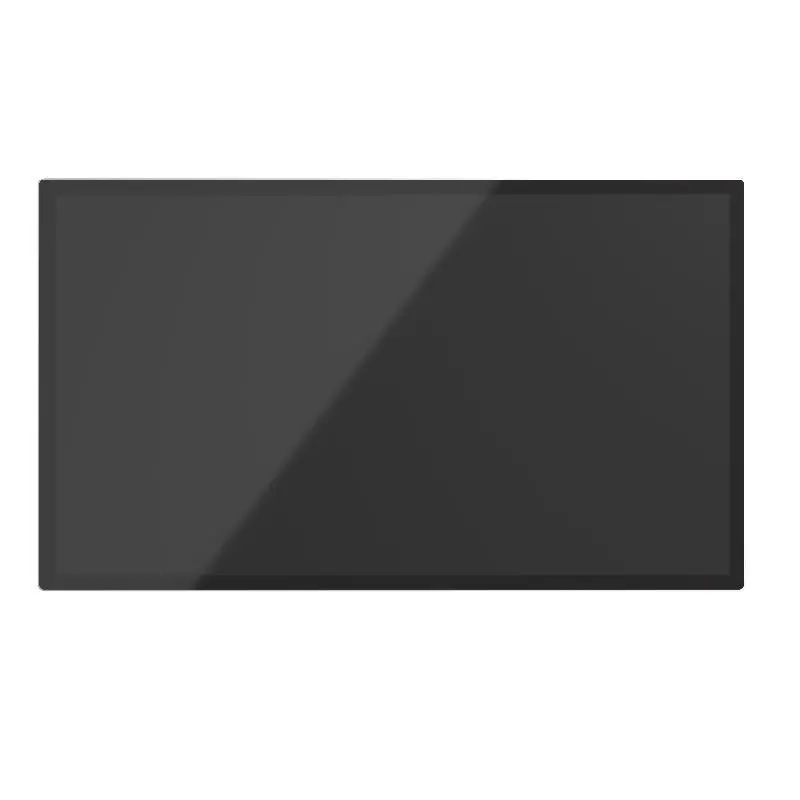

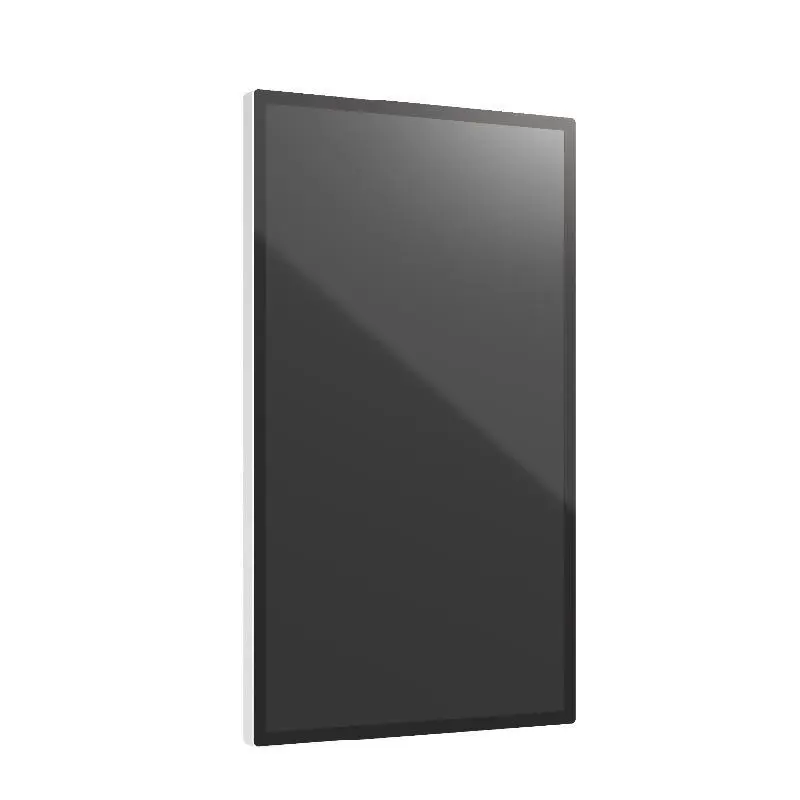

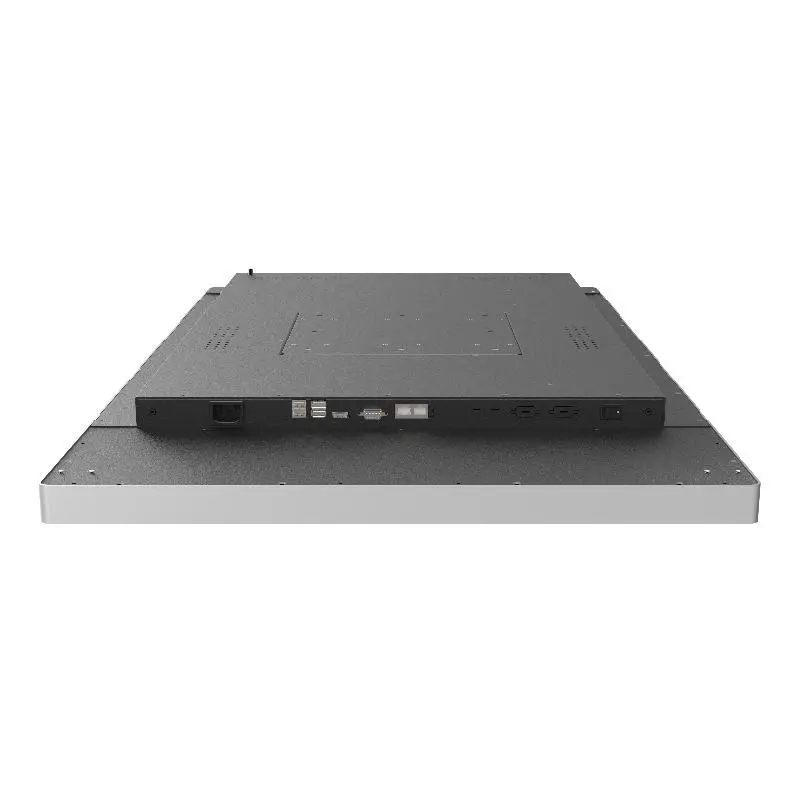

Advantech UTC-542G 42.5" Ubiquitous Touch Computer with Intel® Pentium® N4200
