| UTC-515JT-ATB0E | ||
| Display | Size | 15.6" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) |
| Display | Brightness | 500 nits(1000 nits optional) |
| Touch Screen | Type | Projected Capacitive. Glass Panel (7H Hardness) |
| Processor System | CPU | Intel® Celeron® J6412 |
| Processor System | RAM | 8G DDR4 |
| Processor System | OS | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 |
| Processor System | Storage | 128G SSD |
| I/O Interface | Serial Port | 2 x COM (RS-232) |
| I/O Interface | USB Port | 2 x USB 2.0/ 1 x USB 3.0 |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45, supports Wake on LAN, M12 waterproof connector) |
| I/O Interface | Speaker | 2 x 3W Speaker |
| I/O Interface | Extendable Slot | 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module1x M-Key support SATA M.2 2242 module |
| Power | Input Rating | 24V/ 5A (120W ITE Adapter) |
| Environment | System Protection | IP66/69K full system |
| Environment | Operating Temperature | -10 ~ 50 °C |
| Environment | Operating Humidity | 95% @ 40 °C/104 °F, non-condensing |
| Environment | Vibration | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD |
| Environment | Shock | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 |

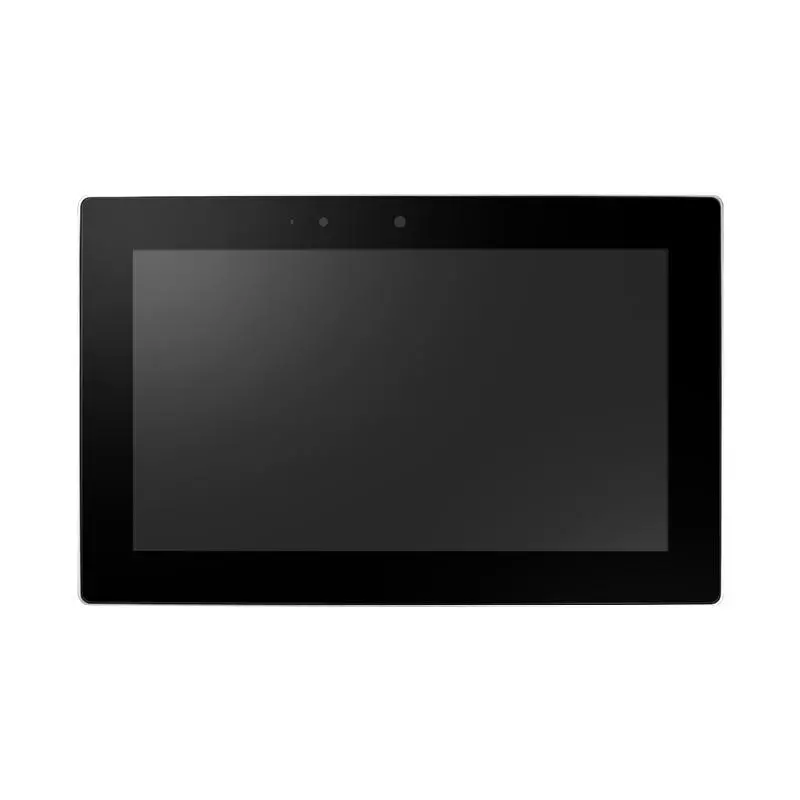

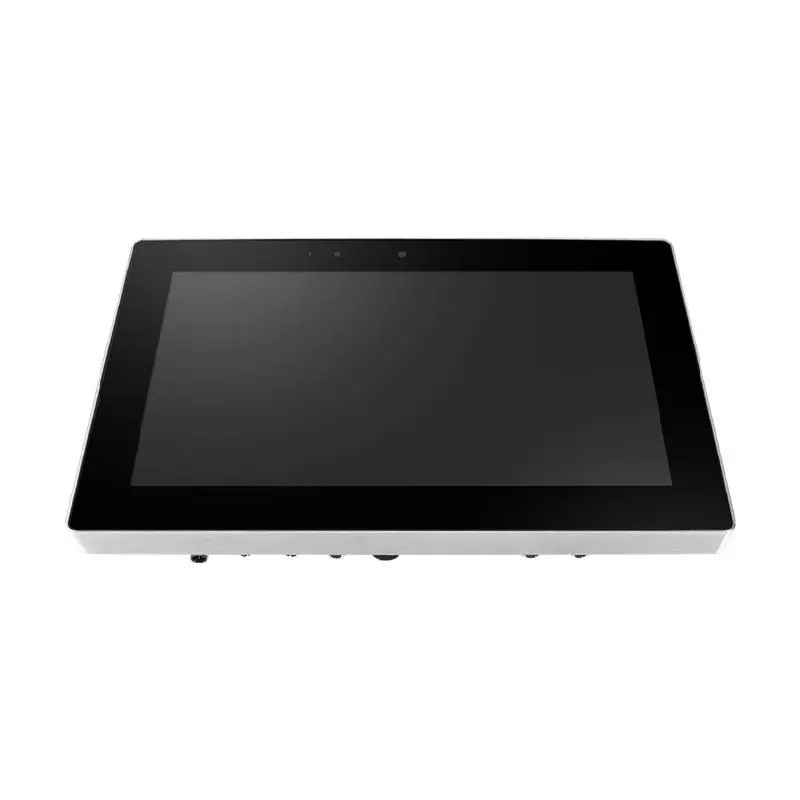

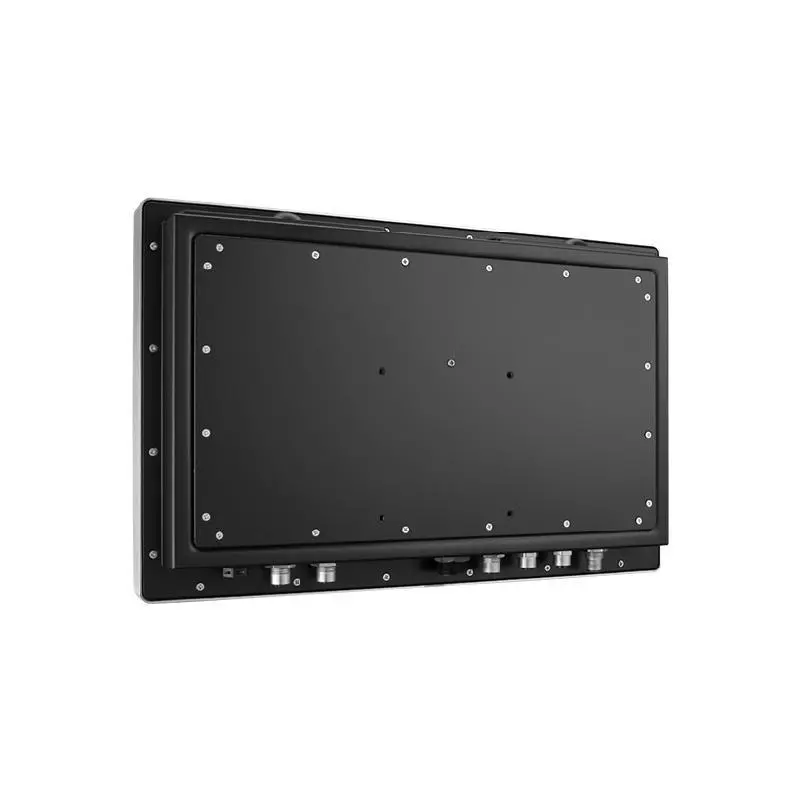

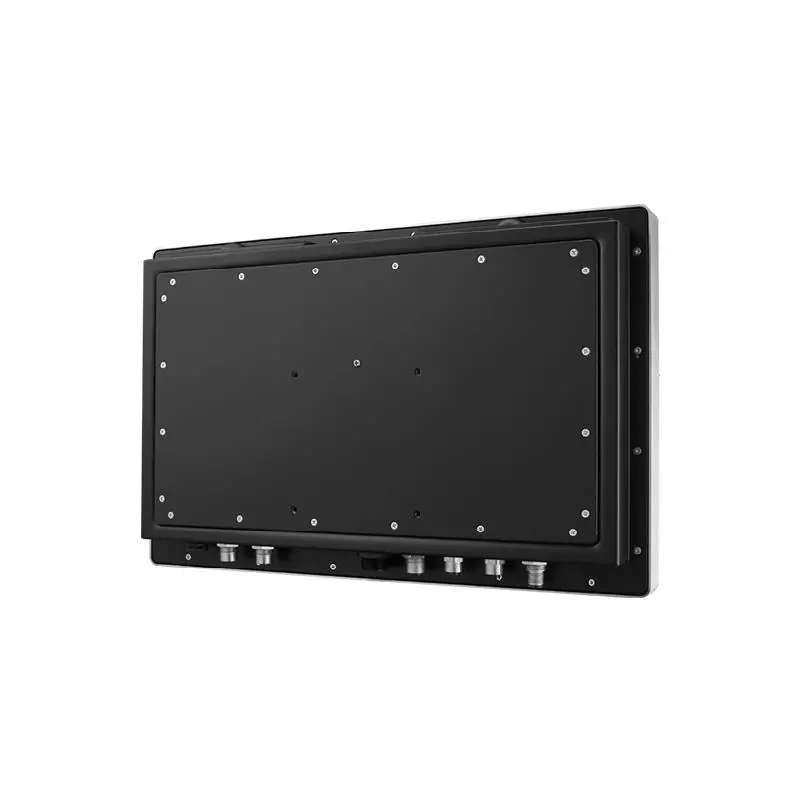

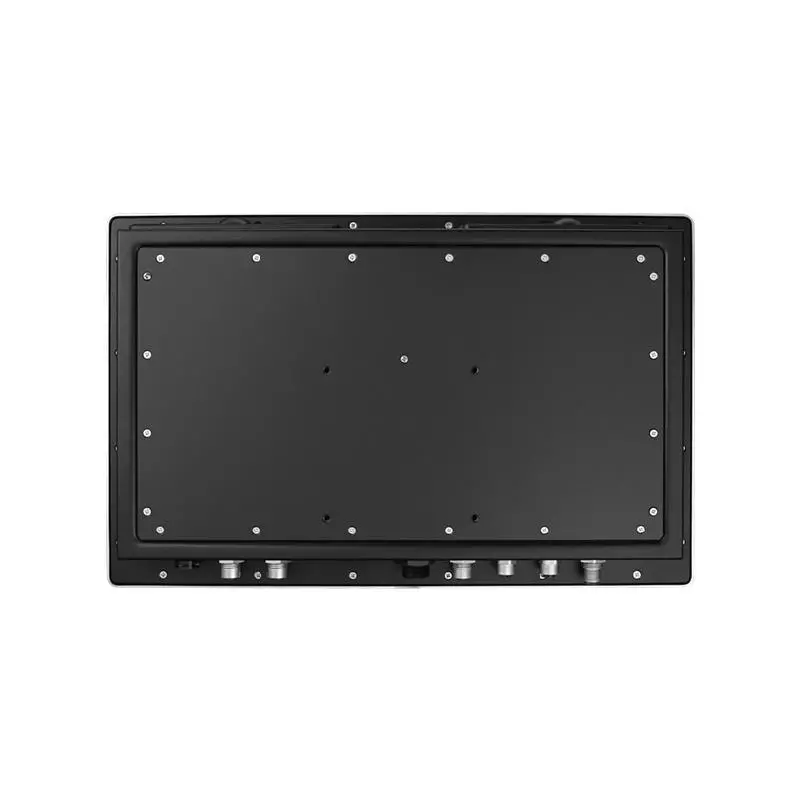

Advantech UTC-515JT 15.6" Ubiquitous Touch Computer (IP66&69K) with Intel® Celeron® J6412
