| UTC-515IT-ATB0E | ||
| Display | Size | 15.6" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) |
| Display | Brightness | 500 nits(1000 nits optional) |
| Display | Camera | Optional |
| Display | Light Sensor | Optional light sensor w/ LED indicator |
| Touch Screen | Type | Projected Capacitive |
| Touch Screen | Cover Glass Surface Treatment | Optional (AR / AG / Vandal Proof) |
| Processor System | CPU | Intel® Core™ i5-1145G7E |
| Processor System | RAM | 8G DDR4 |
| Processor System | Storage | 128G SSD |
| Processor System | OS | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 |

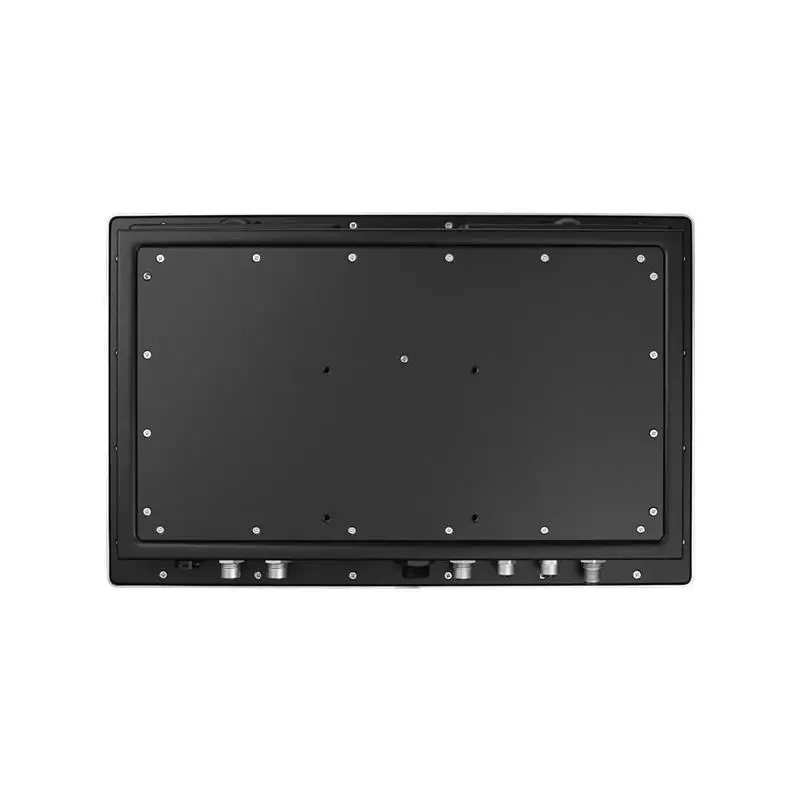

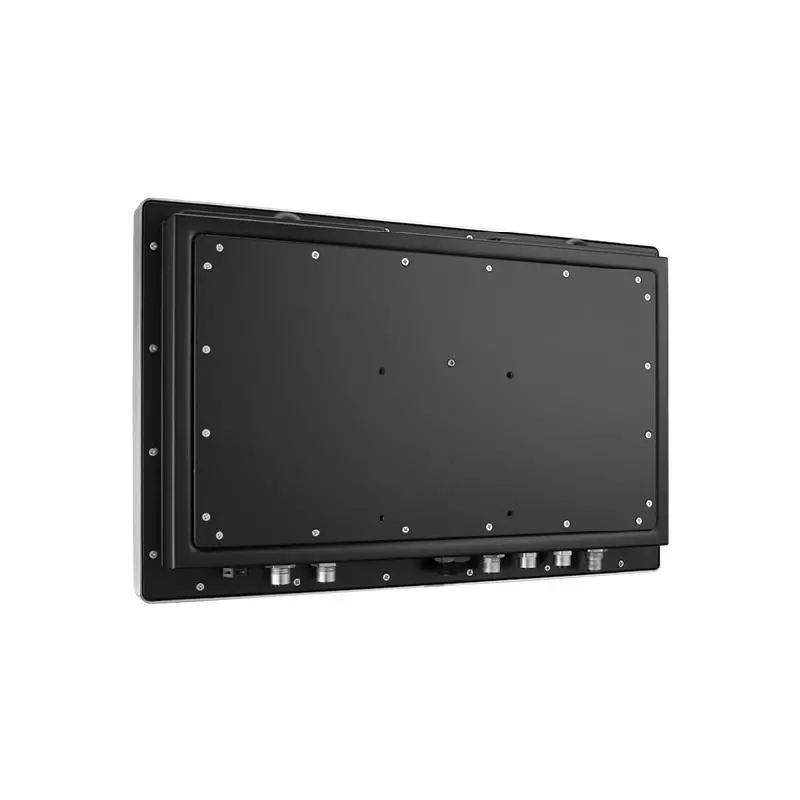

| Process System | Mounting | VESA 100 x 100 mm |

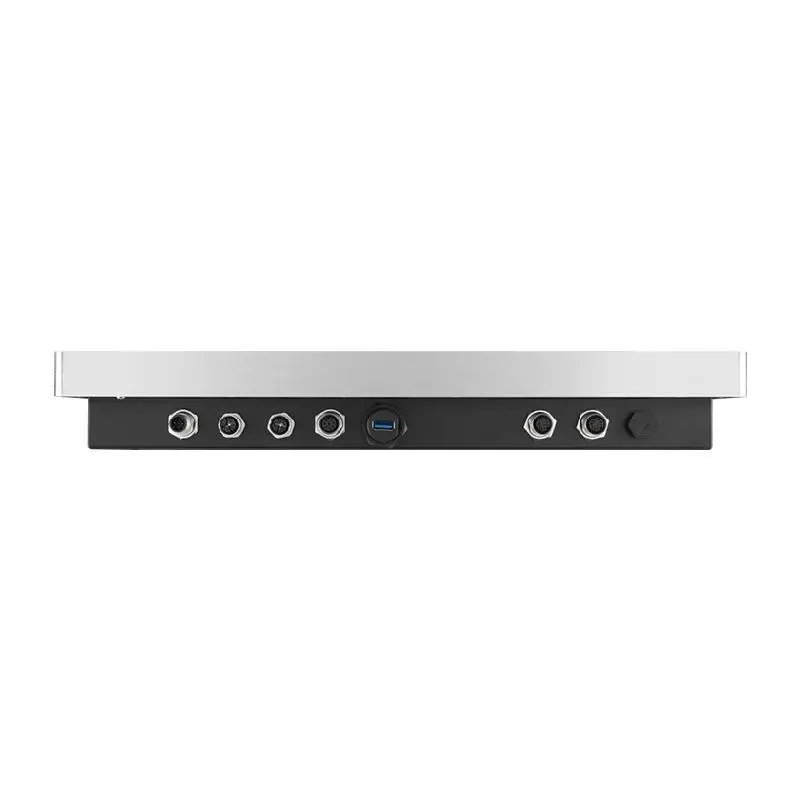

| I/O Interface | Serial Port | 2 x COM (RS-232) |
| I/O Interface | USB Port | 2 x USB 2.0/ 1 x USB 3.0 |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45, supports Wake on LAN, M12 waterproof connector) |
| I/O Interface | Speaker | 2 x 3W Speaker |
| I/O Interface | Extendable Slot | 1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x M.2 M-Key 2280 (optional SATA) |
| Environment | System Protection | IP66/69K full system |
| Environment | Vibration | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD |
| Environment | Operating Temperature | -10 ~ 50 °C |
| Environment | Shock | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing |
| Environment | Certification | CE, FCC, UL, CB, CCC |
| Power | Input Rating | 24V/ 5A (120W ITE Adapter) |

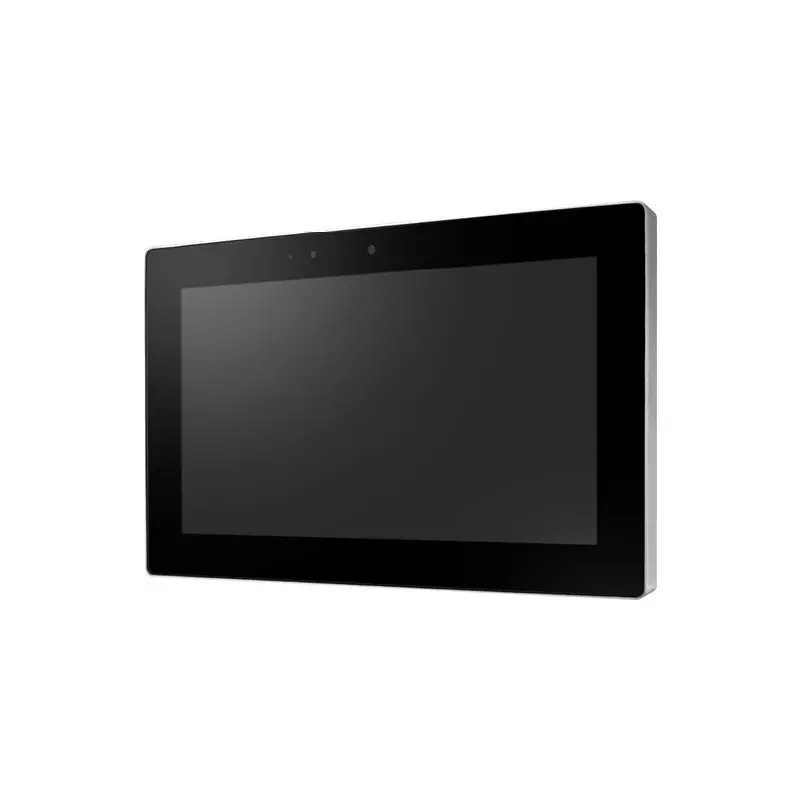

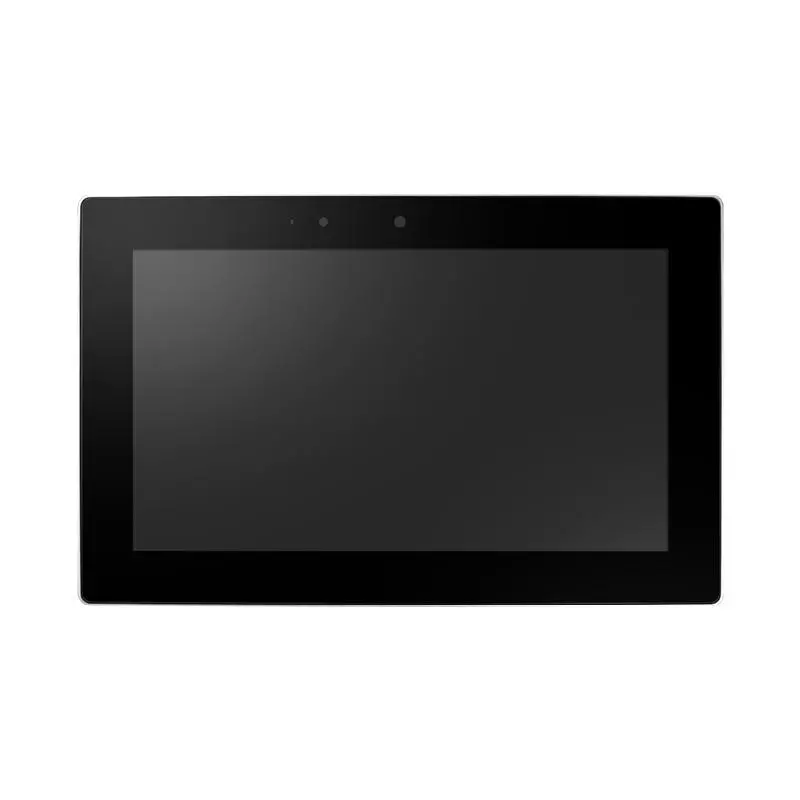

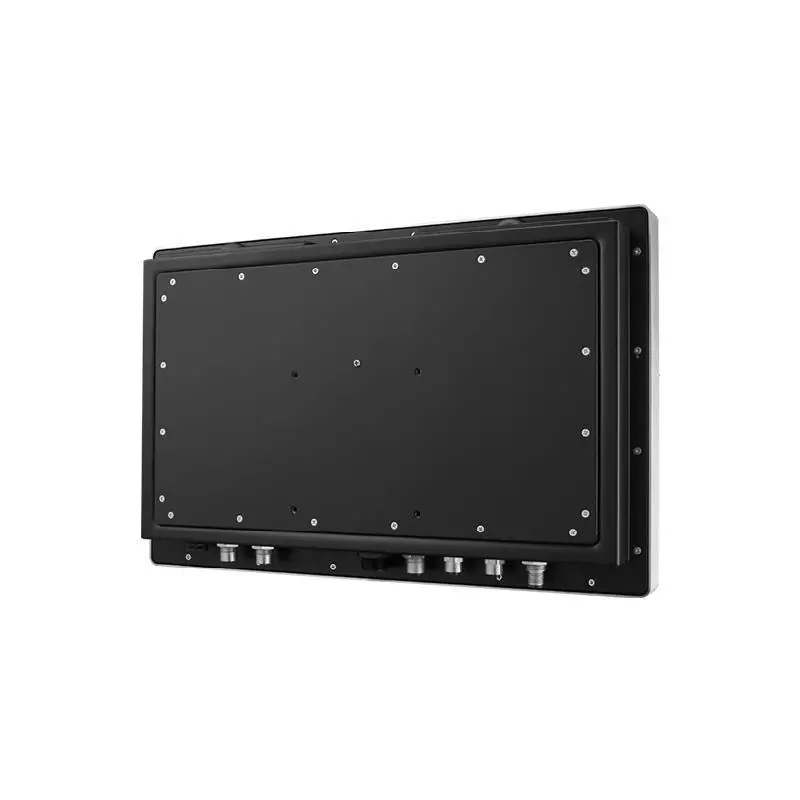

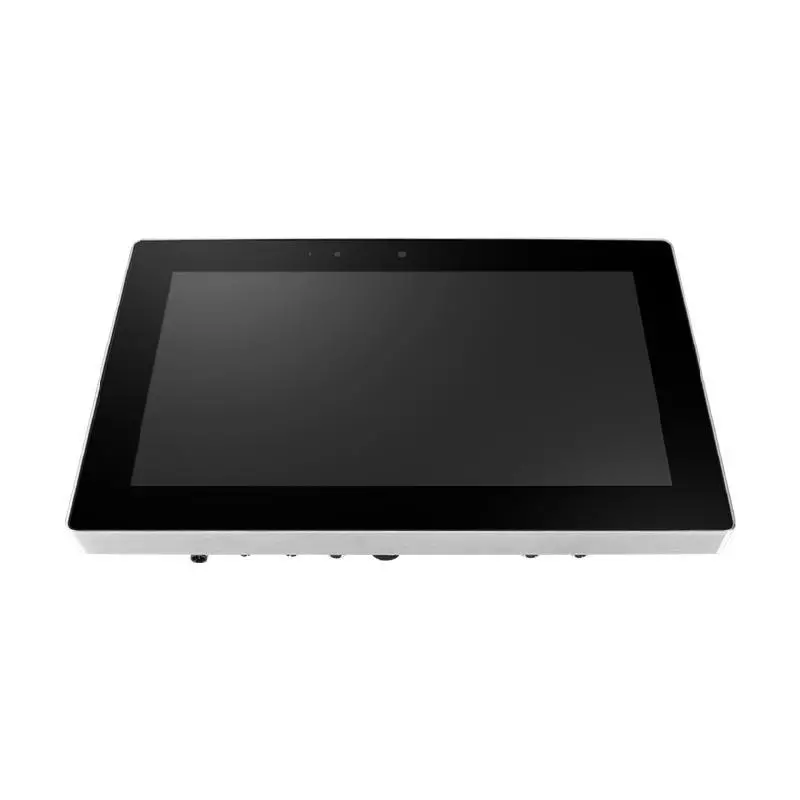

Advantech UTC-515IT 15.6" Ubiquitous Touch Computer (IP66/69K) with Intel® Core™ i5-1145G7E
