| UTC-520IT-ATB0E | ||
| Display | Size | 21.5" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) |
| Display | Brightness | 250 cd/m² (optional 500/1200 nits) |
| Touch Screen | Type | Projected Capacitive. Glass Panel (7H Hardness) |
| Touch Screen | Cover Glass Surface Treatment | Optional (AR / AG / Vandal Proof) |
| Display | Camera | Optional built-in camera |
| Display | Light Sensor | Optional light sensor w/ LED indicator |
| Processor System | CPU | Intel® Core™ i5-1145G7E |
| Processor System | RAM | 8G DDR4 |
| Processor System | Storage | 128G SSD |
| Processor System | OS | Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04 |
| I/O Interface | Serial Port | 2 x COM (RS-232, M12 waterproof connector) |
| I/O Interface | USB Port | 2 x USB 2.0 (M12 waterproof connector),1 x USB 3.0 (M12 waterproof connector) |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (RJ-45, supports Wake on LAN, M12 waterproof connector) |
| I/O Interface | Extendable Slot | 1 x M.2 E-Key 2230 (PCIe x 1, USB2.0, I2C), 1 x M.2 B-Key 3042 (USB2.0) w/ Nano-SIM, 1 x M.2 M-Key 2280 (PCIe x4 Gen.4 for PCIe SSD), optional SATA |
| Power | Input Rating | 24V/ 5A (120W ITE Adapter) |
| Environment | Operating Temperature | -10 ~ 50 °C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing |
| Environment | System Protection | IP66/69K full system |
| Environment | Vibration | 0.5G |
| Environment | Shock | 5G peak acceleration (11 msec. duration) |

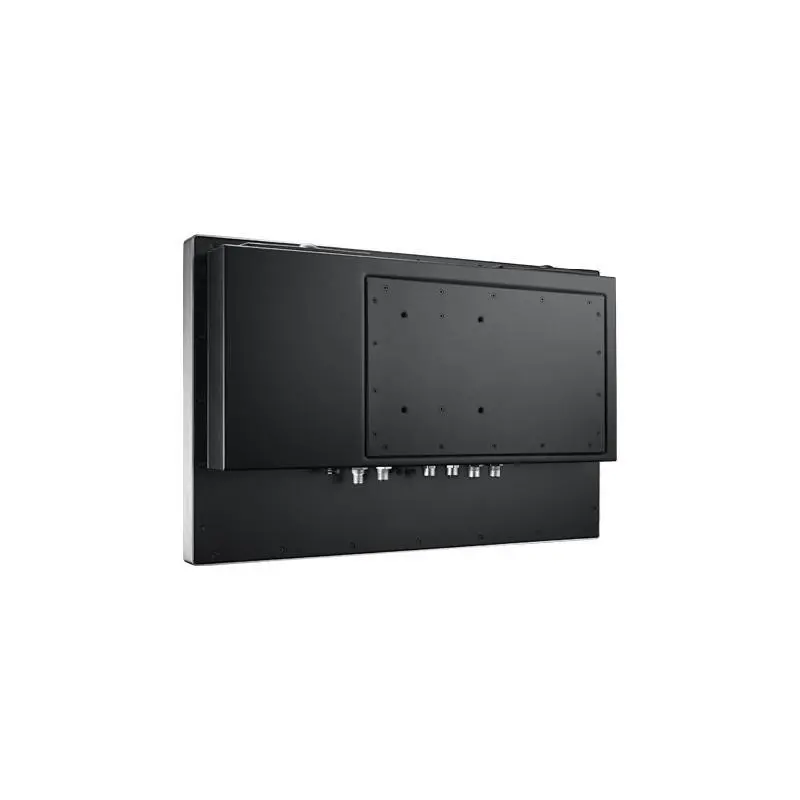

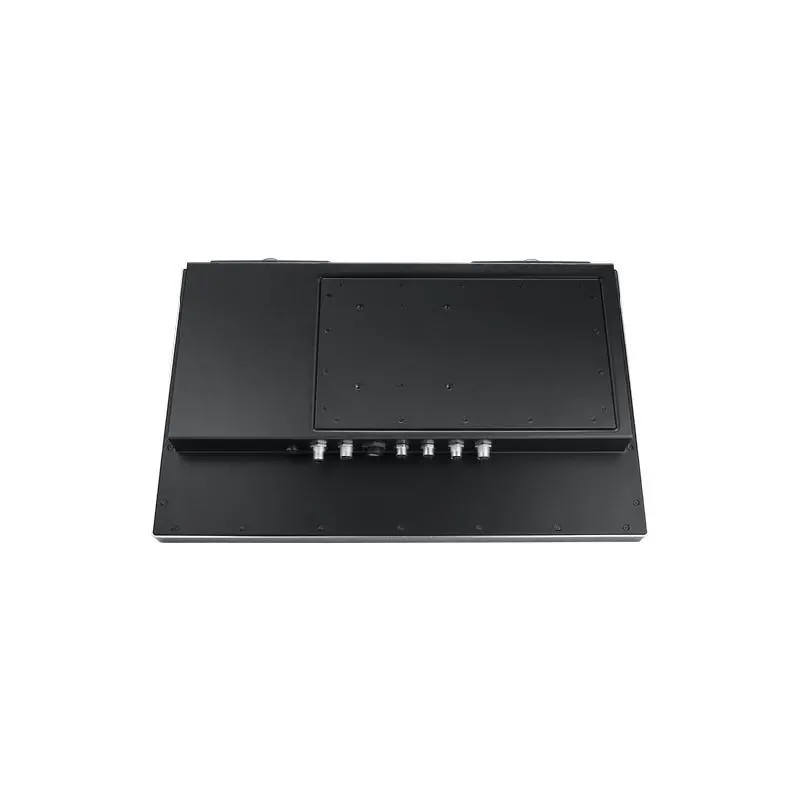

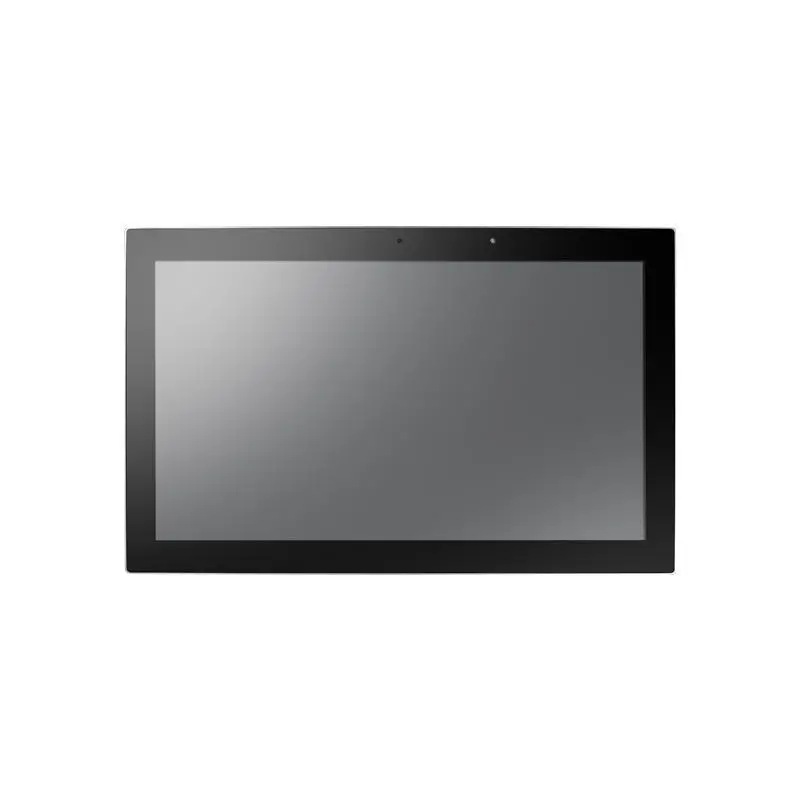

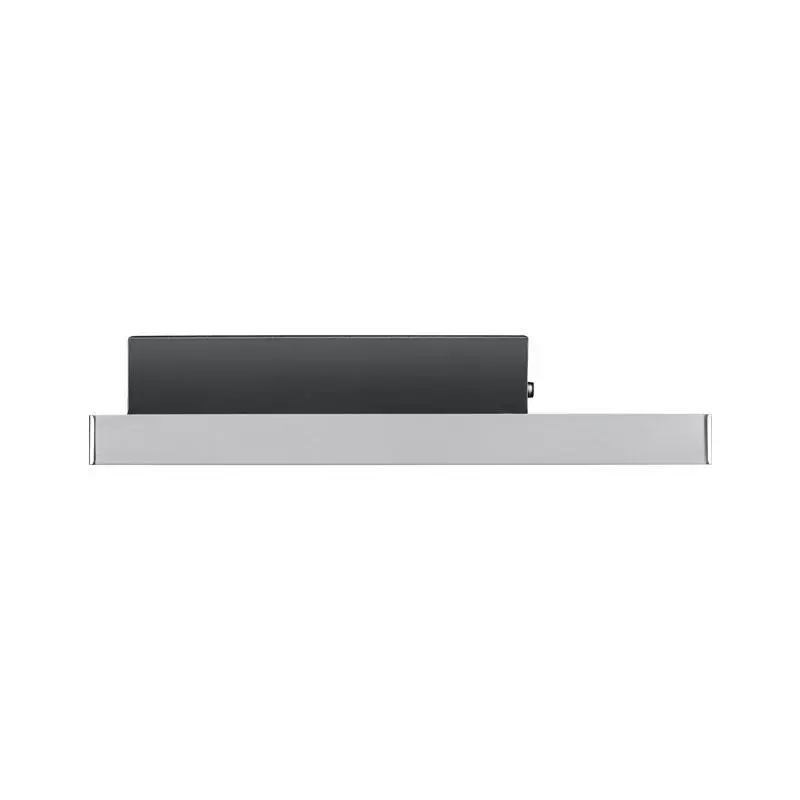

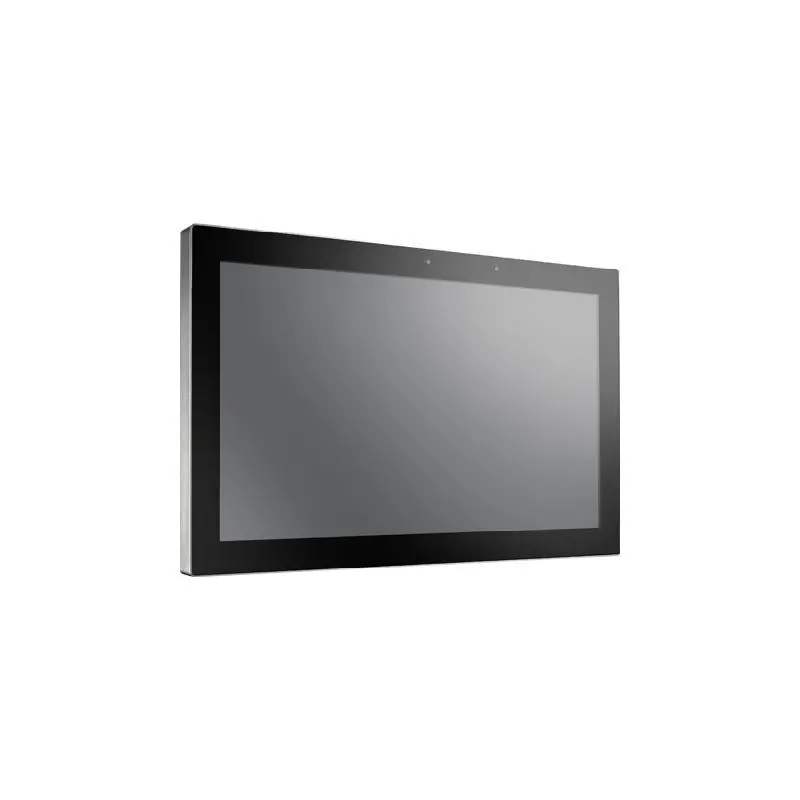

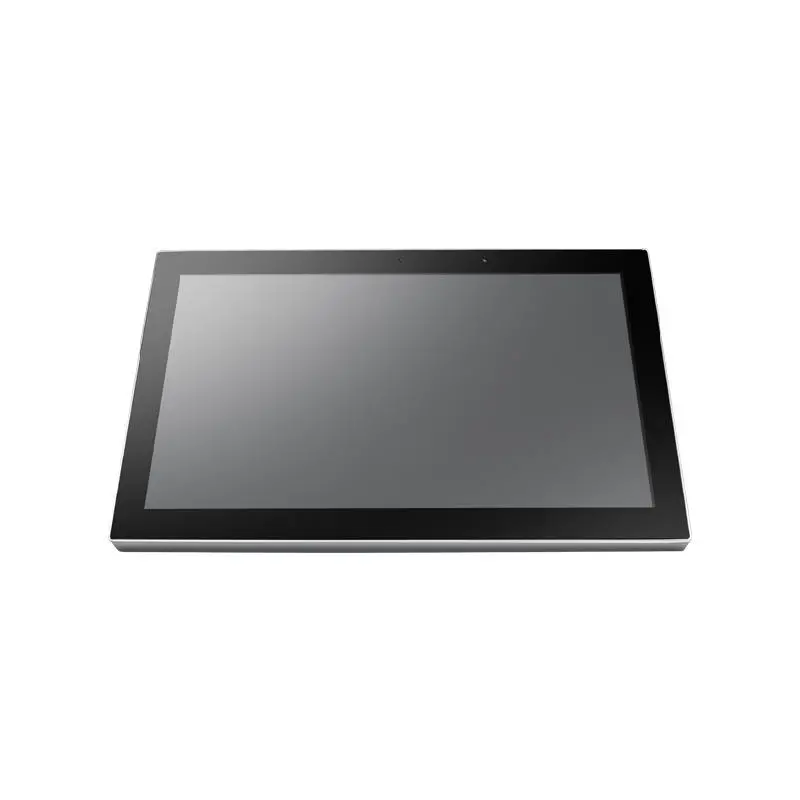

Advantech UTC-520IT 21.5" Ubiquitous Touch Computer (IP66&69K) with Intel® Core™ i5-1145G7E
