| UTC-210GP-ATO2E | UTC-210GP-ATO1E | ||
| Display | Size | 10.1" TFT LCD | 10.1" TFT LCD |
| Display | Max. Resolution | WXGA (1280 X 800) | WXGA (1280 X 800) |
| Display | Brightness | 350 cd/m² | 350 cd/m² |
| Touch Screen | Type | Projected Capacitive / Glass panel (by required) | Projected Capacitive / Glass panel (by required) |
| Processor System | CPU | Intel® Celeron® N3350 1.10GHz | Intel® Pentium® N4200 |
| Processor System | RAM | 2G DDR3L installed | 2G DDR3L installed |
| Processor System | Storage | 1 x M.2 2242 SSD | 1 x M.2 2242 SSD |
| I/O Interface | Serial Port | 2 x COM (RS-232) | 2 x COM (RS-232) |
| I/O Interface | USB Port | 2 x USB3.0, 2 x USB3.0 (optional) | 2 x USB3.0, 2 x USB3.0 (optional) |
| I/O Interface | Ethernet | 2 x Gigabit Ethernet (1 with PoE) | 2 x Gigabit Ethernet (1 with PoE) |
| I/O Interface | Speaker | 1 x 2W Speaker | 1 x 2W Speaker |
| I/O Interface | Extendable Slot | 1 x M.2 key2230, 1 x M.2 key2242 | 1 x M.2 key2230, 1 x M.2 key2242 |
| Environment | Operating Temperature | 0~45° C | 0~45° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Environment | System Protection | IP65 front panel | IP65 front panel |
| Environment | Vibration | 0.5G | 0.5G |
| Environment | Shock | 5G peak acceleration (11 msec. duration) | 5G peak acceleration (11 msec. duration) |
| Power | Input Rating | 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) | 12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) |

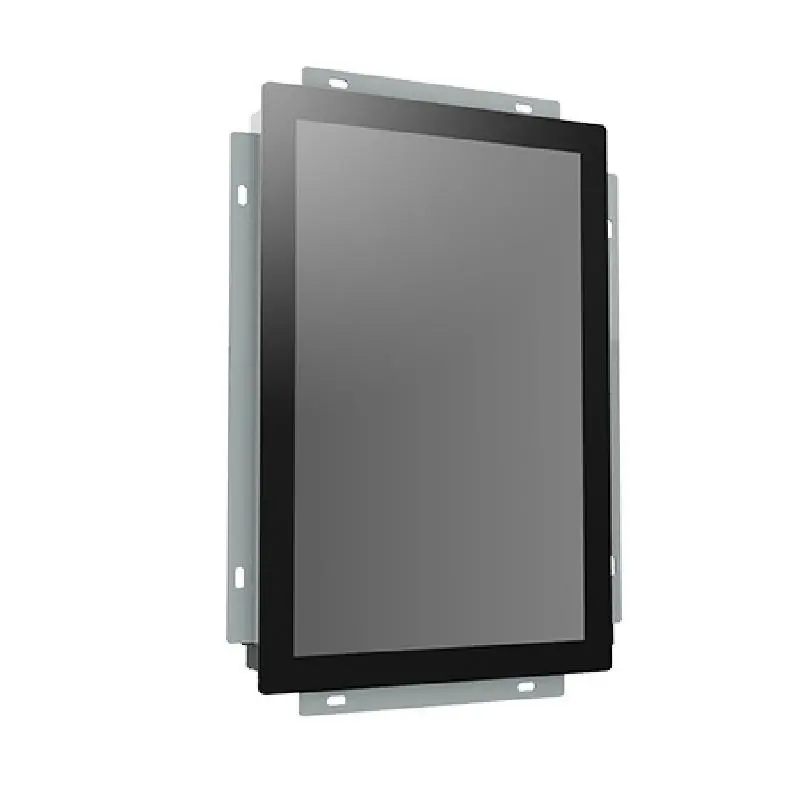

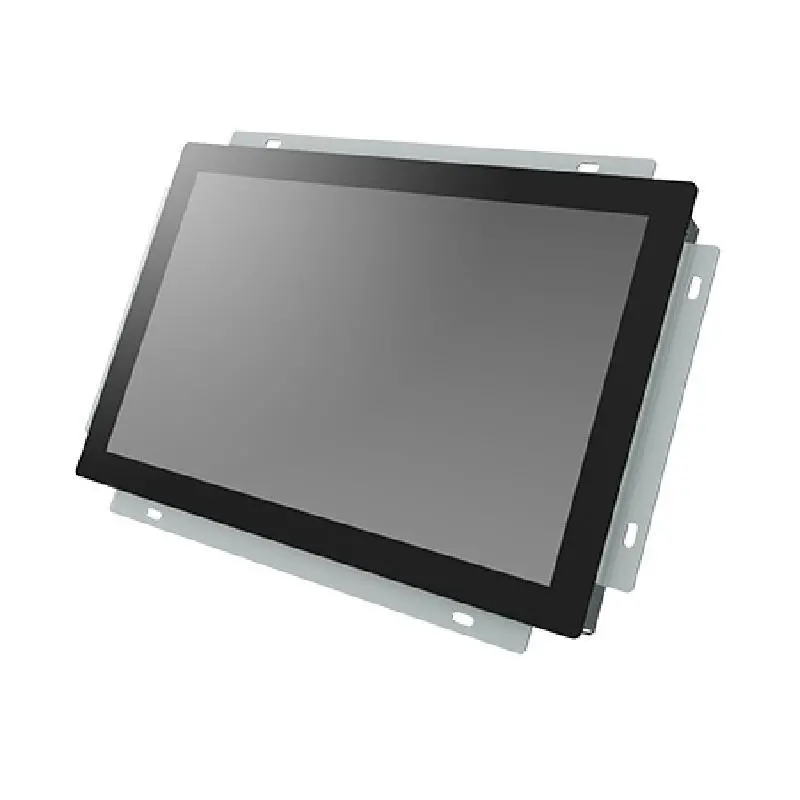

Advantech UTC-210G 10.1" Open Frame Panel PC with Intel® Celeron® N3350 /Pentium® N4200
